Remove/install underbody paneling - AR61.30-P-1001RK

MODEL 231

Shown on left side of vehicle

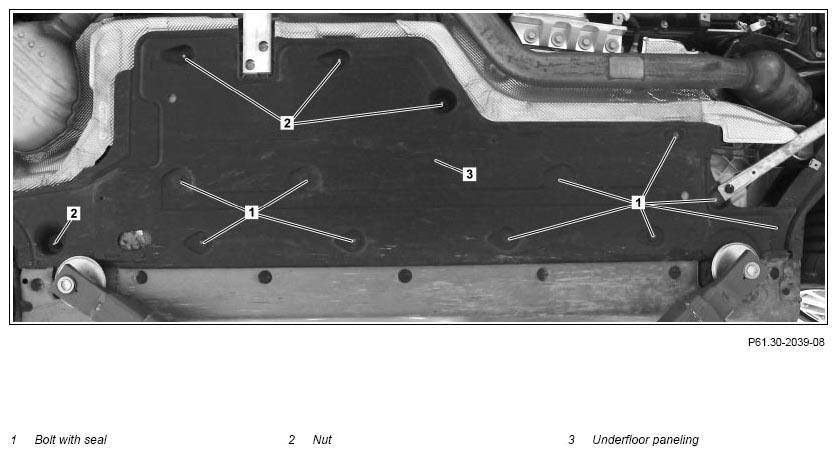

Fig 1: Underbody Paneling Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle		AR00.60-P-1000TX
		Adapter kit	Fig 2
2	Unscrew bolts with seal (1) and unscrew nuts (2)	Ensure that seals are seated correctly and in good condition. Otherwise humidity can penetrate into the vehicle.
3	Remove underfloor paneling (3)
4	Install in the reverse order

Fig 2: Identifying Adapter Kit (203 589 02 31 00)

Courtesy of MERCEDES-BENZ USA
