Remove/install Night View Assist control unit - AR54.30-P-3000LF
MODEL 217, 222, 231 with CODE 610 (Night view assist)

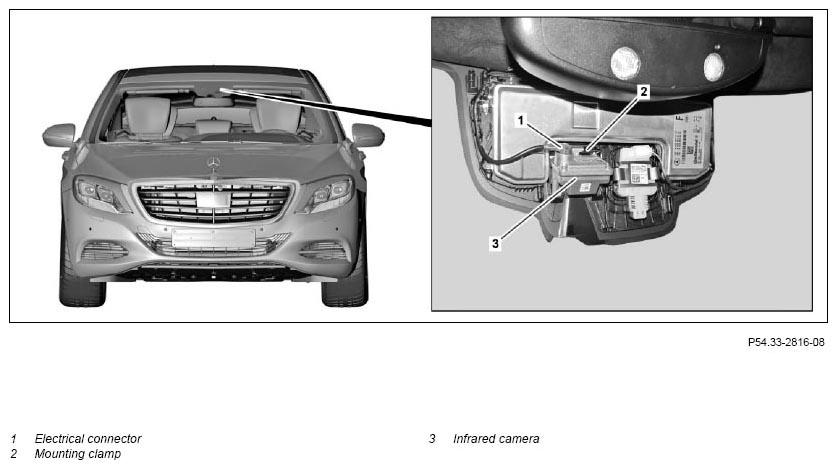

Shown on model 222
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Unclip cover of infrared camera (3) and remove | ||
| 3 | Unclip mounting clip (2) and swing in downward direction | Figure | |
| 4 | Remove infrared camera (3) and disconnect electrical connection (1) | Otherwise dirt can cause the infrared camera (3) to malfunction. |
|
| 5 | Install in the reverse order | ||
| 6 | Calibrate infrared camera (3) using diagnostic system | ||
| Model 231 with code 610 (Night view assist) |
AD00.00-P-2000-04A | ||
| Model 217, 222 with code 610 (Night view assist) |
AD00.00-P-2000-04B | ||
| Fig 3 |
