Overview of system components, instrument cluster (IC) component description - GF54.30-P-9996RK

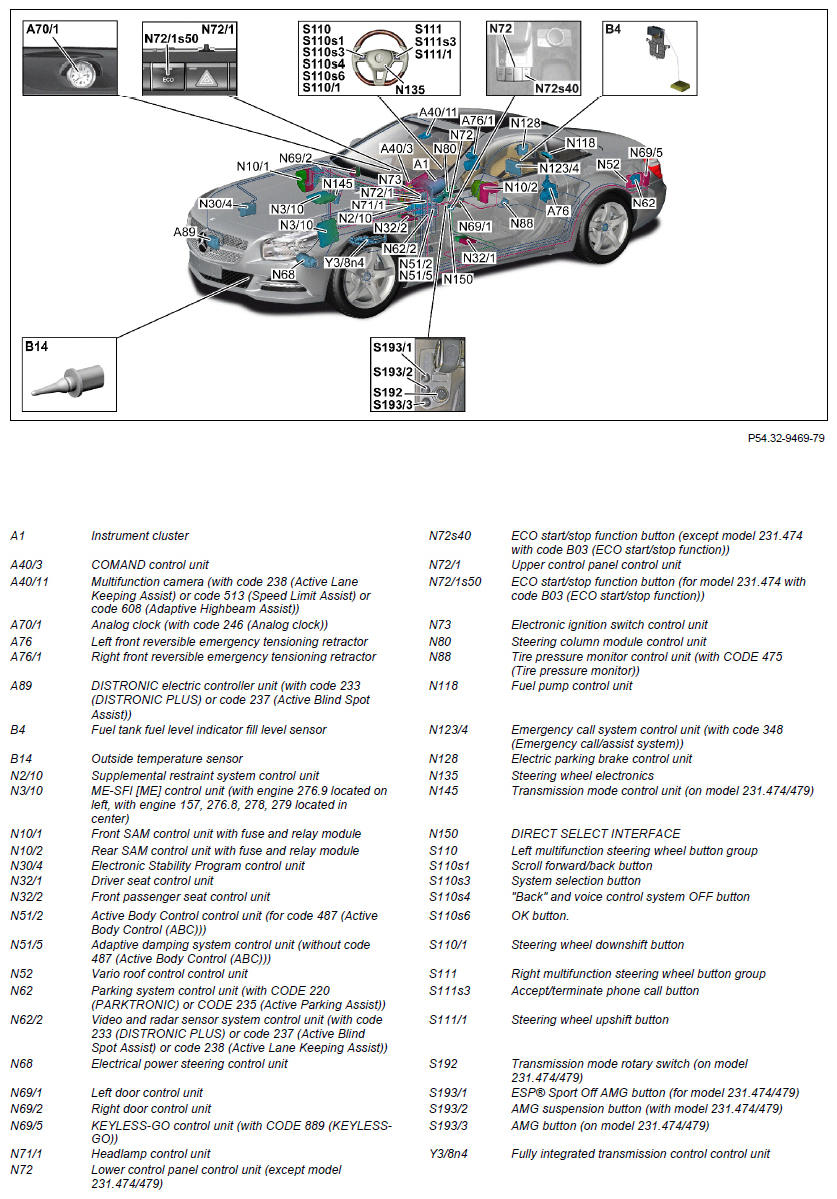

MODEL 231

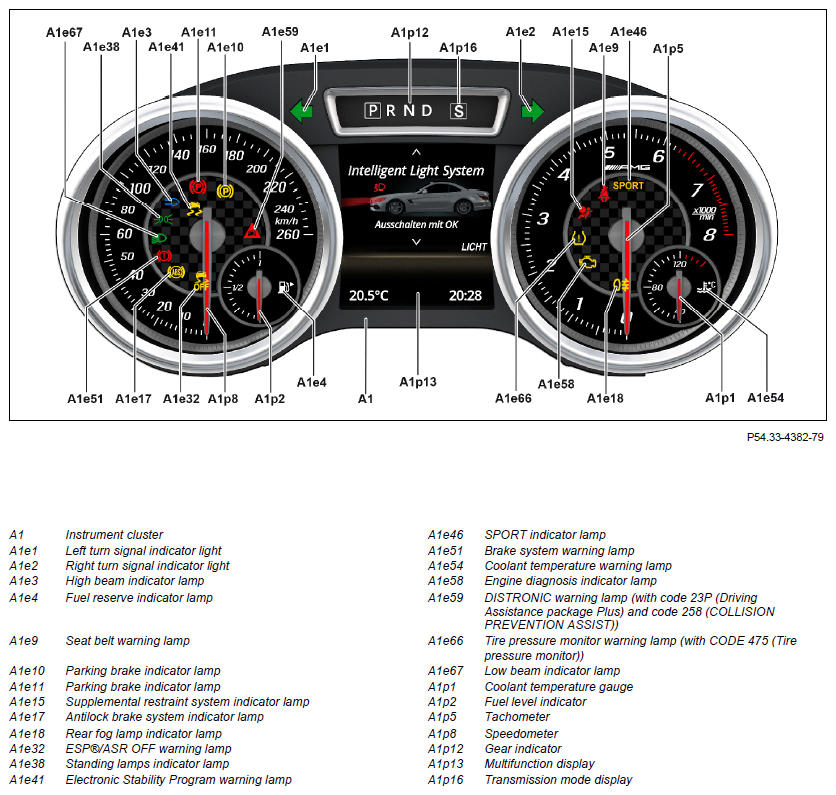

Shown on model 231 as of 01.03.2016

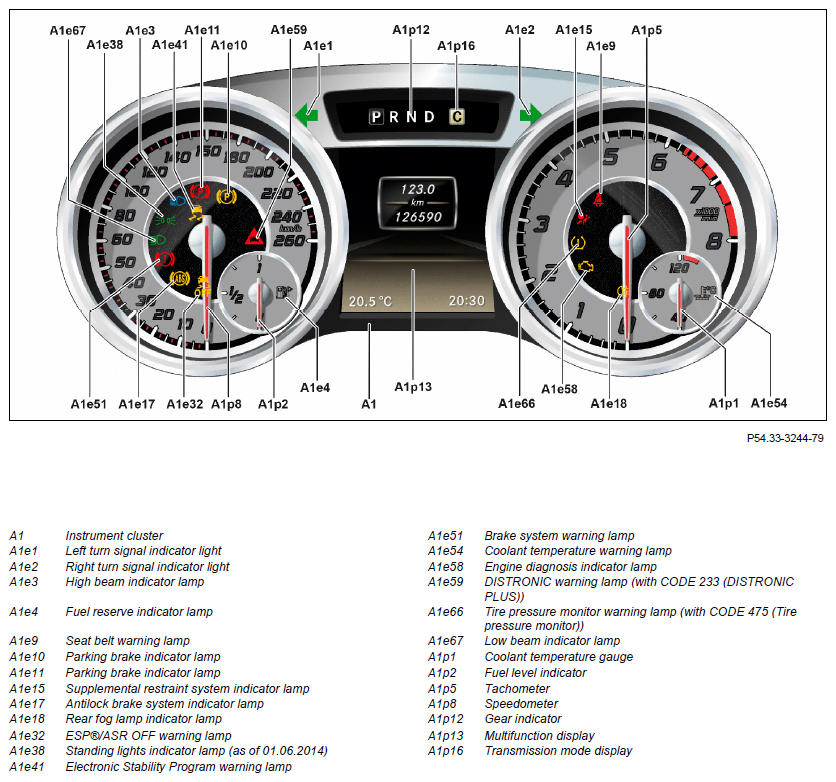

Shown on model 231 up to 29.02.2016

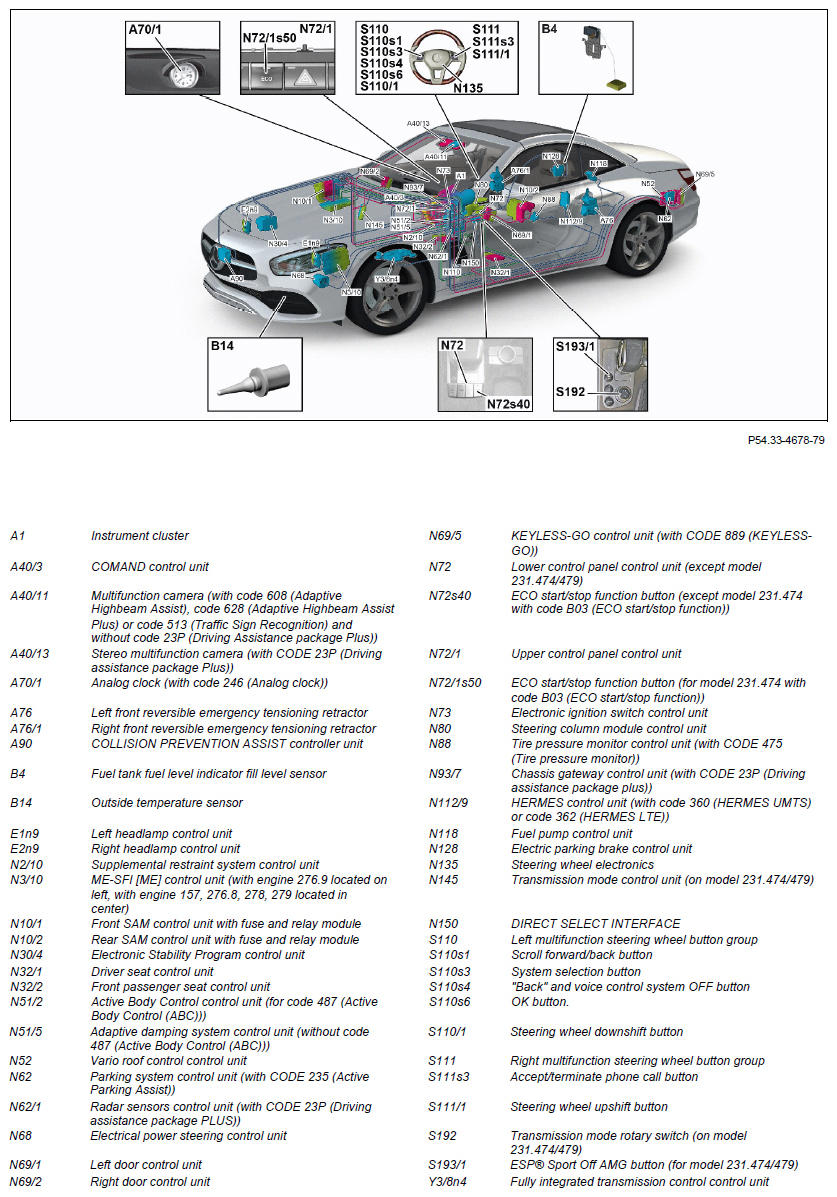

Shown on model 231.457/465/473 as of 01.03.2016

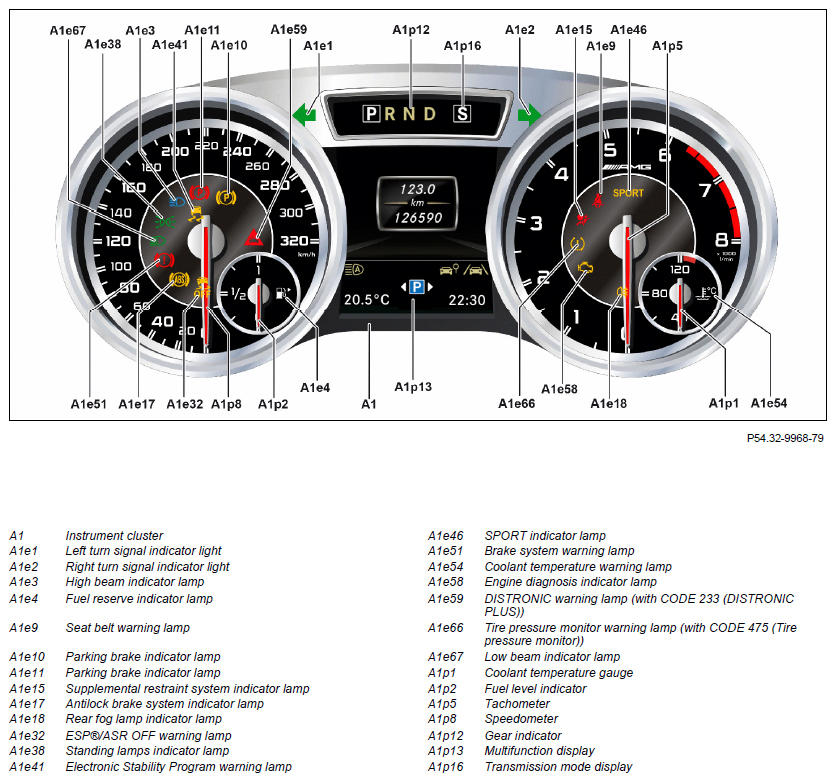

Shown on model 231.457/465/473 up to 29.02.2016
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
- Instrument illumination brightness control (A1r1)
Shown on model 231.474/479 as of 01.03.2016
Fig 5: Overview Of Instrument Cluster System Components - Shown On Model 231.474/479 As Of 01.03.2016
Shown on model 231.474/479 up to 29.02.2016

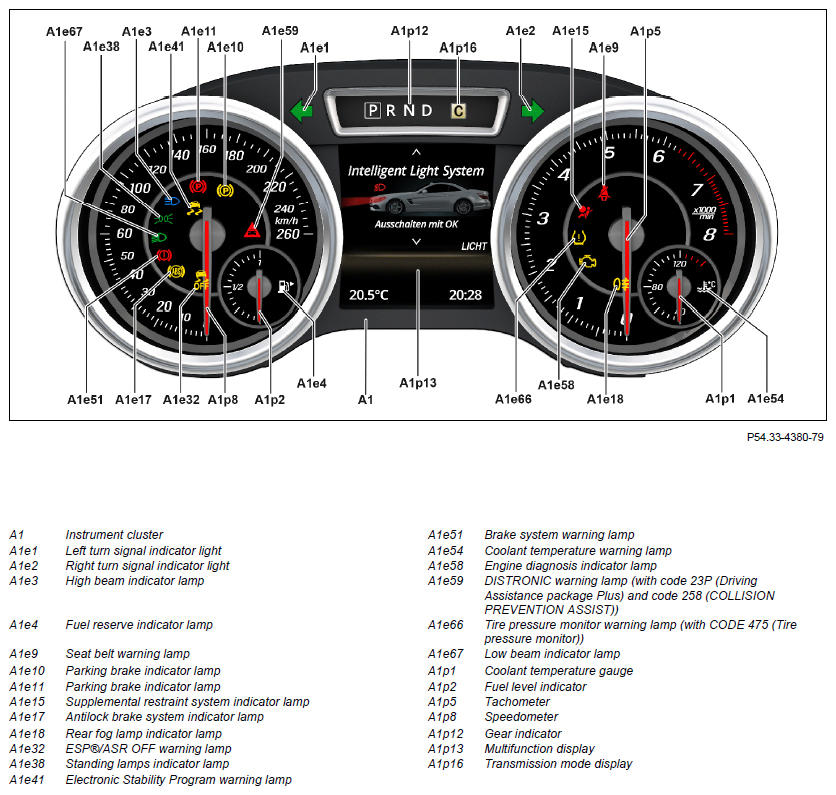

Fig 6: Overview Of Instrument Cluster System Components - Shown On Model 231.474/479 Up To 29.02.2016
The following components integrated in the instrument cluster are not shown:
- Warning buzzer
- Turn signal light function check, acoustic
- Instrument illumination brightness control
| Component description for instrument cluster | A1 | GF54.30-P-6000RK | |
| Component description for COMAND controller unit | Model 231 as of model year 2017 A40/3 |
GF82.85-P-3136RKM | |
| Model 231 up to model year 2017 A40/3 |
GF82.85-P-3136RK | ||
| Component description for multifunction camera | Model 231 as of model year 2017 with code 513 (Traffic Sign Assist) Model 231 up to model year 2017 with code 513 (Speed Limit Assist) Model 231 with code 238 (Active lane keeping Assist) Model 231 with code 608 (Adaptive Highbeam Assist) Model 231 with code 628 (Adaptive Highbeam Assist Plus) A40/11, A40/13 |
GF54.21-P-3300RK | |
| Component description for front reversible emergency tensioning retractors | A76, A761 | GF91.40-P-4020RK | |
| Component description for DISTRONIC electric controller unit | Model 231 up to model year 2017 with code 233 (DISTRONIC PLUS) with code 237 (Active Blind Spot Assist) A89 |
GF30.30-P-3213RK | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 231 as of model year 2017 with code 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214RKM | |
| Headlamp control unit, component description | Model 231 as of model year 2017 with code 640 (High-performance LED) Model 231 as of model year 2017 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 231 as of model year 2017 with code 642 (Headlamps, LED, dynamic, right-side traffic) E1n9, E2n9 |
GF82.10-P-2020RKM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RK | |
| Component description for ME-SFI (ME) control unit | Model 231.4 with engine 157.9 Model 231.4 with engine 278.9 N3/10 |
GF07.61-P-6000MMF | |
| Model 231.4 with engine 276.8 N3/10 | GF07.61-P-6000MMZ | ||
| Model 231.4 with engine 276.9 N3/10 | GF07.61-P-6000MME | ||
| Model 231.4 with engine 279.9 N3/10 | GF07.61-P-6000MUA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RK | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RK | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RK | |
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231RK | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241RK | |
| ABC control unit, component description | Model 231 with code 487 (Active Body Control (ABC)) N51/2 |
GF32.50-P-4501RK | |
| Component description for adaptive damping system control unit | Model 231 except code 487 (Active Body Control (ABC)) N51/5 |
GF32.32-P-1010RK | |
| Vario roof control unit, component description | N52 | GF77.39-P-3210RK | |
| Parking system control unit component description | Model 231 as of model year 2017 with code 235 (Active Parking Assist with PARKTRONIC) N62 |
GF54.65-P-5002RKM | |
| Model 231 up to model year 2017 with code 220 (PARKTRONIC) Model 231 up to model year 2017 with code 235 (Active Parking Assist with PARKTRONIC) N62 |
GF54.65-P-5002RK | ||
| Component description for radar sensors control unit | Model 231 as of model year 2017 with code 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301RKM | |
| Component description for video and radar sensor system control unit | Model 231 up to model year 2017 with code 233 (DISTRONIC PLUS) with code 237 (Active Blind Spot Assist) with code 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304RK | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010RK | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RK | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RK | |
| Component description for KEYLESS-GO control unit | Model 231 with code 889 (KEYLESS-GO) N69/5 |
GF80.61-P-4204RK | |
| Headlamp control unit, component description | Model 231 up to model year 2017 N71/1 |
GF82.10-P-2020RK | |
| Lower control panel control unit, component description | Model 231 (except 231.474/479) N72 | GF54.21-P-6060RK | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RK | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RK | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RK | |
| Component description for tire pressure monitor control unit | Model 231 with code 475 (Tire pressure monitoring system) N88 |
GF40.15-P-5124RK | |
| Component description for chassis gateway control unit | Model 231 as of model year 2017 with code 23P (Driving Assistance package Plus) N93/7 |
GF54.21-Q-1010RKM | |
| HERMES control unit, component description | Model 231 with code 360 (HERMES UMTS) Model 231 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221RKM | |
| Component description for fuel pump control unit | Model 231.4 with engine 157.9 N118 | GF47.40-P-2001MMF | |
| Model 231.4 with engine 276.8/9 Model 231.4 with engine 278.9 N118 |
GF47.40-P-2001MME | ||
| Model 231.4 with engine 279.9 N118 | GF47.40-P-2001MUA | ||
| Component description for emergency call system control unit | Model 231 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212RKU | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RK | |
| Component description for transmission mode control unit | Model 231.4 with transmission 722.931/932 N145 |
GF27.19-P-1350AHJ | |
| DIRECT SELECT interface, component description | Model 231 with transmission 725.0 N150 | GF27.19-P-1300ANM | |
| Model 231.4 with transmission 722.9 N150 | GF27.19-P-1300AHJ | ||
| Component description for fully integrated transmission control unit | Model 231 with transmission 722.9 (except 722.931) Y3/8n4 | GF27.60-P-5165AHP | |
| Model 231.4 with transmission 722.931 Y38n4 | GF27.60-P-5165AHJ | ||
| Model 231 with transmission 725.0 Y38n4 | GF27.60-P-5165ANM | ||
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997RK |
