Overview of system components for driver assistance system - GF54.00-P-9998RK
MODEL 231 up to model year 2017

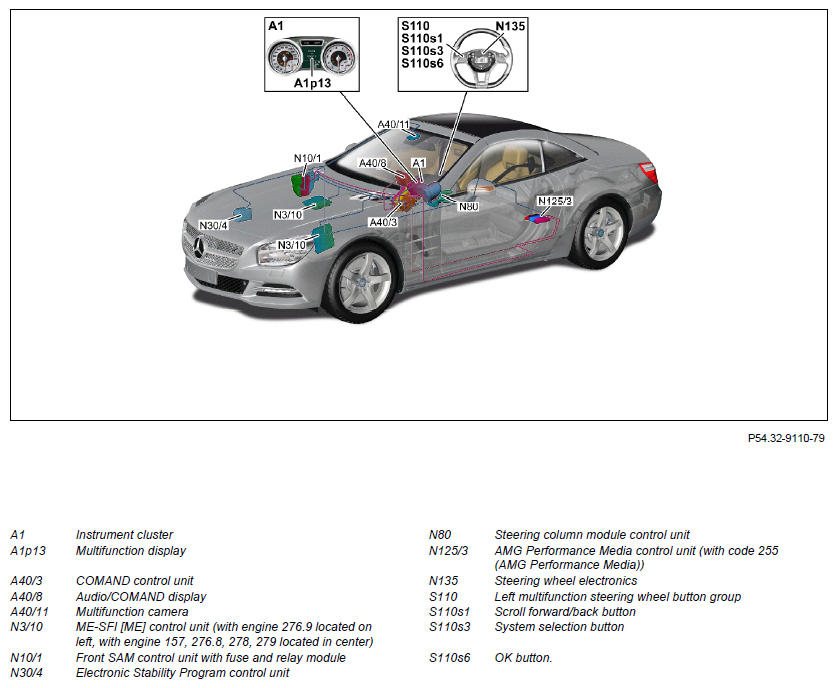

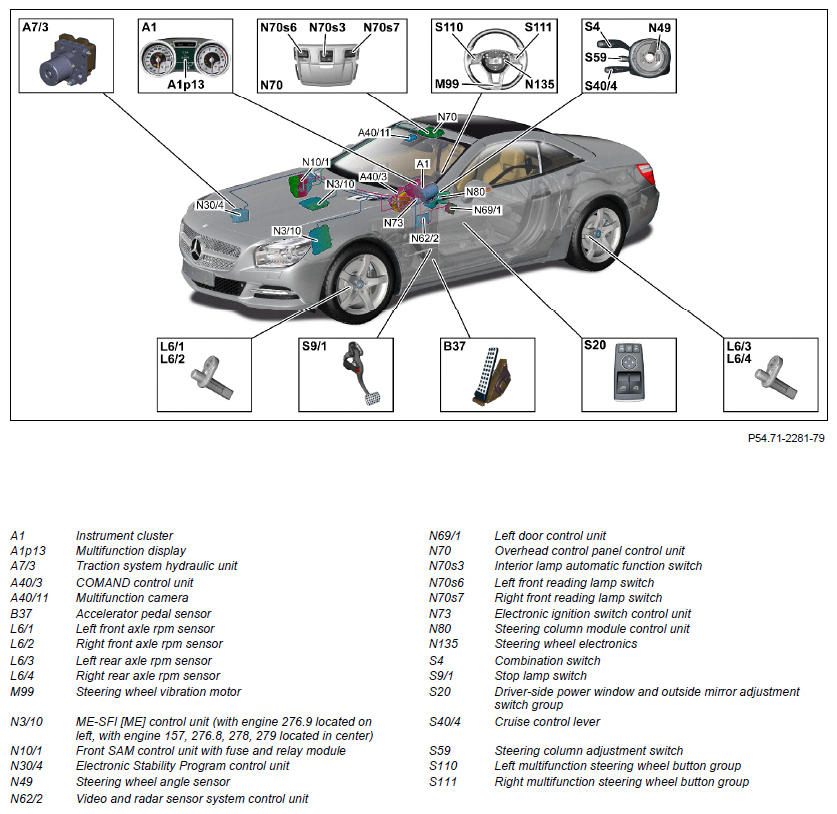

Attention assistance system

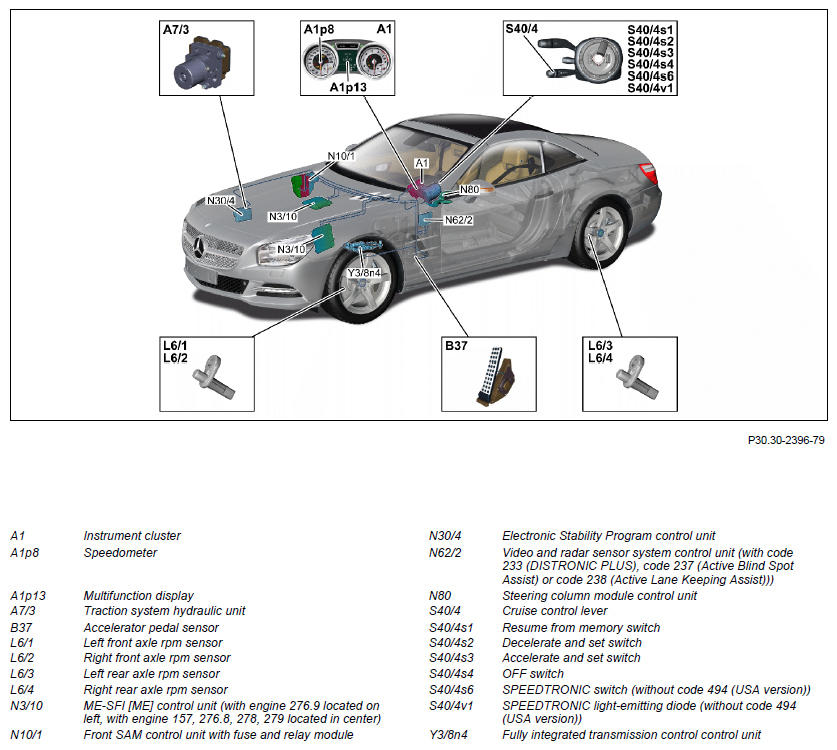

Cruise control
DISTRONIC PLUS incl. BAS PLUS and PRE-SAFE bake (with code 233 (DISTRONIC PLUS))

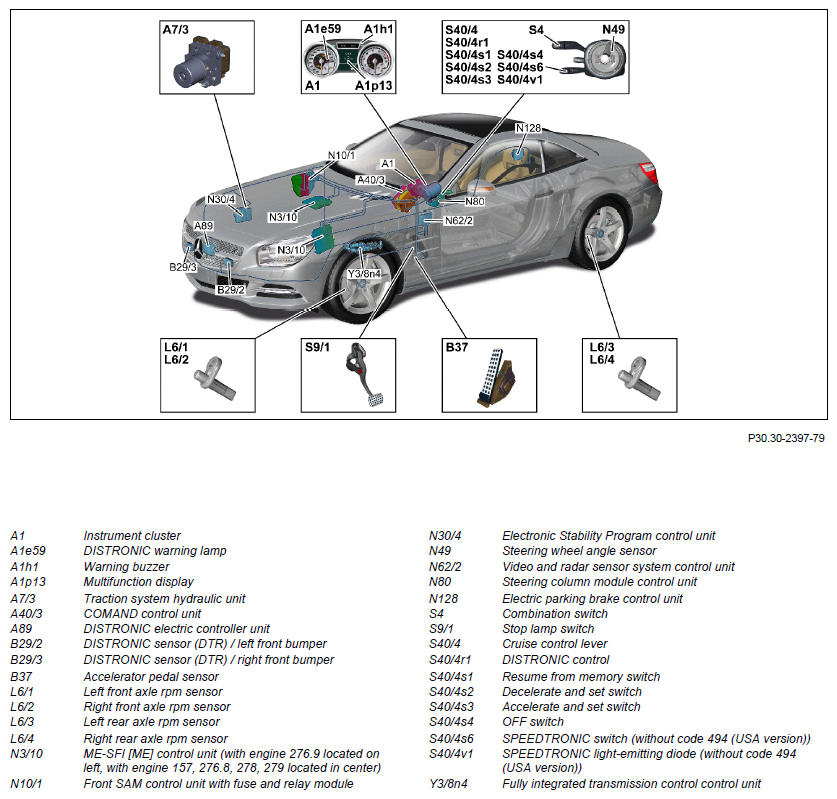

Fig 3: Overview Of Driver Assistance System Components - Distronic Plus Incl. Bas Plus And Pre-Safe Bake (With Code 233)

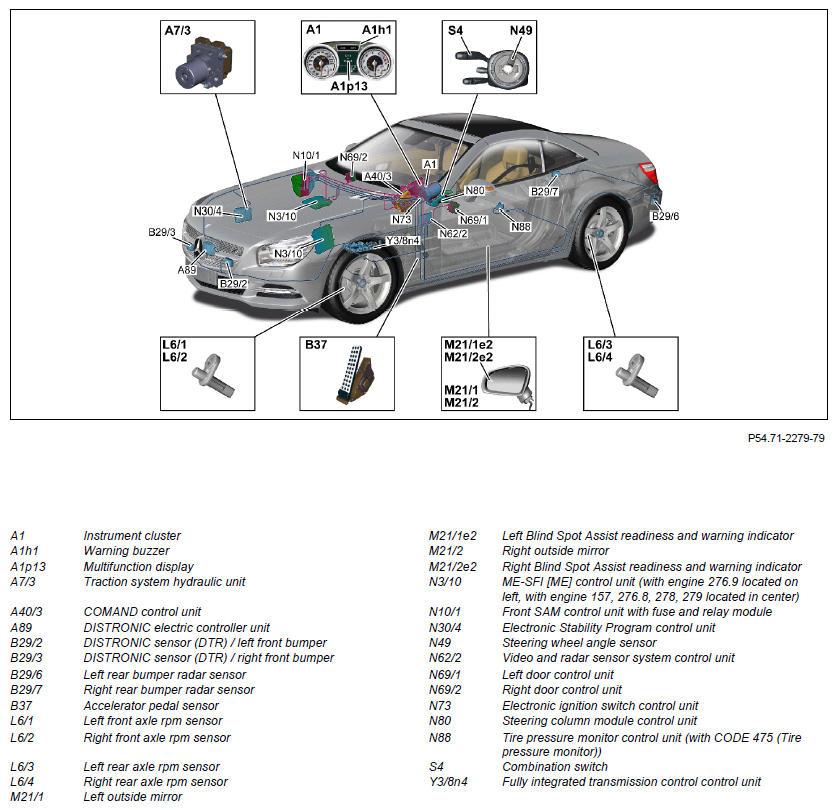

Blind Spot Assist (with CODE 237 (Active Blind Spot Assist))

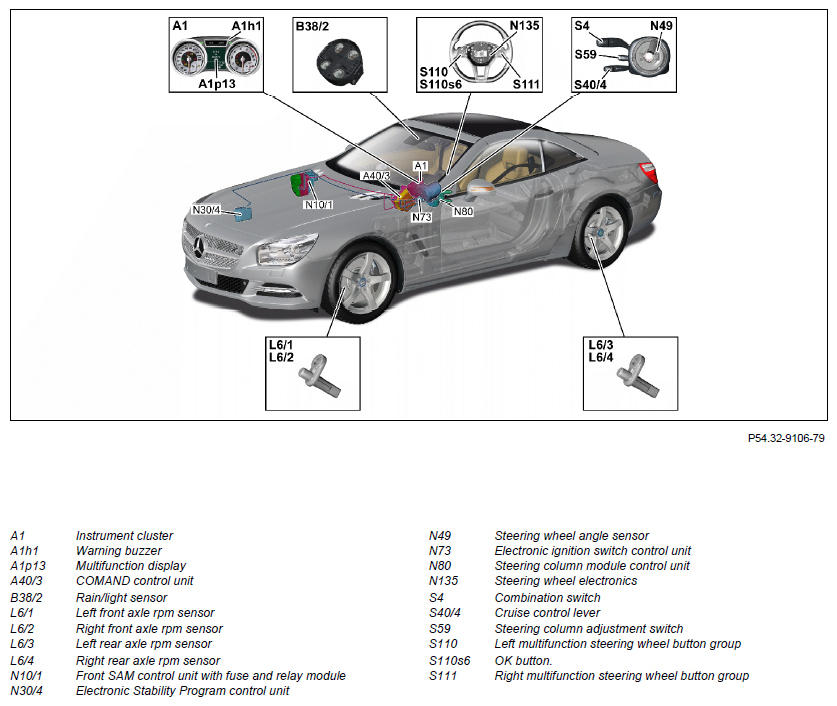

Active Lane Keeping Assist (with CODE 238 (Active Lane Keeping Assist))
Speed Limit Assist (with CODE 513 (Speed Limit Assist))

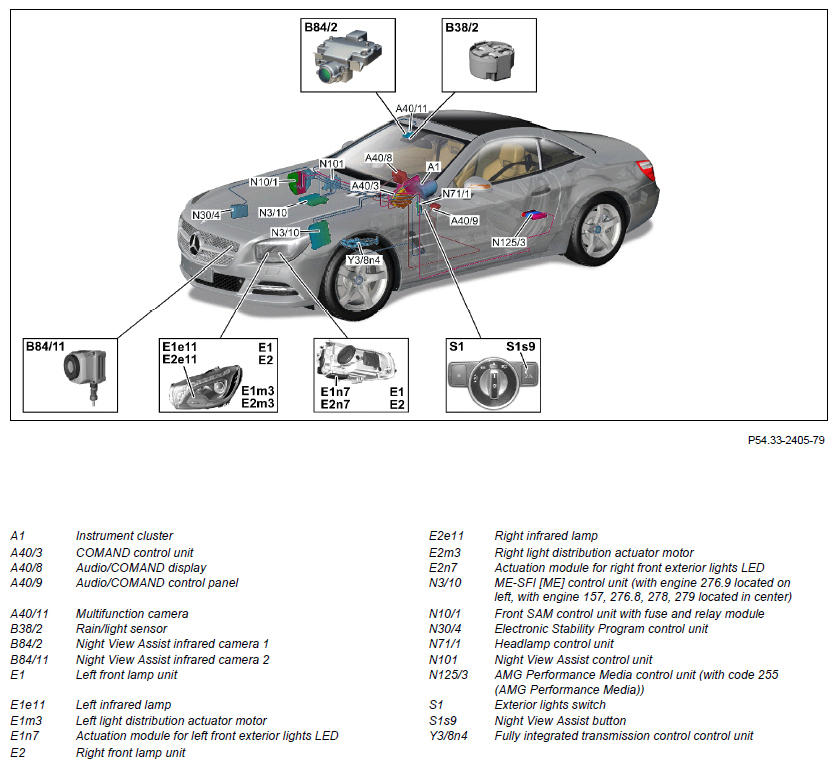

Night View Assist (with code 610 (Night View Assist), as of 01.06.2013)
| Component description for instrument cluster | A1 | GF54.30-P-6000RK | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136RK | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RK | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501RK | |
| Component description for multifunction camera | Model 231 up to model year 2017 with code 238 (Active lane keeping Assist) Model 231 up to model year 2017 with code 513 (Speed Limit Assist) Model 231 up to model year 2017 with code 608 (Adaptive Highbeam Assist) A40/11 |
GF54.21-P-3300RK | |
| Component description for DISTRONIC electric controller unit | Model 231 up to model year 2017 with code 233 (DISTRONIC PLUS) with code 237 (Active Blind Spot Assist) A89 |
GF30.30-P-3213RK | |
| Component description for bumper radar sensors | Model 231 up to model year 2017 with code 233 (DISTRONIC PLUS) with code 237 (Active Blind Spot Assist) B29/2, B29/3, B29/6, B29/7 |
GF30.30-P-3302RK | |
| Component description for ME-SFI (ME) control unit | Model 231.4 with engine 157.9 up to model year 2017 Model 231.4 with engine 278.9 up to model year 2017 N3/10 |
GF07.61-P-6000MMF | |
| Model 231.4 with engine 276.8 up to model year 2017 N3/10 | GF07.61-P-6000MMZ | ||
| Model 231.4 with engine 276.9 up to model year 2017 N3/10 | GF07.61-P-6000MME | ||
| Model 231.4 with engine 279.9 up to model year 2015 N3/10 | GF07.61-P-6000MUA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RK | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RK | |
| Component description for video and radar sensor system control unit | Model 231 up to model year 2017 with code 233 (DISTRONIC PLUS) with code 237 (Active Blind Spot Assist) with code 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304RK | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RK | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RK | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RK | |
| Headlamp control unit, component description | N71/1 | GF82.10-P-2020RK | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RK | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RK | |
| Component description for tire pressure monitor control unit | Model 231 up to model year 2017 with code 475 (Tire pressure monitoring system) N88 |
GF40.15-P-5124RK | |
| Night View Assist control unit, component description | Model 231 up to model year 2017 with code 610 (Night view assist) N101 |
GF54.30-P-6200RK | |
| AMG performance media control unit, component description | Model 231 up to model year 2017 with code 255 (AMG Performance Media) N125/3 |
GF82.60-P-5010RK | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RK | |
| Component description for fully integrated transmission control unit | Model 231 with transmission 722.9 (except 722.931) up to model year 2017 Y3/8n4 |
GF27.60-P-5165AHP | |
| Model 231.4 with transmission 722.931 up to model year 2017Y3/8n4 | GF27.60-P-5165AHJ | ||
| Table of contents for function description of driver assistance systems | GF54.00-P-0998RK |
