Remove/install side paneling in rear - AR68.30-P-4780LFA
MODEL 222.9
Shown on model 222.9 without CODE Z07 (Top protection)

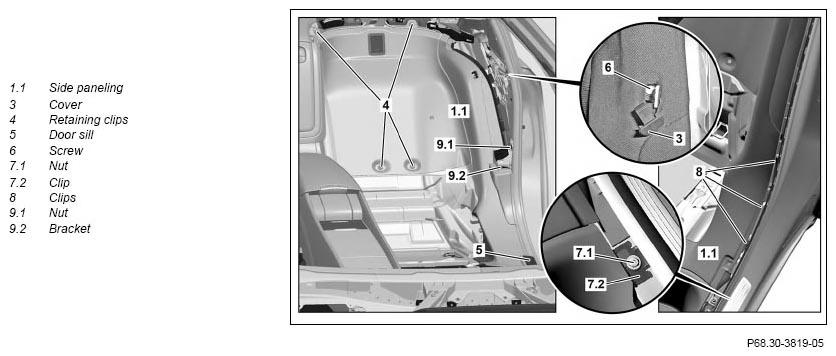

Fig 1: Rear Side Paneling Remove/Install Components - Shown On Model 222.9 Without Code Z07 (1 Of 2)

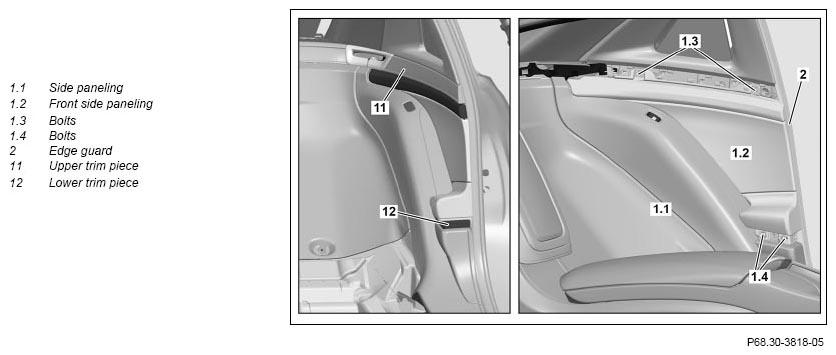

Fig 2: Rear Side Paneling Remove/Install Components - Shown On Model 222.9 Without Code Z07 (2 Of 2)
| Remove/install | |||
| 1 | Remove trim piece behind rear seat | Model 222.9 with code 223 (Electrically adjustable rear bench seat) Model 222.9 with code 224 (Rear individual seat design) |
AR68.30-P-1460LF |
| 2 | Unclip upper trim piece (11) and lower trim piece (12) | Figure | |
| 3 | Remove screw/bolts (1.3, 1.4) | ||
| 4 | Remove trim from C-pillar | Model 222.9 with code Z07 (Top protection) |
AR68.30-P-4490LFA |
| 5 | Remove front side paneling (1.2) | ||
| 6 | Detach edge guard (2) in area of front side paneling (1.2) | ||
| 7 | Remove door sill molding (5) | ||
| 8 | Remove cover (3) and unscrew bolt (6) | ||
| 9 | Remove retaining clips (4) | On vehicles with CODE 223 (Electrically adjustable rear seats). | |
| 10 | Unscrew nuts (7.1) | ||
| 11 | Remove clip (7.2) | ||
| 12 | Unclip clips (8) on side paneling (1.1) from bottom upward and remove side paneling (1.1) | ||
| 13 | Install in the reverse order |
