Remove/install upper part of center console - AR68.20-P-2012LF
MODEL 217, 222.0/1/9
Shown on vehicle with code 582 (Rear air conditioning system)

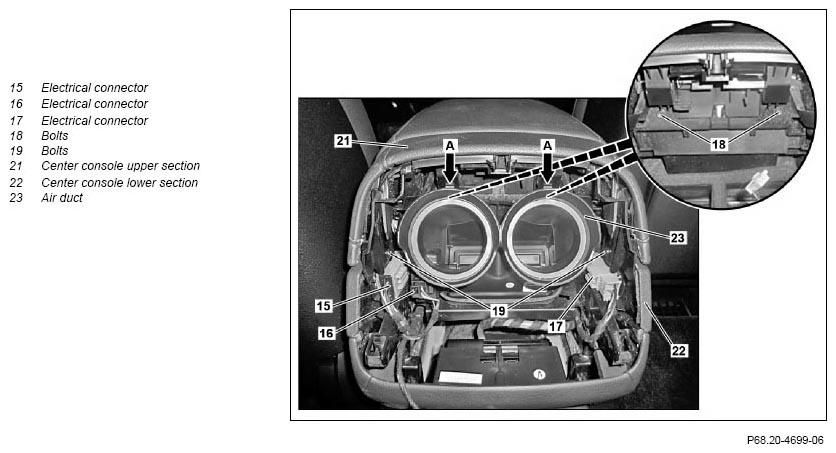

Fig 1: Upper Part Of Center Console Remove/Install Components - Shown On Vehicle With Code 582 (1 Of 2)
Fig 2: Upper Part Of Center Console Remove/Install Components - Shown On Vehicle With Code 582 (2 Of 2)
Shown on Model 222 up to model year 2018 with code 889 (Keyless-Go)
Shown when removed
| Remove/install | |||
| 1 | Remove upper cover on center console | AR68.20-P-2350LF | |
| 2 | Disconnect electrical connection (16) | Model 217 Model 222.0/1/9 except code 582 (Rear air conditioner) |
|
| 3 | Press catch hooks (arrows A) on air duct (23) downward and remove air duct (23) | Model 217 Model 222.0/1/9 except code 582 (Rear air conditioner) |
|
| 4 | Disconnect electrical connection (15) | ||
| 5 | Disconnect electrical connection (17) | Model 217, 222.0/1/9 with code 906 (Front armrest heater) |
|
| 6 | Remove connector on electrical connectors (15, 17) from center console bottom section (22) | ||
| 7 | Remove screw/bolt (18) | ||
| 8 | Loosen bolts (19) | ||
| 9 | Open cover on armrest on center console upper section (21) | ||
| 10.1 | Remove cover (9) with removal fixture (10) upward and disconnect electrical connectors (11, 12) | Model 217.3 Model 222.0/1/9 with code 582 (Rear air conditioner) |
Figure |
| 10.2 | Remove power soft top switch | Model 217.4 | AR77.39-P-1000LCA |
| 11 | Push cover (8) toward front, lift and lay cove (8) down in compartment | Model 217.3 Model 222.0/1/9 with code 582 (Rear air conditioner) |
|
| 12 | Remove touchpad control unit | Model 217, 222.0/1 with code 318 (Touchpad with rotary pushbutton) Model 222.9 with code 448 (Touchpad) |
AR54.21-P-0503LF |
| 13 | Remove front central operating unit control unit | AR54.21-P-0500LF | |
| 14 | Remove screw/bolts (24) | ||
| 15 | Remove trim piece from front center console | AR68.20-P-2101LF | |
| 16 | Close cover on stowage compartment | ||
| 17 | Lift center console top section (21) at rear and remove toward rear | ||
| 18 | Transfer KEYLESS-GO antenna (25) | Model 217, 222.0/1/9 with code 889 (KEYLESS-GO) When replacing center console upper section (21). |
|
| 19 | Install in the reverse order |
