Remove/install rear center console - AR68.20-P-2020LF

MODEL 222.1/9

with CODE 224 (Rear individual seat design)

Fig 1: Rear Center Console Remove/Install Components (1 Of 6)

Courtesy of MERCEDES-BENZ USA

Fig 2: Rear Center Console Remove/Install Components (2 Of 6)

Courtesy of MERCEDES-BENZ USA

Fig 3: Rear Center Console Remove/Install Components (3 Of 6)

Courtesy of MERCEDES-BENZ USA

Fig 4: Rear Center Console Remove/Install Components (4 Of 6)

Courtesy of MERCEDES-BENZ USA

Fig 5: Rear Center Console Remove/Install Components (5 Of 6)

Courtesy of MERCEDES-BENZ USA

Fig 6: Rear Center Console Remove/Install Components (6 Of 6)

Courtesy of MERCEDES-BENZ USA

	Risk of death  from touching live components with AC voltages over 30 V	Do not touch live parts. Persons who have electronic implants (e.g. cardiac pacemakers) must not perform any work on components conducting AC voltage greater than 30 V.	AS54.00-Z-0001-05A
	Remove/install
1	Move driver and passenger seat toward front
2	Remove trim piece behind rear seat		AR68.30-P-1460LF

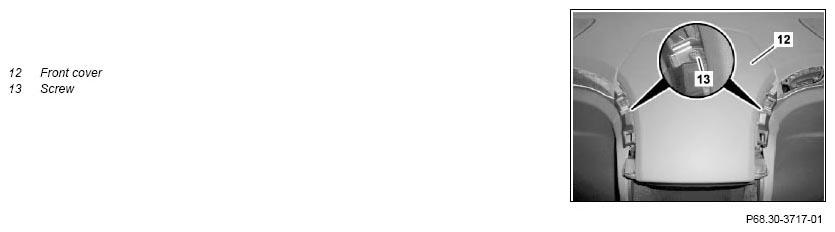

3	Unscrew bolts (13) and remove front cover (12) from rear shelf	Pull front cover (12) toward front and lift. Ensure that front cover (12) is positively locked on rear shelf.
4	Unclip stowage tray	MODEL 222.1 with CODE 224 (Rear individual seat design) without CODE 864 (Rear compartment entertainment package) The stowage tray has the same fastenings points as the trim plate (14).

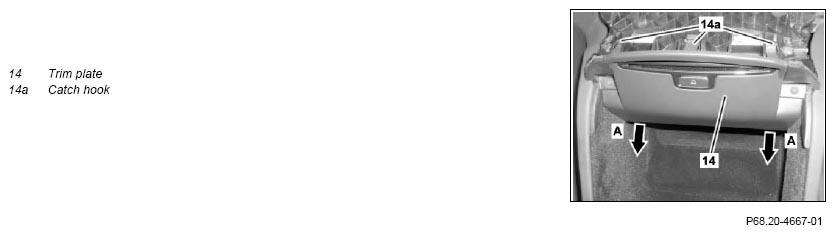

5	Unclip trim plate (14)	MODEL 222.1/9 with CODE 224 (Rear individual seat design) with CODE 864 (Rear compartment entertainment package) Unclip trim plate (14) first at bottom (arrows) and then from catch hooks (14a) at top.

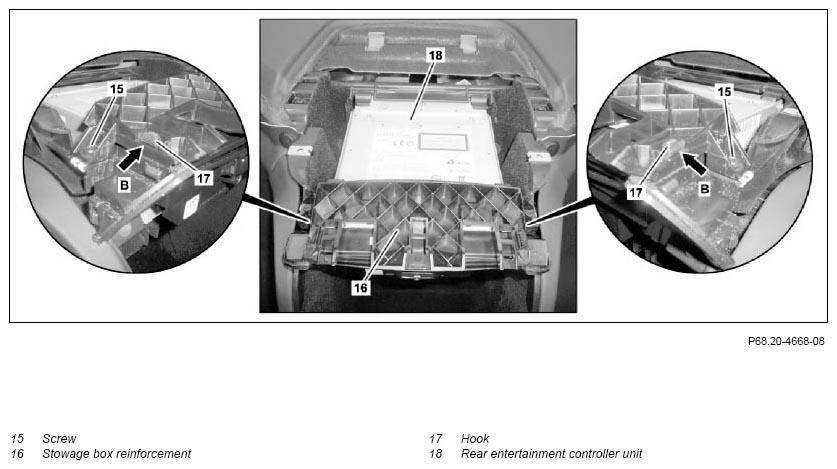

6	Remove bolt (15)	MODEL 222.1/9 with CODE 224 (Rear individual seat design) with CODE 864 (Rear compartment entertainment package)
7	Press hook (17) in direction of arrow (B) and remove stowage box reinforcement (16)	MODEL 222.1/9 with CODE 224 (Rear individual seat design) with CODE 864 (Rear compartment entertainment package)
8	Lift rear entertainment (18) control unit and disconnect electrical connectors from rear entertainment control unit (18)	MODEL 222.1/9 with CODE 224 (Rear individual seat design) with CODE 864 (Rear compartment entertainment package)

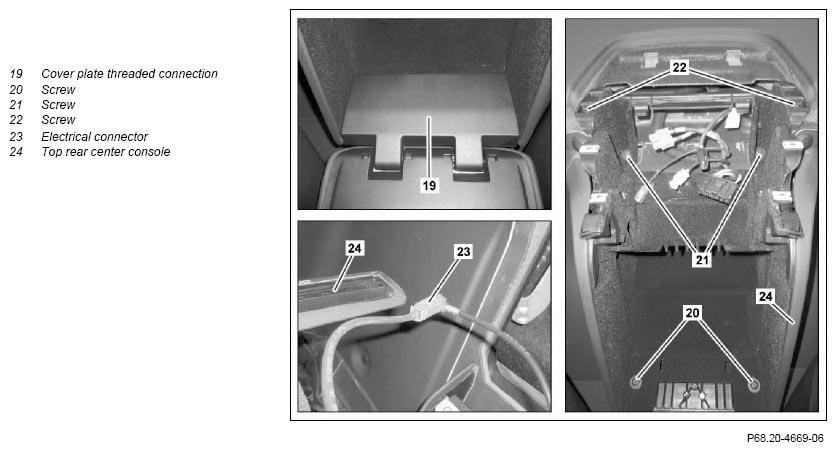

9	Unclip cover plate threaded connection (19)
10	Unscrew bolts (22) from rear shelf
11	Unscrew screws/bolts (20)	Lay top rear center console (24) down on bottom rear center console (25).
12	Remove screw/bolts (21)	Press top rear center console (24) downward and toward rear when screwing in.
13	Remove top rear center section (24) and disconnect electrical connector (23)	On vehicles with CODE 864 (Rear entertainment system) route electrical line for DVD.
14	Remove cover (31) on center console		AR68.20-P-2350LF
15	Remove left and right backrest	MODEL 222.1/9 with CODE 224 (Rear individual seat design)	AR91.12-P-1620LFA
16	Disconnect battery ground line	MODEL 222.1/9 with CODE 224 (Rear individual seat design) with CODE U67 (230 V socket in interior compartment) MODEL 222.1 with CODE 224 (Rear individual seat design) with CODE U80 (115 V socket)	AR54.10-P-0003LF
17	Remove socket 115V/230V	MODEL 222.1/9 with CODE 224 (Rear individual seat design) with CODE U67 (230 V socket in interior compartment) MODEL 222.1 with CODE 224 (Rear individual seat design) with CODE U80 (115 V socket)	AR54.10-P-1002LFA

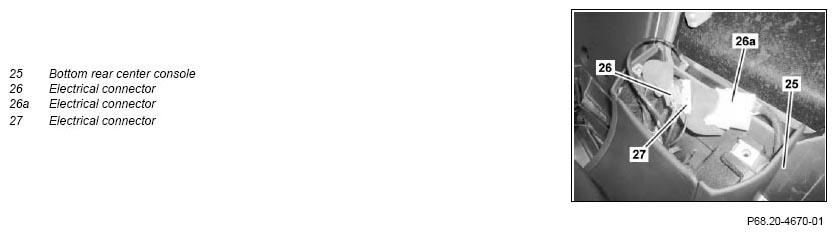

18	Disconnect electrical connectors (26, 26a, 27)	The number of electrical connectors depends on the vehicle equipment.

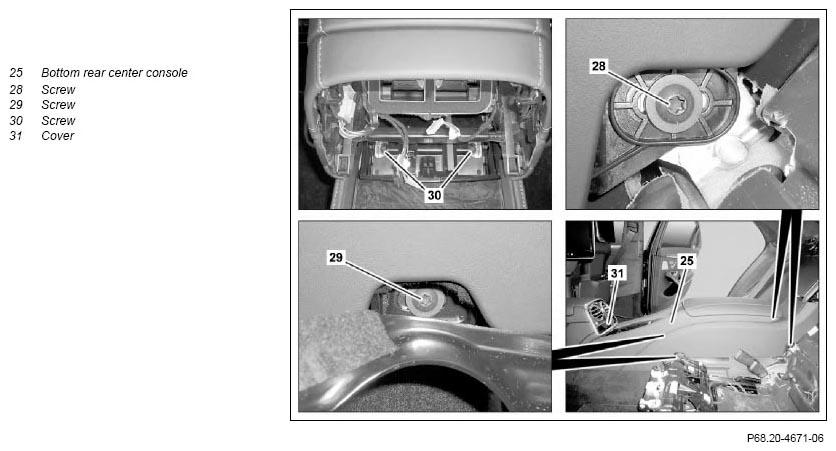

19	Unscrew screws/bolts (28)
20	Remove screw/bolts (29)
21	Remove screw/bolts (30)
22	Remove bottom rear center console (25) from vehicle	Use aid of helper.
23	Install in the reverse order
