Replace complete center roof paneling - AR65.10-P-1000LF

MODEL 205.0/1 without CODE 413 (Automatic panoramic sliding sunroof)

MODEL 222 without CODE 413 (Automatic panoramic sliding sunroof)

Shown on MODEL 222 except CODE 413 (Panoramic sliding roof) and except CODE Z07 (Top protection)

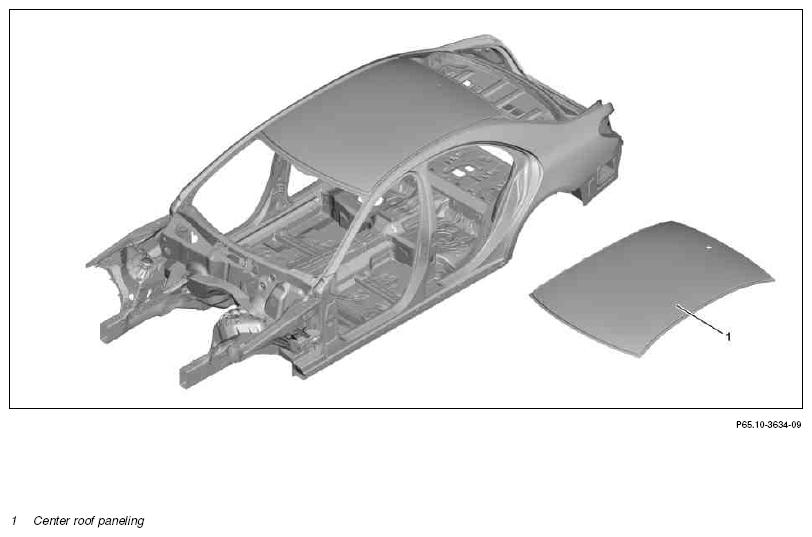

Fig 1: Replacing Complete Center Roof Paneling - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust	Wear dust filter mask, safety glasses and protective gloves. Use suitable, grounded dust extractor	AS60.00-Z-0007-01N
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Note on high-voltage battery		AH54.10-P-0006-01MEV
	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	Evaluation of high-voltage components		AH54.00-P-6500-01SXH
	General information on body repair		AH60.00-P-0001-01A
	Note on working on aluminum components and vehicles		AH60.00-P-0034-01LF
	Note on working on aluminum components and vehicles		AH60.00-P-0034-01LW
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area to be repaired
2	Cover all detachable parts remaining vehicle with protective covers
3	Remove armor plate on roof	Nut, front guard plate on roof frame to roof guard plate	*BA65.10-P-1002-01C
		Screw/bolt, front guard plate on roof frame to roof guard plate	*BA65.10-P-1003-01C
		Screw/bolt, rear guard plate on roof frame to roof guard plate	*BA65.10-P-1004-01C
		Screw/bolt for roof guard plate bracket	*BA65.10-P-1006-01C
4	Remove center roof paneling (1)		AR65.10-P-1000-02LF
		Commercially available tools Body power jig saw Cutting wire Heat gun
		2-component adhesive repair kit, Betaforce 2850L	*BR00.45-Z-1154-02A
		Set of spacer blocks	Fig 2
5	Prepare center roof paneling (1)		AR65.10-P-1000-03LF
		Center roof paneling (1) must be painted before preparation. Observe processing specifications of adhesive.
		2-component adhesive repair kit, Betaforce 2850L	*BR00.45-Z-1154-02A
	Install
	Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes	Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only.	AS00.00-Z-0016-01A
6	Install center roof paneling (1)		AR65.10-P-1000-07LF
		MODEL 205.0/1 without CODE 413 (Automatic panoramic sliding sunroof) MODEL 222 without CODE 413 (Automatic panoramic sliding sunroof) without CODE Z07 (Top protection)	*BA65.10-P-1001-01C
		MODEL 222 with CODE Z07 (Top protection) without CODE 413 (Automatic panoramic sliding sunroof)	*BA65.10-P-1007-01C
		Teroson MS 222	*BR00.45-Z-1157-02A
		2-component adhesive repair kit, Betaforce 2850L	*BR00.45-Z-1154-02A
		Set of spacer blocks	Fig 2
7	Remove protective covers
8	Install armor plate on roof	Nut, front guard plate on roof frame to roof guard plate	*BA65.10-P-1002-01C
		Screw/bolt, front guard plate on roof frame to roof guard plate	*BA65.10-P-1003-01C
		Screw/bolt, rear guard plate on roof frame to roof guard plate	*BA65.10-P-1004-01C
		Screw/bolt for roof guard plate bracket	*BA65.10-P-1006-01C
9	Clean repair area
10	Install all detachable body components in area to be repaired

Fig 2: Set of spacer blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA
