Remove/install glass adjustment drive - AR88.70-P-9060LF

MODEL 205, 217, 222, 253

Shown on left outside mirror, model 222

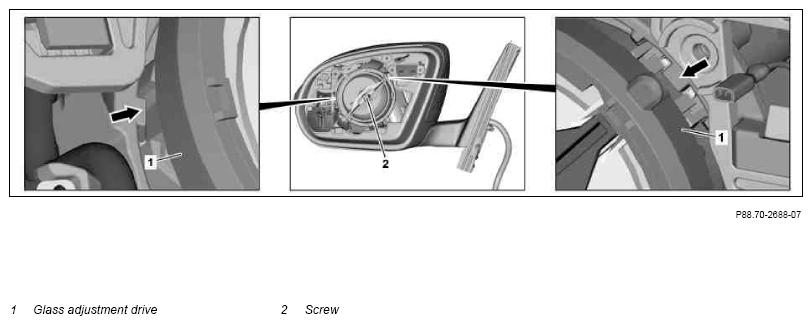

Fig 1: Glass Adjustment Drive Remove/Install Components - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove mirror glass		AR88.70-P-9020LF
2	Unscrew bolt (2)
3	Release catch hook (arrows) and glass adjustment drive (1) until electrical connector on glass adjustment drive (1) is accessible
4	Disconnect electrical connector from glass adjustment drive (1) and remove glass adjustment drive (1)
5	Install in the reverse order
