Remove/install multimedia connection unit in rear stowage compartment - AR82.60-P-1033LF
MODEL 222.1/9
with CODE 224 (Rear individual seat design)
with CODE P46 (Rear-Seat Entertainment Package)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

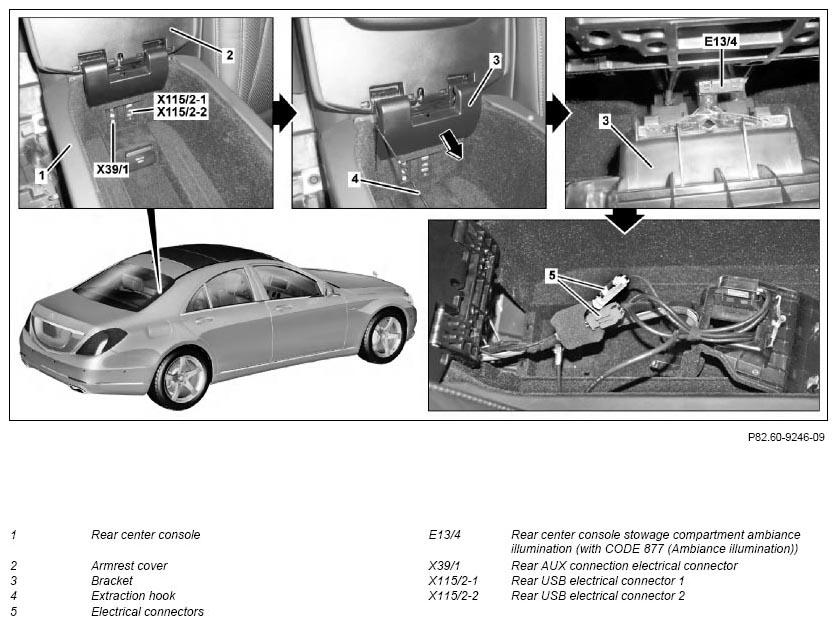

| 1 | Open armrest cover (2) on rear center console (1) | ||
| 2 | Set folding tables in rear center console (1) upright | MODEL 222.1/9 with CODE 224 (Rear individual seat design) with CODE 449 (folding tables in the rear) with CODE P46 (Rear-Seat Entertainment Package) |
|
| 3 | Unclip bracket (3) with extraction hook (4) | Figure | |
| 4.1 | Fold bracket (3) forward (arrow) and remove rear center console stowage compartment ambiance illumination (E13/4) from bracket (3) | MODEL 222.1/9 with CODE 224 (Rear individual seat design) with CODE 877 (ambient lighting) with CODE P46 (Rear-Seat Entertainment Package) |
|
| 4.2 | Fold bracket (3) forward (arrow) until electrical connectors (5) of rear USB 1 electrical connector (X115/2-1), rear USB 2 electrical connector (X115/2-2) or rear AUX connection electrical connector (X39/1) are accessible | MODEL 222.1/9 with CODE 224 (Rear individual seat design) with CODE P46 (Rear-Seat Entertainment Package) without CODE 877 (ambient lighting) |
|
| 5 | Disconnect electrical connectors (5) of rear USB 1 electrical connector (X115/2-1) and rear USB 2 electrical connector (X115/2-2) or rear AUX connection electrical connector (X39/1) | ||
| 6 | Unclip rear USB 1 electrical connector (X115/2-1) and rear USB 2 electrical connector (X115/2-2) or rear AUX connection electrical connector (X39/1) forward out of bracket (3) and remove | ||
| 7 | Install in the reverse order |
