Check, adjust low beams - AP82.10-P-8263SDE

MODEL 222

Dynamic LED headlamps, ECE version

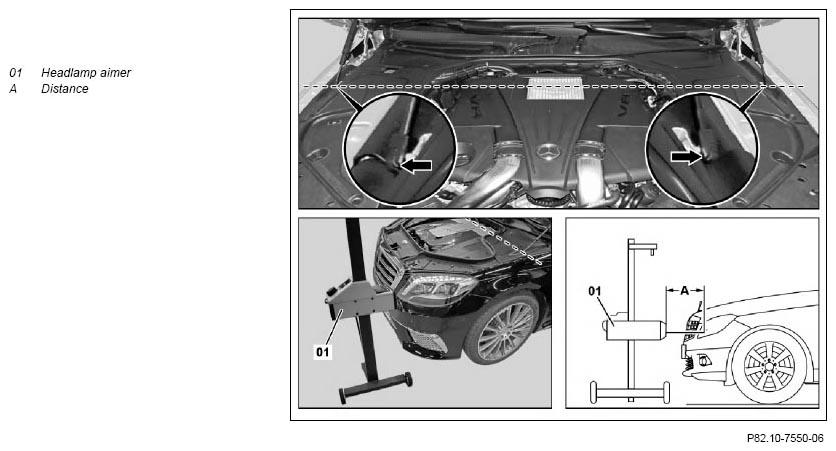

Fig 1: Checking Headlamp Aimer Distance

Courtesy of MERCEDES-BENZ USA

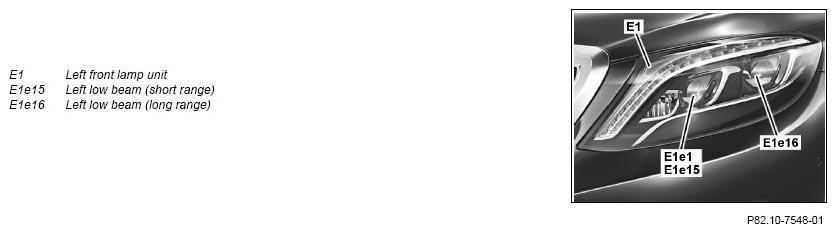

Fig 2: Identifying Left Front Lamp Unit And Left Low Beam (Short/Long Range)

Courtesy of MERCEDES-BENZ USA

Light gradient for low beams

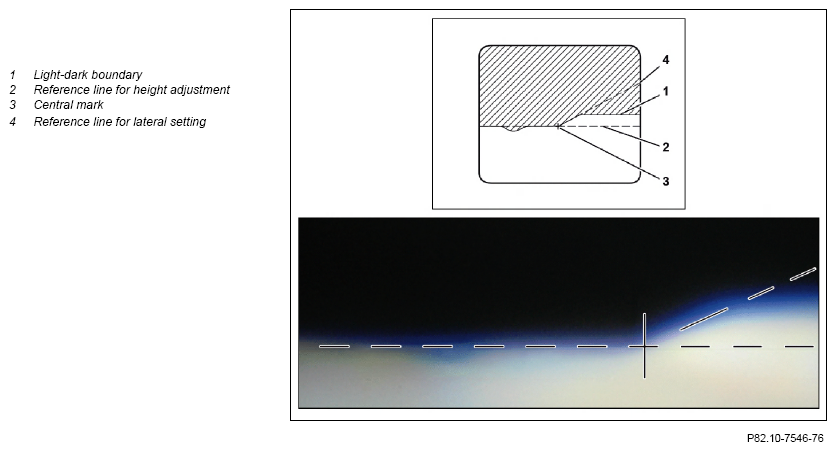

Fig 3: Identifying Low Beam Light Gradient

Courtesy of MERCEDES-BENZ USA

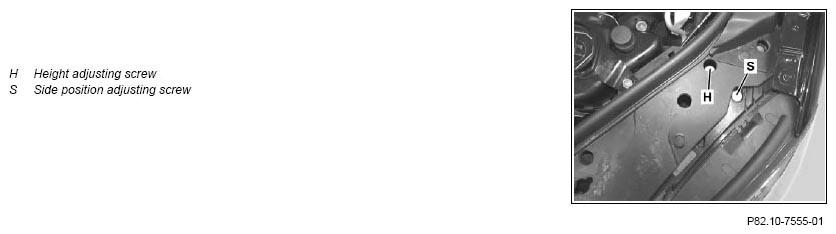

Fig 4: Identifying Height Adjusting Screw And Side Position Adjusting Screw

Courtesy of MERCEDES-BENZ USA

Light gradient for diagnostic light pattern

Fig 5: Identifying Light Dark Boundary, Height Adjustment Reference Line And Central Mark

Courtesy of MERCEDES-BENZ USA

	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	General information on checking/correcting headlamp adjustment		AH82.10-P-1000-01A
	Preparatory tasks
1	Determine degree of inclination for main headlamps Notes on determining headlamp aiming values	The degree of inclination for the main headlamps is specified on the model plate on the B-pillar on the passenger side.	AH82.10-P-1005-01A
2	Park the vehicle on a horizontal, level surface	Maximum permissible height difference of surface for: Vehicle: ± 1 mm/m Headlamp aimer (01): ± 0.5 mm/m
3	Align headlamp aimer (01) 000 588 11 21 00 Adjustment device	Align the headlamp aimer (01) at a distance (A) of approx. 30 cm in front of the left or right front lamp unit (E1) level with the left or right low beam headlamp (long range) (E1e16) parallel to the front of the vehicle. Other country-specific regulations or specifications in the operating instructions from the headlamp aiming device manufacturer must be observed accordingly.	WS82.00-P-0151B
4	Set specified degree of inclination for main headlamps at headlamp aimer (01)
5	Switch on low beam	When testing and adjusting the low beams, make sure that the extended fog light function is not  active.
	Check and, if necessary, adjust (checking and adjustment of the low beams is described at the left low beam headlamp (long range) (E1e16); the same procedure is used for the right side.)
6	Check height adjustment of left low beam headlamp (long range) (E1e16); adjust if necessary	If the height adjustment is correct, the light-dark boundary (1) of the light gradient for the left low beam headlamp (long range) (E1e16) to the left of the center mark (3) must be congruent with the reference line for the height adjustment (2) in the headlamp aimer (01), corresponding to the colored representation. The colored area of the light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be above the reference line for the height adjustment (2), as shown in the color image. If the height adjustment of the left low beam headlamp (long range) (E1e16) is not correct: ↓ Perform zero position adjustment using diagnostic system in suspension control unit.	AD00.00-P-2000-04B
		↓ Prepare alignment of headlamp aimer (01). ↓ Switch on rectangular diagnostic light pattern using diagnostic system.	AP82.10-P-8260-09HA
		↓ When the diagnostic light pattern is switched on and the height adjustment is correct, the horizontal light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) to the left of the center mark (3) must be congruent with the reference line for the height adjustment (2) in the headlamp aimer (01). The colored area of the light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be above the reference line for the height adjustment (2). If the height adjustment of the left low beam headlamp (long range) (E1e16) is not correct with the diagnostic light pattern switched on: ↓ Turn the adjustment screw for the height adjustment (H) to correct the height adjustment of the left low beam headlamp (long range) (E1e16).	AD00.00-P-2000-04B
7	Check lateral adjustment of left low beam headlamp (long range) (E1e16); adjust if necessary	If the lateral adjustment is correct, the light-dark boundary (1) of the light gradient for the left low beam headlamp (long range) (E1e16) starting at the center mark (3) on the right must be congruent with the reference line for the lateral adjustment (4) in the headlamp aimer (01), corresponding to the colored representation. The colored area of the light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be above the reference line for the lateral adjustment (4), as shown in the color image. When the diagnostic light pattern is switched on and the lateral adjustment is correct, the vertical light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) each starting at the center mark (3) must run upward at 90 0 to the reference line for the height adjustment (2) in the headlamp aimer (01). The colored area of the vertical light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be to the left of the center mark (3). If the lateral adjustment of the left low beam headlamp (long range) (E1e16) is not correct with the diagnostics light pattern already switched on: ↓ Turn the adjustment screw for the lateral adjustment (S) to correct the lateral adjustment of the left low beam headlamp (long range) (E1e16). If the lateral adjustment of the left low beam headlamp (long range) (E1e16) is not correct: ↓ Perform zero position adjustment using diagnostic system in suspension control unit.	AD00.00-P-2000-04B
		↓ Prepare alignment of headlamp aimer (01). ↓ Switch on rectangular diagnostic light pattern using diagnostic system.	AP82.10-P-8260-09HA
		↓ Check the height adjustment of the left low beam headlamp (long range) (E1e16) again with the diagnostic light pattern switched on; if necessary, correct by turning the adjustment screw for the height adjustment (H). ↓ Check the lateral adjustment of the left low beam headlamp (long range) (E1e16) with the diagnostic light pattern switched on; if necessary, correct by turning the adjustment screw for the lateral adjustment (S).	AD00.00-P-2000-04B
	Concluding tasks
8	Reset switch positions to input condition	Only if the high beam setting is not to be checked afterwards.
