Remove/install roller sun blind for triangular window - AR68.50-P-0005LF
MODEL 222.9 except code Z07 (Top protection)
| Remove/install | |||
| 1 | Remove seat cushion | Model 222.9 with code 223 (Electrically adjustable rear bench seat) except code Z07 (Top protection) Model 222.9 with code 224 (Rear individual seat design) except code Z07 (Top protection) |
AR91.12-P-1020LFA |
| 2 | Remove seat backrest | Model 222.9 with code 223 (Electrically adjustable rear bench seat) except code Z07 (Top protection) Model 222.9 with code 224 (Rear individual seat design) except code Z07 (Top protection) |
AR91.12-P-1620LFA |
| 3 | Remove trim from C-pillar | AR68.30-P-4490LFA | |
| 4 | Remove rear passenger compartment side trim panel | AR68.30-P-4780LFA | |
| 5 | Disconnect electrical connector (2) | ||
| 6 | Remove bolt (3) | ||

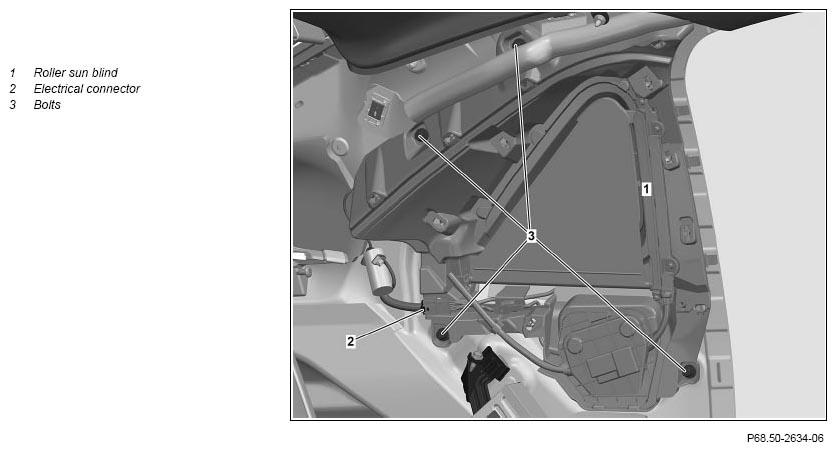

| 7 | Remove roller sun blind (1) | ||
| 8 | Install in the reverse order |
