Overview of system components, Active Body Control (ABC) - GF32.50-P-9997LF

MODEL 217, 222

with CODE 487 (MAGIC BODY CONTROL)

Shown on model 222

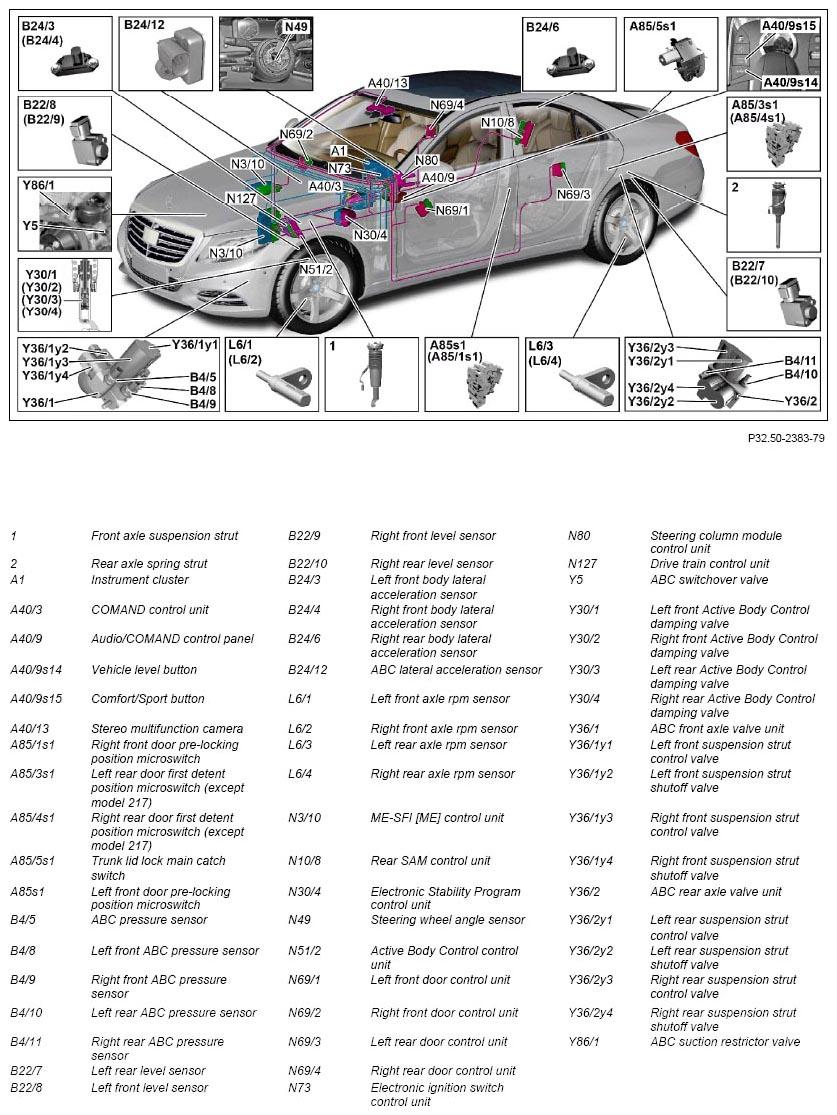

Fig 1: Overview Of Active Body Control System Components - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

Shown on model 222

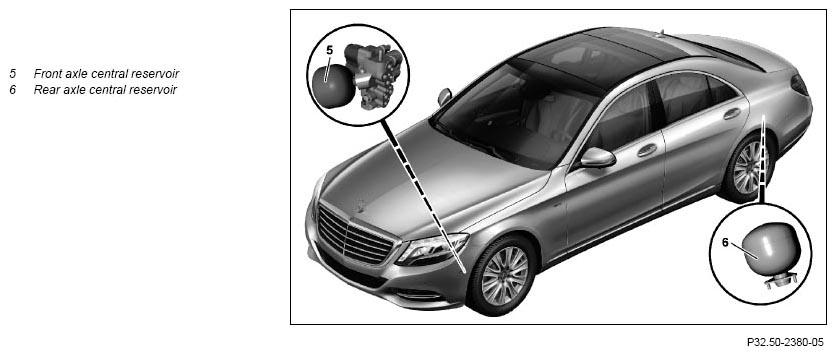

Fig 2: Front And Rear Axle Central Reservoir - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

Shown on model 222

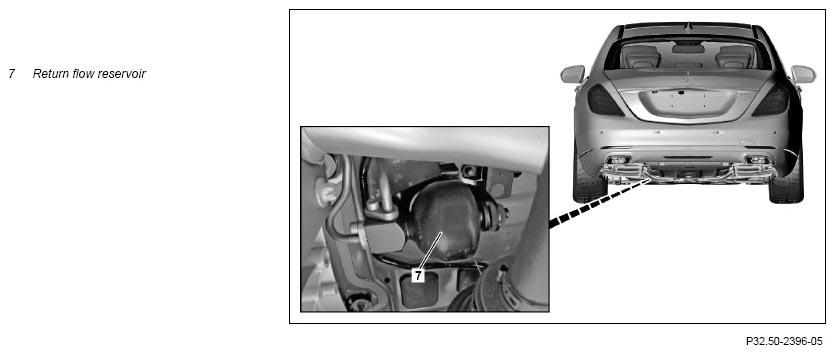

Fig 3: Return Flow Reservoir - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

Component description for instrument cluster	A1	GF54.30-P-6000LF
Component description for COMAND controller unit	A40/3	GF82.85-P-3136LF
Component description for Audio/COMAND control panel	A40/9, A40/9s14, A40/9s15	GF54.21-P-4501LF
Component description for multifunction camera	MODEL 222 with CODE 487 (MAGIC BODY CONTROL) with CODE 513 (Road sign recognition system) MODEL 222 with CODE 487 (MAGIC BODY CONTROL) with CODE 608 (Adaptive Highbeam Assist) MODEL 222 with CODE 487 (MAGIC BODY CONTROL) with CODE 610 (Night View Assist) MODEL 222 with CODE 487 (MAGIC BODY CONTROL) with CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+)) MODEL 222 with CODE 487 (MAGIC BODY CONTROL) with CODE P20 (Driving Assistance package) A40/13	GF54.21-P-3300LF
Component description for ME-SFI (ME) control unit	MODEL 222 with ENGINE 157.9, 278.9 with CODE 487 (MAGIC BODY CONTROL) N3/10	GF07.61-P-6000MML
Component description for rear SAM control unit	N10/8	GF54.21-P-7030LF
Component description for Electronic Stability Program control unit	MODEL 217, 222 (except 222.004/057/104/157/163) with CODE 487 (MAGIC BODY CONTROL) N30/4	GF42.45-P-5119LF
ABC control unit, component description	N51/2	GF32.50-P-4501LF
Component description for left front door control unit	N69/1	GF72.29-P-6001LF
Component description for right front door control unit	N69/2	GF72.29-P-6009LF
Component description for rear door control unit	MODEL 222 with CODE 487 (MAGIC BODY CONTROL) N69/3, N69/4	GF72.29-P-6021LF
Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001LF
Component description for steering column tube module control unit	N80	GF54.21-P-6051LF
Drivetrain control unit, component description	MODEL 222 with ENGINE 157.9, 278.9 with CODE 487 (MAGIC BODY CONTROL) N127	GF54.21-P-2141LF
Table of contents for function description of Active Body Control (ABC)		GF32.50-P-0999LF
