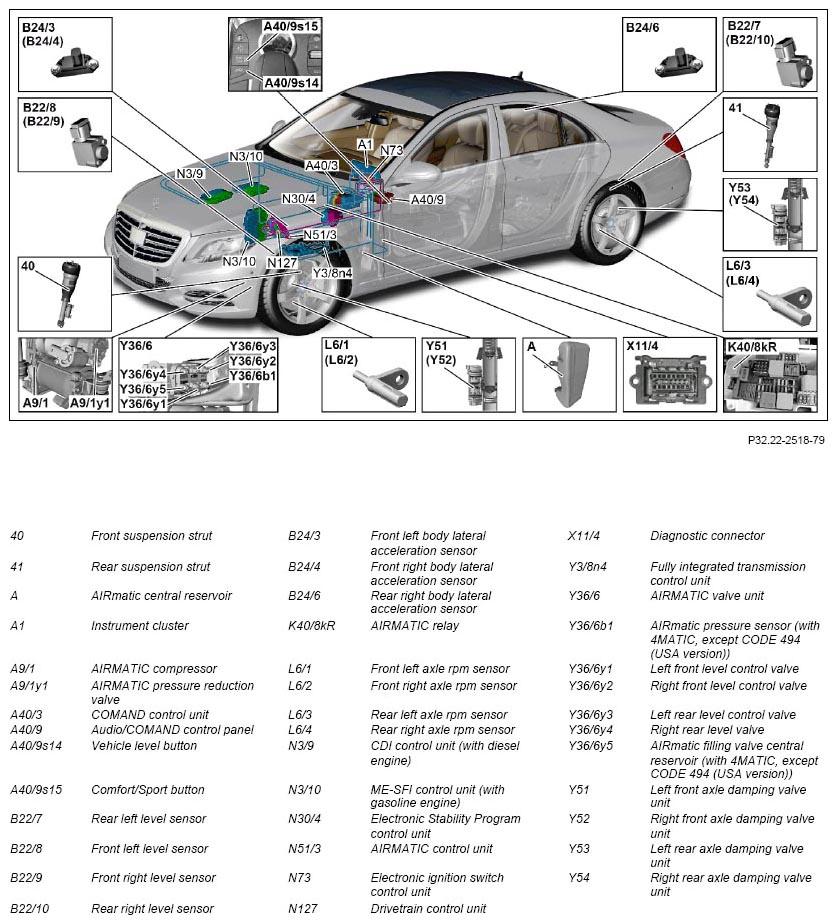

Overview of AIRmatic system components - GF32.22-P-9998LF
MODEL 217, 222
Shown on model 222
| Component description for instrument cluster | A1 | GF54.30-P-6000LF | |
| Component description for COMAND controller unit | MODEL 222 A40/3 |
GF82.85-P-3136LF | |
| Component description for Audio/COMAND control panel | MODEL 222 A40/9, A40/9s14, A40/9s15 |
GF54.21-P-4501LF | |
| Component description for CDI control unit | MODEL 222 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OGS | |
| MODEL 222 with ENGINE 651.9 | GF07.16-P-6000OLA | ||
| Component description for ME-SFI (ME) control unit | MODEL 222 with ENGINE 276.9 N3/10 | GF07.61-P-6000MMK | |
| MODEL 222 with ENGINE 157.9, 278.9 | GF07.61-P-6000MML | ||
| Component description for Electronic Stability Program control unit | MODEL 217, 222 (except 222.004/057/104/157/163) N30/4 | GF42.45-P-5119LF | |
| MODEL 222.004/057/104/157/163 | GF42.45-P-5119LFH | ||
| AIRmatic control unit, component description | N51/3 | GF32.22-P-5109LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Drivetrain control unit, component description | MODEL 222 with ENGINE 642.8 N127 | GF54.21-P-2141OGS | |
| MODEL 217 with ENGINE 157.9, 278.9, 279 MODEL 222 (except 222.163) with ENGINE 276.8 MODEL 222 with ENGINE 157.9, 277, 278.9, 279 |
GF54.21-P-2141LF | ||
| Component description for fully integrated transmission control unit | MODEL 222 with TRANSMISSION 724.2 Y3/8n4 | GF27.60-P-5165LFH | |
| MODEL 222 with TRANSMISSION 722.9 (except 722.931/932/971) | GF27.60-P-5165AHB | ||
| AIRmatic, function description, contents | GF32.22-P-0998LF |
