Remove/install radiator - AR20.20-P-3865MUB
MODEL 217 with ENGINE 279
MODEL 222 with ENGINE 277, 279
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove front right cover above coolant expansion reservoir | ||
| 3 | Unscrew cap on coolant expansion reservoir | ||

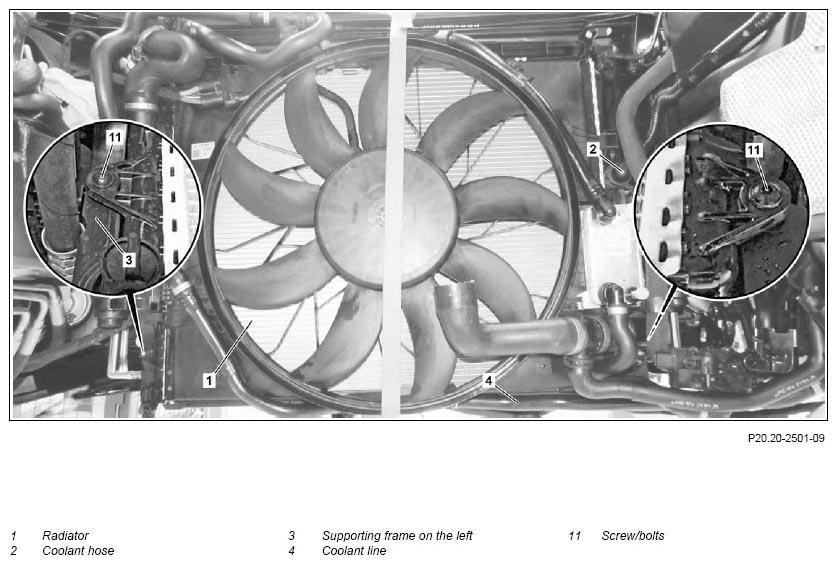

| 4 | Remove fan unit | AR20.40-P-5050MUB | |
| 5 | Drain coolant at radiator (1) | AR20.00-P-1142LF | |
| 6 | Remove coolant hose between coolant pump and cooler (1) | AR20.20-P-7441-01RQ | |
| 7 | Detach coolant hose (2) at radiator (1) | AR20.20-P-7441-01RQ | |
| 8 | Detach coolant hose (5) between cooler (1) and coolant thermostat on cooler (1) | AR20.20-P-7441-01RQ | |

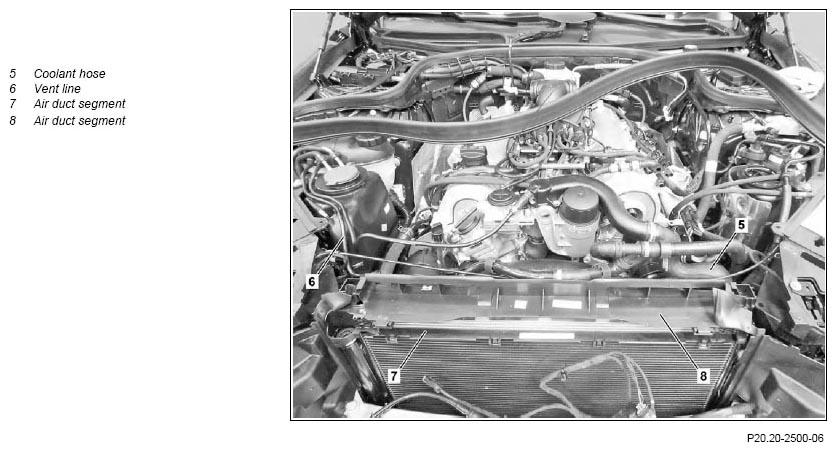

| 9 | Detach vent line (6) between cooler (1) and coolant expansion reservoir on cooler (1) | AR20.20-P-7441-01RQ | |
| 10 | Unclip coolant line (4) at radiator (1) | ||
| 11 | Remove front center reinforcement | AR62.30-P-1570LF | |
| 12 | Detach air duct segment (8) at radiator (1) and place to one side | ||
| 13 | Remove air duct segment (7) | ||
| 14 | Remove screw/bolts (11) | ||
| 15 | Unclip radiator (1) from left supporting frame (3) and detach supporting frame on the right and remove downwards | Press oil cooler for A/T to the side. The cooler (1) will be damaged otherwise. |
|
| Clean | |||
| 16 | Clean coolant covered areas | ||
| 17 | Install in the reverse order | ||
| Check | |||
| 18 | Check engine cooling system for leaktightness | AR20.00-P-1010LF | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 19 | Perform an engine test run and check engine cooling system for proper operation |
