Remove/install throttle valve actuator - AR07.51-P-1401LFB

ENGINE 157, 278 in MODEL 217

ENGINE 157, 278 in MODEL 222

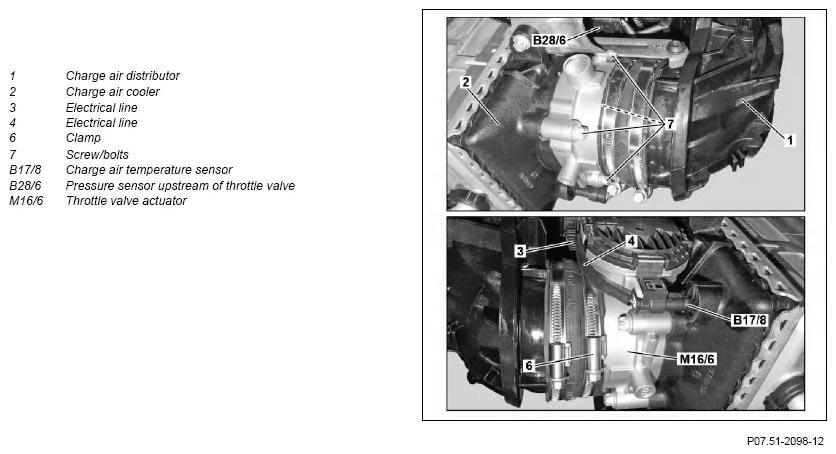

Fig 1: Throttle Valve Actuator Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

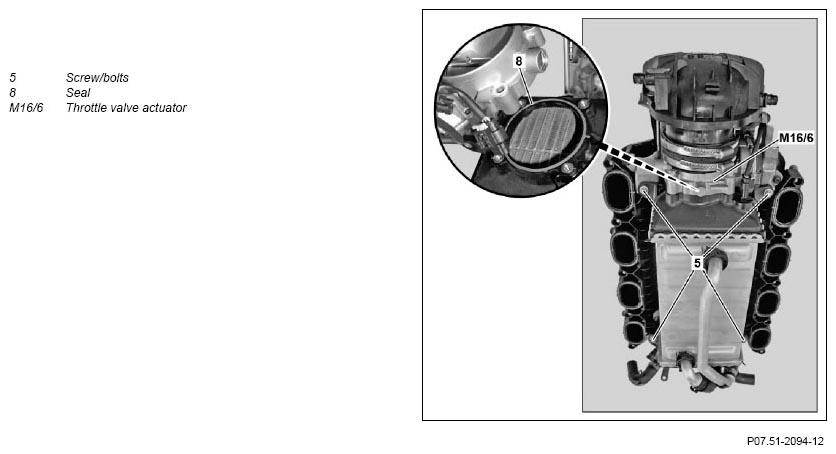

Fig 2: Throttle Valve Actuator Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removal/Install
1	Remove charge air distributor (1)		AR09.41-P-1310LFB
2	Disconnect electrical connections on charge air temperature sensor (B17/8) and pressure sensor upstream of throttle valve (B28/6)
3	Disconnect electrical connection at throttle valve actuator (M16/6)
4	Unclip electrical line (4) on throttle valve actuator (M16/6)
5	Unscrew screw/bolts (5) for charge air cooler (2) on charge air distributor (1)	Bolt, charge air cooler to charge air distribution line	*BA09.41-P-1001-01O
6	Unfasten clamp (6) from charge air cooler (1) at throttle valve actuator (M16/6)	Ensure that seal is correctly seated. Seal damaged ↓ Replace seal
7	Detach charge air cooler (2) and throttle valve actuator (M16/6) on charge air distributor (1)
8	Unclip electrical line (3) on throttle valve actuator (M16/6)
9	Remove screws/bolts (7) on throttle valve actuator (M16/6)	Bolt, throttle valve actuator to charge air cooler	*BA09.41-P-1002-01O
10	Detach throttle valve actuator (M16/6) from charge air cooler (2)
11	Remove seal (8) for throttle valve actuator (M166) on charge air cooler (2)	Install new seal (8). Ensure that seal (8) is seated properly.
12	Install in the reverse order
13	Read out fault memory using the diagnostic system and clear if necessary
			AD00.00-P-2000-04B

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		ENGINE 157	ENGINE 278
BA09.41-P-1001-01O	Bolt, charge air cooler to charge air distribution line	Nm	9	9

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		ENGINE 157	ENGINE 278
BA09.41-P-1002-01O	Bolt, throttle valve actuator to charge air cooler	Nm	9	9
