Check wiper arms and adjust - AR82.30-P-6000GZ

MODEL 164 up to 8/24/11, 166 up to 8/24/11

MODEL 222 except CODE 874 (MAGIC VISION CONTROL, heated)

Shown on model 164

Fig 1: Checking Wiper Arms And Adjust - Shown On Model 251 (1 Of 2)
G09983127Courtesy of MERCEDES-BENZ USA

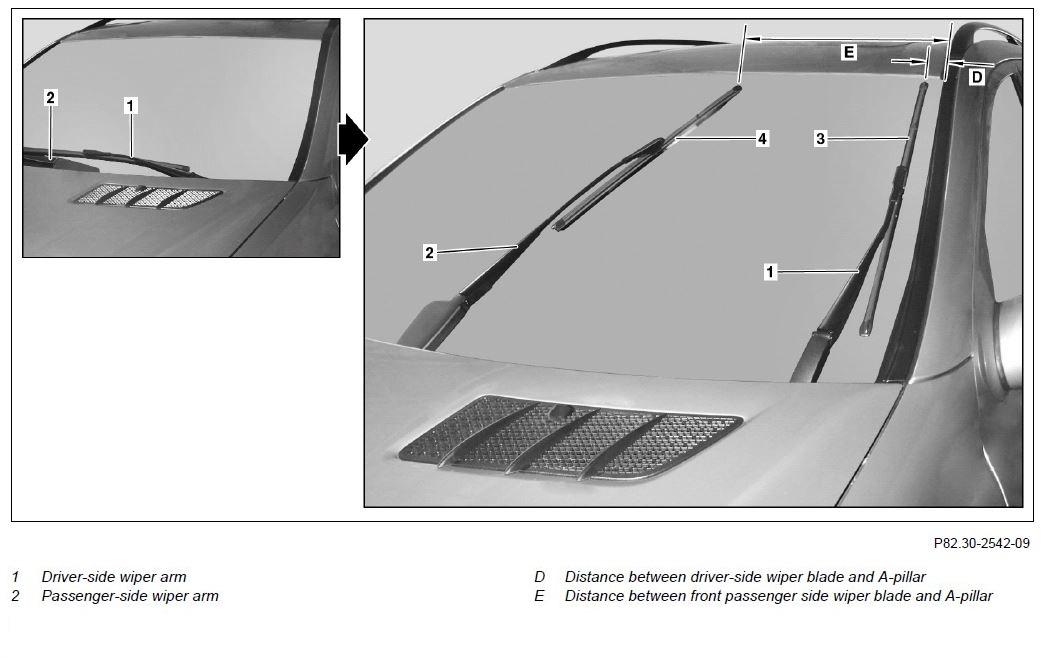

Fig 2: Checking Wiper Arms And Adjust - Shown On Model 251 (2 Of 2)
G00566957Courtesy of MERCEDES-BENZ USA
DANGER
Replace driver side wiper arm (1) or passenger side wiper arm (2)		 Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. Always remove ignition key when working on windshield wiper mechanism. AS82.30-Z-0001-01A
INSPECT Check
1 Check position of driver-side wiper arm (1) in parked position using the markings (C) (arrow) at the windshield IMPORTANT The wiper blade ends must lie on the markings (arrow C) and may not be offset by more than 10 mm upwards or downwards.
IMPORTANT Model 164 up to 8/24/11, 166 up to 8/24/11. The distance from the outer marking to the A-pillar (A) is approx. 60 mm.
IMPORTANT A huge deviation can be caused by a damaged wiper linkage, incorrect positioning of the wiper arm (1) on the linkage pins or a bent wiper arm (1).
Replace windshield wiper system.
If damage is present:
↓
Model 164 up to 8/24/11, 166 up to 8/24/11 AR82.30-P-6400GZ
Model 222 except code 874 (MAGIC VISION CONTROL, heated) AR82.30-P-6400LF
Replace driver side wiper arm (1) or passengerside wiper arm (2)
Model 164 up to 8/24/11, 166 up to 8/24/11 AR82.30-P-6100GZ
Model 222 except code 874 (MAGIC VISION CONTROL, heated) AR82.30-P-6100LF
2 Position the driver-side wiper arm (1) manually in the reversing position IMPORTANT Model 164 up to 8/24/11, 166 up to 8/24/11. The reversing position of the driver-side wiper arm (1) corresponds to the distance between driver-side wiper blade and A-pillar (D) of approx. 30 mm.
IMPORTANT Model 222 except code 874 (MAGIC VISION CONTROL, heated)
The reversing position of the driver-side wiper arm (1) corresponds to the distance between driver-side wiper blade and A-pillar (D) of approx. 45 mm.
3 Remove driver side wiper blade When working on raised driver-side wiper arm (1), ensure that this does not fall onto the windshield.
Otherwise windshield will be damaged.
IMPORTANT Driver-side wiper arm (1) must not be moved.
4 Check position of passenger-side wiper arm (2) in parked position using the markings (C) (arrow) at the windshield IMPORTANT The wiper-blade end must lie on the marking (C) (arrow) and may not be offset upwards or downwards by more than 10 mm.
IMPORTANT The distance between the inner marking and the A-pillar (B) is approx. 510 mm.
IMPORTANT A huge deviation can be caused by a damaged wiper linkage, incorrect positioning of the wiper arm (2) on the linkage pins or a bent wiper arm (2).
If damage is present
↓
Replace windshield wiper system
Model 164 up to 8/24/11, 166 up to 8/24/11 AR82.30-P-6400GZ
Model 222 except code 874 (MAGIC VISION CONTROL, heated) AR82.30-P-6400LF
Replace passenger-side wiper arm (2)
Model 164 up to 8/24/11, 166 up to 8/24/11 AR82.30-P-6100GZ
Model 222 except code 874 (MAGIC VISION CONTROL, heated) AR82.30-P-6100LF
5 Position passenger-side wiper arm (2) manually in the reversing position IMPORTANT The reversing position of the passenger side wiper arm (2) corresponds to the distance between passenger-side wiper blade to A-pillar (E) of approx. 460 mm.
IMPORTANT The distance between the passenger-side wiper blade and the A-pillar (E) results from the specified distance between the driver-side wiper blade and the A-pillar (D).
6 Remove passenger side wiper blade When working on raised passenger side wiper arm (2), ensure that this does not fall onto the windshield. Otherwise windshield will be damaged.
IMPORTANT Passenger-side wiper arm (2) must not be moved.
  Clean
7 Clean wiper blade fixtures on driver-side wiper arm (1) and passenger-side wiper arm (2) using a clean cloth
8 Cover driver-side wiper arm (1) using suitable aids (scratch protection)
9 Measure angle of incidence of wiper arm (1) to windshield, note this down and compare test value with adjustment value   AR82.30-P-6000-01GZ
IMPORTANT Notes on wiper arm adjustment   AH82.30-P-0001-01A
NOTES When changing from reversing position to parked position, make sure that driver-side wiper arm (1) does not make direct contact with windshield.
Otherwise windshield will become scratched.
Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of driver-side wiper arm in parked position *BE82.30-P-1003-01J
Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of driver-side wiper arm in reversing position *BE82.30-P-1001-01J
Model 222 except code 874 (MAGIC VISION CONTROL, heated) Angle of incidence of driver-side wiper arm in reversing position *BE82.30-P-1001-01M
Model 222 except code 874 (MAGIC VISION CONTROL, heated) Angle of incidence of driver-side wiper arm in parked position *BE82.30-P-1003-01M
SPECIAL TOOL Adapter Fig 4
SPECIAL TOOL Adjusting tool set Fig 3
10 Cover passenger-side wiper arm (2) using suitable aids (scratch protection)
11 Measure angle of incidence of wiper arm (2) to windshield, note this down and compare test value with adjustment value   AR82.30-P-6000-01GZ
IMPORTANT Notes on wiper arm adjustment   AH82.30-P-0001-01A
    When changing from reversing position to parked position, make sure that passenger-side wiper arm (2) does not make direct contact with windshield. Otherwise windshield will become scratched.
    Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of passenger-side wiper arm in parked position *BE82.30-P-1004-01J
    Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of passenger-side wiper arm in reversing position *BE82.30-P-1002-01J
    Model 222 except code 874 (MAGIC VISION CONTROL, heated) Angle of incidence of passenger-side wiper arm in reversing position *BE82.30-P-1002-01M
    Model 222 except code 874 (MAGIC VISION CONTROL, heated) Angle of incidence of passenger-side wiper arm in parked position *BE82.30-P-1004-01M
    SPECIAL TOOL Adjusting tool set Fig 3
    SPECIAL TOOL Adapter Fig 4
  Adjust
12.1 Adjust angle of incidence of wiper arm (1) in parked position If the test values deviate from the tolerance range in the reversing position or in the parked and reversing position. AR82.30-P-6100-01GZ
IMPORTANT Notes on wiper arm adjustment   AH82.30-P-0001-01A
Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of driver-side wiper arm in parked position *BE82.30-P-1003-01J
Model 222 except code 874 (MAGIC VISION CONTROL, heated) Angle of incidence of driver-side wiper arm in parked position *BE82.30-P-1003-01M
SPECIAL TOOL Adapter Fig 4
SPECIAL TOOL Adjusting tool set Fig 3
12.2 Adjusting windshield wiper system In the event that the check values of both wiper arms (1) deviate from the tolerance range in parked position.
IMPORTANT Notes on wiper arm adjustment AH82.30-P-0001-01A
Model 164 up to 8/24/11, 166 up to 8/24/11 AR82.30-P-6400-01GZ
Model 222 except code 874 (MAGIC VISION CONTROL, heated) AR82.30-P-6400-01CW
Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of driver-side wiper arm in parked position *BE82.30-P-1003-01J
Model 222 except code 874 (MAGIC VISION CONTROL, heated) Angle of incidence of driver-side wiper arm in parked position *BE82.30-P-1003-01M
Model 222 except code 874 (MAGIC VISION CONTROL, heated) Screw/bolt, windshield wiper system to body *BA82.30-P-1001-01P
SPECIAL TOOL Model 222 except code 874 (MAGIC VISION CONTROL, heated) Extraction hook Fig 5
SPECIAL TOOL Adapter Fig 4
SPECIAL TOOL Adjusting tool set Fig 3
13.1 Adjust angle of incidence of wiper arm (2) in parked position If the test values deviate from the tolerance range in the reversing position or in the parked and reversing position. AR82.30-P-6100-01GZ
IMPORTANT Notes on wiper arm adjustment   AH82.30-P-0001-01A
    Model 222 except code 874 (MAGIC VISION CONTROL, heated) Angle of incidence of passenger-side wiper arm in parked position *BE82.30-P-1004-01M
    Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of passenger-side wiper arm in parked position *BE82.30-P-1004-01J
    SPECIAL TOOL Adjusting tool set Fig 3
    SPECIAL TOOL Adapter Fig 4
13.2 Adjust windshield wiper system In the event that the check values of the wiper arm (2) deviate from the tolerance range in park position.
IMPORTANT Notes on wiper arm adjustment   AH82.30-P-0001-01A
  Model 164 up to 8/24/11, 166 up to 8/24/11 AR82.30-P-6400-01GZ
    Model 222 except code 874 (MAGIC VISION CONTROL, heated) AR82.30-P-6400-01CW
    Model 164 up to 8/24/11, 166 up to 8/24/11 Angle of incidence of passenger-side wiper arm in parked position *BE82.30-P-1004-01J
    Model 222 except code 874 (MAGIC VISION CONTROL, heated) Angle of incidence of passenger-side wiper arm in parked position *BE82.30-P-1004-01M
    Model 222 except code 874 (MAGIC VISION CONTROL, heated) Screw/bolt, windshield wiper system to body *BA82.30-P-1001-01P
    SPECIAL TOOL Model 222 except code 874 (MAGIC VISION CONTROL, heated) Extraction hook Fig 5
    SPECIAL TOOL Adjusting tool set Fig 3
    SPECIAL TOOL Adapter Fig 4
14 Install wiper blades
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 164 Model 166
BE82.30-P-1001-01J Angle of incidence of driver-side wiper arm in reversing position Left-hand drive vehicle ∠° -2, 0...-6, 0 -2, 0...-6, 0
Right-hand drive vehicle ∠° +2, 0...+6, 0 +2, 0...+6, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 222
BE82.30-P-1001-01M Angle of incidence of driver-side wiper arm in reversing position Left-hand drive vehicle ∠° -2, 4...-3, 0
Right-hand drive vehicle ∠° +2, 4...+3, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 164 Model 166
BE82.30-P-1002-01J Angle of incidence of passenger-side wiper arm in reversing position Left-hand drive vehicle ∠° -4, 0...-8, 0 -4, 0...-8, 0
Right-hand drive vehicle ∠° +4, 0...+8, 0 +4, 0...+8, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 222
BE82.30-P-1002-01M Angle of incidence of passenger-side wiper arm in reversing position Left-hand drive vehicle ∠° -4, 0...-4, 2
Right-hand drive vehicle ∠° +4, 0...+4, 2
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 164 Model 166
BE82.30-P-1003-01J Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +2, 0...+6, 0 +2, 0...+6, 0
Right-hand drive vehicle ∠° -2, 0...-6, 0 -2, 0...-6, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 222
BE82.30-P-1003-01M Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 6...+5, 4
Right-hand drive vehicle ∠° -3, 6...-5, 4
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 164 Model 166
BE82.30-P-1004-01J Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +4, 0...+8, 0 +4, 0...+8, 0
Right-hand drive vehicle ∠° -4, 0...-8, 0 -4, 0...-8, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 222
BE82.30-P-1004-01M Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 4...+5, 6
Right-hand drive vehicle ∠° -3, 4...-5, 6
WINDSHIELD WIPER

Number Designation Model 222
BA82.30-P-1001-01P Screw/bolt, windshield wiper system to body M8 Nm 11
Fig 3: Identifying Adjusting Tool Set (211 589 02 21 00)
G09983129Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Adapter (211 589 05 21 00)
G09983130Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Extraction Hook (140 589 02 33 00)
G11163440Courtesy of MERCEDES-BENZ USA
