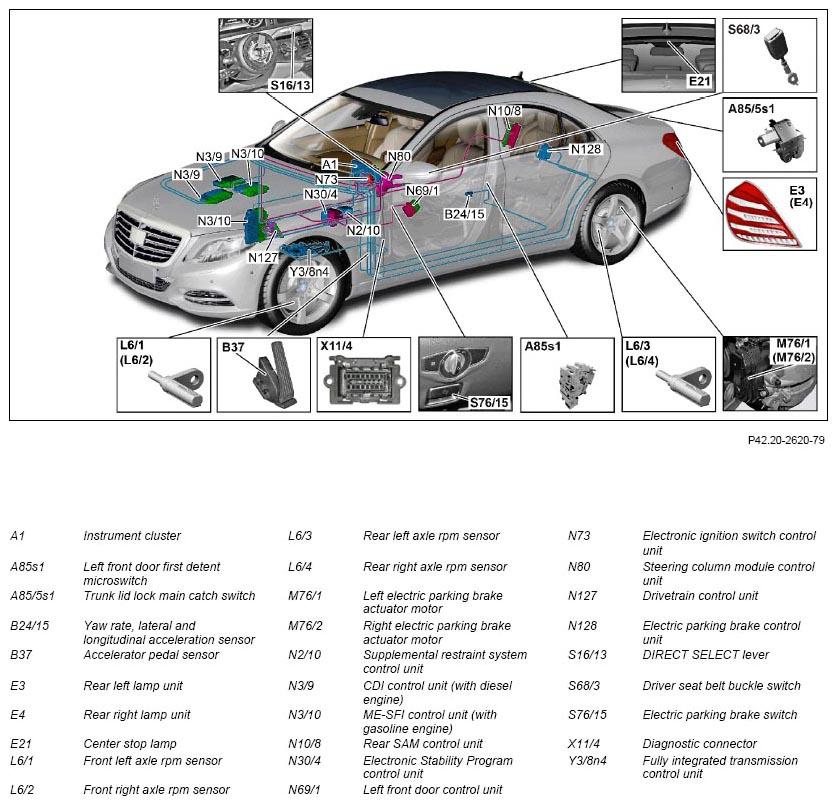

Overview of system components for electric parking brake - GF42.20-P-9998LF
MODEL 217, 222
Shown on model 222
| Component description for instrument cluster | A1 | GF54.30-P-6000LF | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | MODEL 222 with ENGINE 642.8 N3/9 | GF07.16-P-6000OGS | |
| MODEL 222 with ENGINE 651.9 | GF07.16-P-6000OLA | ||
| Component description for ME-SFI (ME) control unit | MODEL 222 with ENGINE 276.9 N3/10 | GF07.61-P-6000MMK | |
| MODEL 222 with ENGINE 157.9, 278.9 | GF07.61-P-6000MML | ||
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Component description for Electronic Stability Program control unit | MODEL 217, 222 (except 222.004/057/104/157/163) N30/4 | GF42.45-P-5119LF | |
| MODEL 222.004/057/104/157/163 | GF42.45-P-5119LFH | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051LF | |
| Drivetrain control unit, component description | MODEL 222 with ENGINE 642.8 N127 | GF54.21-P-2141OGS | |
| MODEL 217 with ENGINE 157.9, 278.9, 279 MODEL 222 (except 222.163) with ENGINE 276.8 MODEL 222 with ENGINE 157.9, 277, 278.9, 279 |
GF54.21-P-2141LF | ||
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005LF | |
| Component description for fully integrated transmission control unit | MODEL 222 with TRANSMISSION 724.2 Y3/8n4 | GF27.60-P-5165LFH | |
| MODEL 222 with TRANSMISSION 722.9 (except 722.931/932/971) | GF27.60-P-5165AHB | ||
| Table of contents for function description, electric parking brake | GF42.20-P-0999LF |
