Remove/install instrument cluster - AR54.30-P-6015LF

MODEL 217, 222

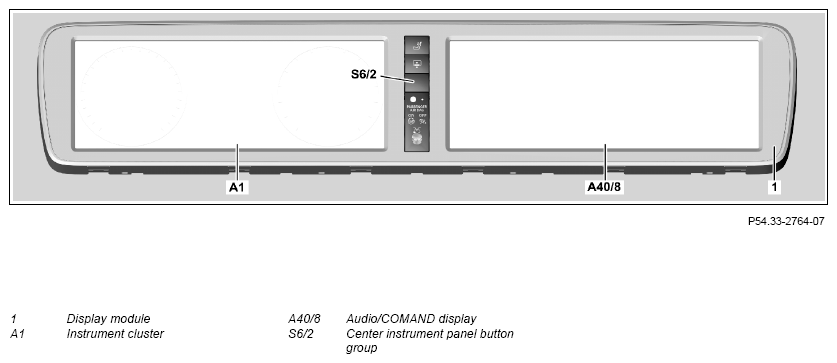

Fig 1: Instrument Cluster Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

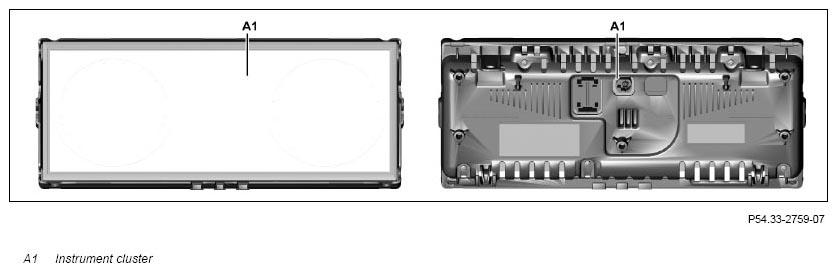

Fig 2: Instrument Cluster Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

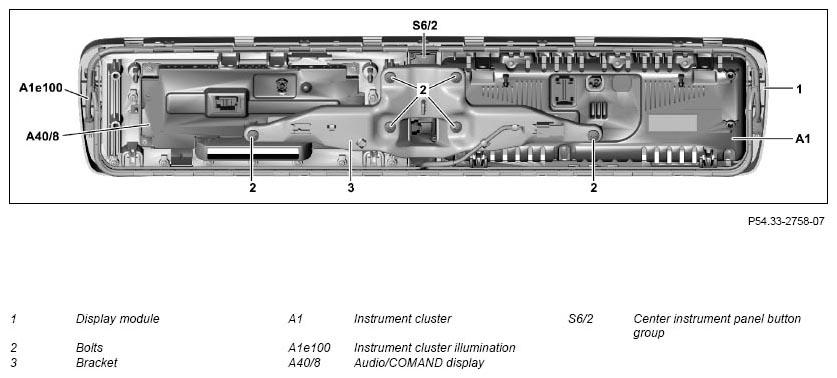

Fig 3: Instrument Cluster Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Connect diagnostic system and perform initial startup of instrument cluster (A1)	When replacing the instrument cluster (A1).
			AD00.00-P-2000-04B
2	Remove display module (1)	MODEL 217, 222.0/1	AR54.30-P-6023LF
3	Unclip instrument cluster illumination (A1e100) from display module (1)	Replace cover on display module (1) and instrument cluster illumination (A1e100).
4	Unscrew bolts (2) and remove bracket (3) with instrument cluster illumination (A1e100)
5	Remove instrument cluster (A1)
6	Install in the reverse order
