Remove/install 360° camera control unit - AR54.30-P-3004LF
MODEL 222 with CODE 501 (360° camera)
MODIFICATION NOTES
| 26.8.15 | Calibrate all the cameras for the 360° camera system using the diagnostic system, added. | Operation step 13 |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Read out data from 360° camera control unit (N148) with diagnostic system | If the 360° camera control unit (N148) is being replaced. | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Remove luggage compartment trim on left side | AR68.30-P-4600LF | |
| 4 | Remove woofer | Model 222 with code 501 (360° camera) with code 811 (Advanced sound system) |
AR82.62-P-7839LF |
| 5 | Remove tuner unit (A90/4) | Remove/install tuner unit Model 222 with code 536 (SIRIUS satellite radio) or with code 537 (Digital radio (DAB)) or with code 865 (TV tuner) |
AR82.60-P-2002LF |

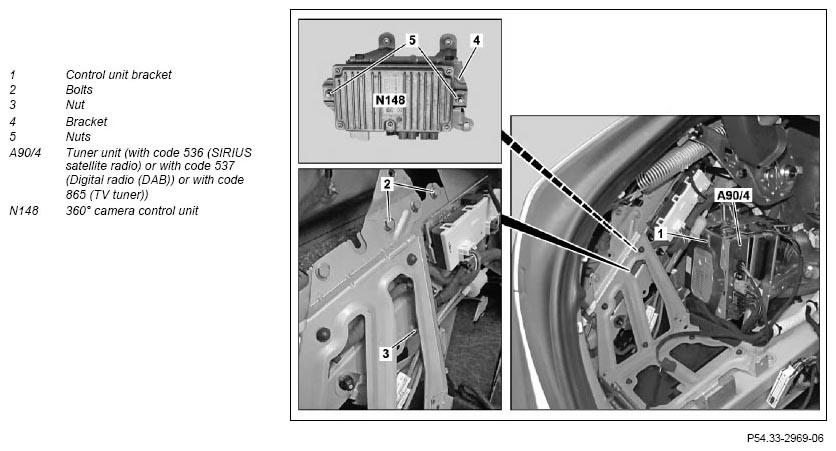

| 6 | Loosen control unit bracket (1) | ||
| 7 | Disconnect electrical connectors of control units in control unit bracket (1) and place control unit bracket (1) to one side | ||
| 8 | Unscrew bolts (2) | ||
| 9 | Unscrew nut (3) and remove 360° camera control unit (N148) with bracket (4) | ||
| 10 | Disconnect electrical connectors from 360° camera control unit (N148) | ||
| 11 | Unscrew nuts (5) and remove 360° camera control unit (N148) from bracket (4) | ||
| 12 | Install in the reverse order | ||
| 13 | Calibrate all the cameras for the 360° camera system using the diagnostic system | If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04B |
