Draining Tirefit Sealant Out Of Tires - AR40.10-S-1080E
Model 447, 448
| Risk of poisoning caused by swallowing the TIREFIT emulsion. Risk of injury caused by skin contact and eye contact with the TIREFIT emulsion. Risk of fire caused by ignition of the TIREFIT emulsion | Do not swallow or come into contact with the TIREFIT tire sealant, which is an emulsion of rubber and terpene phenolic resin. No open flames or open light sources. | AS40.10-Z-0001-01A | |
| TIREFIT tire sealant | AH40.10-P-0001-01A | ||
| Drain | |||
| 1 | Detach affected complete wheel | AR40.10-S-1100E | |
| 2 | Stand complete wheel with valve at bottom | ||
| 3 | Release tire pressure from complete wheel | ||
| 4 | Pull valve out of the disk wheel | Only if a tire sealant container (1) is used. | |
| 5 | Push valve debris remaining in valve bore of disk wheel into inside of disk wheel | Only if a tire sealant container (1) is used. | |

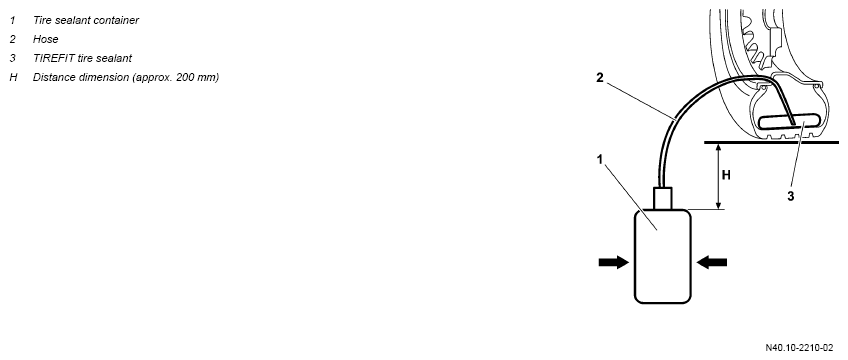

| 6 | Replace original hose on tire sealant container (1) with a 400 mm long hose (2) | Only if a tire sealant container (1) is used. | |
| 7 | Attach hose (2) to tire sealant container (1) | Only if a tire sealant container (1) is used. | |
| 8 | Squeeze tire sealant container (1) and immerse hose (2) as deep as possible in the TIREFIT tire sealant (3) through the valve bore in the disk wheel | Only if a tire sealant container (1) is used. |
|
| 9 | Reduce pressure on tire sealant container (1) | Only if a tire sealant container (1) is used. |
|
| 10 | Drill through tire tread using a drill bit (Ø 10 mm) and allow TIREFIT tire sealant (3) to flow into a suitable container | Only if no tire sealant container (1) is used. | |
| 11 | Detach damaged tire | AR40.10-S-1030E | |
| 12 | Remove remaining TIREFIT tire sealant (3) using a damp cloth | ||
| 13 | Attach new tire | AR40.10-S-1030E | |
| 14 | Place new tire repair kit TIREFIT (3) in the vehicle | ||
| 15 | Install complete wheel | AR40.10-S-1100E |
