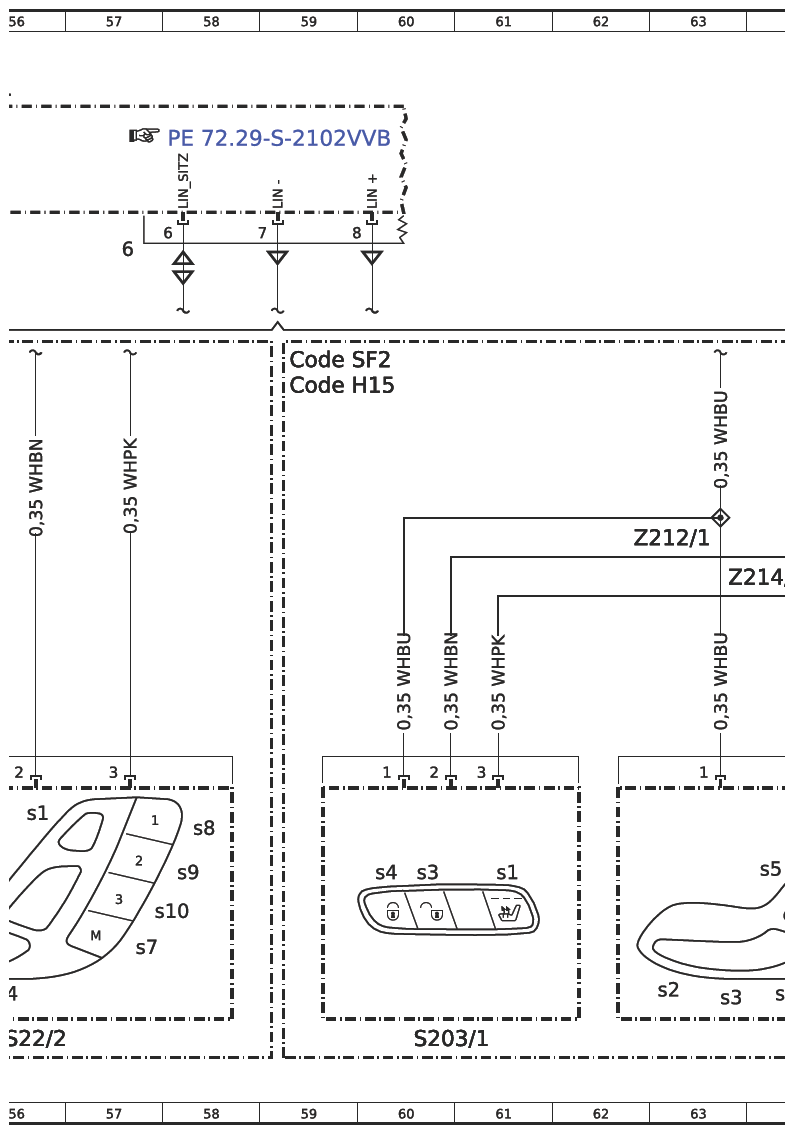

Wiring Diagram For Front Passenger Seat Adjustment, Seat Heater - PE91.00-S-2106-97VVB
Model 447.6
with code SF2 (Electrically adjustable co-driver's seat)
except code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
except code ZL3 (National version for Latin America)
N32/6, N69/4
Model 447.7
with code SF2 (Electrically adjustable co-driver's seat)
except code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code ME4 (Electric motor 145 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
except code ZL3 (National version for Latin America)
N32/6, N69/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| CAN B | Interior CAN | 52K |
| CAN B | Interior CAN | 11K |
| Code H15 | Heating for front passenger seat | 24D |
| Code H15 | Heating for front passenger seat | 36D |
| Code H15 | Heating for front passenger seat | 59D |
| Code SF2 | Electrically adjustable front passenger seat | 54D |
| Code SF2 | Electrically adjustable front passenger seat | 59D |

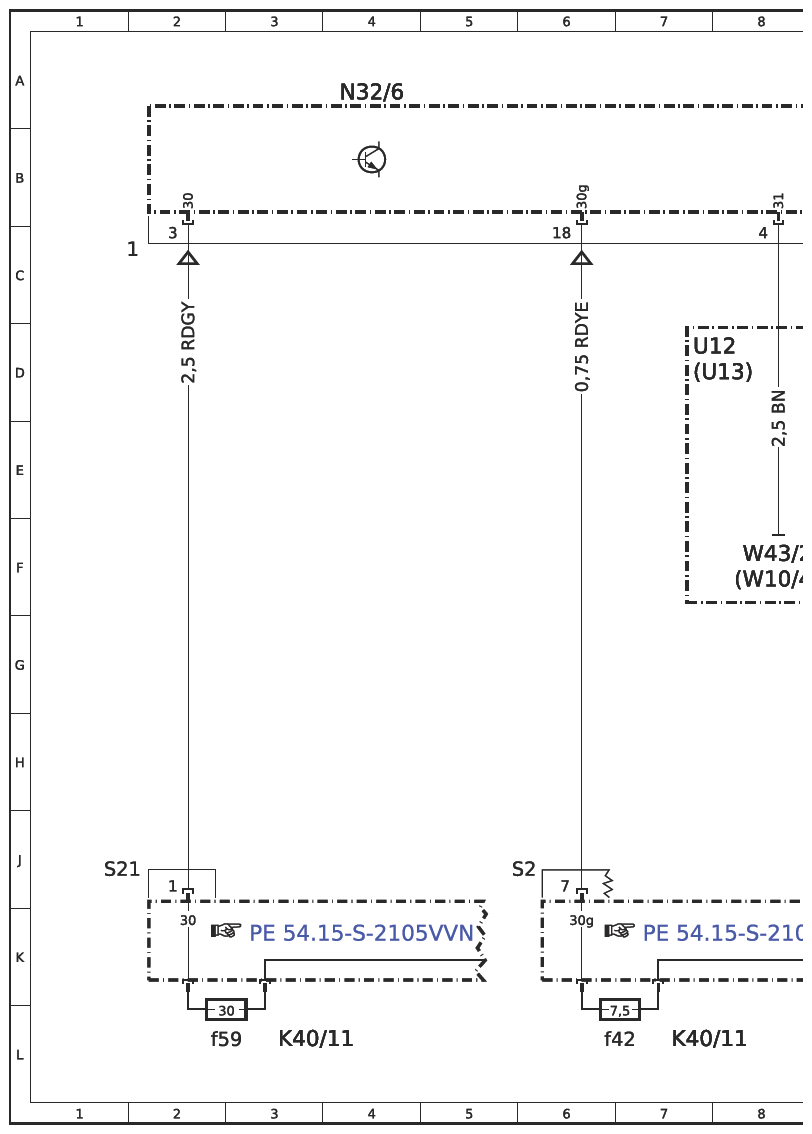

| K40/11 | Firewall fuse and relay module | 7L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f42 | Fuse 42 | 6L |
| K40/11f59 | Fuse 59 | 2L |
| M25/5 | Front passenger seat lumbar support pneumatic pump | 46L |

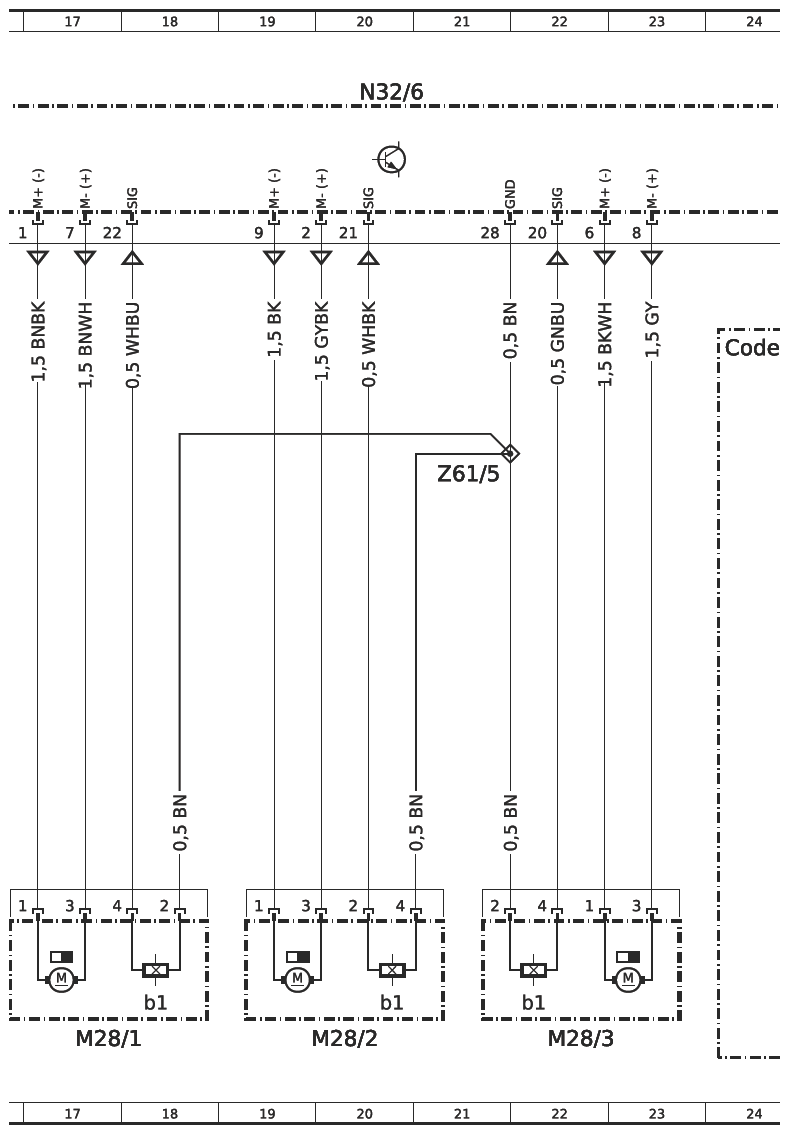

| M28/1 | Front passenger seat fore/aft adjustment motor | 17L |
| M28/1b1 | Seat fore/aft adjustment Hall sensor, front passenger seat | 18L |
| M28/2 | Front passenger seat height adjustment motor | 20L |
| M28/2b1 | Height adjustment Hall sensor, front passenger seat | 20L |
| M28/3 | Front passenger seat inclination adjustment motor | 22L |
| M28/3b1 | Inclination adjustment Hall sensor, front passenger seat | 22L |
| M28/4 | Front passenger seat head restraint adjustment motor | 32L |
| M28/4b1 | Head restraint adjustment Hall sensor, front passenger seat | 32L |

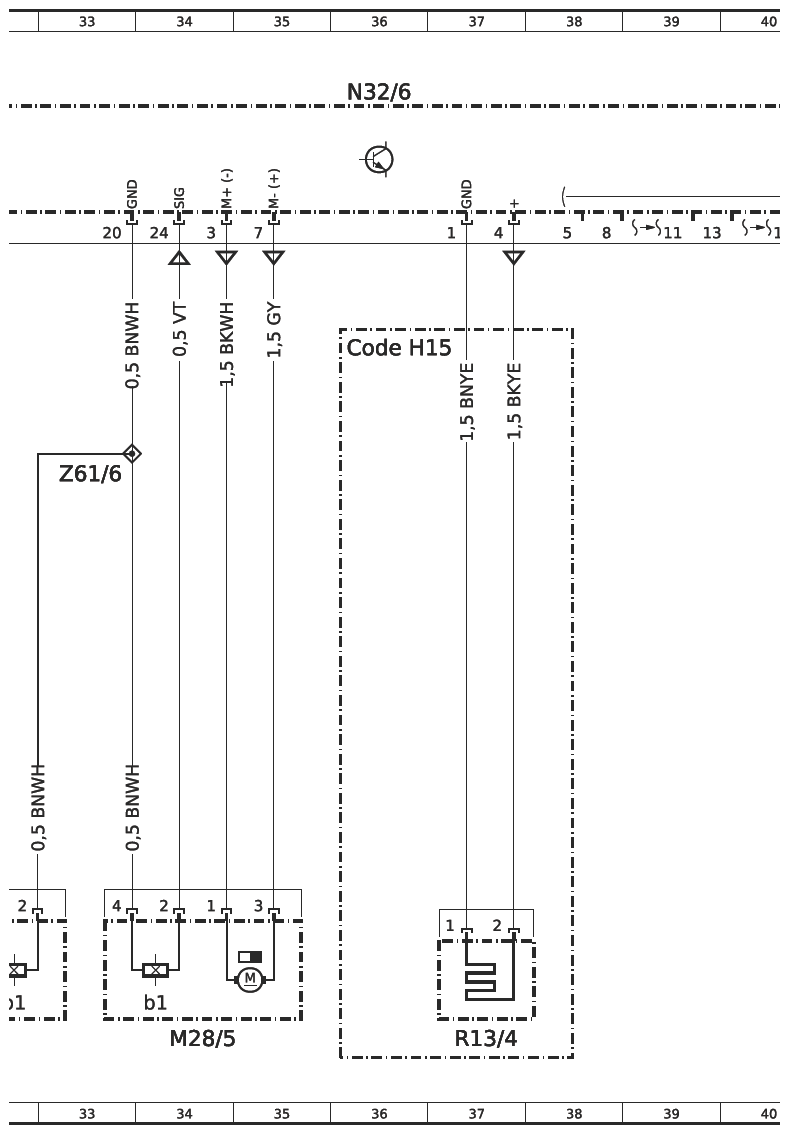

| M28/5 | Front passenger seat backrest inclination adjustment motor | 34L |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 34L |

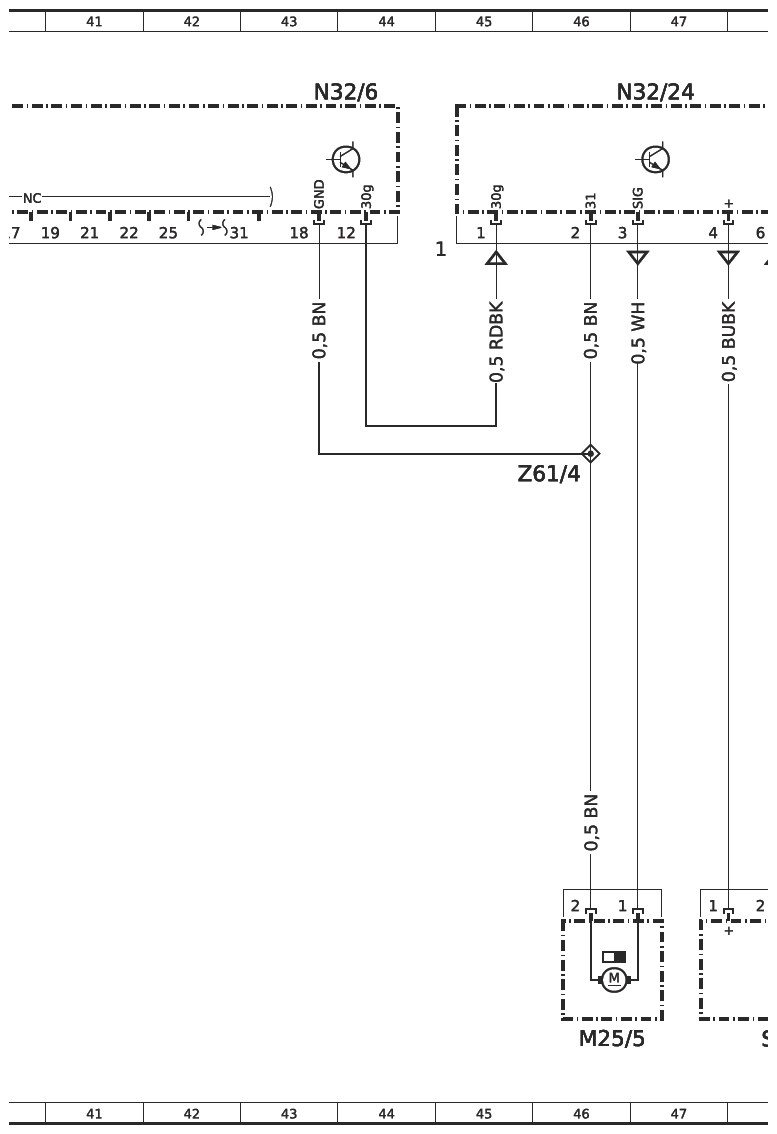

| N32/24 | Front passenger seat lumbar support adjustment control unit | 47A |
| N32/6 | Front passenger seat adjustment with memory control unit | 4A |
| N32/6 | Front passenger seat adjustment with memory control unit | 12A |
| N32/6 | Front passenger seat adjustment with memory control unit | 20A |
| N32/6 | Front passenger seat adjustment with memory control unit | 28A |
| N32/6 | Front passenger seat adjustment with memory control unit | 36A |
| N32/6 | Front passenger seat adjustment with memory control unit | 43A |

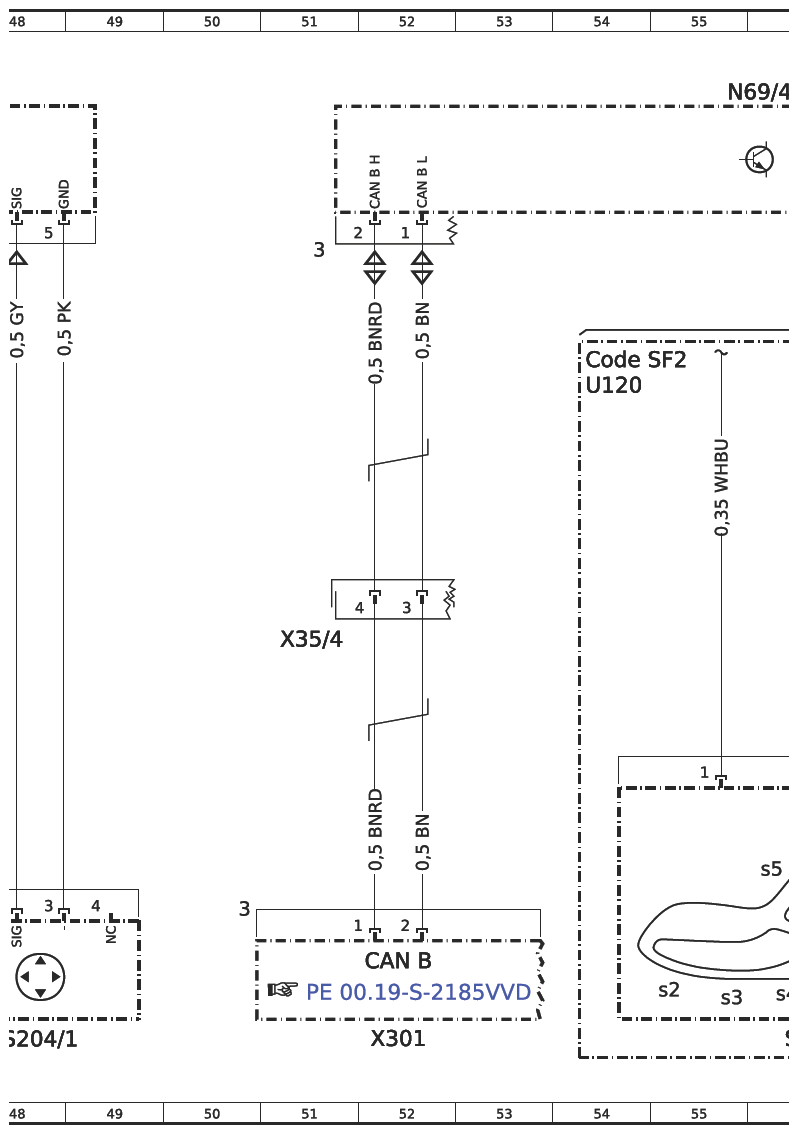

| N69/4 | Right front door control unit | 55A |

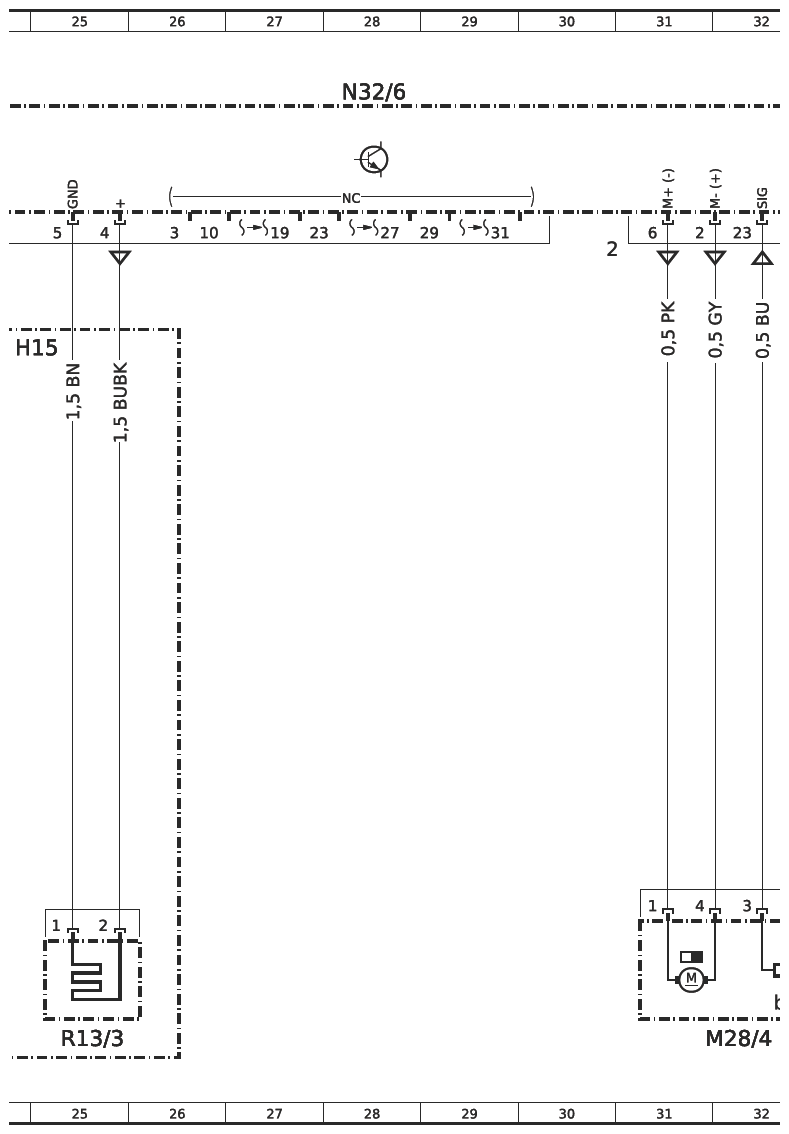

| R13/3 | Front passenger seat cushion heater pad | 25L |
| R13/4 | Front passenger seat backrest heater pad | 37L |
| S203/1 | Right seat climate control switch group | 60L |
| S203/1s1 | Right seat heater button | 61J |
| S203/1s3 | Central locking "Open" button | 60J |
| S203/1s4 | Central locking "Close" button | 60J |
| S204/1 | Front passenger seat lumbar support adjustment switch | 48L |

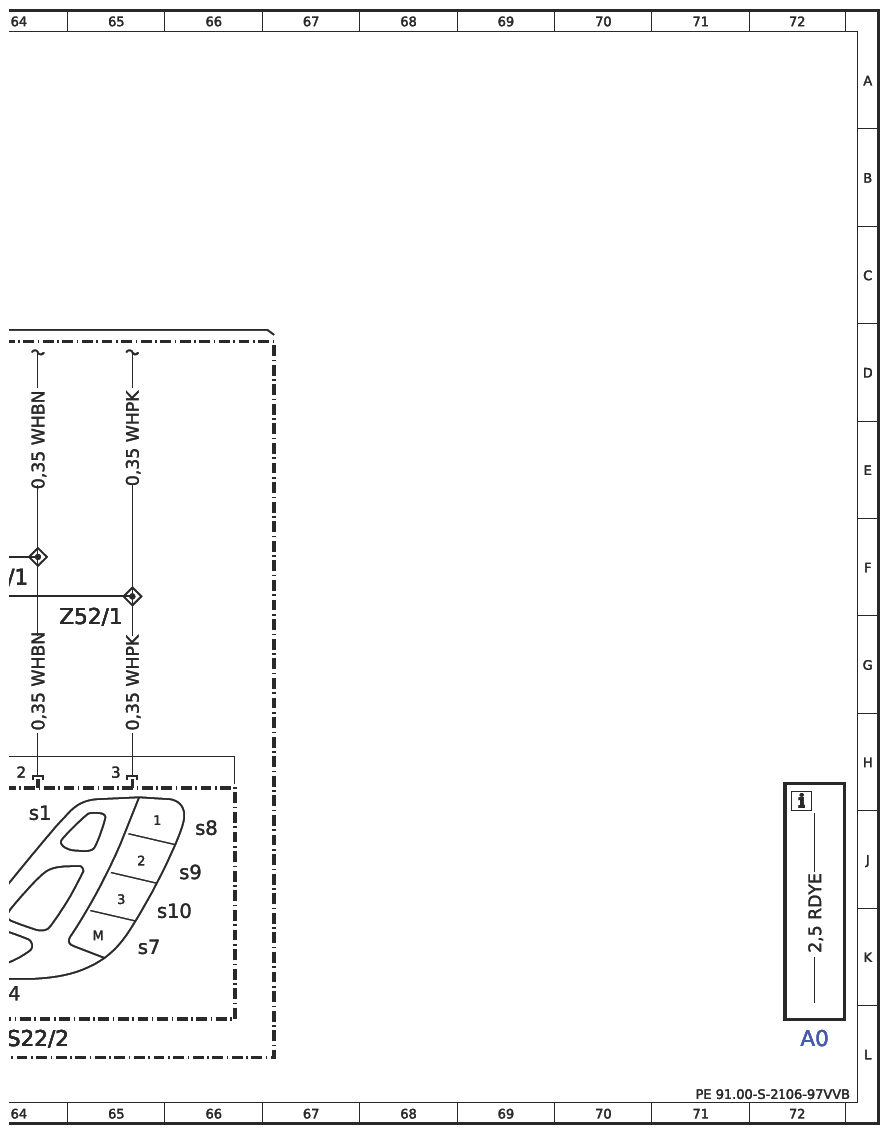

| S22/2 | Front passenger electric seat adjustment switch | 64L |
| S22/2 | Front passenger electric seat adjustment switch | 56L |
| S22/2s1 | Front passenger head restraint adjustment button | 64J |
| S22/2s1 | Front passenger head restraint adjustment button | 56J |
| S22/2s10 | Front passenger memory button 3 | 66K |
| S22/2s10 | Front passenger memory button 3 | 58K |
| S22/2s2 | Front passenger seat inclination adjustment button | 63K |
| S22/2s2 | Front passenger seat inclination adjustment button | 55K |
| S22/2s3 | Front passenger seat fore/aft adjustment button | 63K |
| S22/2s3 | Front passenger seat fore/aft adjustment button | 55K |
| S22/2s4 | Front passenger seat height adjustment button | 64K |
| S22/2s4 | Front passenger seat height adjustment button | 56K |
| S22/2s5 | Front passenger seat backrest adjustment button | 64J |
| S22/2s5 | Front passenger seat backrest adjustment button | 56J |
| S22/2s7 | Front passenger memory function button | 65K |
| S22/2s7 | Front passenger memory function button | 57K |
| S22/2s8 | Front passenger memory button 1 | 66J |
| S22/2s8 | Front passenger memory button 1 | 58J |
| S22/2s9 | Front passenger memory button 2 | 66J |
| S22/2s9 | Front passenger memory button 2 | 58J |
| U12 | Valid for left-hand drive vehicles | 7D |
| U120 | Valid without code H15 Heating for front passenger seat | 54D |
| U13 | Valid for right-hand drive vehicles | 7D |
| W10/4 | Additional battery ground point | 8F |
| W43/2 | Right vehicle interior firewall ground point | 8F |
| X301 | Interior CAN (CAN B) potential distributor electrical connector | 52L |

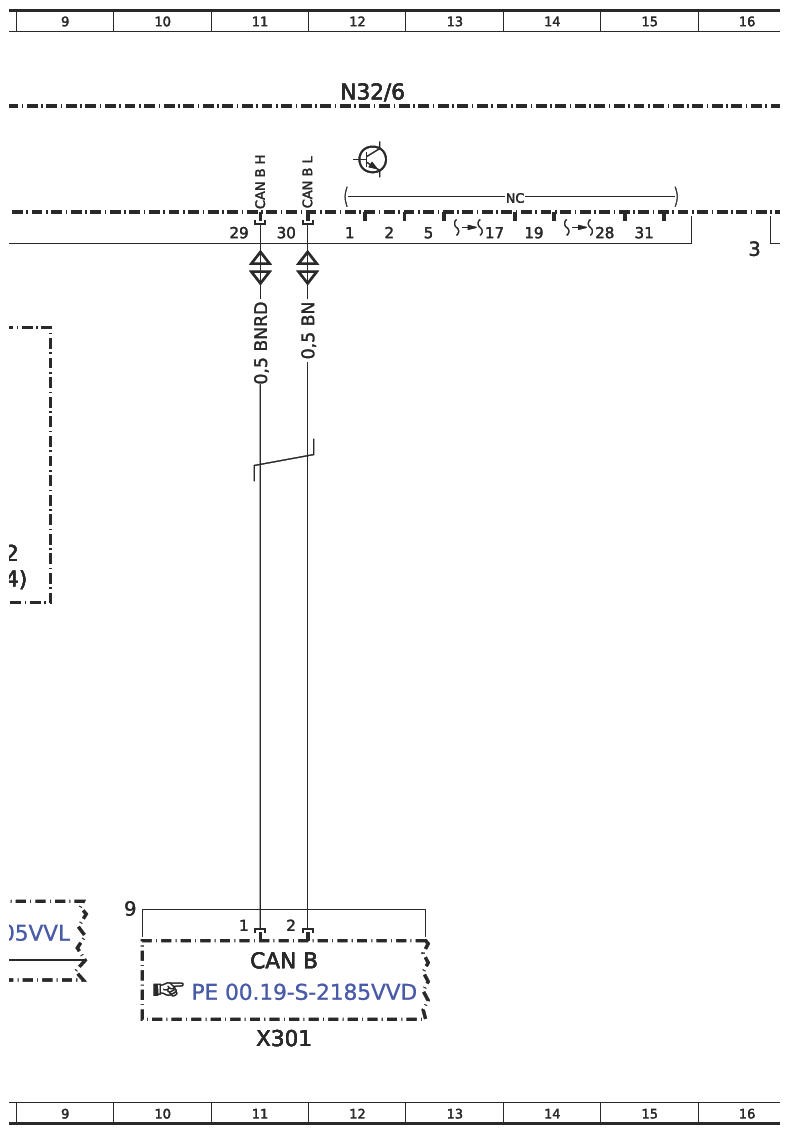

| X301 | Interior CAN (CAN B) potential distributor electrical connector | 11L |
| X35/4 | Right front electrical connector 2 | 51G |
| Z212/1 | Right seat adjustment/heater LIN signal connector sleeve | 63F |
| Z214/1 | Right seat adjustment/seat heater tml. 31 connector sleeve | 64F |
| Z52/1 | Right seat adjustment/seat heater tml. 30 connector sleeve | 65G |
| Z61/4 | Front passenger seat lumbar support ground connection connector sleeve | 46E |
| Z61/5 | Seat adjustment motors Hall sensors ground connection connector sleeve | 21E |
| Z61/6 | Seat adjustment motors Hall sensors ground connection connector sleeve | 33E |
