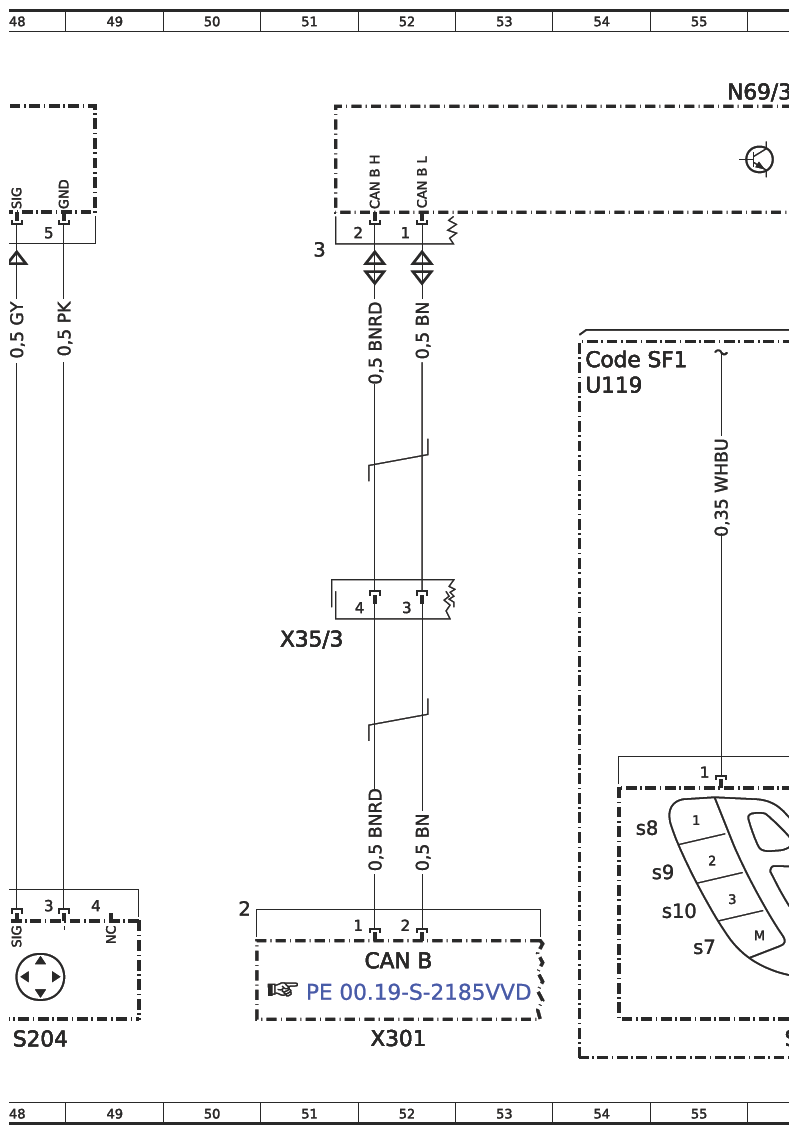

Wiring Diagram For Driver Seat Adjustment, Seat Heater - PE91.00-S-2105-97VVB
Model 447.6
with code SF1 (Driver's seat electrically adjustable)
except code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
except code ZL3 (National version for Latin America)
N32/5, N32/23, N69/3
Model 447.7
with code SF1 (Driver's seat electrically adjustable)
except code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except code ME0 (Electric motor 85 kW)
except code ME4 (Electric motor 145 kW)
except code XM0 (Facelift)
except code XM7 (MOPF II)
except code ZL3 (National version for Latin America)
N32/5, N32/23, N69/3
| Code: | Designation: | Position: |
|---|---|---|

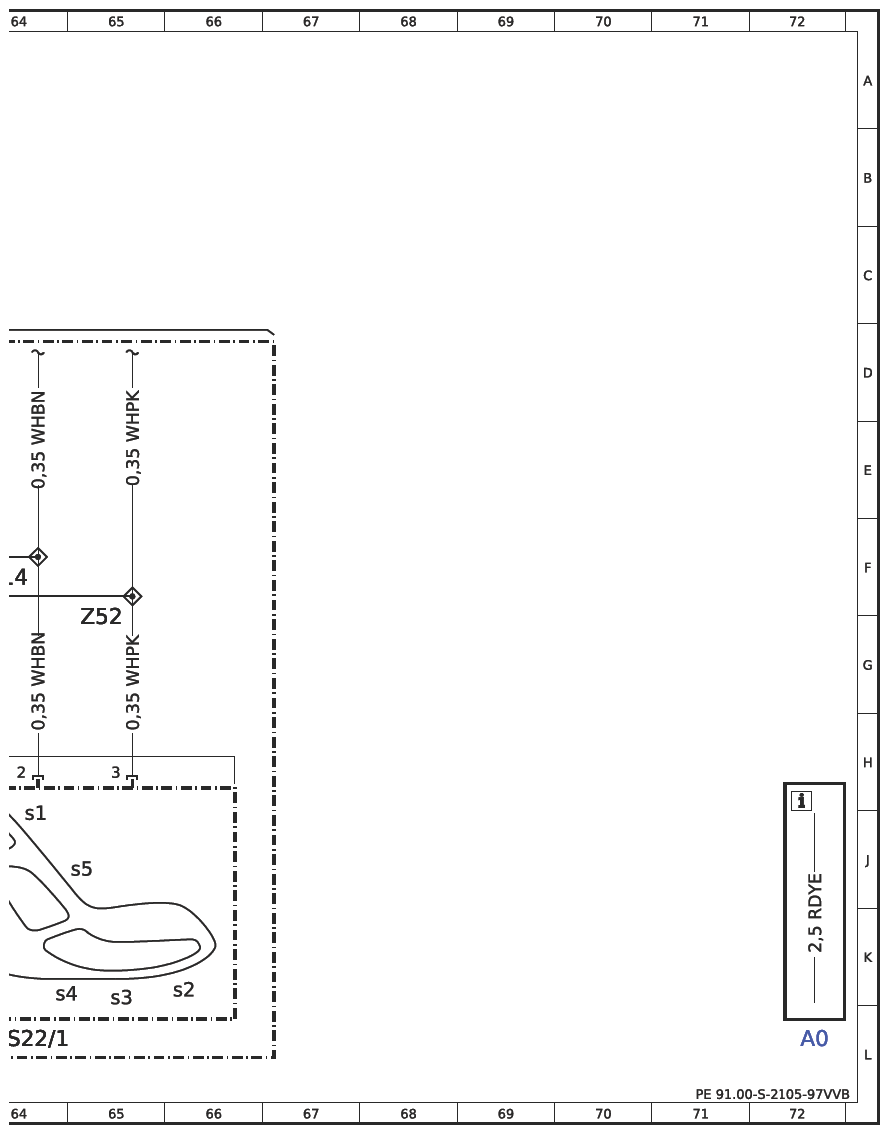

| A0 | Color code key | 72L |
| CAN B | Interior CAN | 52K |
| CAN B | Interior CAN | 11K |
| Code H16 | Heating for driver seat | 24D |
| Code H16 | Heating for driver seat | 36D |
| Code H16 | Heating for driver seat | 59D |
| Code SF1 | Electrically adjustable driver seat | 54D |
| Code SF1 | Electrically adjustable driver seat | 59D |

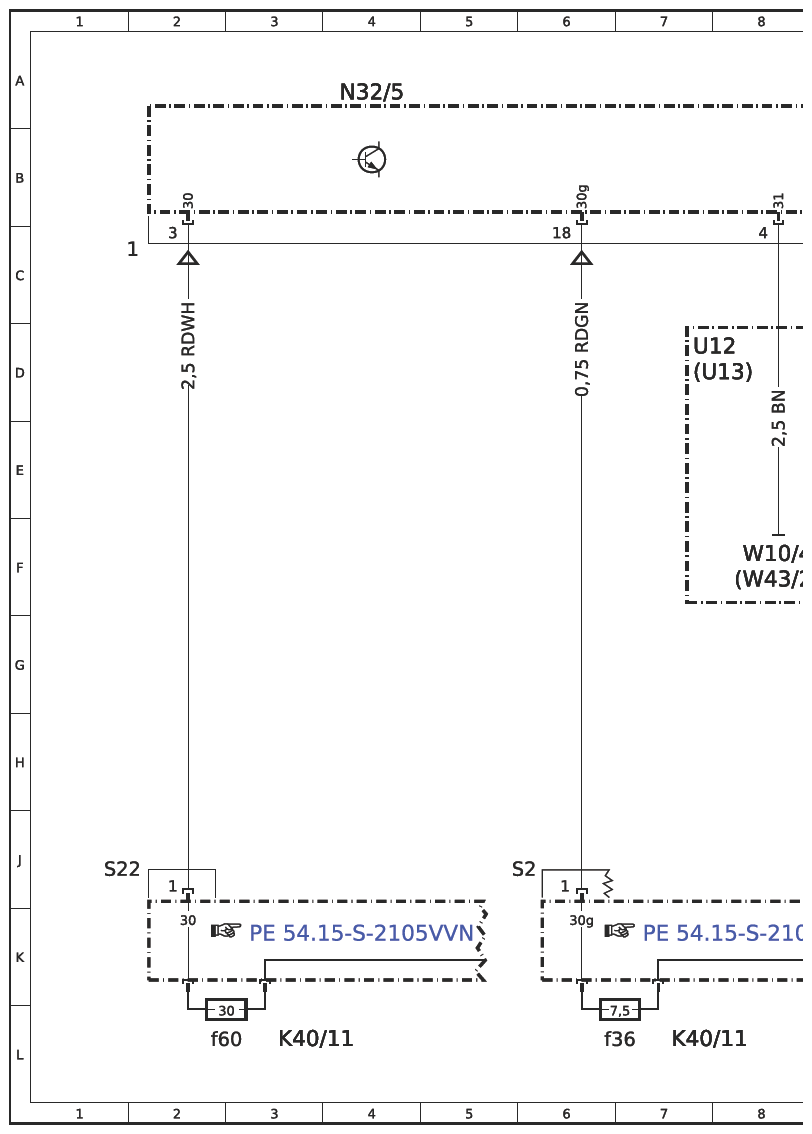

| K40/11 | Firewall fuse and relay module | 7L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f36 | Fuse 36 | 6L |
| K40/11f60 | Fuse 60 | 2L |
| M25/4 | Driver seat lumbar support pneumatic pump | 46L |

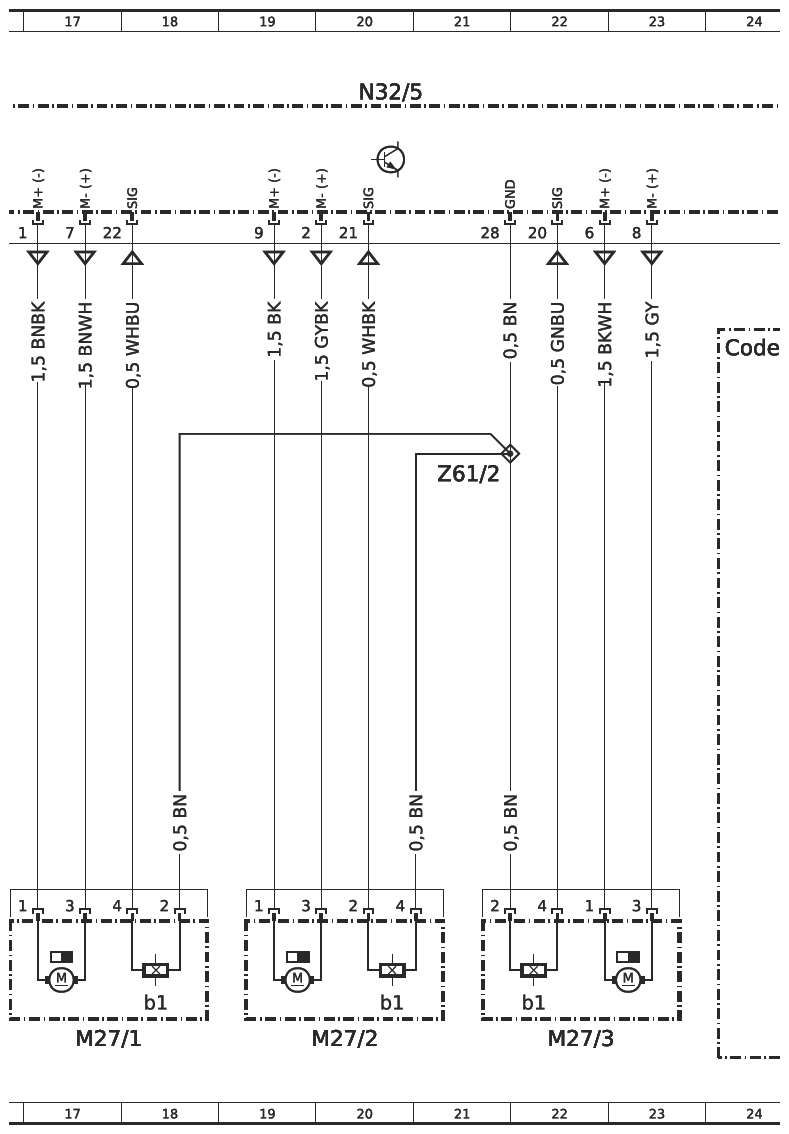

| M27/1 | Driver seat fore/aft adjustment motor | 17L |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 18L |
| M27/2 | Driver seat height adjustment motor | 20L |
| M27/2b1 | Height adjustment Hall sensor, driver seat | 20L |
| M27/3 | Driver seat inclination adjustment motor | 22L |
| M27/3b1 | Inclination adjustment Hall sensor, driver seat | 22L |
| M27/4 | Driver seat head restraint adjustment motor | 32L |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 32L |

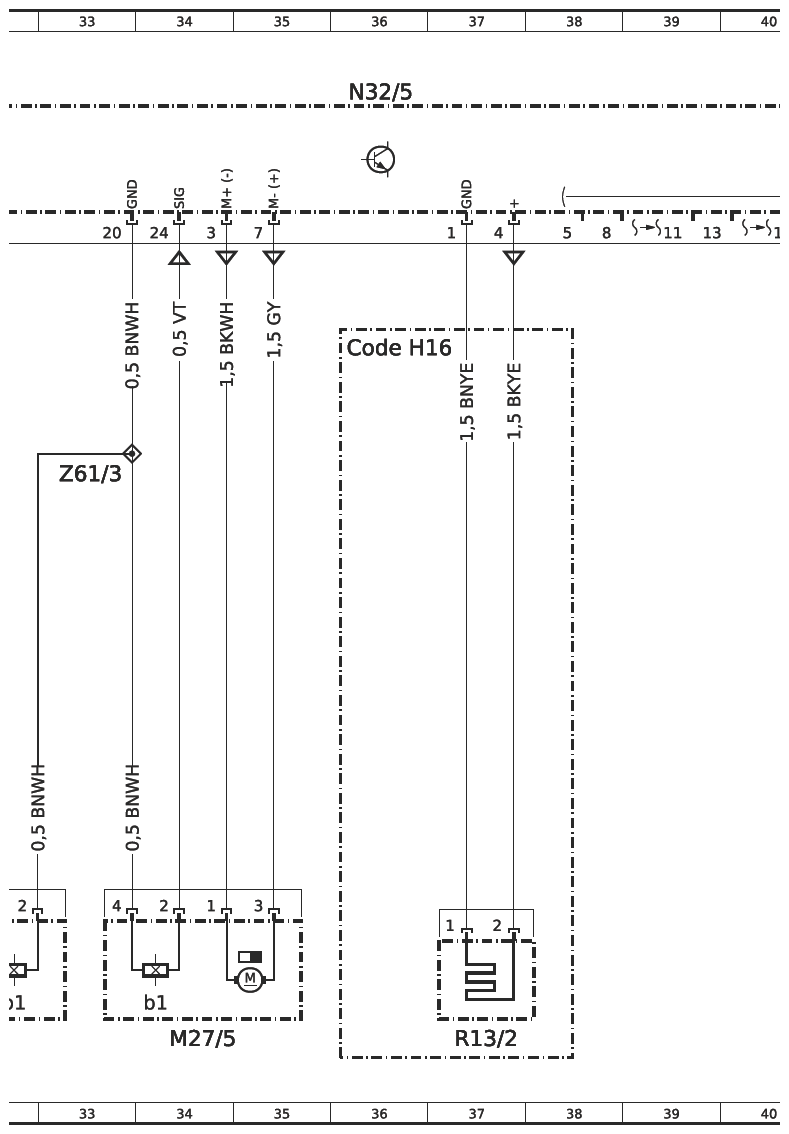

| M27/5 | Driver seat backrest inclination adjustment motor | 34L |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 34L |

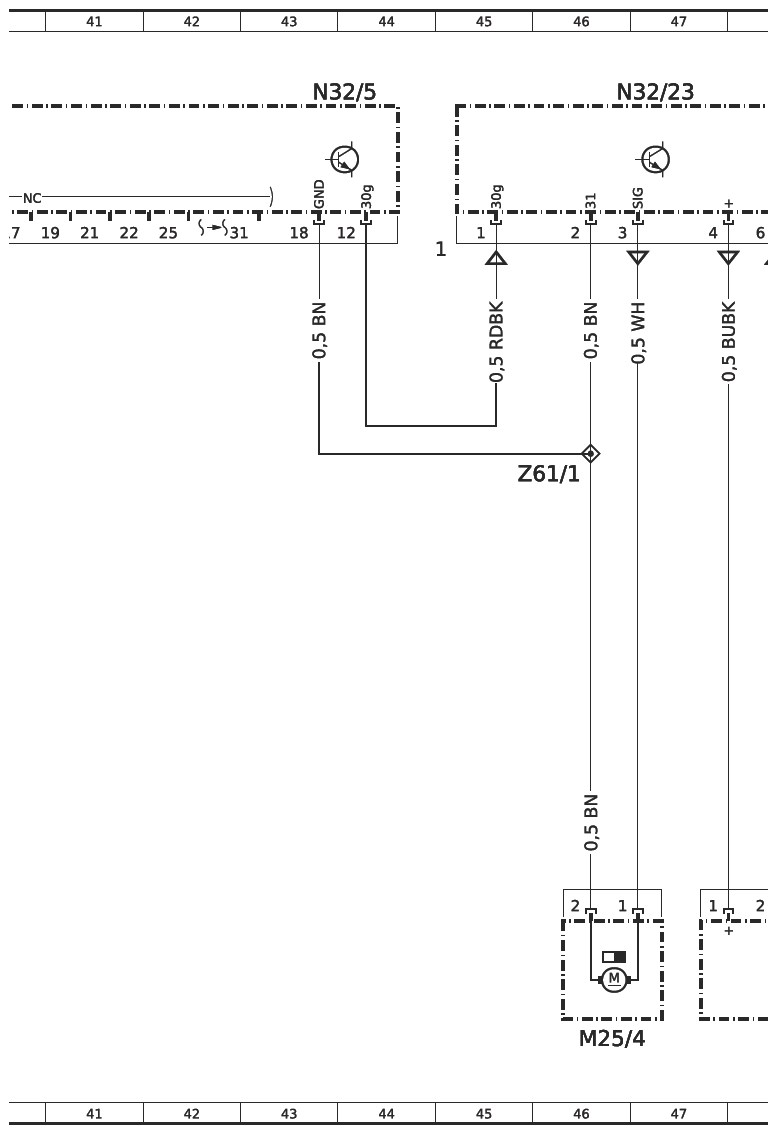

| N32/23 | Driver seat lumbar support adjustment control unit | 47A |
| N32/5 | Driver seat adjustment with memory control unit | 4A |
| N32/5 | Driver seat adjustment with memory control unit | 12A |
| N32/5 | Driver seat adjustment with memory control unit | 20A |
| N32/5 | Driver seat adjustment with memory control unit | 28A |
| N32/5 | Driver seat adjustment with memory control unit | 36A |
| N32/5 | Driver seat adjustment with memory control unit | 43A |
| N69/3 | Left front door control unit | 55A |

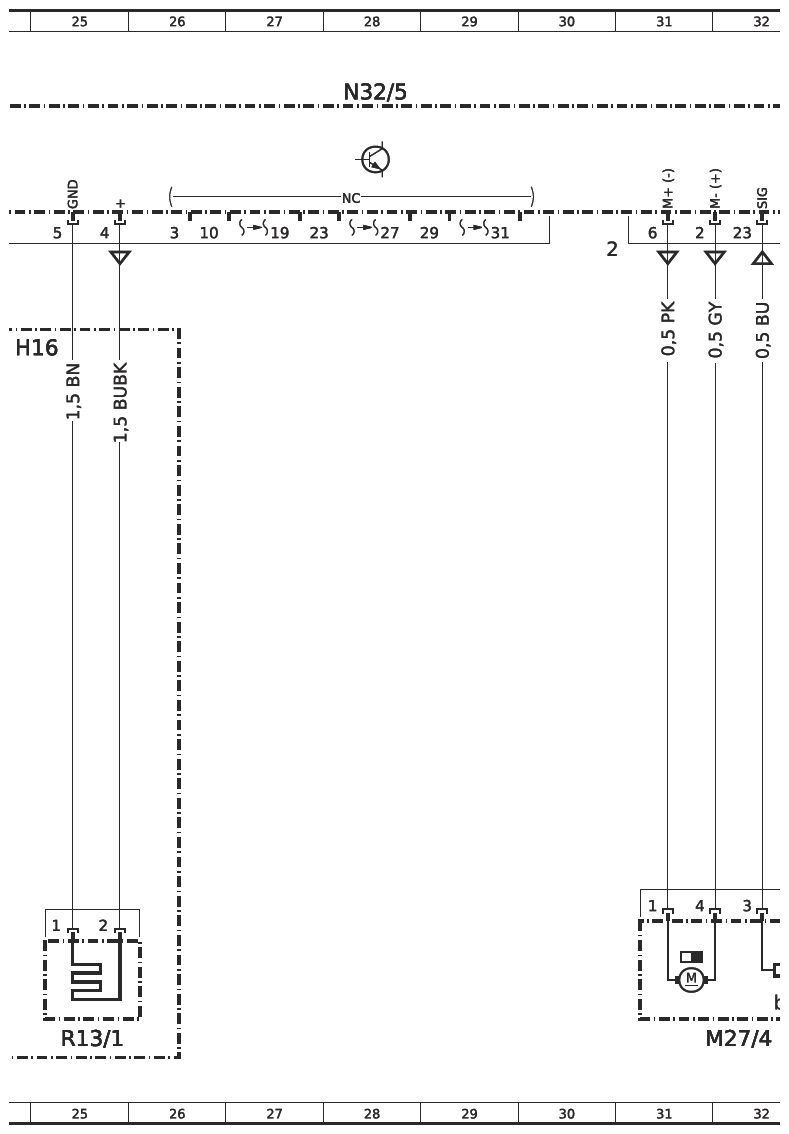

| R13/1 | Driver seat cushion heater pad | 25L |
| R13/2 | Driver seat backrest heater pad | 37L |

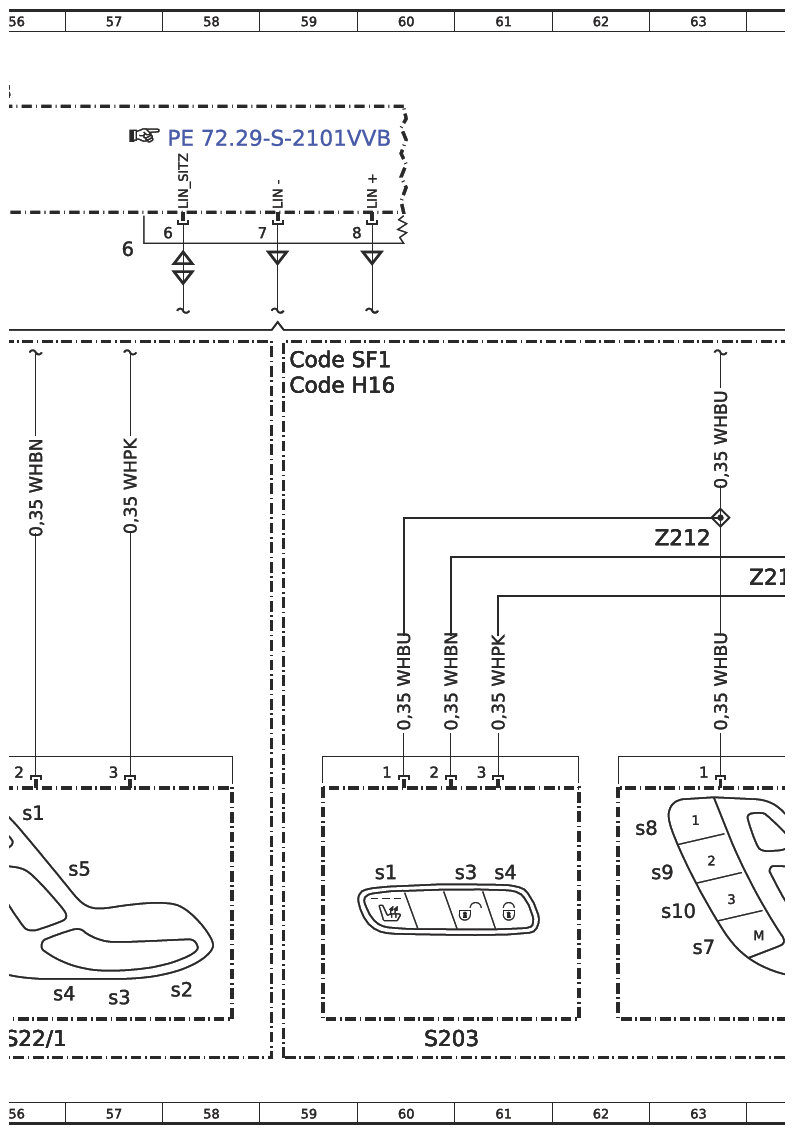

| S203 | Left seat climate control switch group | 60L |
| S203s1 | Left seat heater button | 60J |
| S203s3 | Central locking "Open" button | 61J |
| S203s4 | Central locking "Close" button | 61J |
| S204 | Driver seat lumbar support adjustment switch | 48L |
| S22/1 | Driver electric seat adjustment switch | 64L |
| S22/1 | Driver electric seat adjustment switch | 56L |
| S22/1s1 | Driver head restraint adjustment button | 64J |
| S22/1s1 | Driver head restraint adjustment button | 56J |
| S22/1s10 | Driver memory button 3 | 63K |
| S22/1s10 | Driver memory button 3 | 55K |
| S22/1s2 | Driver seat inclination adjustment button | 66K |
| S22/1s2 | Driver seat inclination adjustment button | 58K |
| S22/1s3 | Driver seat fore/aft adjustment button | 65K |
| S22/1s3 | Driver seat fore/aft adjustment button | 57K |
| S22/1s4 | Driver seat height adjustment button | 64K |
| S22/1s4 | Driver seat height adjustment button | 56K |
| S22/1s5 | Driver seat backrest adjustment button | 65J |
| S22/1s5 | Driver seat backrest adjustment button | 57J |
| S22/1s7 | Driver memory function button | 63K |
| S22/1s7 | Driver memory function button | 55K |
| S22/1s8 | Driver memory button 1 | 62J |
| S22/1s8 | Driver memory button 1 | 54J |
| S22/1s9 | Driver memory button 2 | 63J |
| S22/1s9 | Driver memory button 2 | 55J |
| U119 | Valid without code H16 Heating for driver seat | 54D |
| U12 | Valid for left-hand drive vehicles | 7D |
| U13 | Valid for right-hand drive vehicles | 7D |
| W10/4 | Additional battery ground point | 8F |
| W43/2 | Right vehicle interior firewall ground point | 8F |

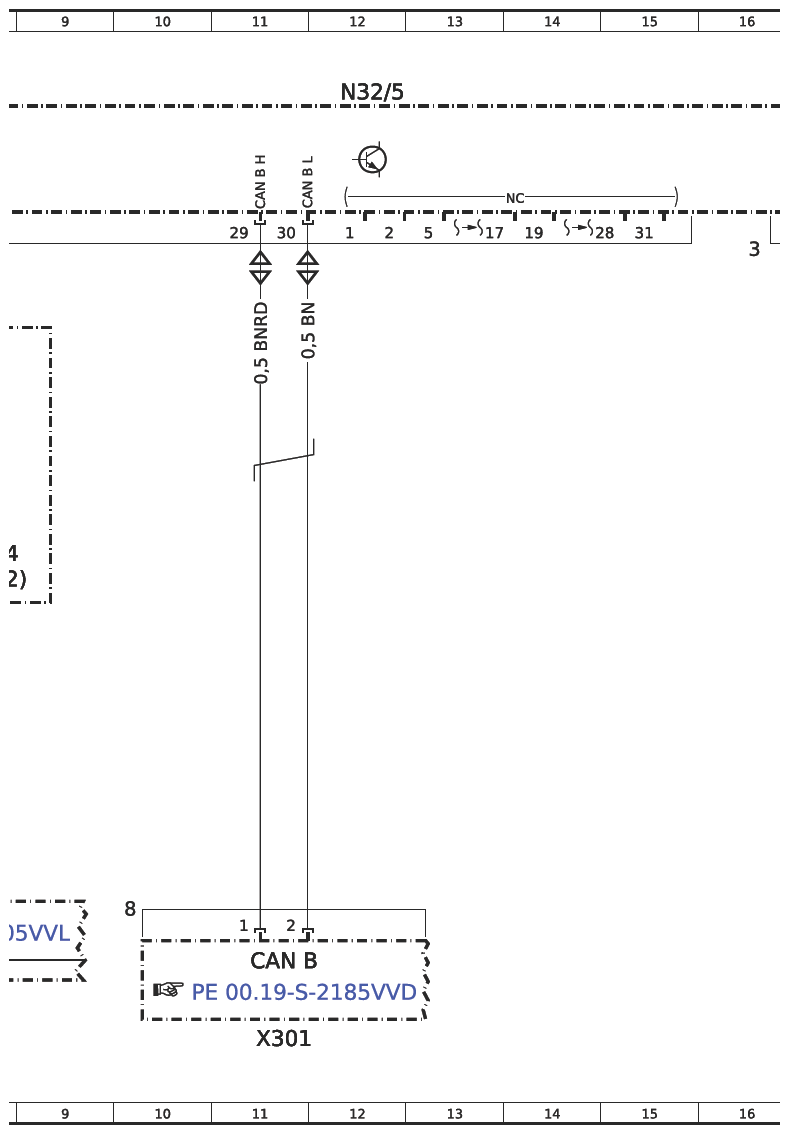

| X301 | Interior CAN (CAN B) potential distributor electrical connector | 52L |
| X301 | Interior CAN (CAN B) potential distributor electrical connector | 11L |
| X35/3 | Left front electrical connector 2 | 51G |
| Z212 | Left seat adjustment/heater LIN signal connector sleeve | 63F |
| Z214 | Left seat adjustment/seat heater tml. 31 connector sleeve | 64F |
| Z52 | Left seat adjustment/seat heater tml. 30 connector sleeve | 65G |
| Z61/1 | Driver seat lumbar support ground connection connector sleeve | 46E |
| Z61/2 | Seat adjustment motors Hall sensors ground connection connector sleeve | 21E |
| Z61/3 | Seat adjustment motors Hall sensors ground connection connector sleeve | 33E |
