Remove/Install Roof Bed Frame - AR91.75-S-9880E
Model 447.7/8
with code ZK8 (Bed in roof)

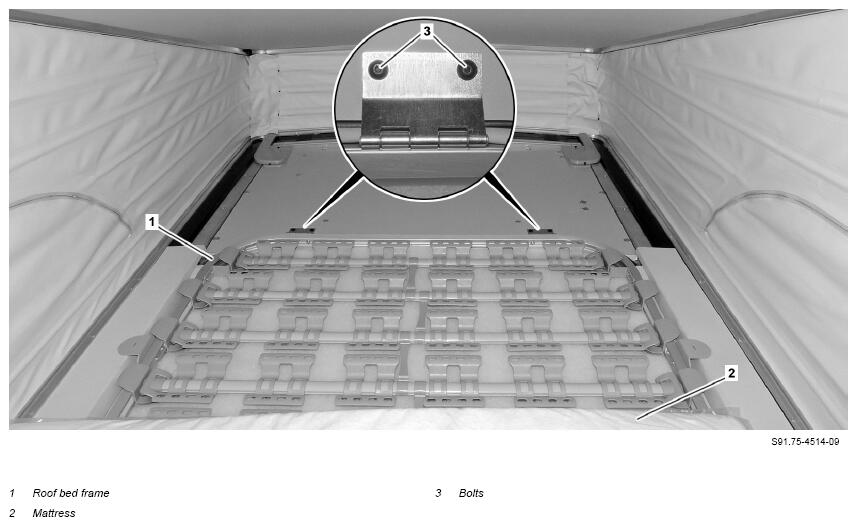

Shown on roof bed frame (1) up to 20.01.2017
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Open pop-up roof. | Model 447.7/8 with code ZK8 (Bed in roof) with code ZK9 (Lifting roof hatch) |
AR77.70-S-0001-01E |
| Model 447.8 with code ZK0 (EASY UP pop-up roof, electric) with code ZK8 (Bed in roof) |
AR77.75-S-0001-03E | ||
| 2.1 | Open zipper on front side of mattress (2) and remove mattress (2). | Model 447.7/8 up to 1/20/17 with code ZK8 (Bed in roof) |
|
| 2.2 | Press push buttons to release and remove mattress (2). | Model 447.7/8 as of 1/21/17 with code ZK8 (Bed in roof) |
|
| 3 | Mark assembly position of roof bed frame (1) at hinges. | ||
| 4 | Remove screw/bolts (3). | The distance between the roof bed frame (1) and the side headliners must the same. |
|
| 5 | Remove roof bed frame (1) and place outside vehicle. | ||
| 6 | Install in the reverse order. |
