Wiring Diagram Of Air Conditioning - PE83.30-S-2000-97VLA
Model 447.6 with code HH9 (Air conditioner, automatic heater control) with code ZL3 (National version for Latin America) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) N154
Model 447.7 with code HH9 (Air conditioner, automatic heater control) with code ZL3 (National version for Latin America) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) N154
| Code: | Designation: | Position: |
|---|---|---|

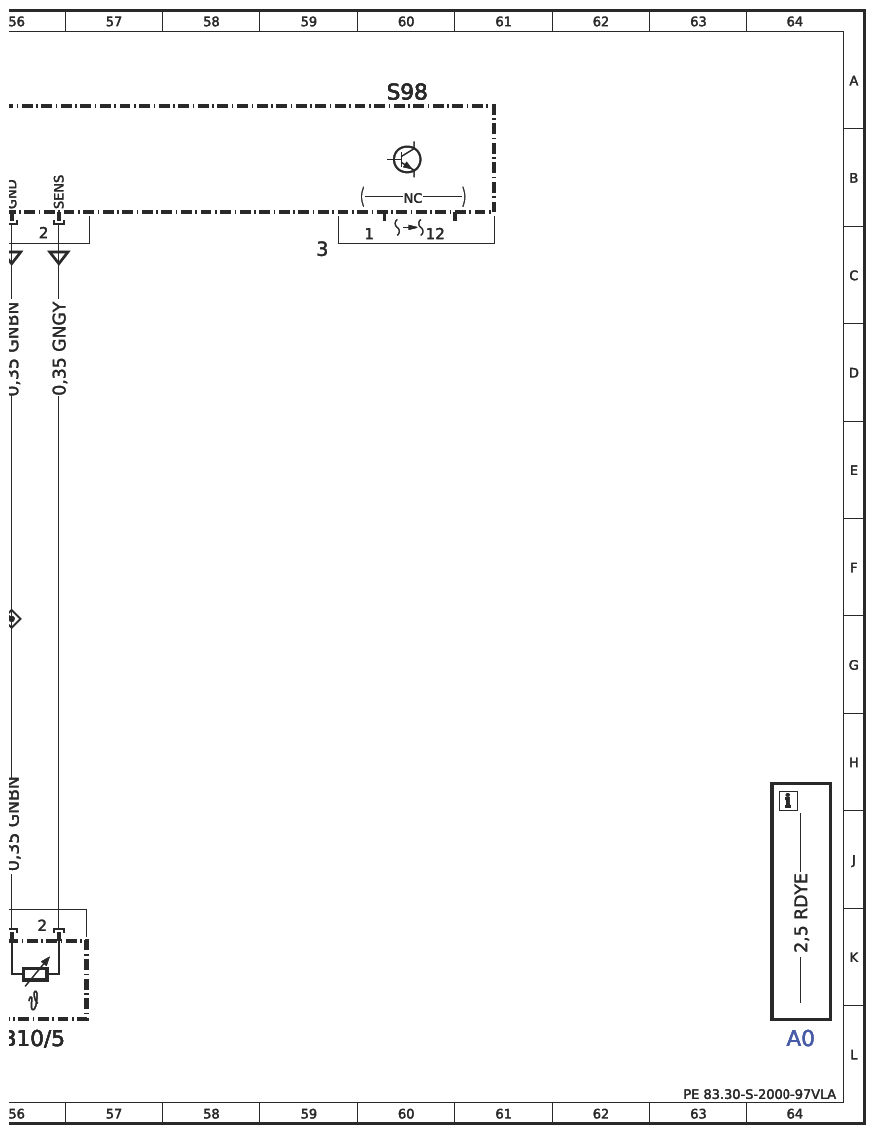

| A0 | Color code key | 64L |
| A32/4 | Rear heater/air conditioner air recirculation unit | 24L |
| A32/4 | Rear heater/air conditioner air recirculation unit | 49L |

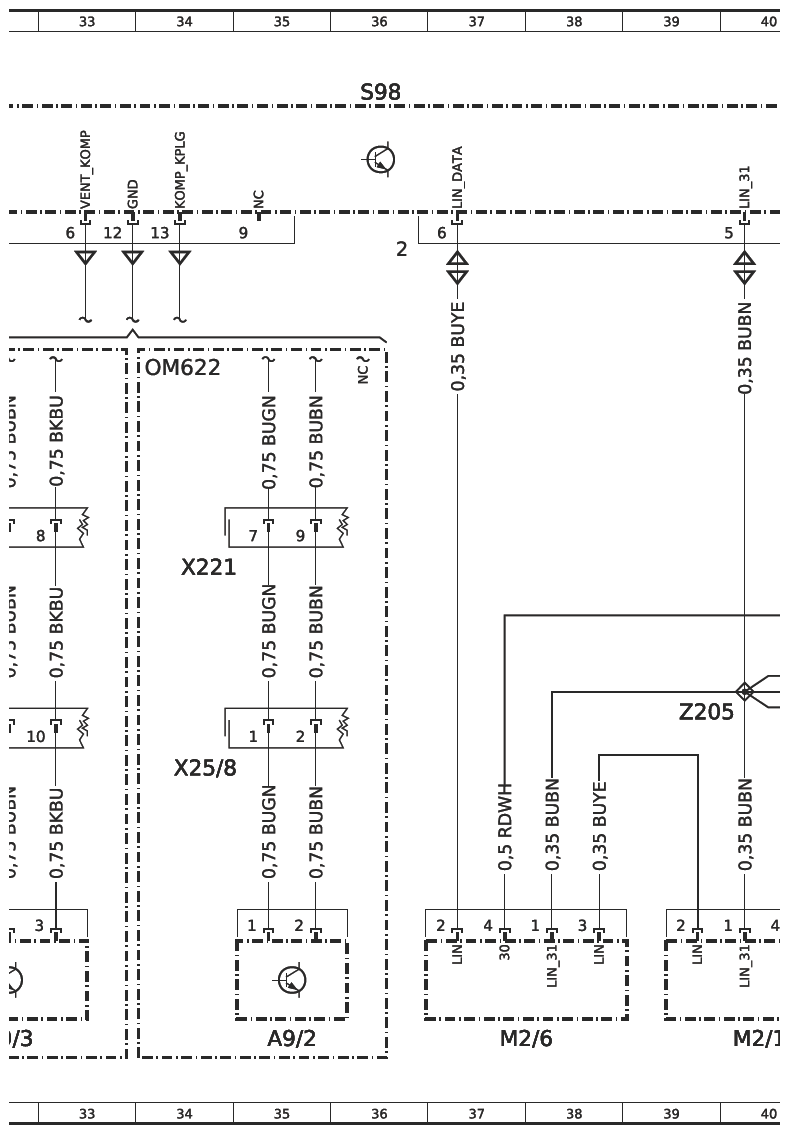

| A9/2 | Refrigerant compressor | 35L |
| A9/3 | Refrigerant compressor | 32L |
| B10/5 | Evaporator temperature sensor | 56L |

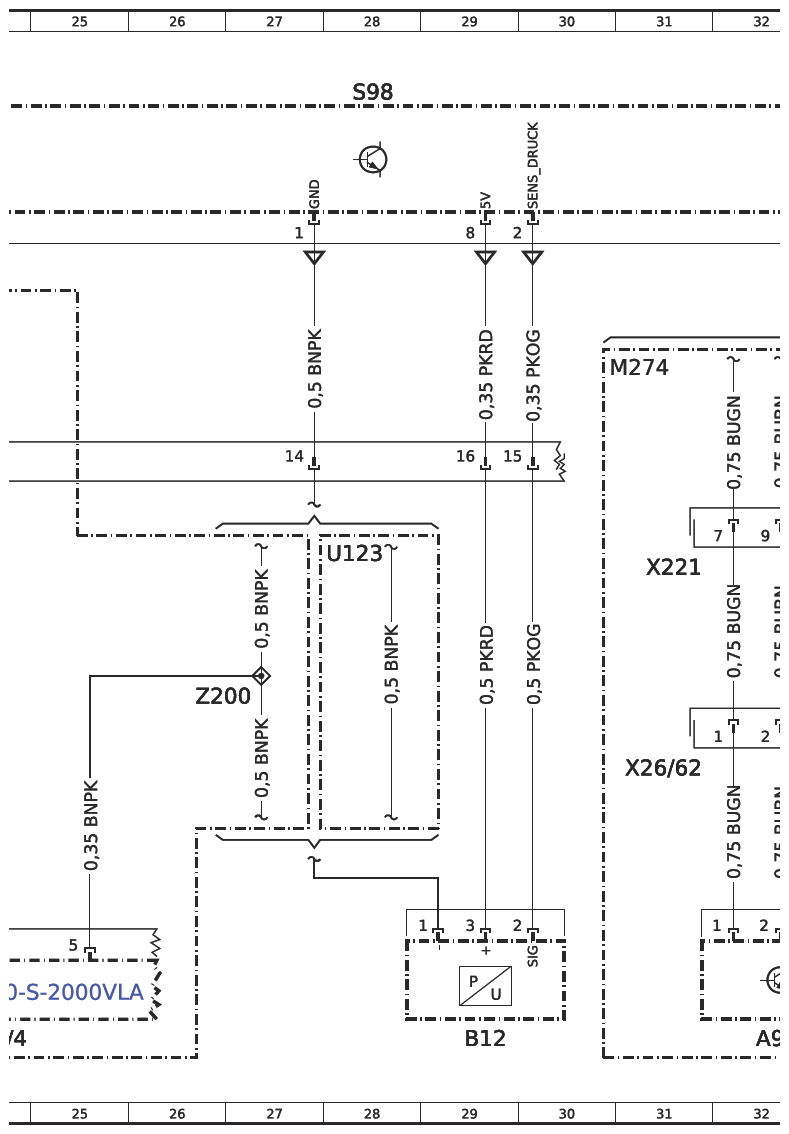

| B12 | Refrigerant pressure sensor | 29L |
| CAN B | Interior CAN | 7K |
| Code HZ7 | Semi-automatically controlled air conditioning, TEMPMATIC at rear | 20C |
| Code HZ7 | Semi-automatically controlled air conditioning, TEMPMATIC at rear | 44D |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 16C |
| K40/11 | Firewall fuse and relay module | 13L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11 | Firewall fuse and relay module | 17L |
| K40/11f31 | Fuse 31 | 3L |
| K40/11f54 | Fuse 54 | 12L |

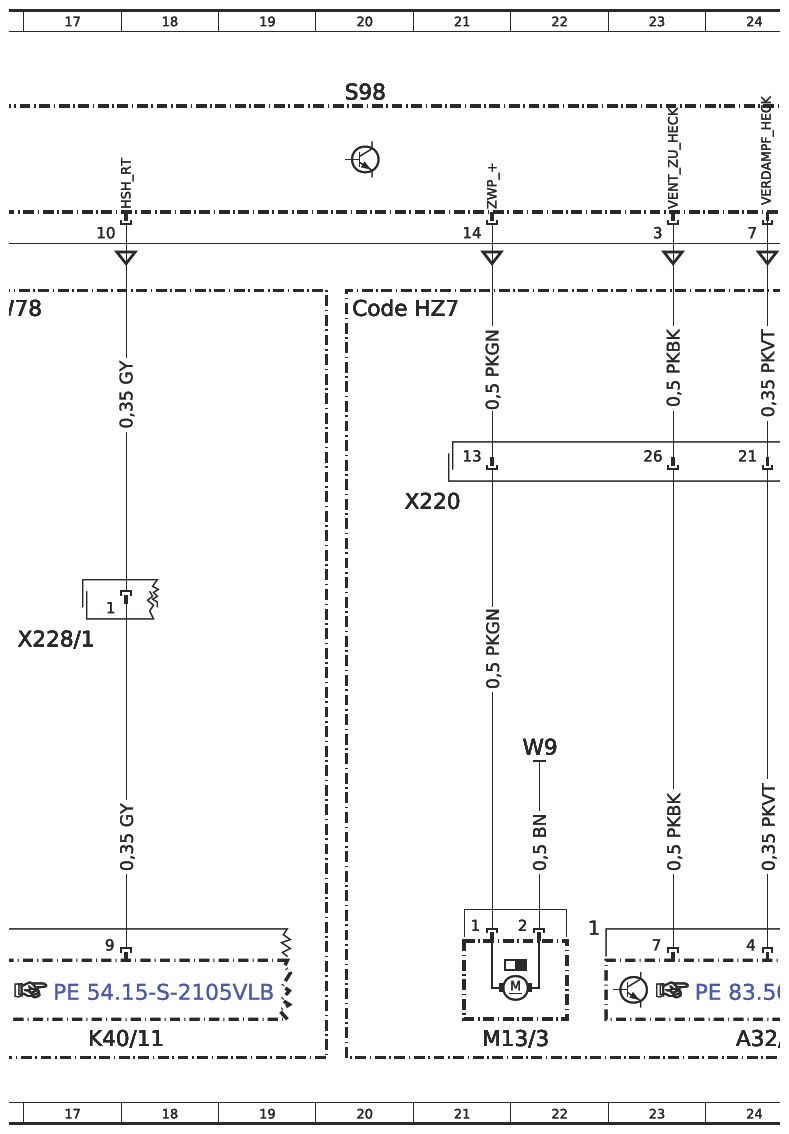

| M13/3 | Heater coolant circulation pump | 21L |

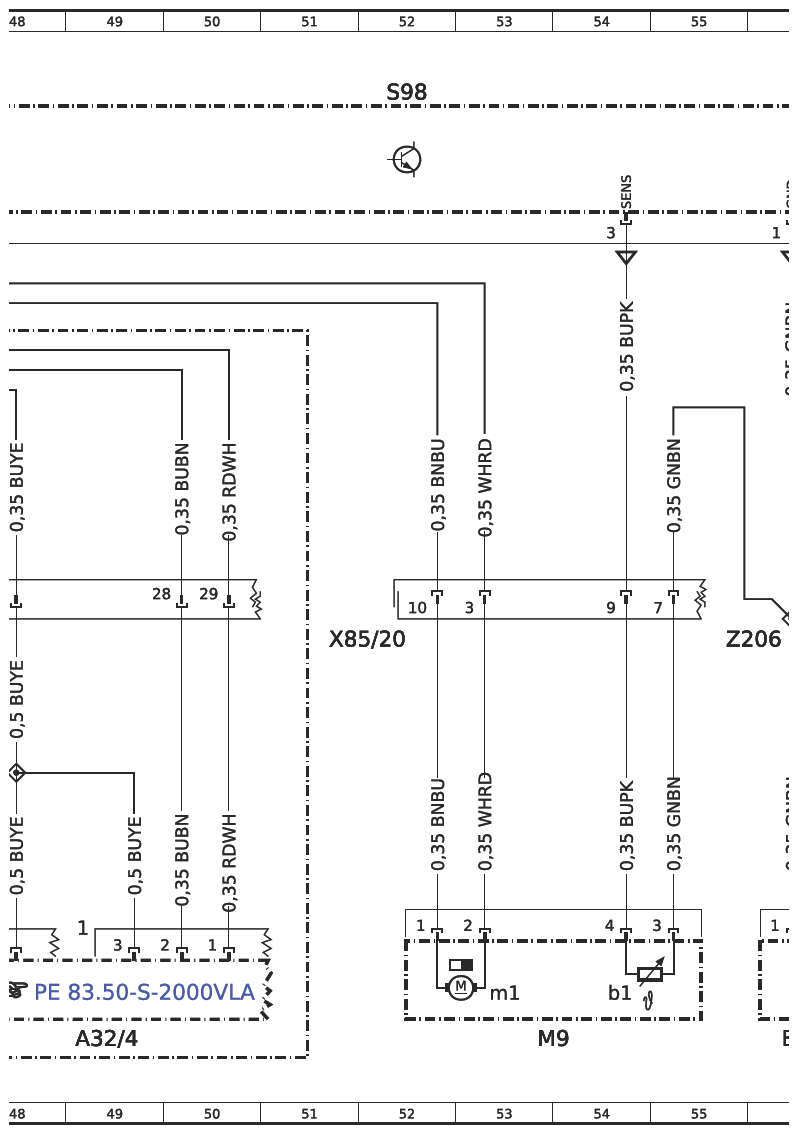

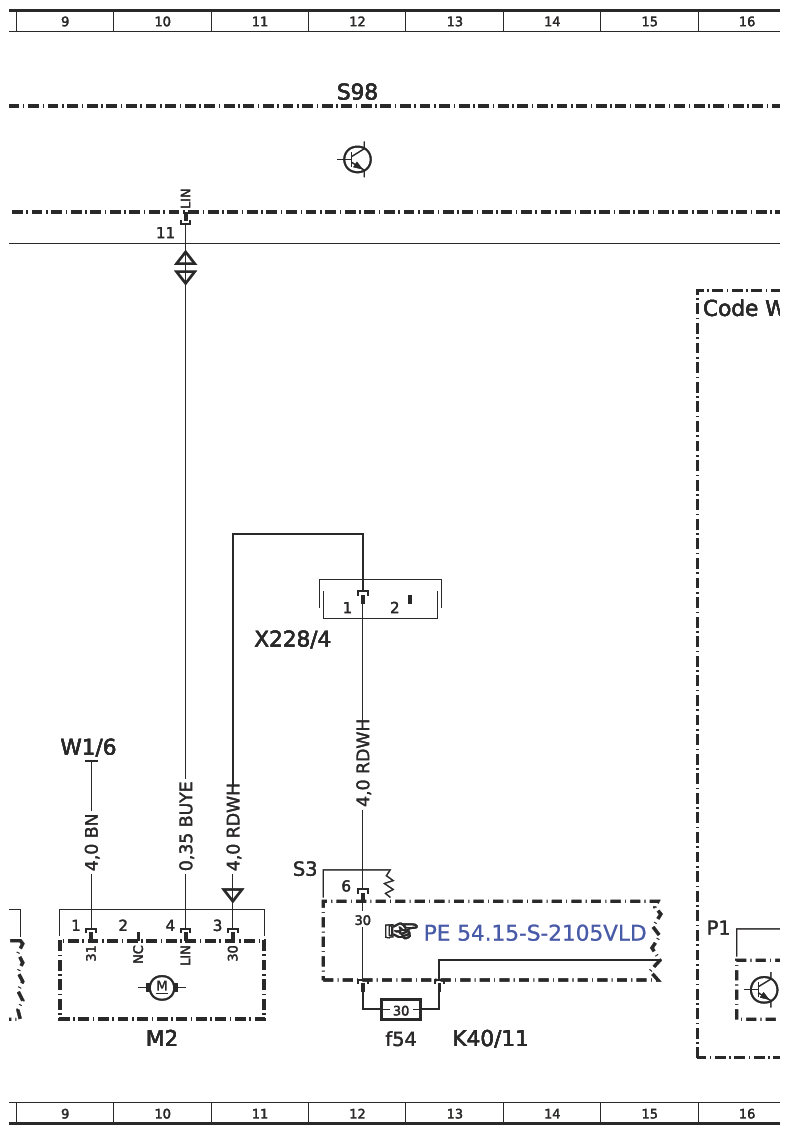

| M2 | Blower motor | 10L |

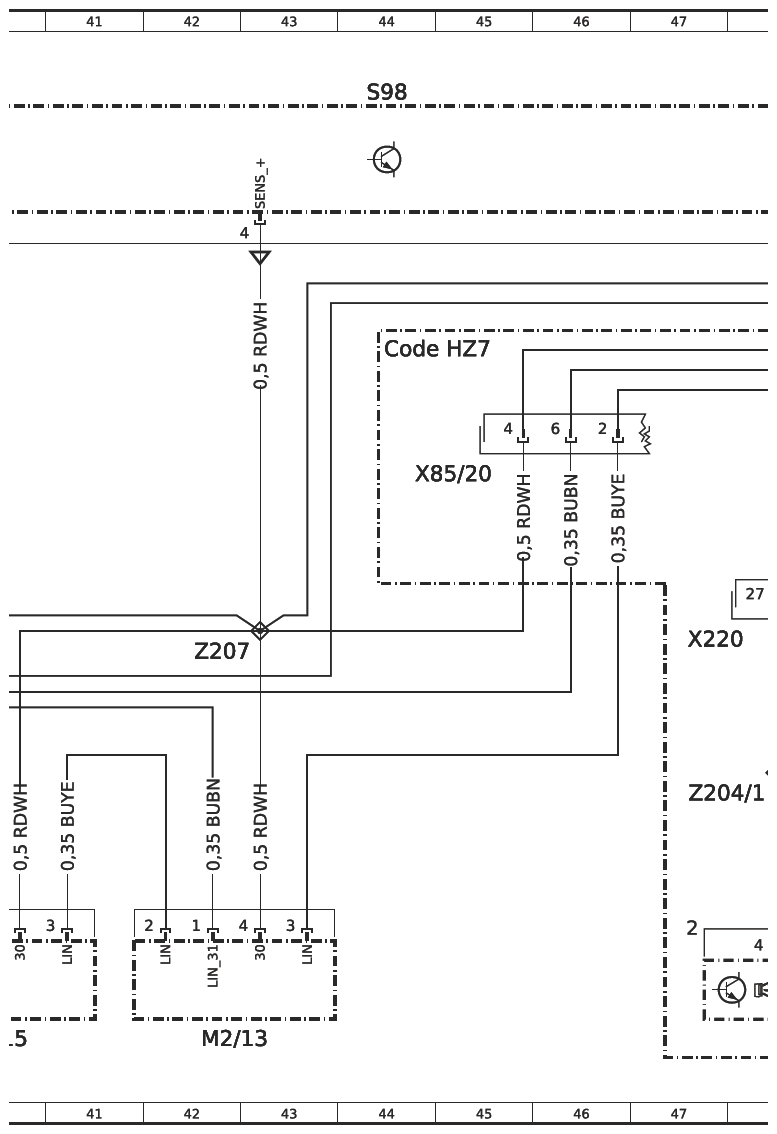

| M2/13 | Fresh air/ram air/air recirculation flap actuator motor | 42L |
| M2/15 | Air distribution actuator motor | 40L |
| M2/6 | Left blending air flap actuator | 37L |
| M9 | Blower with interior air temperature sensor | 53L |
| M9b1 | Interior air temperature sensor | 54K |
| M9m1 | Blower | 53K |

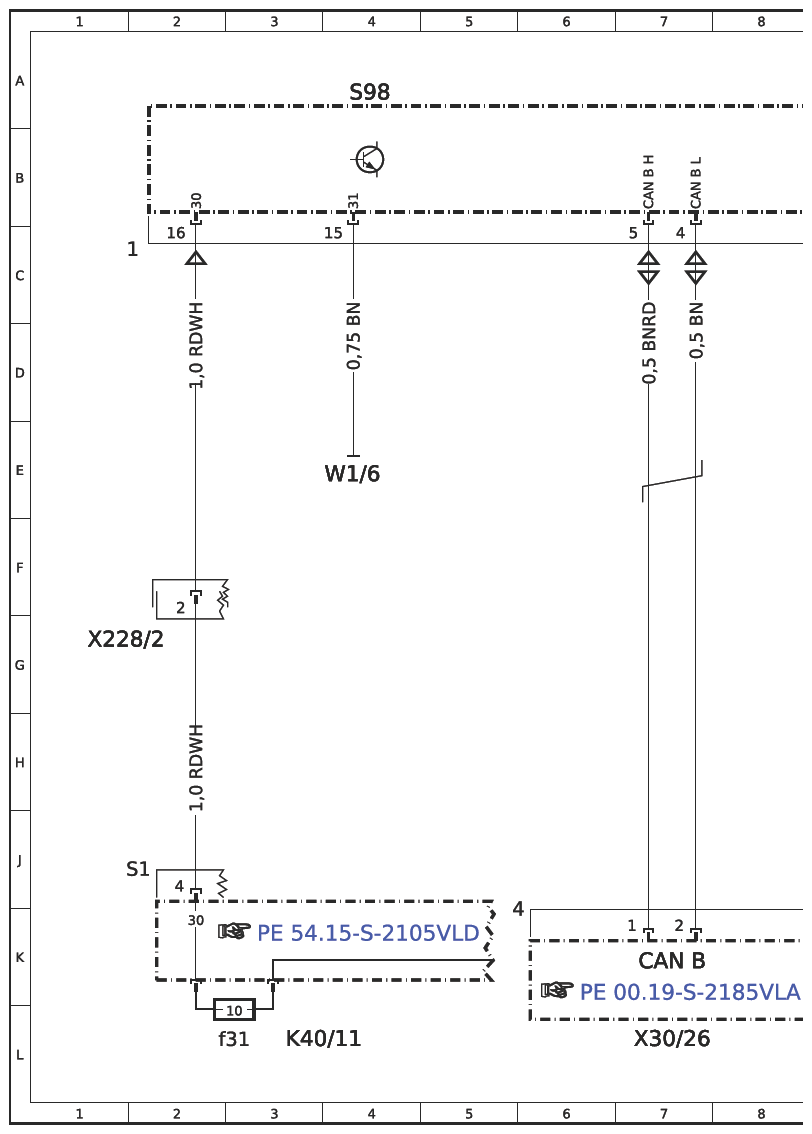

| S98 | Air conditioning control and operating unit (front & rear KLA) | 4A |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 12A |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 20A |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 28A |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 36A |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 44A |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 52A |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 60A |
| U123 | Valid without code HZ7 Semi-automatically controlled air conditioning, TEMPMATIC at rear | 28F |
| W1/6 | Cockpit ground point | 4E |
| W1/6 | Cockpit ground point | 9H |
| W9 | Left front lamp unit ground point | 22H |
| X220 | Left main wiring harness/cockpit wiring harness electrical connector 1 | 21E |
| X220 | Left main wiring harness/cockpit wiring harness electrical connector 1 | 47G |
| X221 | Right main wiring harness/cockpit wiring harness electrical connector 1 | 31F |
| X221 | Right main wiring harness/cockpit wiring harness electrical connector 1 | 34F |
| X228/1 | Cockpit wiring harness/fuse and relay module electrical connector 2 | 17G |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 2G |
| X228/4 | Cockpit wiring harness/fuse and relay module electrical connector 4 | 11G |
| X25/8 | Main wiring harness/engine wiring harness electrical connector 2 | 34H |
| X26/62 | Main wiring harness/engine wiring harness electrical connector | 31H |
| X30/26 | Interior CAN (CAN B) potential distributor electrical connector | 7L |
| X85/20 | Heater/air conditioner housing electrical connector 2 | 45E |
| X85/20 | Heater/air conditioner housing electrical connector 2 | 52G |
| Z200 | Heater/air conditioning sensors tml. 31 connector sleeve | 27G |
| Z204/1 | DATA LIN signal connector sleeve | 48H |
| Z205 | Negative LIN signal connector sleeve | 39H |
| Z206 | Heater/air conditioning tml. 31 connector sleeve | 56G |
| Z207 | Heater/air conditioning tml. 30 connector sleeve | 42G |
