Wiring Diagram Of Interior CAN - PE00.19-S-2185-97VLA
Model 447.6
with Code ZL3 (National version for Latin America)
except Code M8E (Electric motor 85 kW/battery 60 kWh (usable))
except Code ME0 (Electric motor 85 kW)
except Code XM0 (Facelift)
except Code XM7 (MOPF II)
Potential distributor X301, X30/26
Model 447.7
with Code ZL3 (National version for Latin America)
except Code M7E (Electric motor 150 kW/battery 60 kWh (usable))
except Code ME0 (Electric motor 85 kW)
except Code ME4 (Electric motor 145 kW)
except Code XM0 (Facelift)
except Code XM7 (MOPF II)
Potential distributor X301, X30/26
| Code : | Designation: | Position: |
|---|---|---|

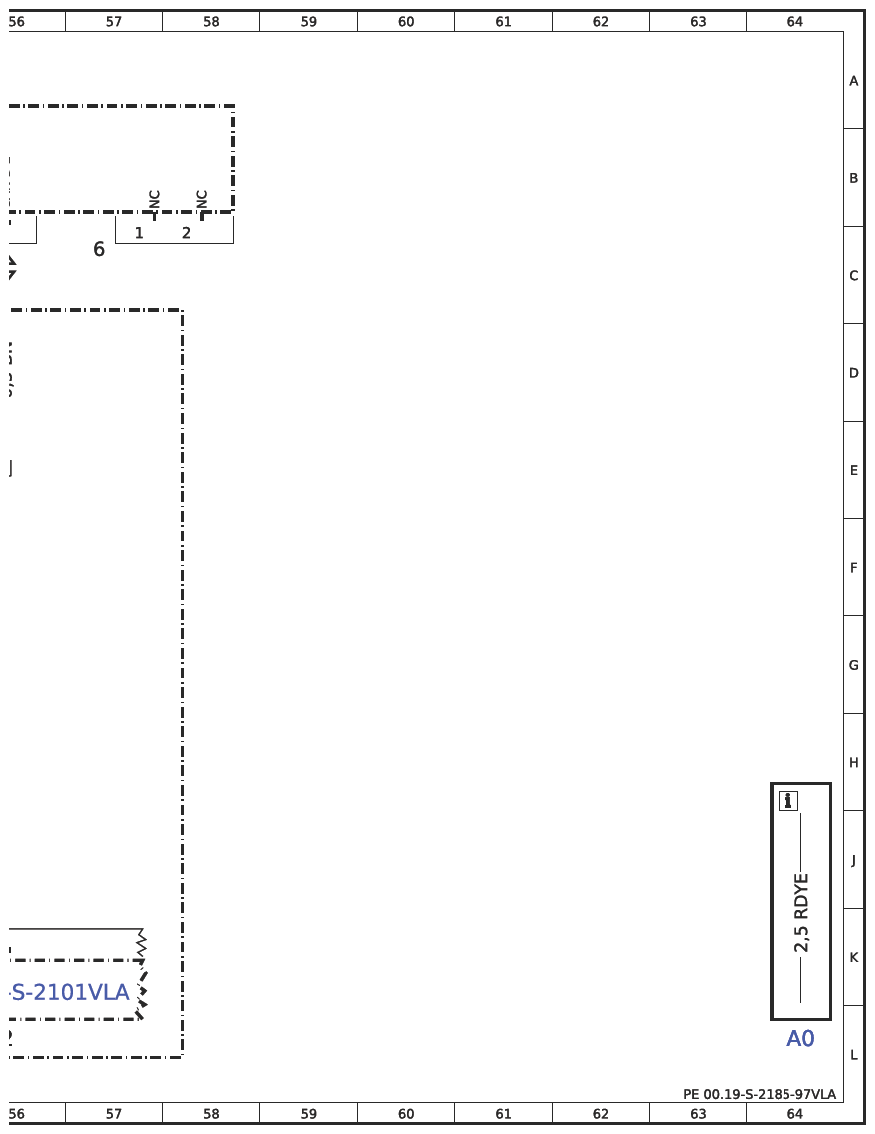

| A0 | Color Code key | 64L |
| A1/1 | Instrument cluster (KI) control unit | 43L |
| Code EN6 | Audio 10 | 54D |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 49F |
| Code LC4 | Comfort overhead control panel | 13D |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 3L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 35L |
| N69/3 | Left front door control unit | 7L |
| N69/4 | Right front door control unit | 11L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 15L |
| N73 | Electronic ignition lock (EZS) control unit | 39L |
| N87/2 | Radio (Audio) | 55L |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 47L |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 51L |
| U163 | Valid without Code HH9 Semi-automatic air conditioning, TEMPMATIC | 45F |
| W43/2 | Right vehicle interior firewall ground point | 4E |

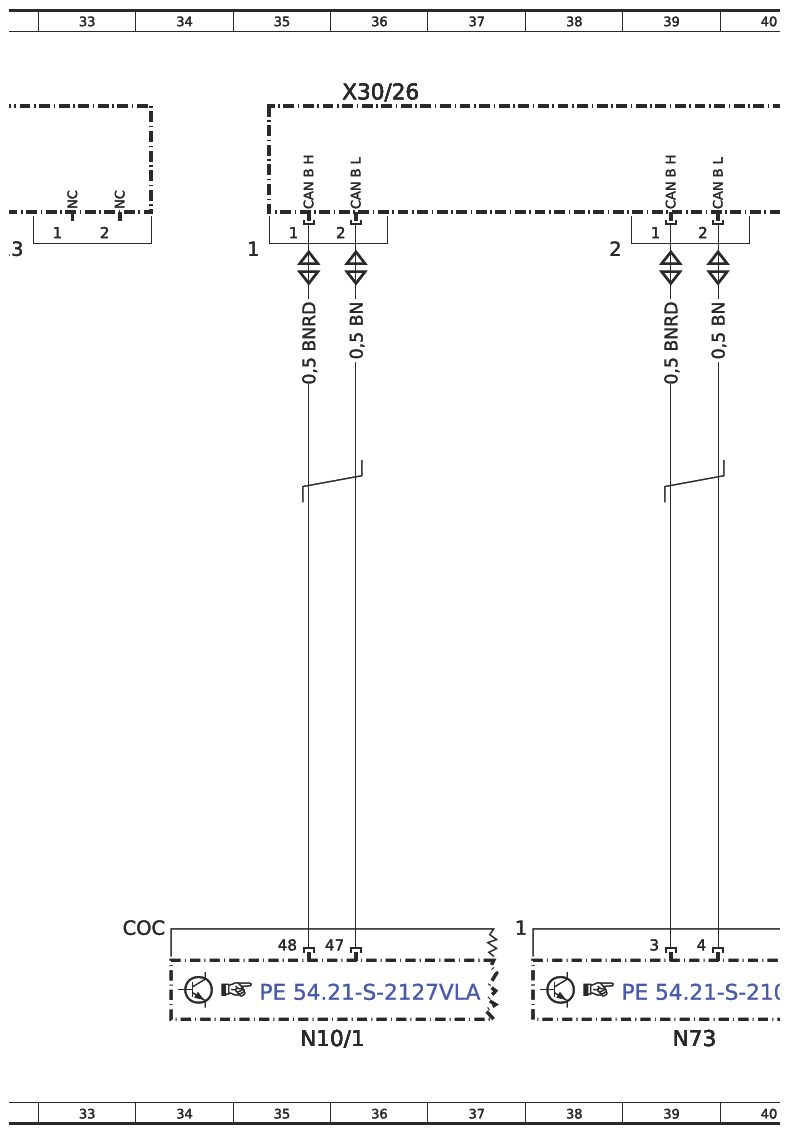

| X30/26 | Interior CAN (CAN B) potential distributor electrical connector | 36A |

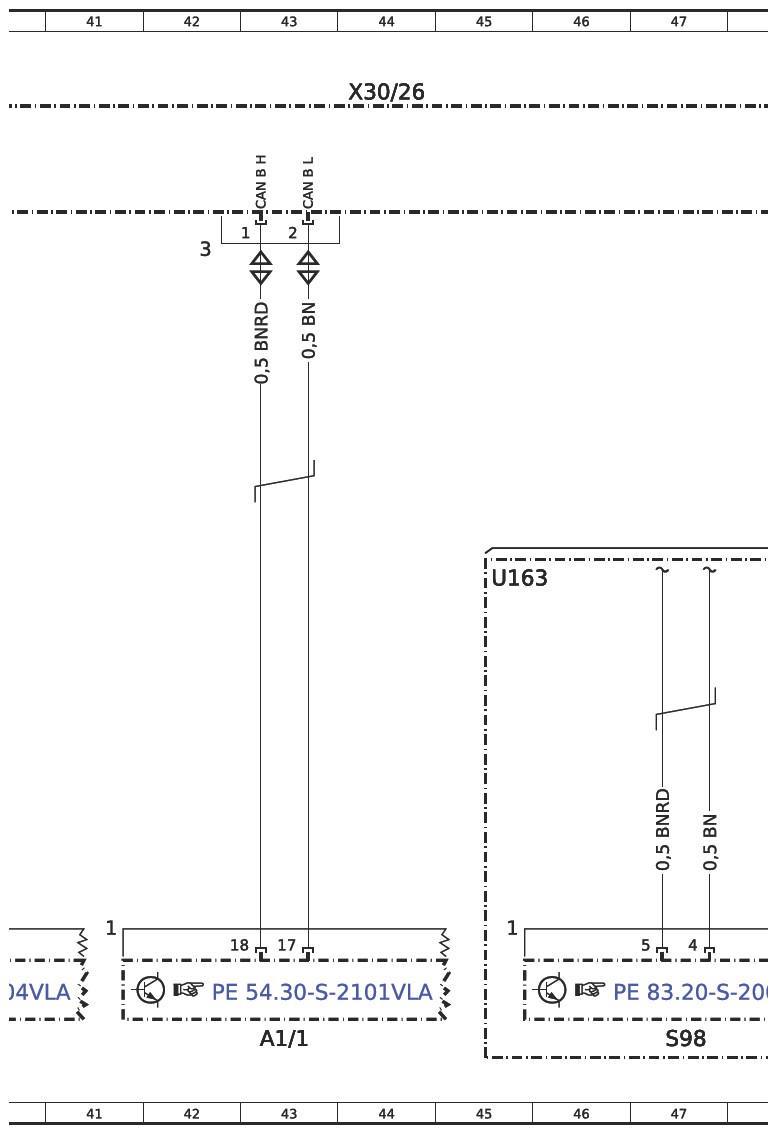

| X30/26 | Interior CAN (CAN B) potential distributor electrical connector | 44A |

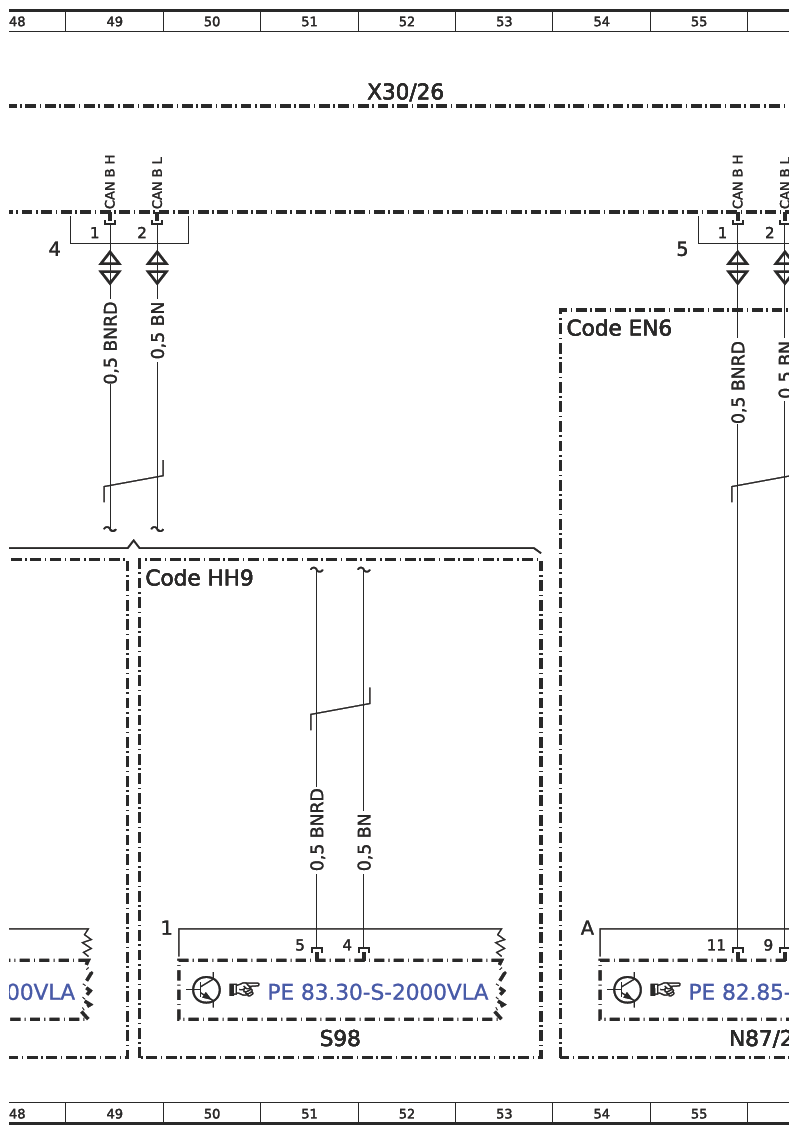

| X30/26 | Interior CAN (CAN B) potential distributor electrical connector | 52A |

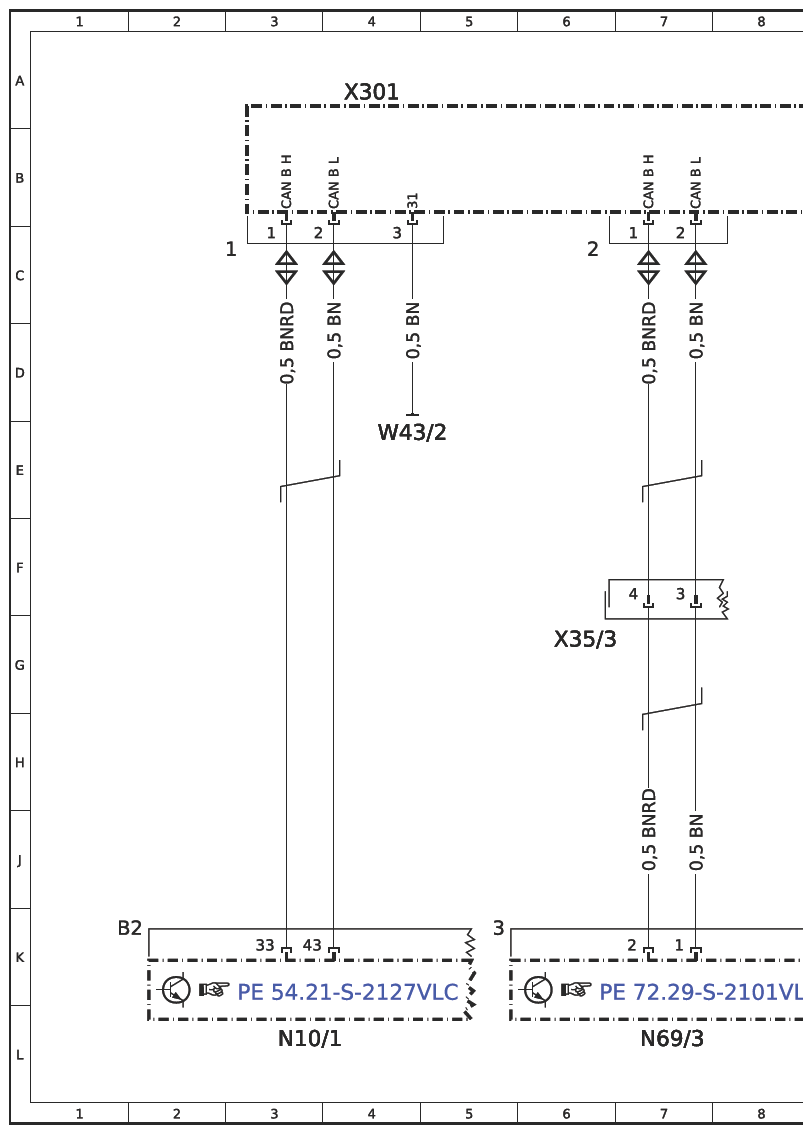

| X301 | Interior CAN (CAN B) potential distributor electrical connector | 4A |

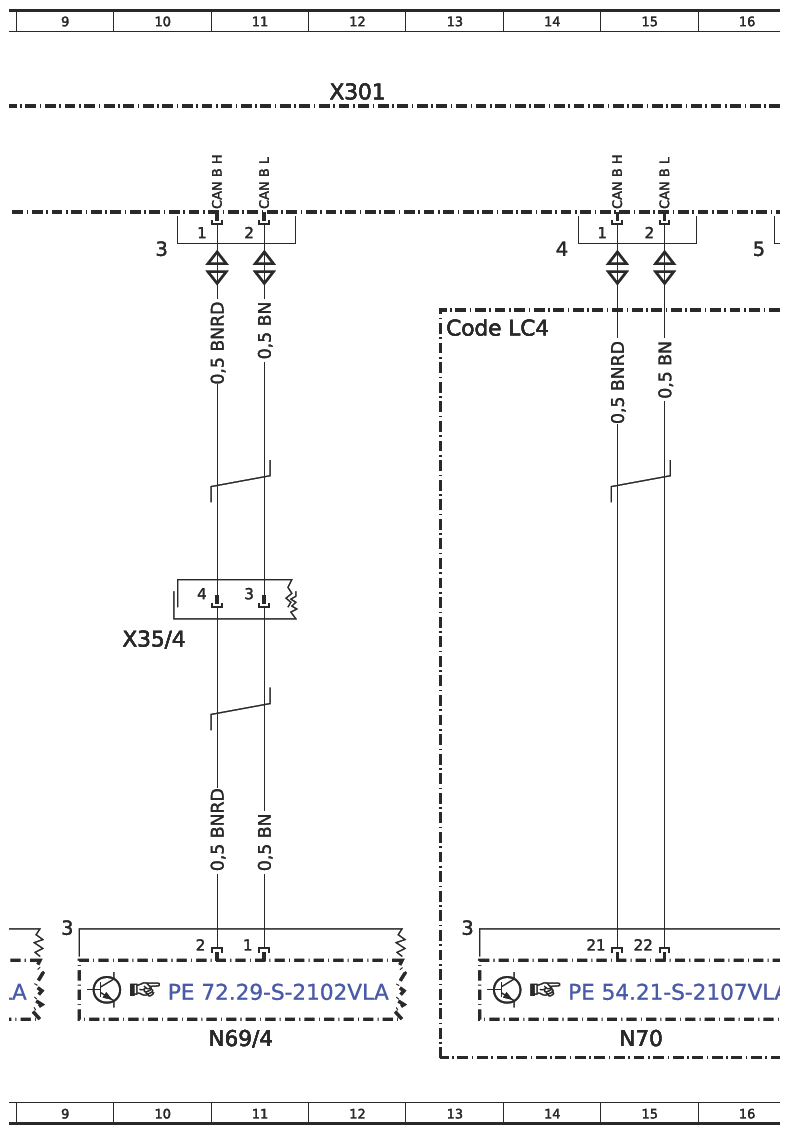

| X301 | Interior CAN (CAN B) potential distributor electrical connector | 12A |

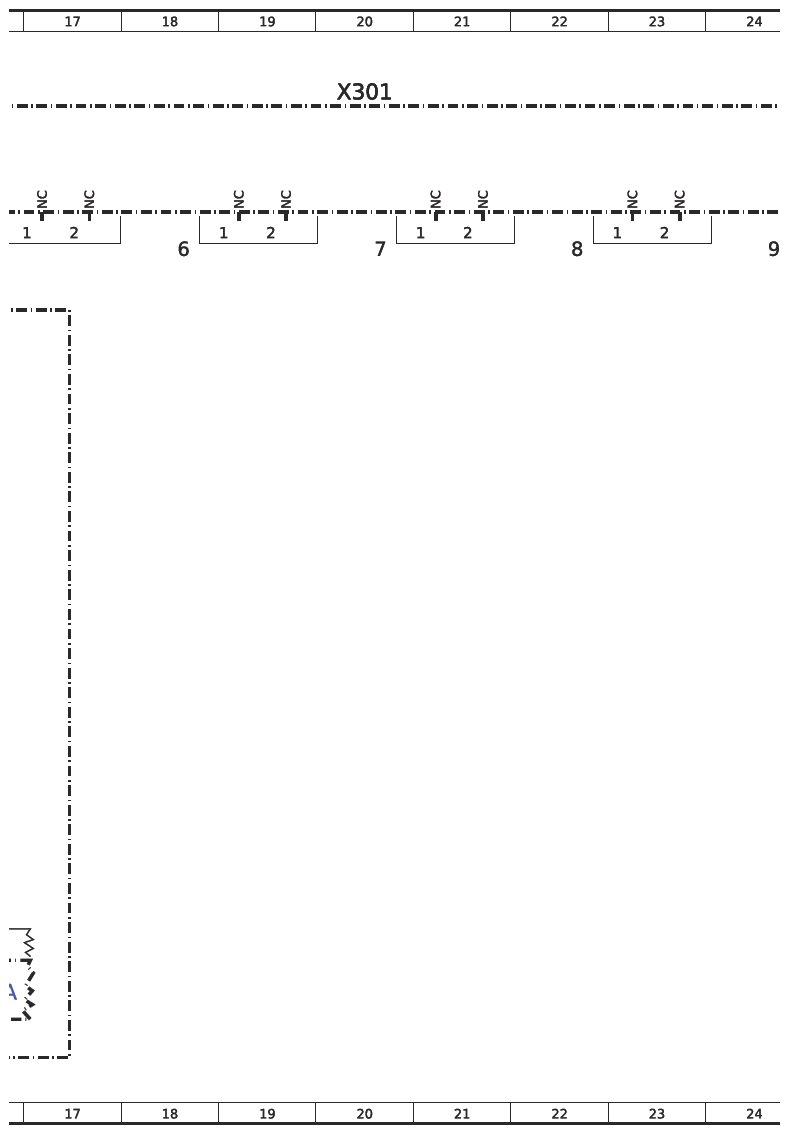

| X301 | Interior CAN (CAN B) potential distributor electrical connector | 20A |

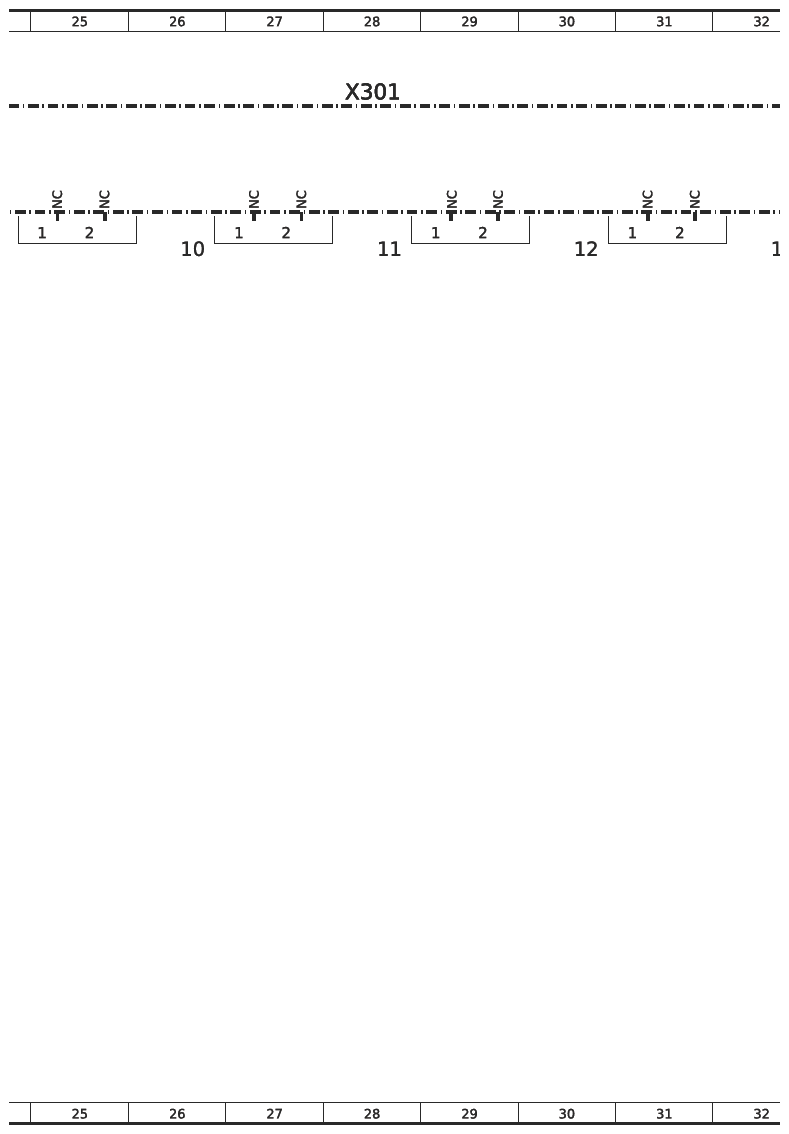

| X301 | Interior CAN (CAN B) potential distributor electrical connector | 28A |
| X35/3 | Left front electrical connector 2 | 6G |
| X35/4 | Right front electrical connector 2 | 10G |
