Function Schematic For European On-Board Diagnostics (EOBD) - PE00.30-S-2500-97TRM
Engine 274 in model 447.6/7
with Code XM0 (Facelift)
| Code : | Designation: | Position: |
|---|---|---|

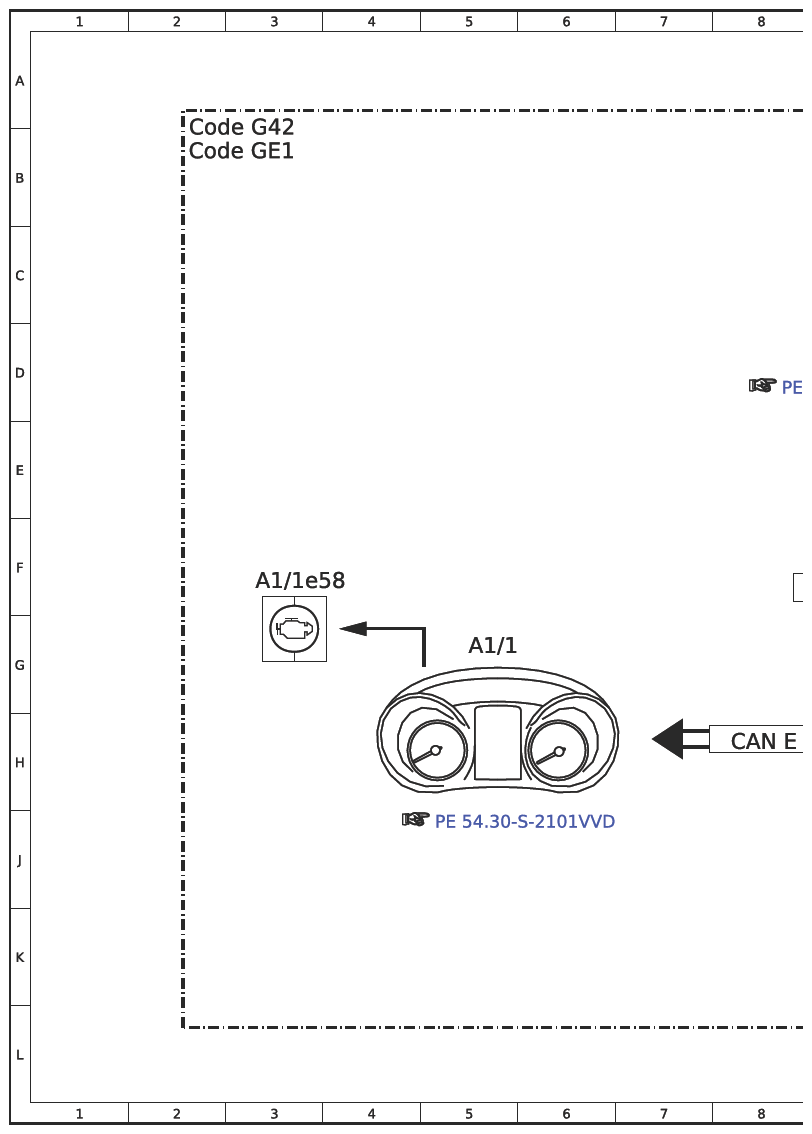

| A1/1 | Instrument cluster (KI) control unit | 21G |
| A1/1 | Instrument cluster (KI) control unit | 5G |
| A1/1e58 | Engine diagnosis indicator lamp | 19F |
| A1/1e58 | Engine diagnosis indicator lamp | 3F |
| CAN C | Drive train CAN | 31H |
| CAN C1 | Engine CAN | 31H |
| CAN D | Diagnostic CAN | 27D |
| CAN D | Diagnostic CAN | 11D |
| CAN E | Chassis CAN | 26H |
| CAN E | Chassis CAN | 24H |
| CAN E | Chassis CAN | 25F |
| CAN E | Chassis CAN | 10H |
| CAN E | Chassis CAN | 8H |
| CAN E | Chassis CAN | 9F |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 2B |

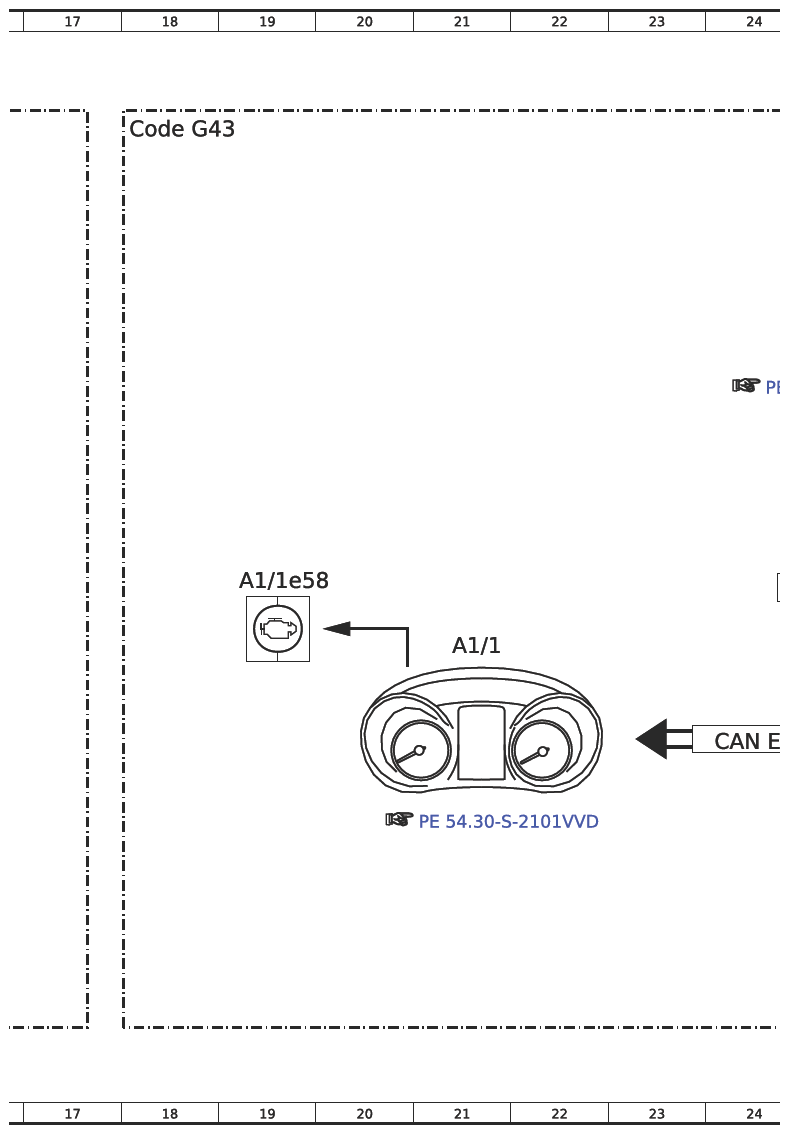

| Code G43 | 9G-TRONIC | 18B |
| Code GE1 | 6-speed manual transmission TSG 380 | 2B |
| G3/21 b1 | Sensor element of oxygen sensor downstream of catalytic converter | 15G |
| G3/21 b1 | Sensor element of oxygen sensor downstream of catalytic converter | 36G |
| G3/21 r1 | Heater of oxygen sensor heater downstream of catalytic converter | 15H |
| G3/21 r1 | Heater of oxygen sensor heater downstream of catalytic converter | 36H |
| G8/6b1 | Sensor element of oxygen sensor upstream of catalytic converter | 15H |
| G8/6b1 | Sensor element of oxygen sensor upstream of catalytic converter | 36H |
| G8/6r1 | Heater of oxygen sensor upstream of catalytic converter | 15H |
| G8/6r1 | Heater of oxygen sensor upstream of catalytic converter | 36H |

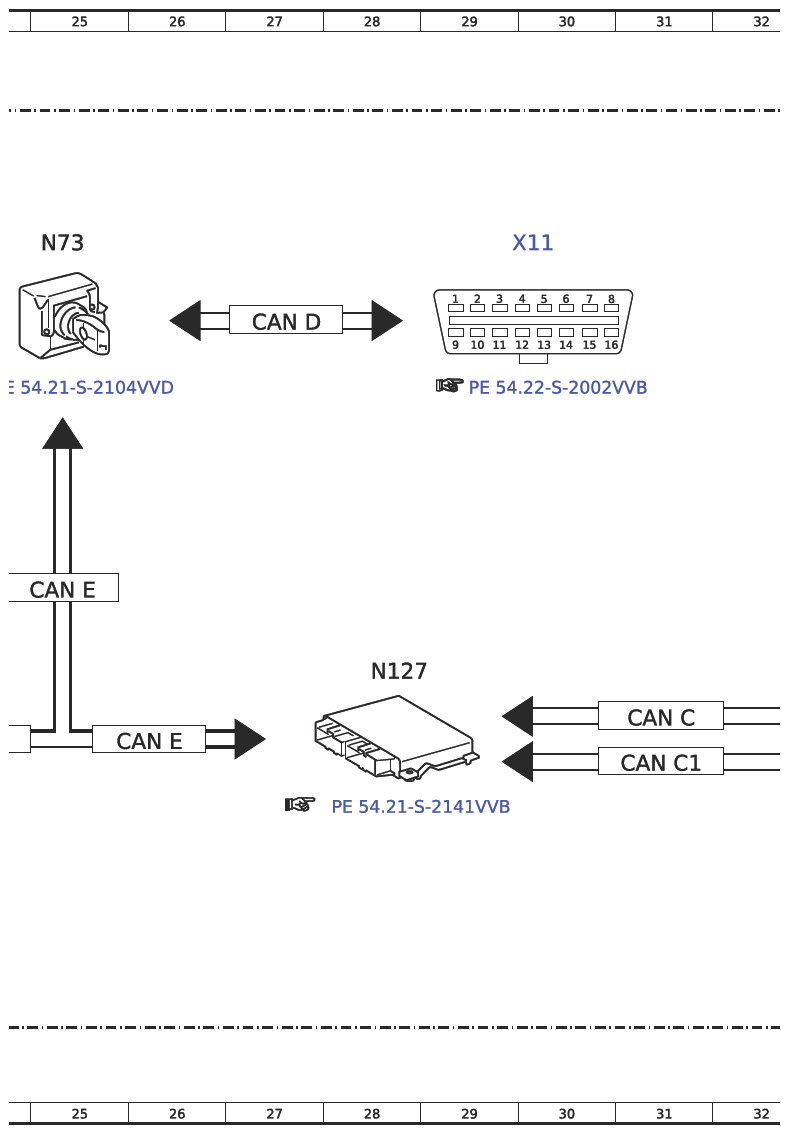

| N127 | Drivetrain control unit | 28G |

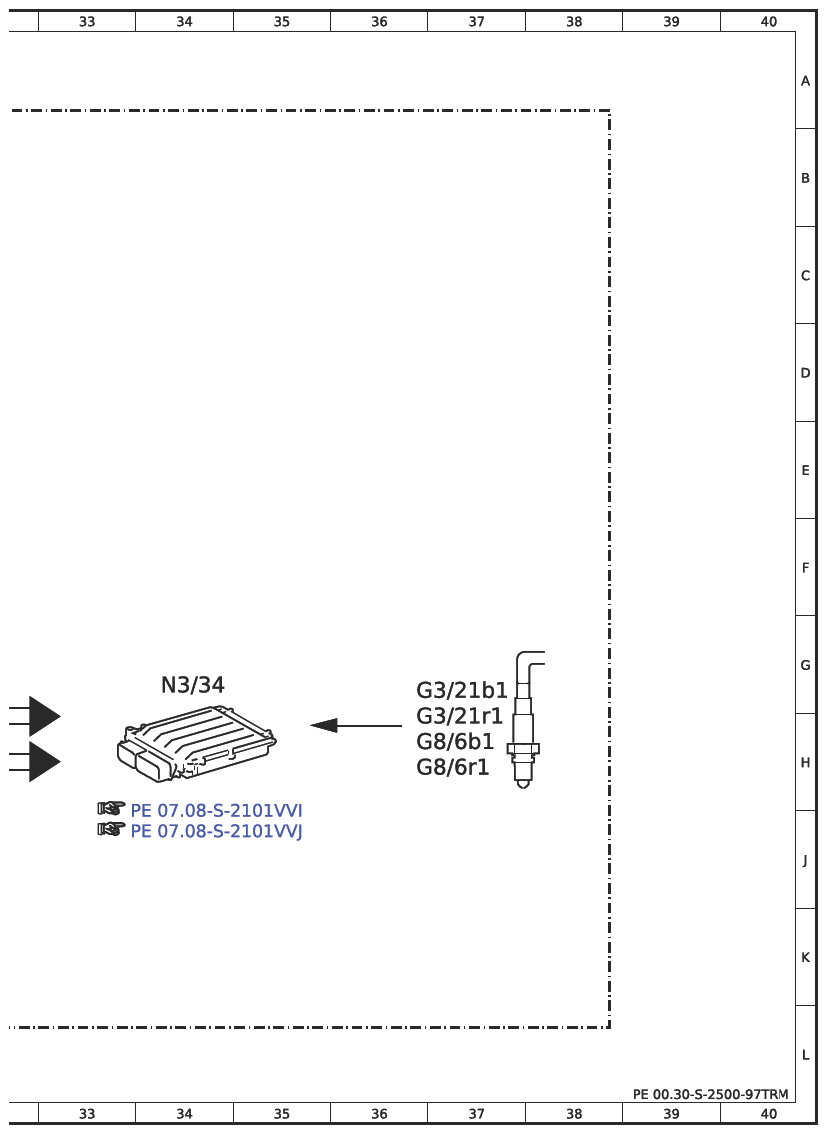

| N3/34 | ME-SFI [ME] control unit | 34G |
| N3/34 | ME-SFI [ME] control unit | 13G |

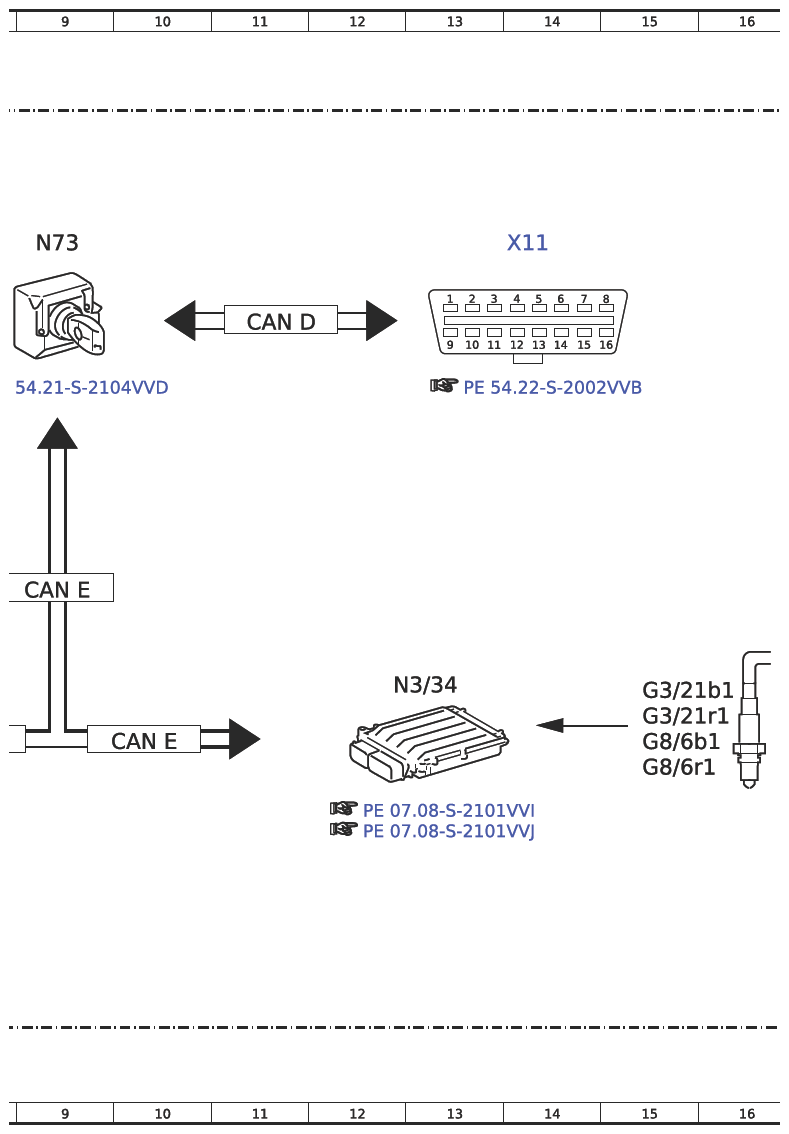

| N73 | Electronic ignition lock (EZS) control unit | 25C |
| N73 | Electronic ignition lock (EZS) control unit | 9C |
| X11 | Diagnostic connector | 30C |
| X11 | Diagnostic connector | 14C |
