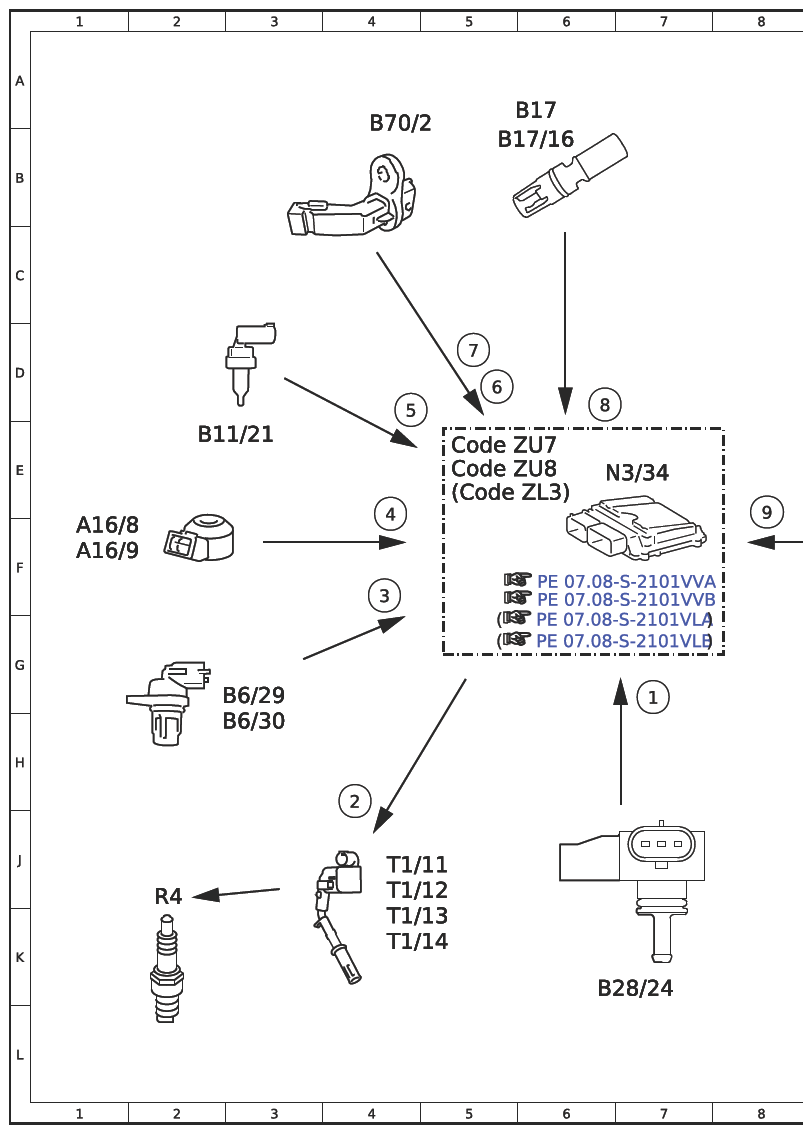

Electrical Function Schematic For Ignition System - PE07.10-S-2705-97TRC
Engine 274 in model 447
except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 7G |
| 2 | Ignition coils, actuation | 4H |
| 3 | Camshaft Hall sensor, signal | 4F |
| 4 | Knock sensor, signal | 4F |
| 5 | Coolant temperature sensor, signal | 4D |
| 6 | Engine speed, signal | 5D |
| 7 | Crankshaft Hall sensor, signal | 5D |
| 8 | Charge air temperature sensor, signal | 6D |
| 9 | Circuit 87, status | 8F |
| A16/8 | Knock sensor 1 | 1F |
| A16/9 | Knock sensor 2 | 1F |
| B11/21 | Coolant temperature sensor | 2E |
| B17 | Charge air temperature sensor upstream of throttle valve | 6A |
| B17/16 | Charge air temperature sensor downstream of throttle valve | 6B |
| B28/24 | Intake manifold pressure sensor | 7K |
| B6/29 | Intake camshaft Hall sensor | 2G |
| B6/30 | Exhaust camshaft Hall sensor | 2H |
| B70/2 | Crankshaft Hall sensor | 4B |
| Code ZL3 | National version for Latin America | 5E |
| Code ZL3 | National version for Latin America | 11E |
| Code ZU7 | Canada version | 5E |
| Code ZU7 | Canada version | 11E |
| Code ZU8 | USA version | 5E |
| Code ZU8 | USA version | 11E |

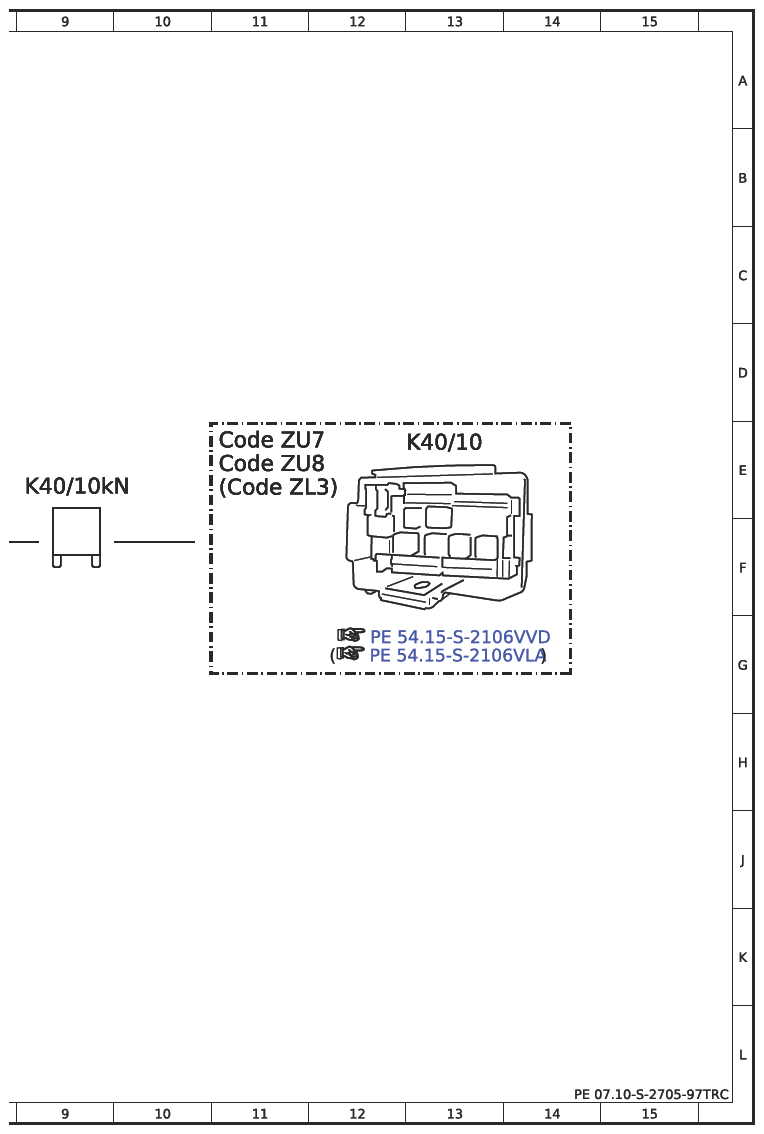

| K40/10 | Engine compartment fuse and relay module | 13E |
| K40/10kN | Circuit 87M relay | 9E |
| N3/34 | ME-SFI [ME] control unit | 7E |
| R4 | Spark plugs | 2J |
| T1/11 | Cylinder 1 ignition coil | 4J |
| T1/12 | Cylinder 2 ignition coil | 4J |
| T1/13 | Cylinder 3 ignition coil | 4K |
| T1/14 | Cylinder 4 ignition coil | 4K |
