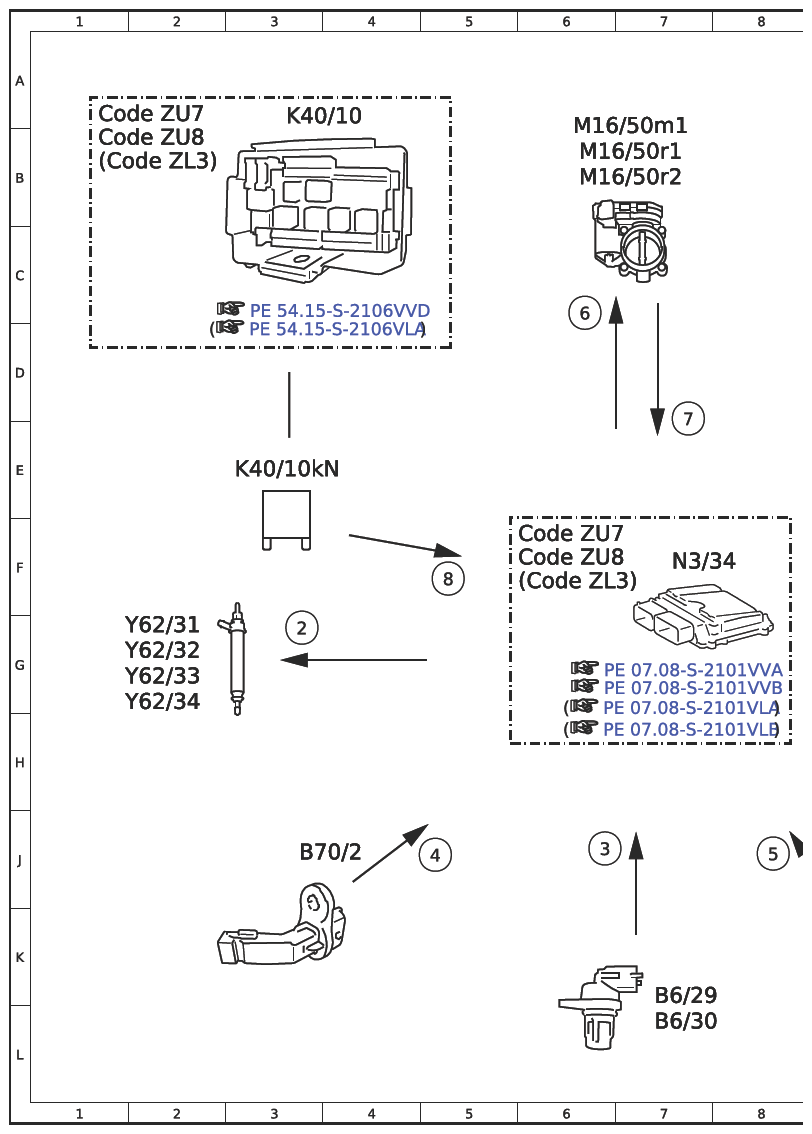

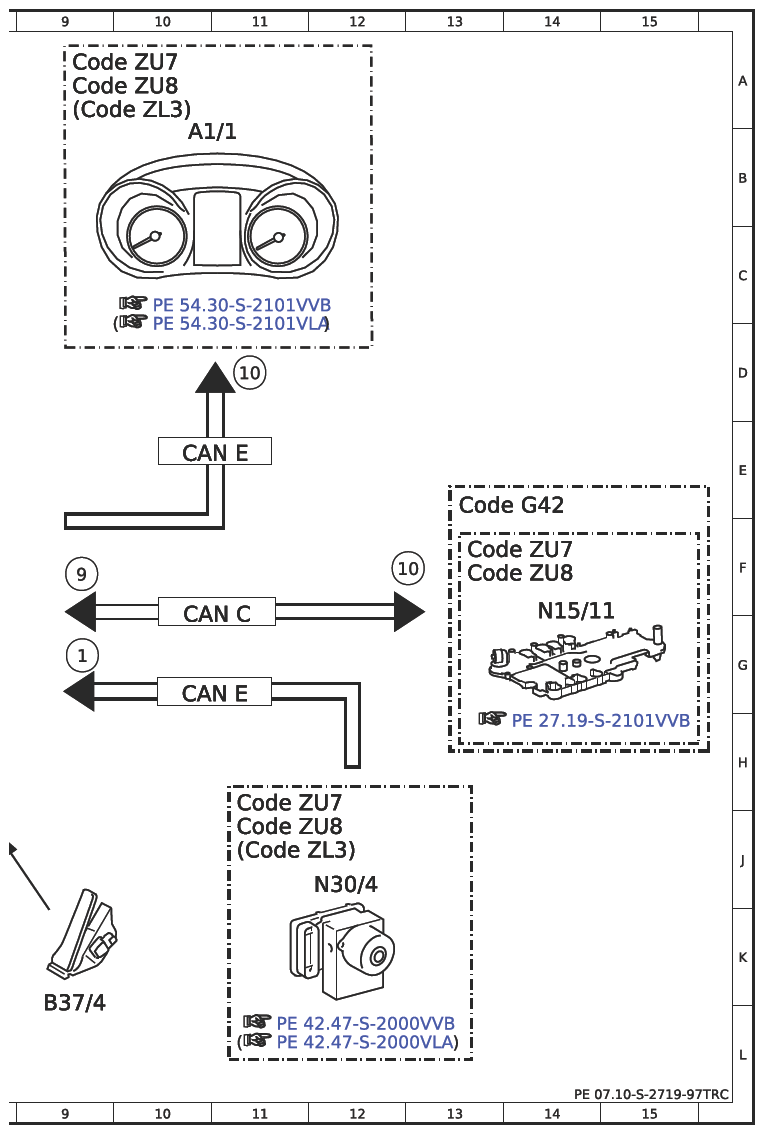

Electrical Function Schematic For Engine Limp-Home Mode - PE07.10-S-2719-97TRC
Engine 274 in model 447
except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Service brake, status | 9G |
| 10 | Engine running, signal | 12F |
| 10 | Engine running, signal | 11D |
| 2 | Fuel injectors, actuation | 3G |
| 3 | Camshaft Hall sensor, signal | 6J |
| 4 | Engine speed, signal | 5J |
| 5 | Accelerator pedal module, signal | 8J |
| 6 | Throttle valve actuator, actuation | 6C |
| 7 | Throttle valve actuator, signal | 7E |
| 8 | Circuit 87, status | 5F |
| 9 | Gear range, status | 9F |
| A1/1 | Instrument cluster (KI) control unit | 10B |
| B37/4 | Accelerator pedal module | 9L |
| B6/29 | Intake camshaft Hall sensor | 7K |
| B6/30 | Exhaust camshaft Hall sensor | 7L |
| B70/2 | Crankshaft Hall sensor | 3J |
| CAN C | Drive train CAN | 10G |
| CAN E | Chassis CAN | 10E |
| CAN E | Chassis CAN | 10G |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 13E |
| Code ZL3 | National version for Latin America | 6F |
| Code ZL3 | National version for Latin America | 9A |
| Code ZL3 | National version for Latin America | 11J |
| Code ZL3 | National version for Latin America | 1B |
| Code ZU7 | Canada version | 6F |
| Code ZU7 | Canada version | 9A |
| Code ZU7 | Canada version | 11H |
| Code ZU7 | Canada version | 1A |
| Code ZU7 | Canada version | 13F |
| Code ZU8 | USA version | 6F |
| Code ZU8 | USA version | 9A |
| Code ZU8 | USA version | 11J |
| Code ZU8 | USA version | 1B |
| Code ZU8 | USA version | 13F |
| K40/10 | Engine compartment fuse and relay module | 3A |
| K40/10kN | Circuit 87M relay | 3E |
| M16/50m1 | Throttle valve actuator motor | 6B |
| M16/50r1 | Actual value potentiometer 1 | 6B |
| M16/50r2 | Actual value potentiometer 2 | 6B |
| N15/11 | Fully integrated transmission control (VGS) electric controller unit | 14G |
| N3/34 | ME-SFI [ME] control unit | 7F |
| N30/4 | Electronic Stability Program (ESP) control unit | 12J |
| Y62/31 | Cylinder 1 fuel injector | 1G |
| Y62/32 | Cylinder 2 fuel injector | 1G |
| Y62/33 | Cylinder 3 fuel injector | 1G |
| Y62/34 | Cylinder 4 fuel injector | 1G |
