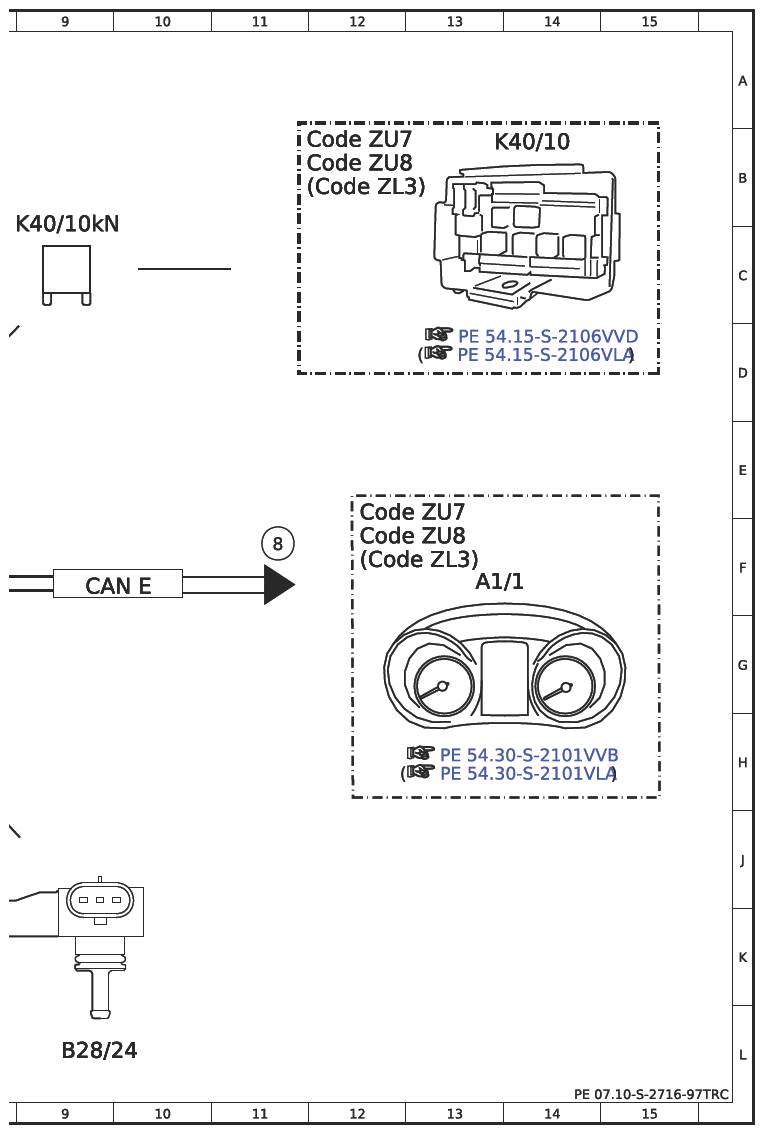

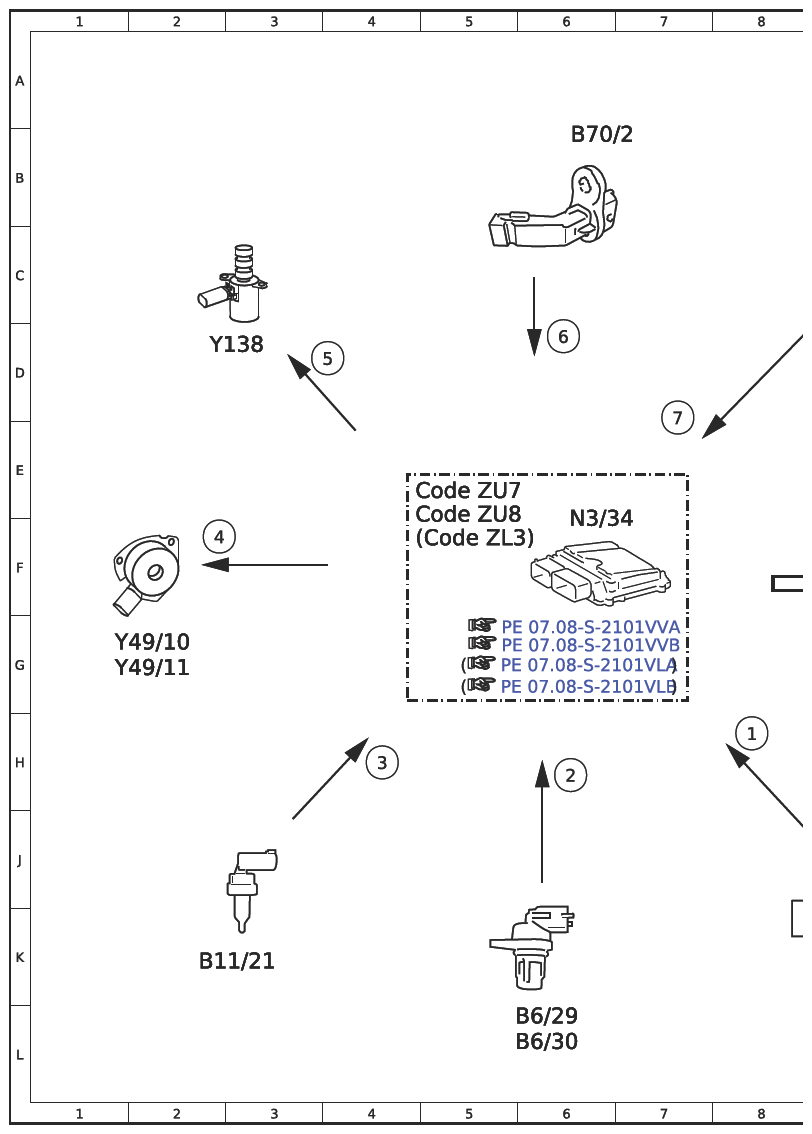

Electrical Function Schematic For Camshaft Adjustment - PE07.10-S-2716-97TRC
Engine 274 in model 447
except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 8H |
| 2 | Camshaft Hall sensor, signal | 6H |
| 3 | Coolant temperature sensor, signal | 4H |
| 4 | Camshaft solenoids, actuation | 2F |
| 5 | Engine oil pump valve, actuation | 4D |
| 6 | Engine speed, signal | 6D |
| 7 | Circuit 87, status | 7E |
| 8 | Engine running, signal | 11F |
| A1/1 | Instrument cluster (KI) control unit | 13F |
| B11/21 | Coolant temperature sensor | 2K |
| B28/24 | Intake manifold pressure sensor | 9L |
| B6/29 | Intake camshaft Hall sensor | 5L |
| B6/30 | Exhaust camshaft Hall sensor | 5L |
| B70/2 | Crankshaft Hall sensor | 6B |
| CAN E | Chassis CAN | 9F |
| Code ZL3 | National version for Latin America | 12F |
| Code ZL3 | National version for Latin America | 11B |
| Code ZL3 | National version for Latin America | 4F |
| Code ZU7 | Canada version | 12F |
| Code ZU7 | Canada version | 11B |
| Code ZU7 | Canada version | 4E |
| Code ZU8 | USA version | 12F |
| Code ZU8 | USA version | 11B |
| Code ZU8 | USA version | 4F |
| K40/10 | Engine compartment fuse and relay module | 14B |
| K40/10kN | Circuit 87M relay | 9C |
| N3/34 | ME-SFI [ME] control unit | 6F |
| Y138 | Engine oil pump valve | 3D |
| Y49/10 | Intake camshaft solenoid | 1G |
| Y49/11 | Exhaust camshaft solenoid | 1G |
