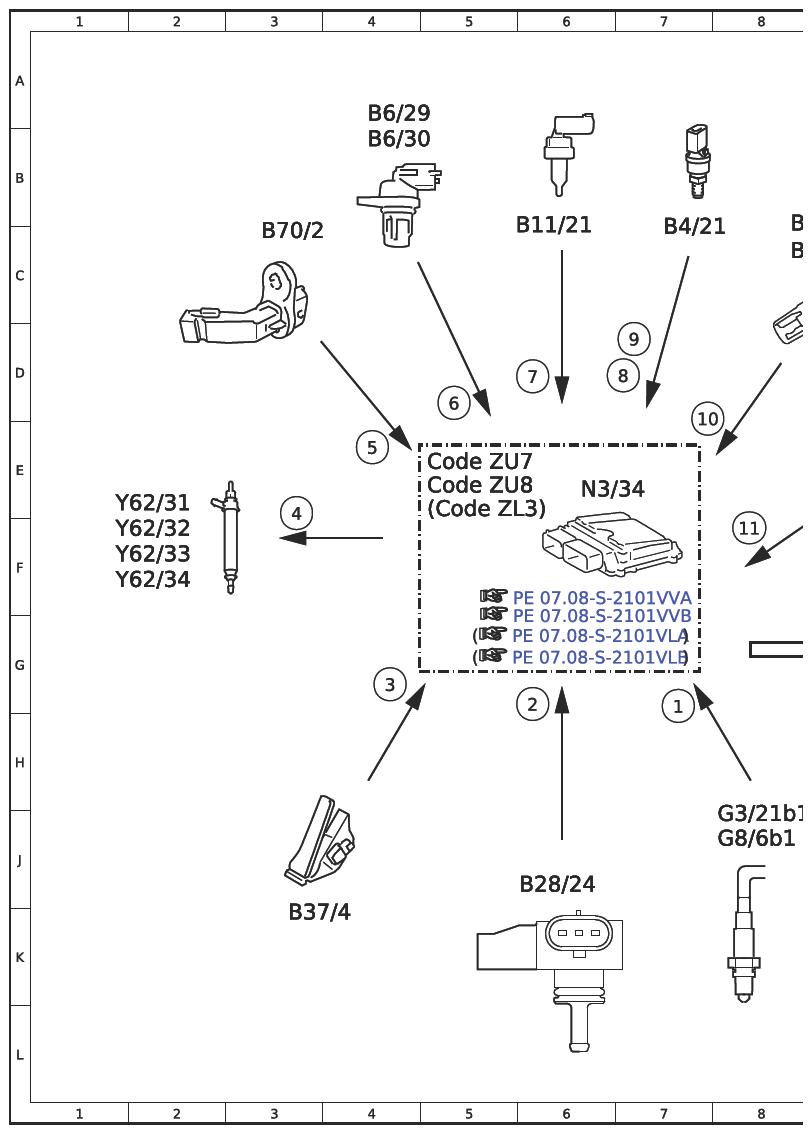

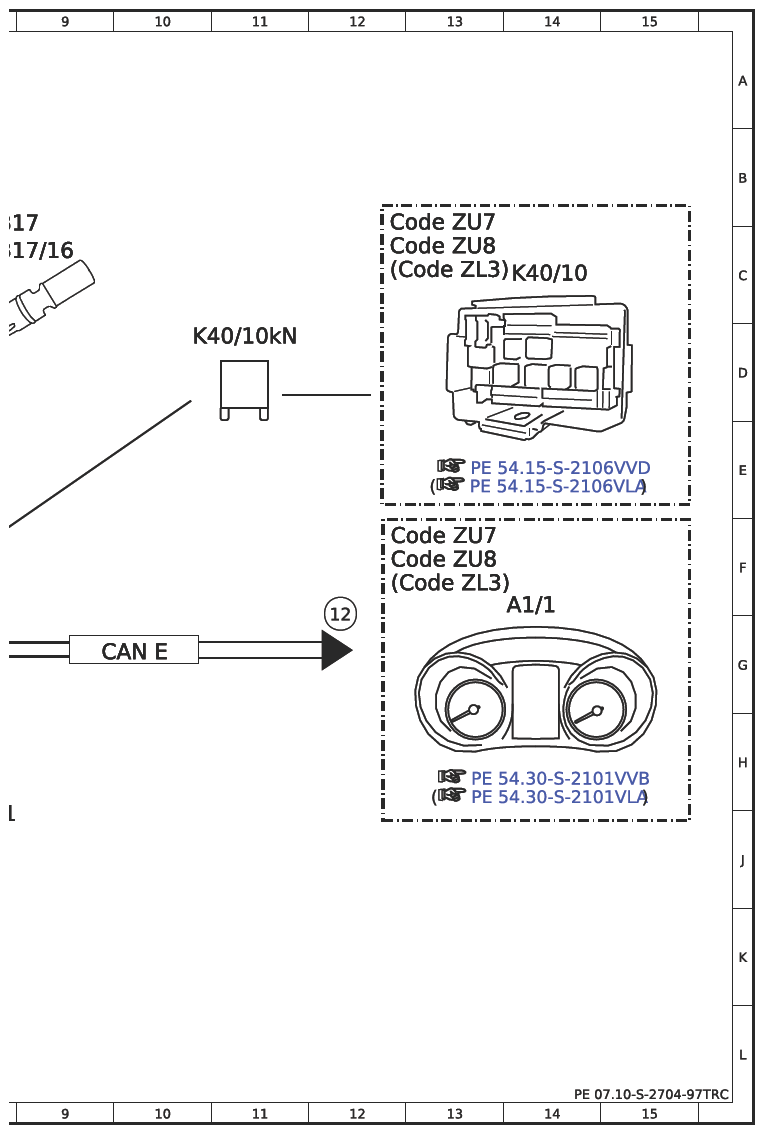

Electrical Function Diagram For Injection Control - PE07.10-S-2704-97TRC
Engine 274 in model 447
except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Oxygen sensor, sensor element, signal | 7G |
| 10 | Charge air temperature sensor, signal | 7E |
| 11 | Circuit 87, status | 8F |
| 12 | Engine running, signal | 12G |
| 2 | Engine load, signal | 6G |
| 3 | Accelerator pedal module, signal | 4G |
| 4 | Fuel injectors, actuation | 3F |
| 5 | Engine speed, signal | 4E |
| 6 | Camshaft Hall sensor, signal | 5D |
| 7 | Coolant temperature sensor, signal | 6D |
| 8 | Fuel pressure, signal | 7D |
| 9 | Fuel temperature, signal | 7D |
| A1/1 | Instrument cluster (KI) control unit | 14F |
| B11/21 | Coolant temperature sensor | 6C |
| B17 | Charge air temperature sensor upstream of throttle valve | 8C |
| B17/16 | Charge air temperature sensor downstream of throttle valve | 8C |
| B28/24 | Intake manifold pressure sensor | 6J |
| B37/4 | Accelerator pedal module | 3K |
| B4/21 | Fuel tank pressure and temperature sensor | 7C |
| B6/29 | Intake camshaft Hall sensor | 4A |
| B6/30 | Exhaust camshaft Hall sensor | 4B |
| B70/2 | Crankshaft Hall sensor | 3C |
| CAN E | Chassis CAN | 10G |
| Code ZL3 | National version for Latin America | 5E |
| Code ZL3 | National version for Latin America | 12F |
| Code ZL3 | National version for Latin America | 12C |
| Code ZU7 | Canada version | 5E |
| Code ZU7 | Canada version | 12F |
| Code ZU7 | Canada version | 12C |
| Code ZU8 | USA version | 5E |
| Code ZU8 | USA version | 12F |
| Code ZU8 | USA version | 12C |
| G3/21b1 | Sensor element of oxygen sensor downstream of catalytic converter | 8J |
| G8/6b1 | Sensor element of oxygen sensor upstream of catalytic converter | 8J |
| K40/10 | Engine compartment fuse and relay module | 14C |
| K40/10kN | Circuit 87M relay | 11D |
| N3/34 | ME-SFI [ME] control unit | 6E |
| Y62/31 | Cylinder 1 fuel injector | 1E |
| Y62/32 | Cylinder 2 fuel injector | 1F |
| Y62/33 | Cylinder 3 fuel injector | 1F |
| Y62/34 | Cylinder 4 fuel injector | 1F |
