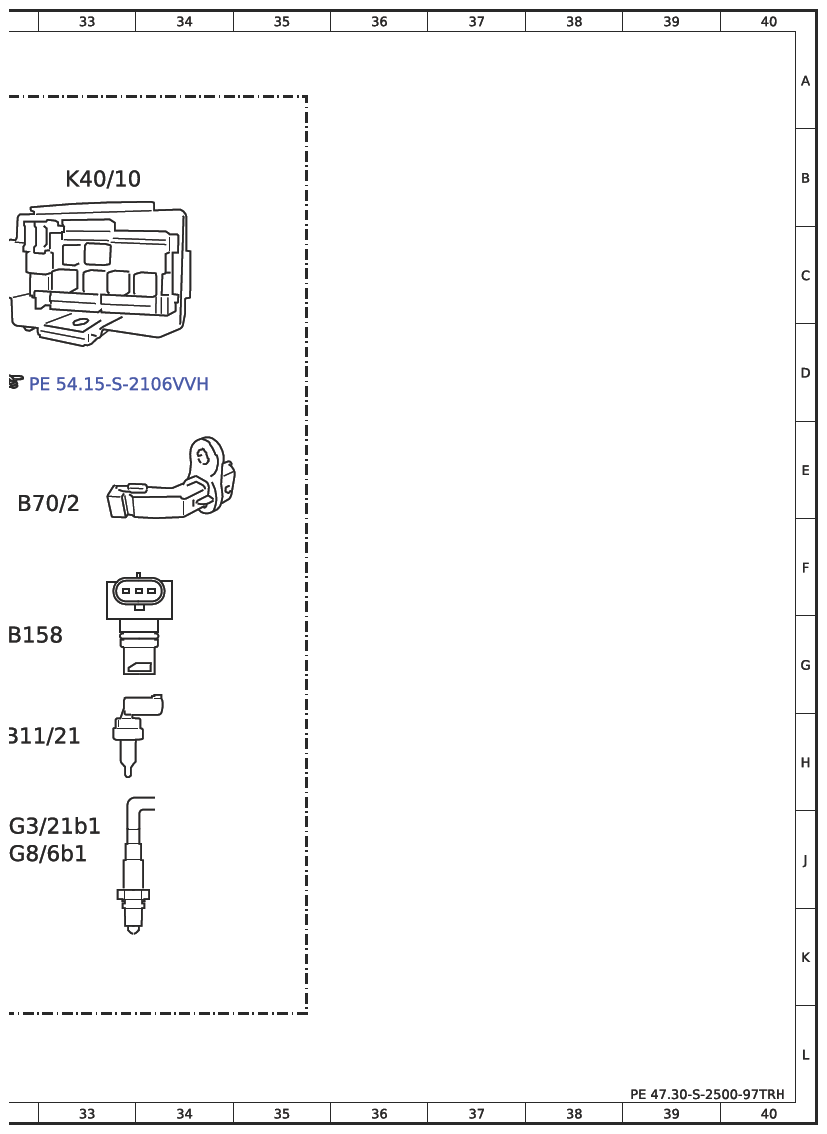

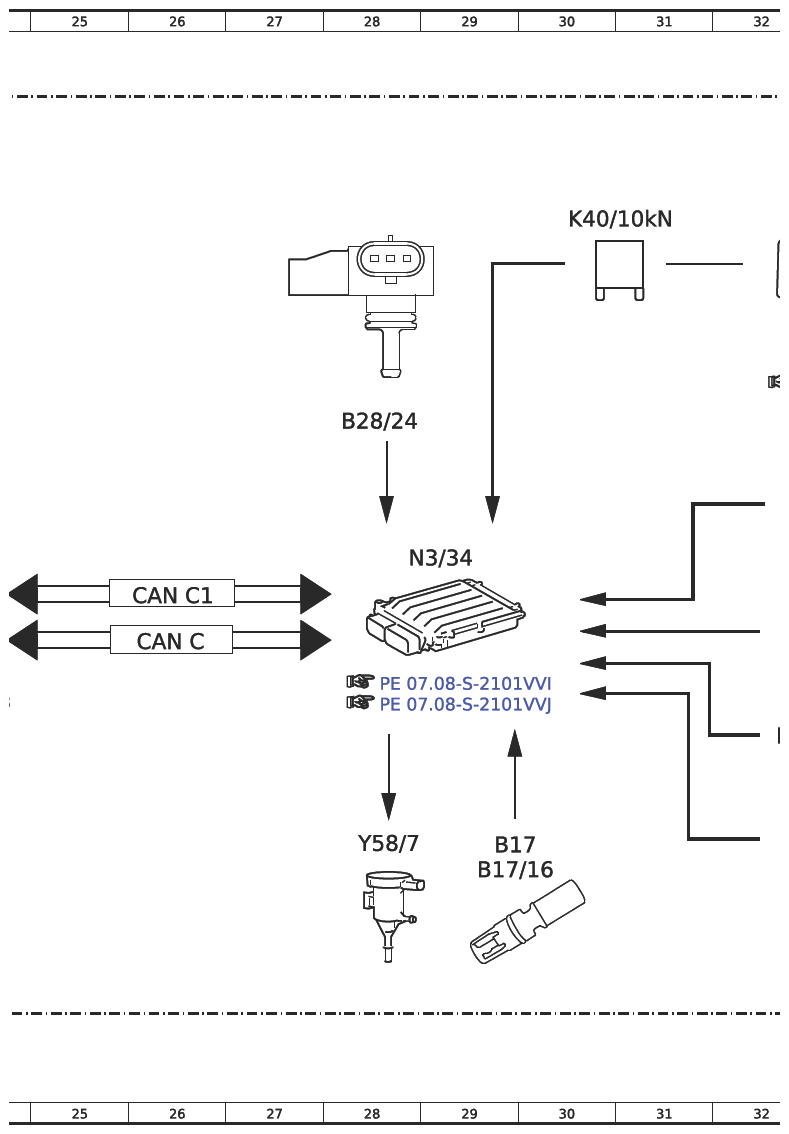

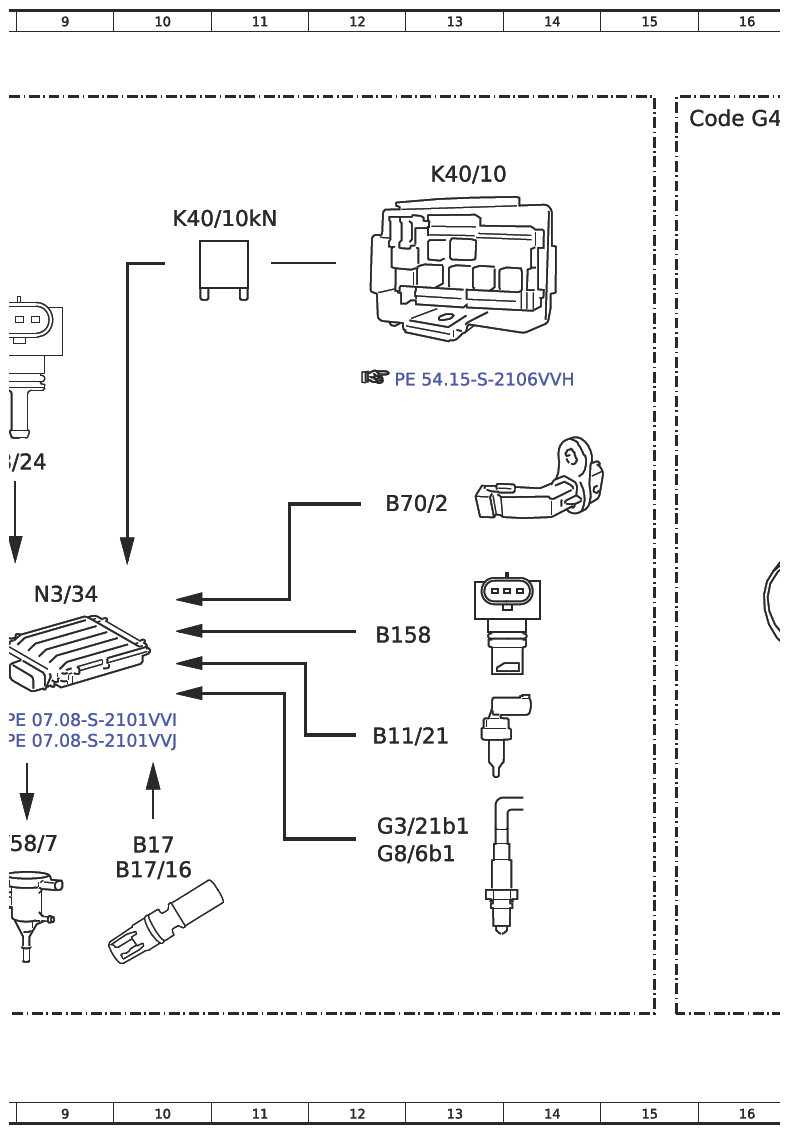

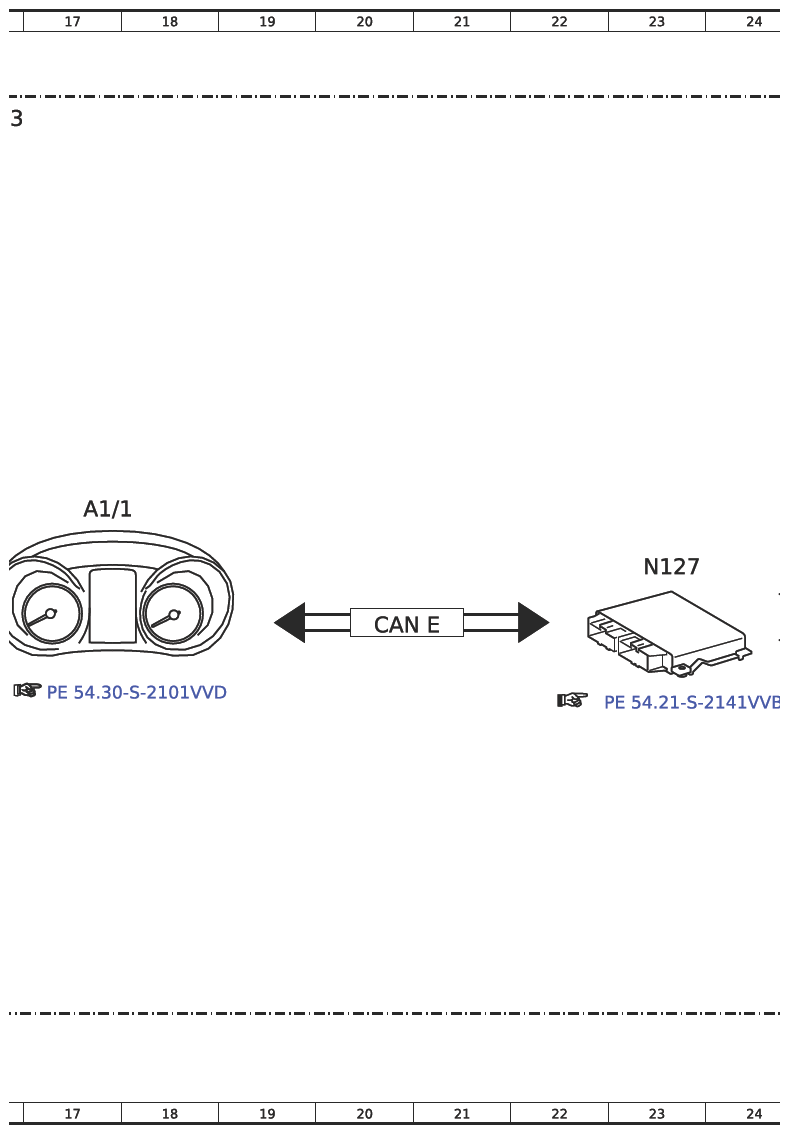

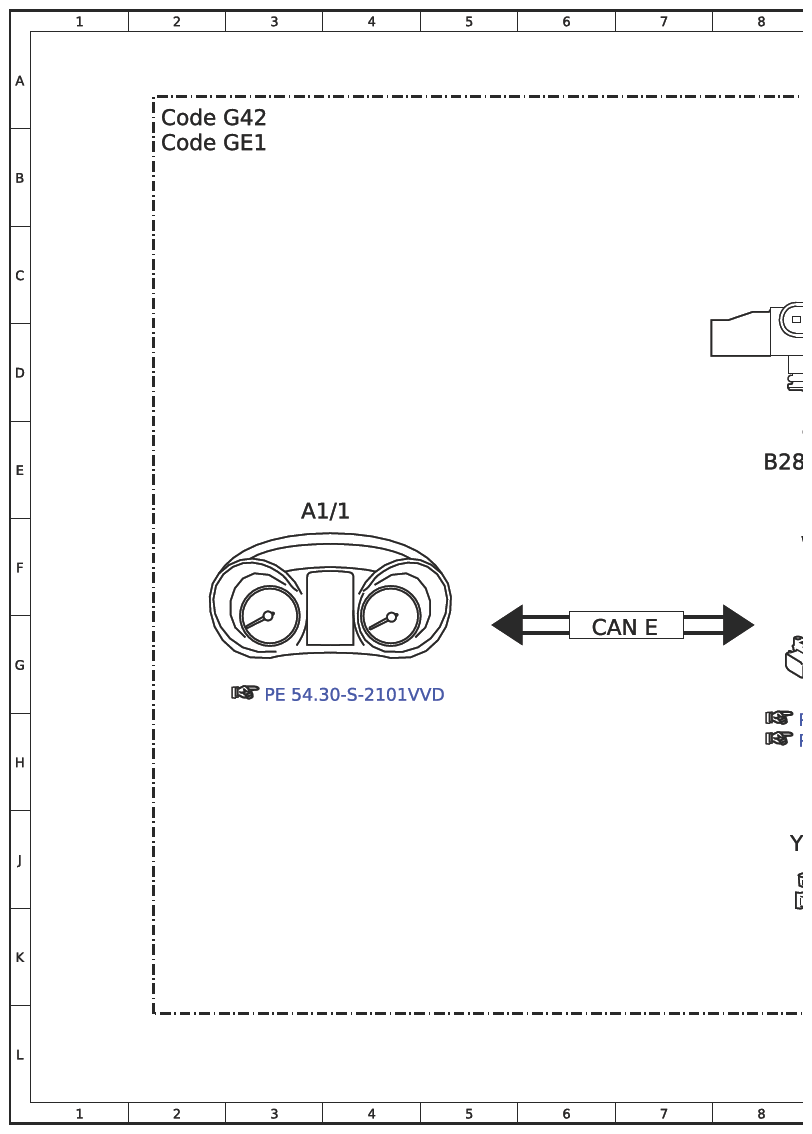

Function Schematic For Purging - PE47.30-S-2500-97TRH
Engine 274 in model 447.6/7 with code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| A1/1 | Instrument cluster (KI) control unit | 3F |
| A1/1 | Instrument cluster (KI) control unit | 17E |
| B11/21 | Coolant temperature sensor | 12H |
| B11/21 | Coolant temperature sensor | 32H |
| B158 | Purging pressure sensor | 12G |
| B158 | Purging pressure sensor | 32G |
| B17 | Charge air temperature sensor upstream of throttle valve | 10J |
| B17 | Charge air temperature sensor upstream of throttle valve | 29J |
| B17/16 | Charge air temperature sensor downstream of throttle valve | 10J |
| B17/16 | Charge air temperature sensor downstream of throttle valve | 29J |
| B28/24 | Intake manifold pressure sensor | 8E |
| B28/24 | Intake manifold pressure sensor | 28E |
| B70/2 | Crankshaft Hall sensor | 12E |
| B70/2 | Crankshaft Hall sensor | 32E |
| CAN C | Drive train CAN | 26G |
| CAN C1 | Engine CAN | 26F |
| CAN E | Chassis CAN | 6G |
| CAN E | Chassis CAN | 20G |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 2A |
| Code G43 | 9G-TRONIC | 15A |
| Code GE1 | 6-speed manual transmission TSG 380 | 2B |
| G3/21b1 | Sensor element of oxygen sensor downstream of catalytic converter | 12J |
| G3/21b1 | Sensor element of oxygen sensor downstream of catalytic converter | 32J |
| G8/6b1 | Sensor element of oxygen sensor upstream of catalytic converter | 12J |
| G8/6b1 | Sensor element of oxygen sensor upstream of catalytic converter | 32J |
| K40/10 | Engine compartment fuse and relay module | 13B |
| K40/10 | Engine compartment fuse and relay module | 33B |
| K40/10kN | Circuit 87M relay | 10B |
| K40/10kN | Circuit 87M relay | 30C |
| N127 | Drivetrain control unit | 23F |
| N3/34 | ME-SFI [ME] control unit | 9F |
| N3/34 | ME-SFI [ME] control unit | 29F |
| Y58/7 | Purge control valve | 8J |
| Y58/7 | Purge control valve | 28J |
