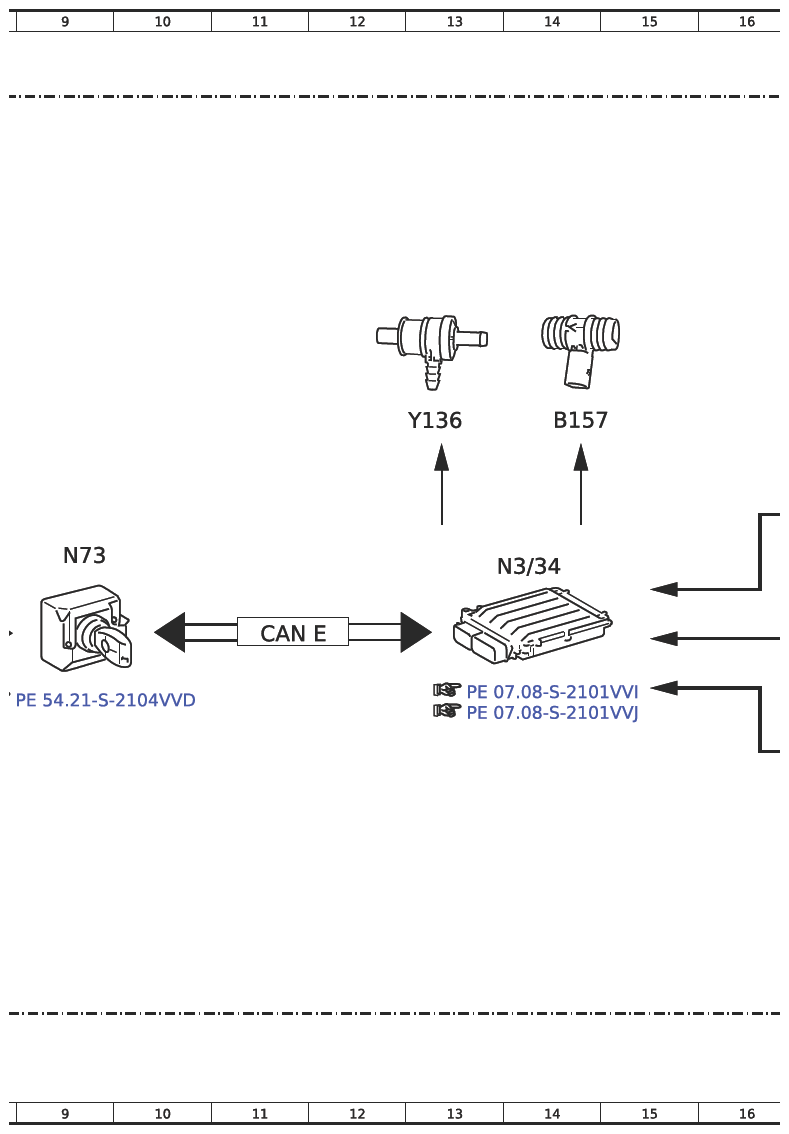

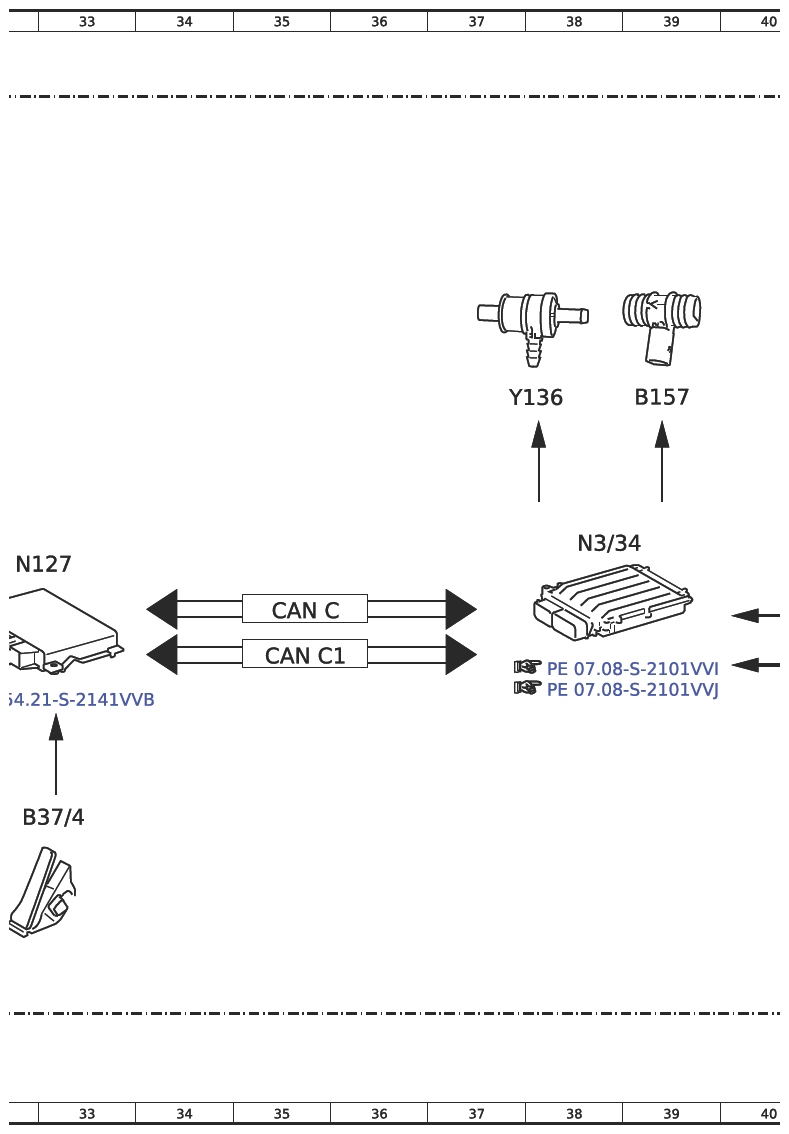

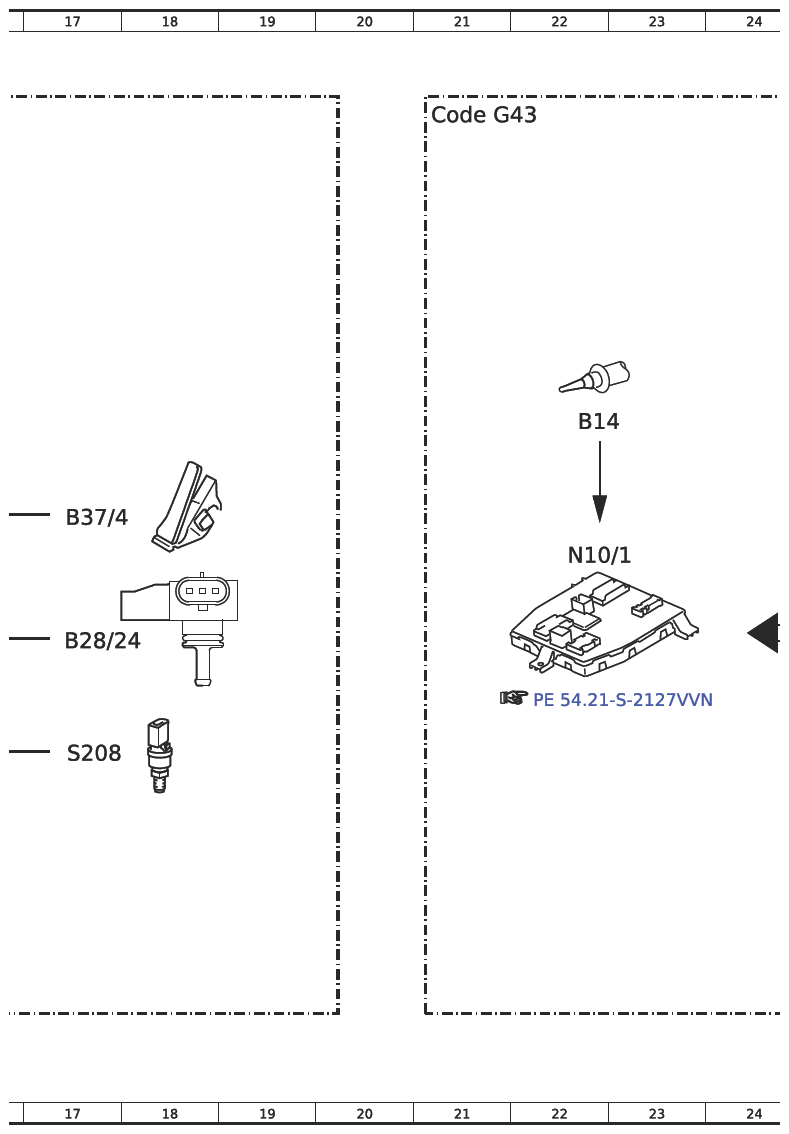

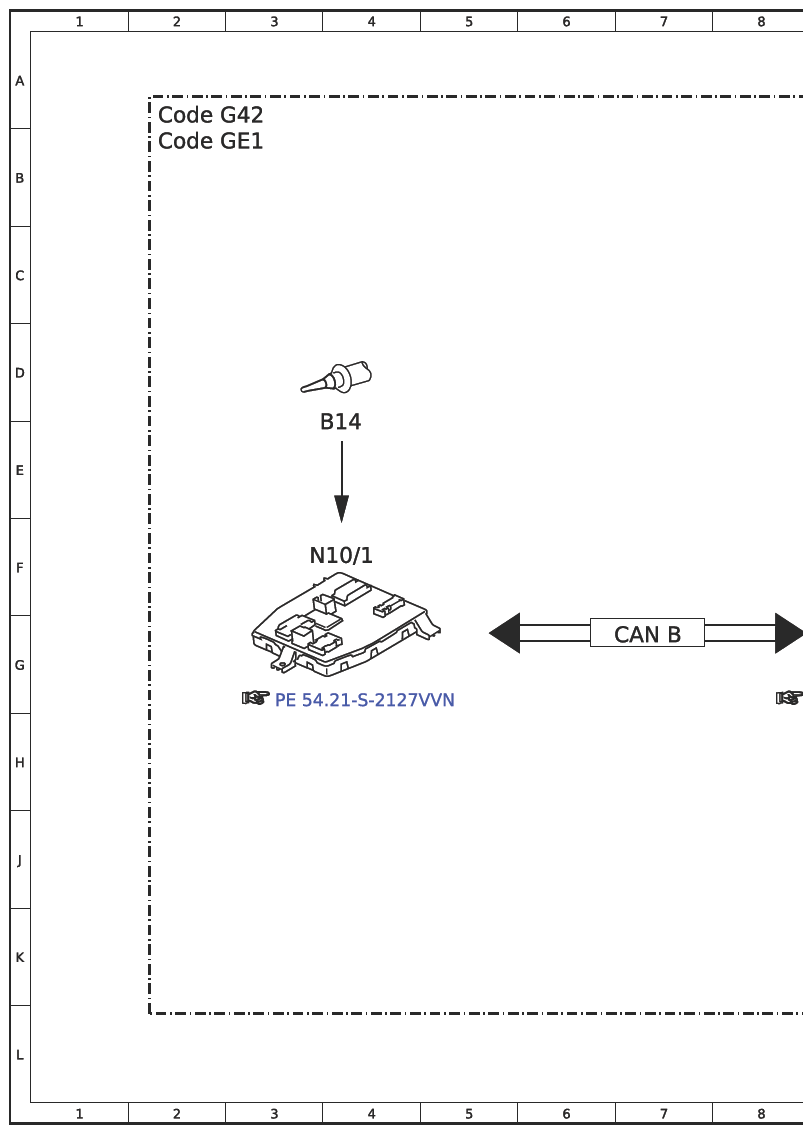

Function Schematic For Crankcase Ventilation System - PE01.20-S-2500-97TRH
Engine 274 in model 447.6/7
with code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| B14 | Outside temperature sensor | 4E |
| B14 | Outside temperature sensor | 22E |
| B157 | Full-load operation vent line heater element | 14E |
| B157 | Full-load operation vent line heater element | 39D |
| B28/24 | Intake manifold pressure sensor | 17G |
| B28/24 | Intake manifold pressure sensor | 42G |
| B37/4 | Accelerator pedal module | 17F |
| B37/4 | Accelerator pedal module | 32J |
| CAN B | Interior CAN | 7G |
| CAN B | Interior CAN | 25G |
| CAN C | Drive train CAN | 35G |
| CAN C1 | Engine CAN | 35G |
| CAN E | Chassis CAN | 11G |
| CAN E | Chassis CAN | 30G |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 2A |
| Code G43 | 9G-TRONIC | 21A |
| Code GE1 | 6-speed manual transmission TSG 380 | 2B |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4F |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 22F |
| N127 | Drivetrain control unit | 32F |
| N3/34 | ME-SFI [ME] control unit | 38F |
| N3/34 | ME-SFI [ME] control unit | 14F |
| N73 | Electronic ignition lock (EZS) control unit | 9F |
| N73 | Electronic ignition lock (EZS) control unit | 28F |
| S208 | Vent line contact switch | 17H |
| S208 | Vent line contact switch | 42H |
| Y136 | Partial load operation crankcase ventilation valve | 13E |
| Y136 | Partial load operation crankcase ventilation valve | 38D |
