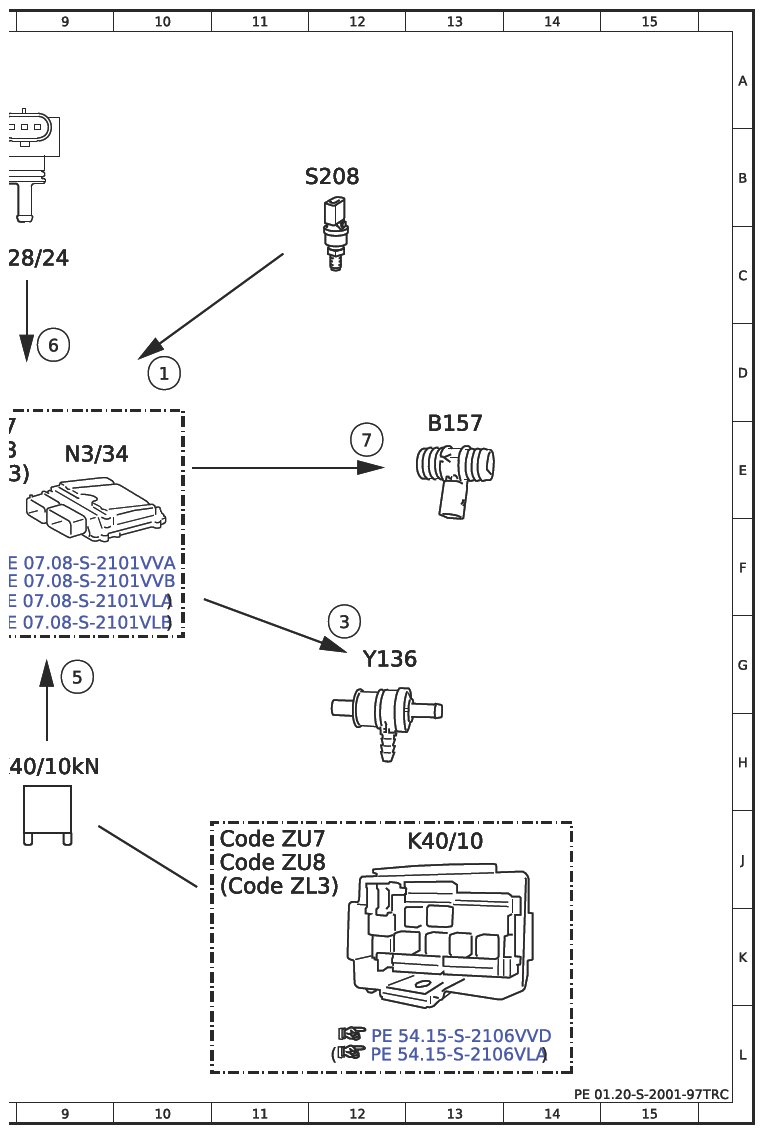

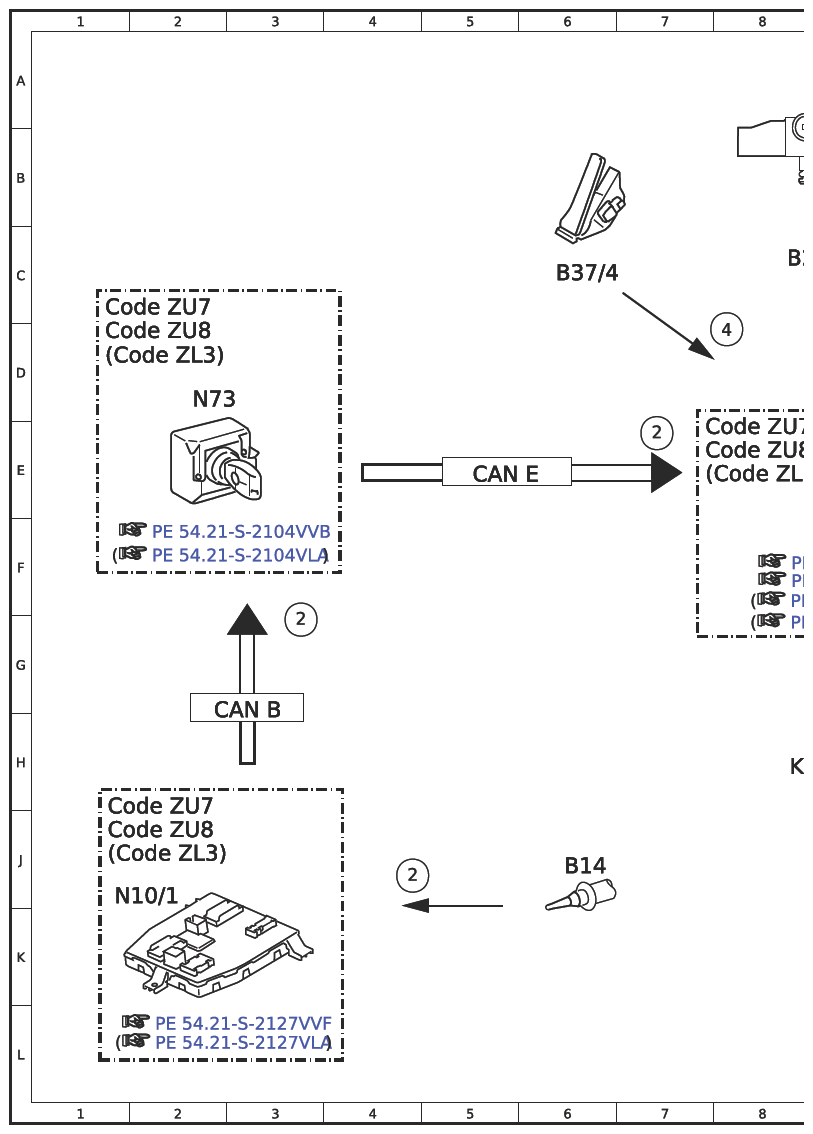

Electrical Function Schematic For Crankcase Ventilation System - PE01.20-S-2001-97TRC
Engine 274 in model 447
except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vent line contact switch, signal | 10D |
| 2 | Outside temperature, signal | 3G |
| 2 | Outside temperature, signal | 7E |
| 2 | Outside temperature, signal | 4J |
| 3 | Partial load operation crankcase ventilation system valve, actuation | 12G |
| 4 | Accelerator pedal module, signal | 8D |
| 5 | Circuit 87, status | 9G |
| 6 | Engine load, signal | 9D |
| 7 | Vent line heater element, actuation | 12E |
| B14 | Outside temperature sensor | 6J |
| B157 | Full-load operation vent line heater element | 13E |
| B28/24 | Intake manifold pressure sensor | 8C |
| B37/4 | Accelerator pedal module | 6C |
| CAN B | Interior CAN | 3H |
| CAN E | Chassis CAN | 5E |
| Code ZL3 | National version for Latin America | 7E |
| Code ZL3 | National version for Latin America | 11J |
| Code ZL3 | National version for Latin America | 1J |
| Code ZL3 | National version for Latin America | 1D |
| Code ZU7 | Canada version | 7E |
| Code ZU7 | Canada version | 11J |
| Code ZU7 | Canada version | 1J |
| Code ZU7 | Canada version | 1C |
| Code ZU8 | USA version | 7E |
| Code ZU8 | USA version | 11J |
| Code ZU8 | USA version | 1J |
| Code ZU8 | USA version | 1D |
| K40/10 | Engine compartment fuse and relay module | 13J |
| K40/10kN | Circuit 87M relay | 9H |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 2J |
| N3/34 | ME-SFI [ME] control unit | 9E |
| N73 | Electronic ignition lock (EZS) control unit | 2D |
| S208 | Vent line contact switch | 11B |
| Y136 | Partial load operation crankcase ventilation valve | 12G |
