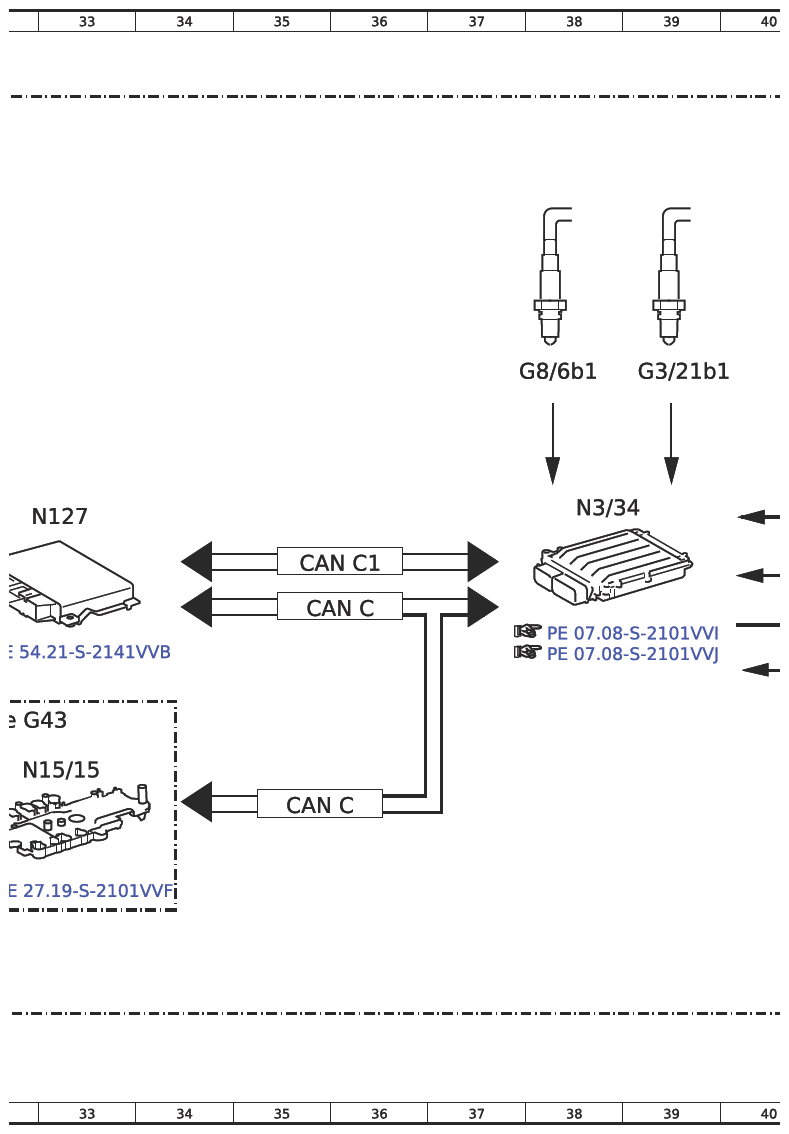

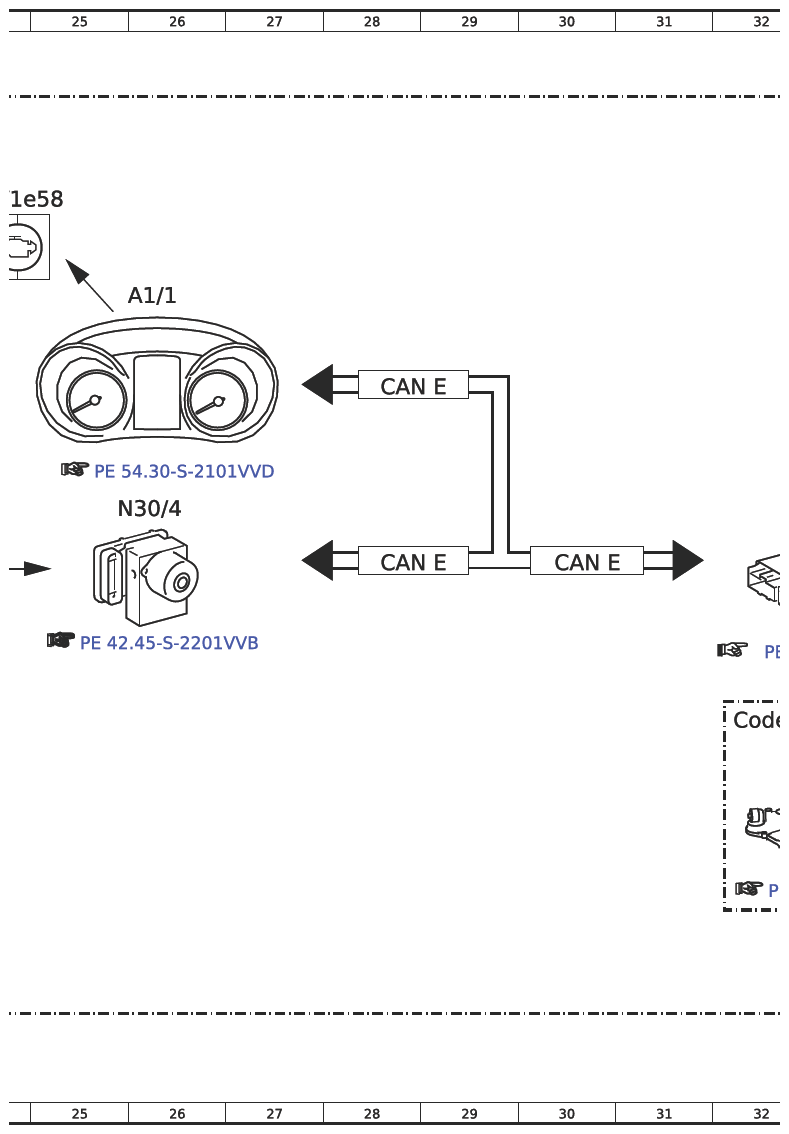

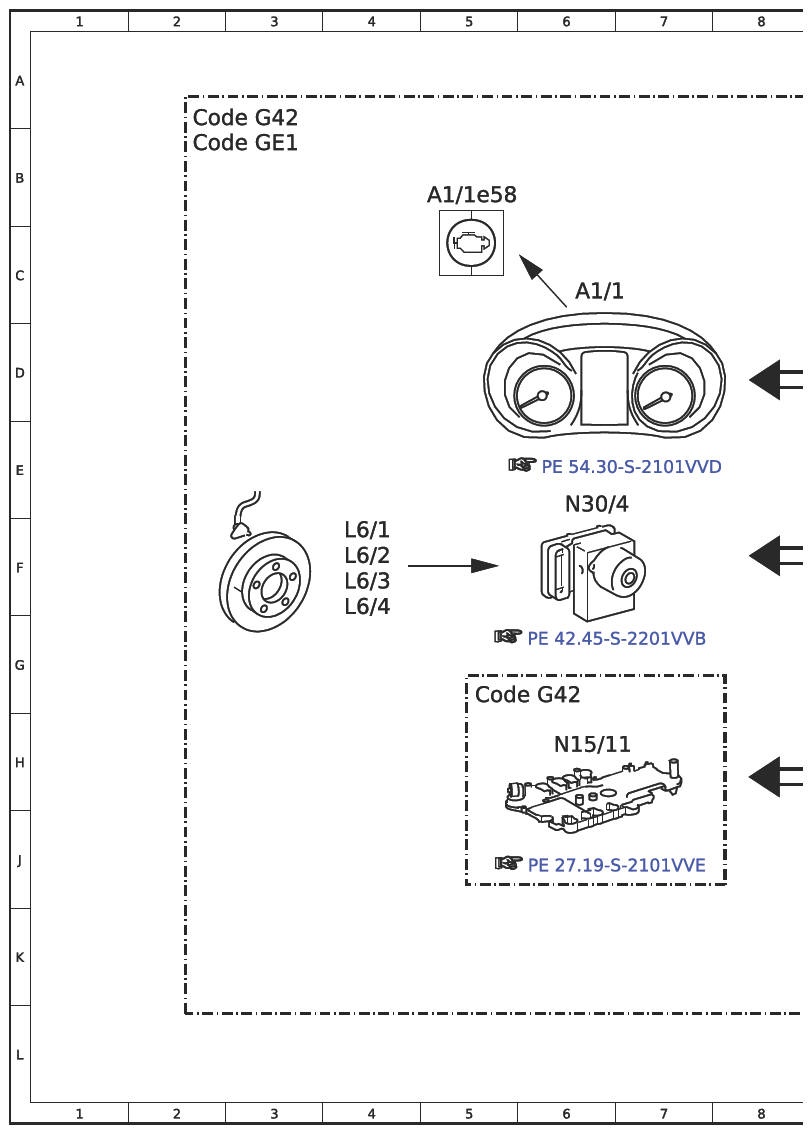

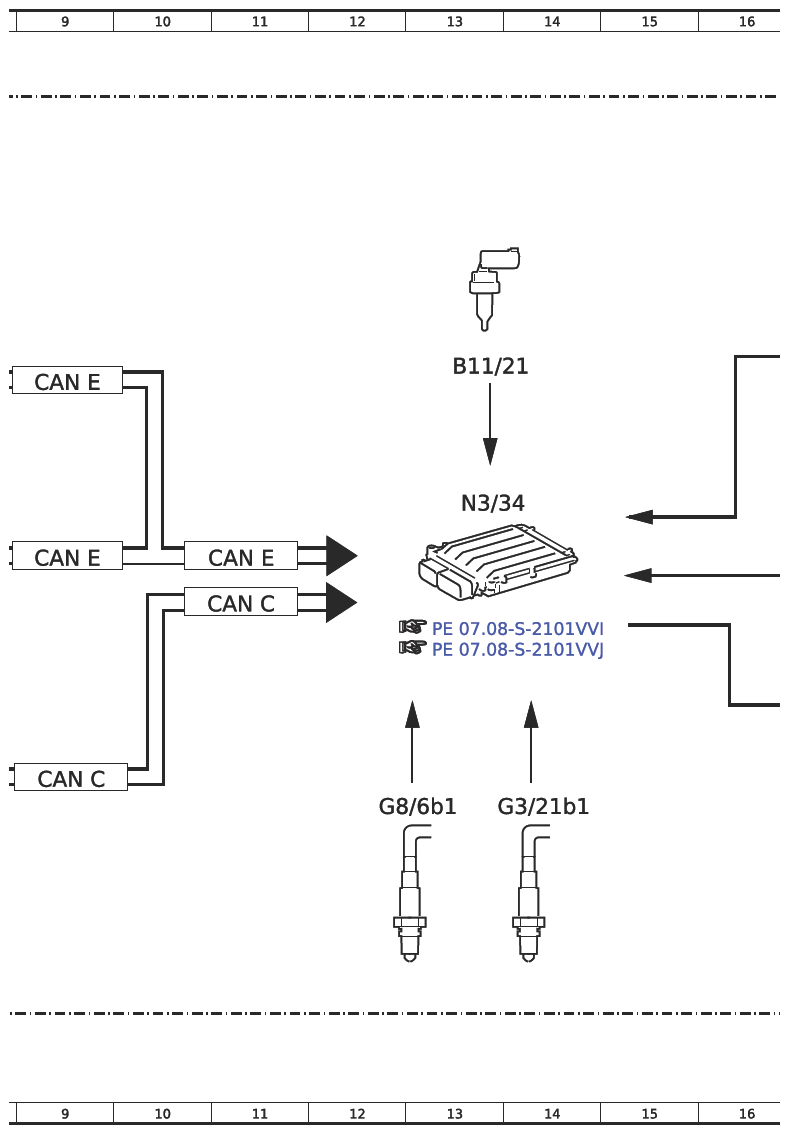

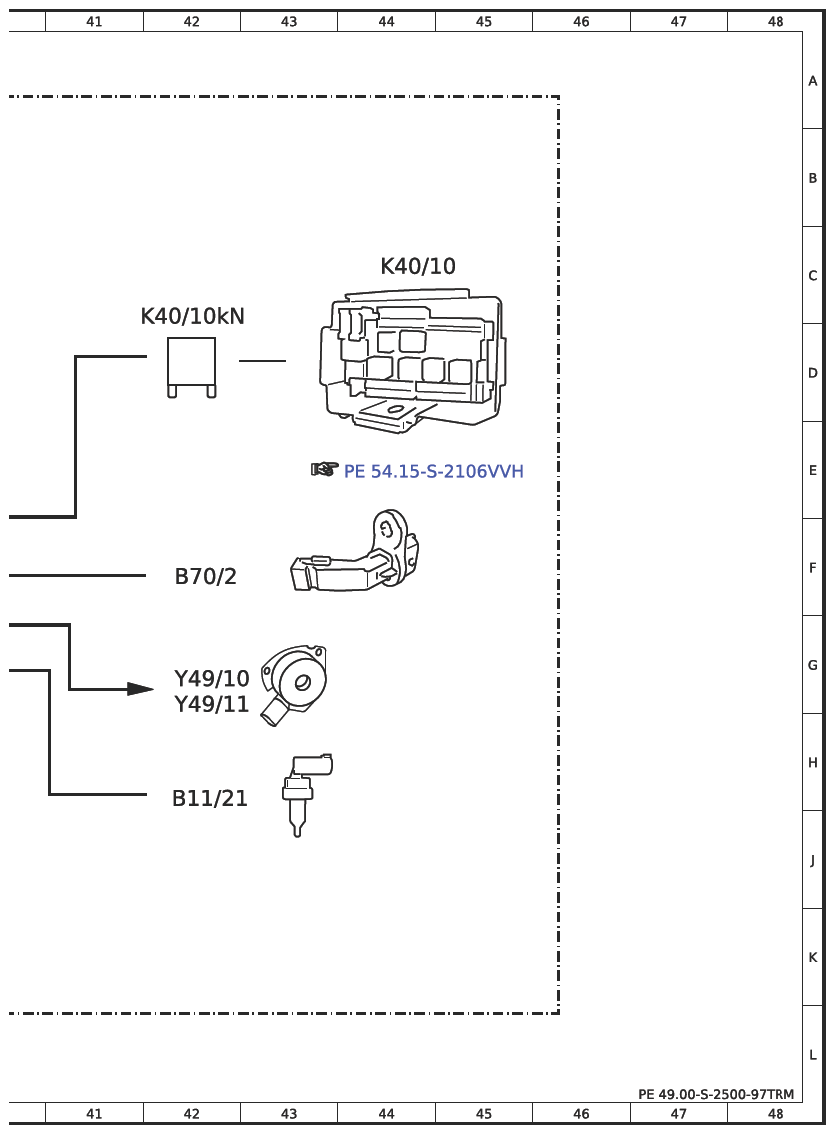

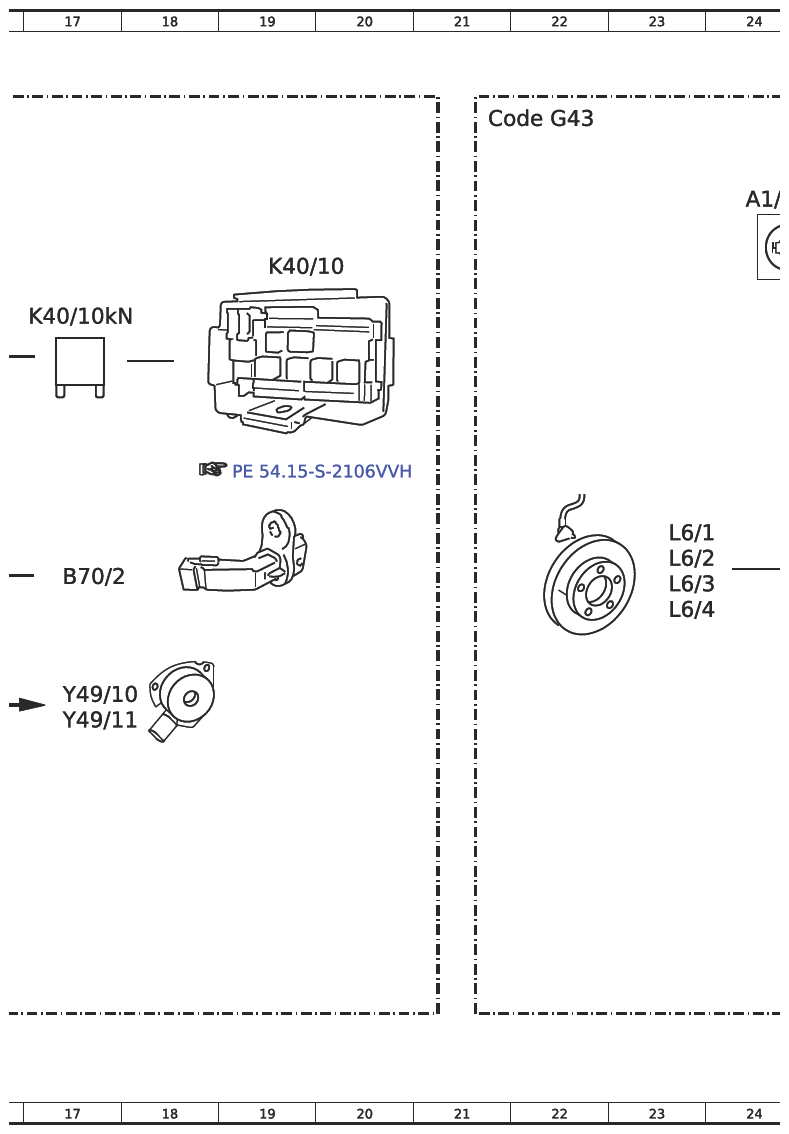

Function Schematic For Exhaust Gas Cleaning - PE49.00-S-2500-97TRM
Engine 274 in model 447.6/7 with code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| A1/1 | Instrument cluster (KI) control unit | 26C |
| A1/1 | Instrument cluster (KI) control unit | 6C |
| A1/1e58 | Engine diagnosis indicator lamp | 5B |
| A1/1e58 | Engine diagnosis indicator lamp | 24B |
| B11/21 | Coolant temperature sensor | 13D |
| B11/21 | Coolant temperature sensor | 42H |
| B70/2 | Crankshaft Hall sensor | 17F |
| B70/2 | Crankshaft Hall sensor | 42F |
| CAN C | Drive train CAN | 35G |
| CAN C | Drive train CAN | 9H |
| CAN C | Drive train CAN | 11F |
| CAN C | Drive train CAN | 35J |
| CAN C1 | Engine CAN | 35F |
| CAN E | Chassis CAN | 30F |
| CAN E | Chassis CAN | 28F |
| CAN E | Chassis CAN | 28D |
| CAN E | Chassis CAN | 11F |
| CAN E | Chassis CAN | 9F |
| CAN E | Chassis CAN | 9D |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 2A |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 5G |
| Code G43 | 9G-TRONIC | 21A |
| Code G43 | 9G-TRONIC | 32H |
| Code GE1 | 6-speed manual transmission TSG 380 | 2B |
| G3/21 b1 | Sensor element of oxygen sensor downstream of catalytic converter | 13J |
| G3/21 b1 | Sensor element of oxygen sensor downstream of catalytic converter | 39D |
| G8/6b1 | Sensor element of oxygen sensor upstream of catalytic converter | 12J |
| G8/6b1 | Sensor element of oxygen sensor upstream of catalytic converter | 37D |
| K40/10 | Engine compartment fuse and relay module | 19C |
| K40/10 | Engine compartment fuse and relay module | 44C |
| K40/10kN | Circuit 87M relay | 17D |
| K40/10kN | Circuit 87M relay | 42D |
| L6/1 | Left front axle rpm sensor | 4F |
| L6/1 | Left front axle rpm sensor | 23F |
| L6/2 | Right front axle rpm sensor | 4F |
| L6/2 | Right front axle rpm sensor | 23F |
| L6/3 | Left rear axle rpm sensor | 4F |
| L6/3 | Left rear axle rpm sensor | 23F |
| L6/4 | Right rear axle rpm sensor | 4F |
| L6/4 | Right rear axle rpm sensor | 23G |
| N127 | Drivetrain control unit | 33F |
| N15/11 | Fully integrated transmission control (VGS) electric controller unit | 6H |
| N15/15 | Fully integrated transmission control (VGS) electric controller unit | 33H |
| N3/34 | ME-SFI [ME] control unit | 38E |
| N3/34 | ME-SFI [ME] control unit | 13E |
| N30/4 | Electronic Stability Program (ESP) control unit | 26E |
| N30/4 | Electronic Stability Program (ESP) control unit | 6E |
| Y49/10 | Intake camshaft solenoid | 17G |
| Y49/10 | Intake camshaft solenoid | 42G |
| Y49/11 | Exhaust camshaft solenoid | 17H |
| Y49/11 | Exhaust camshaft solenoid | 42G |
