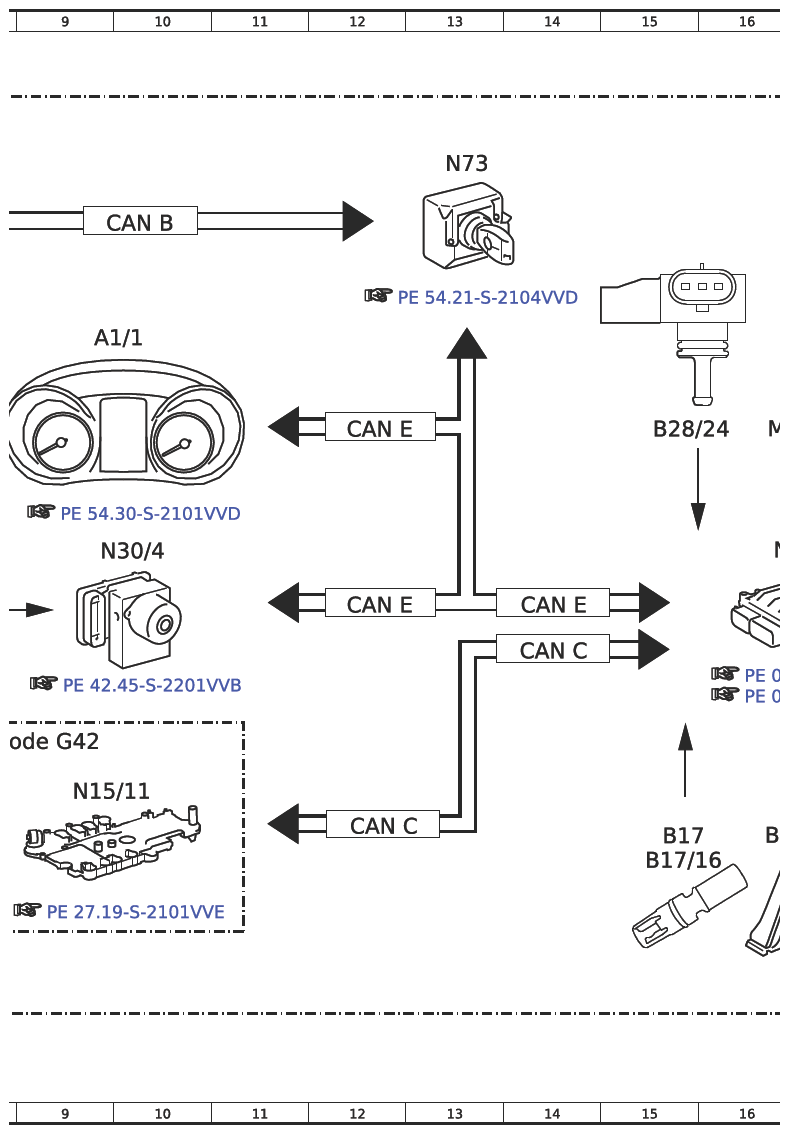

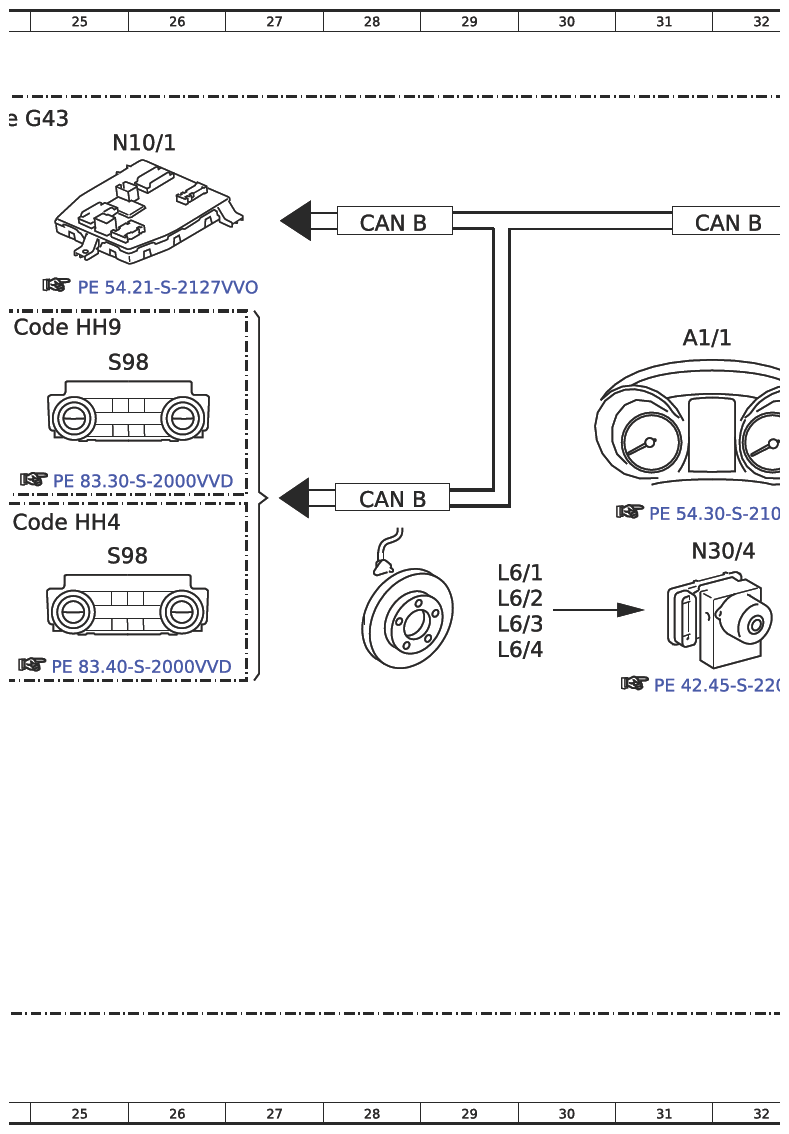

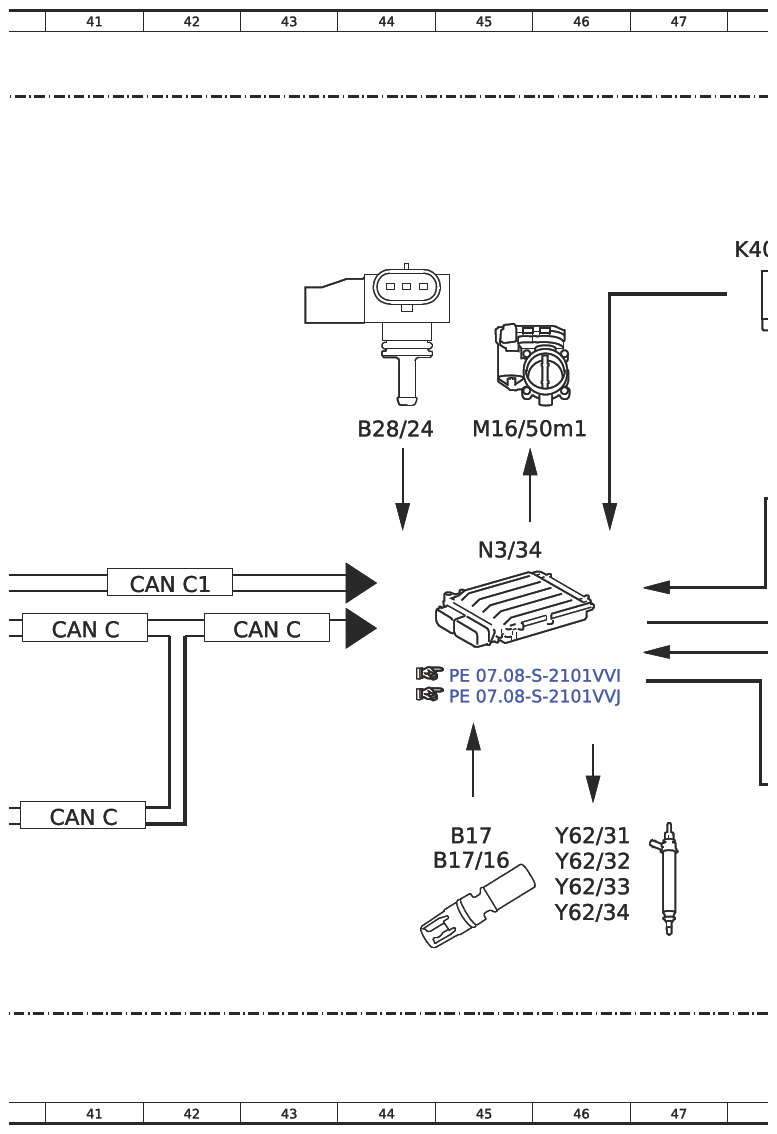

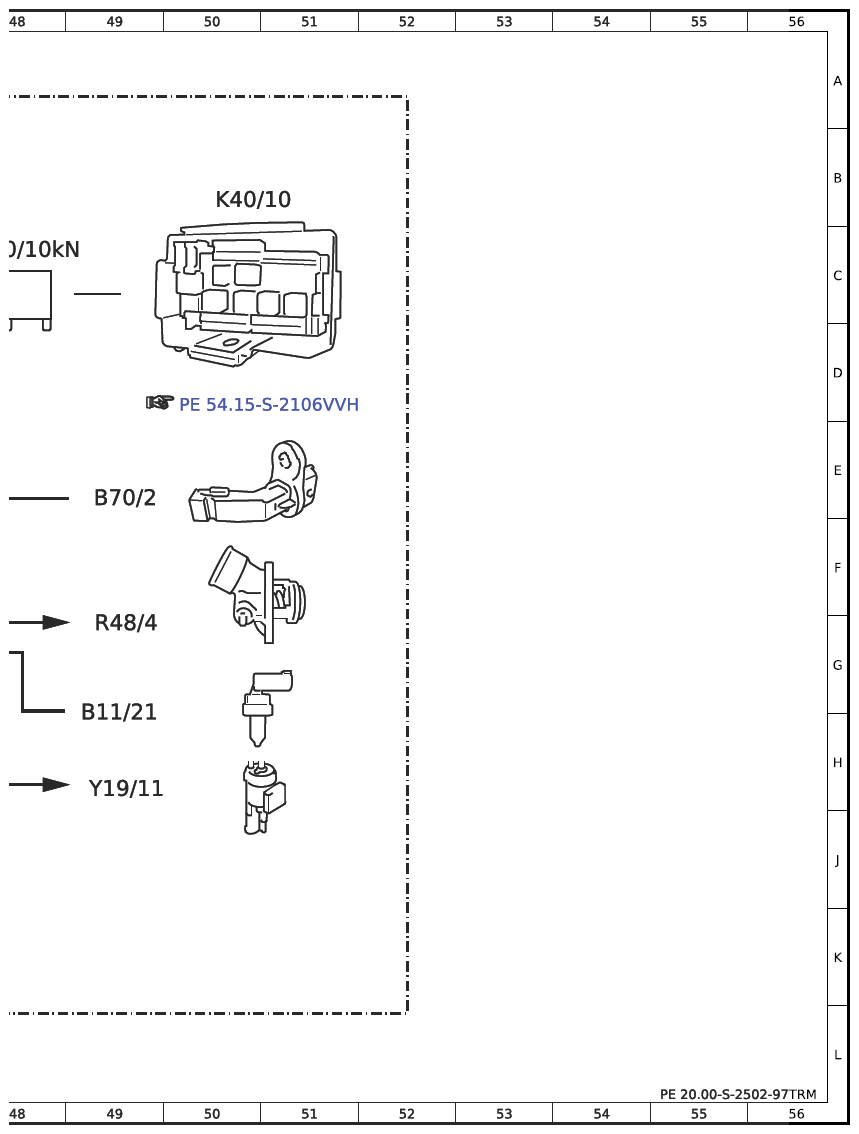

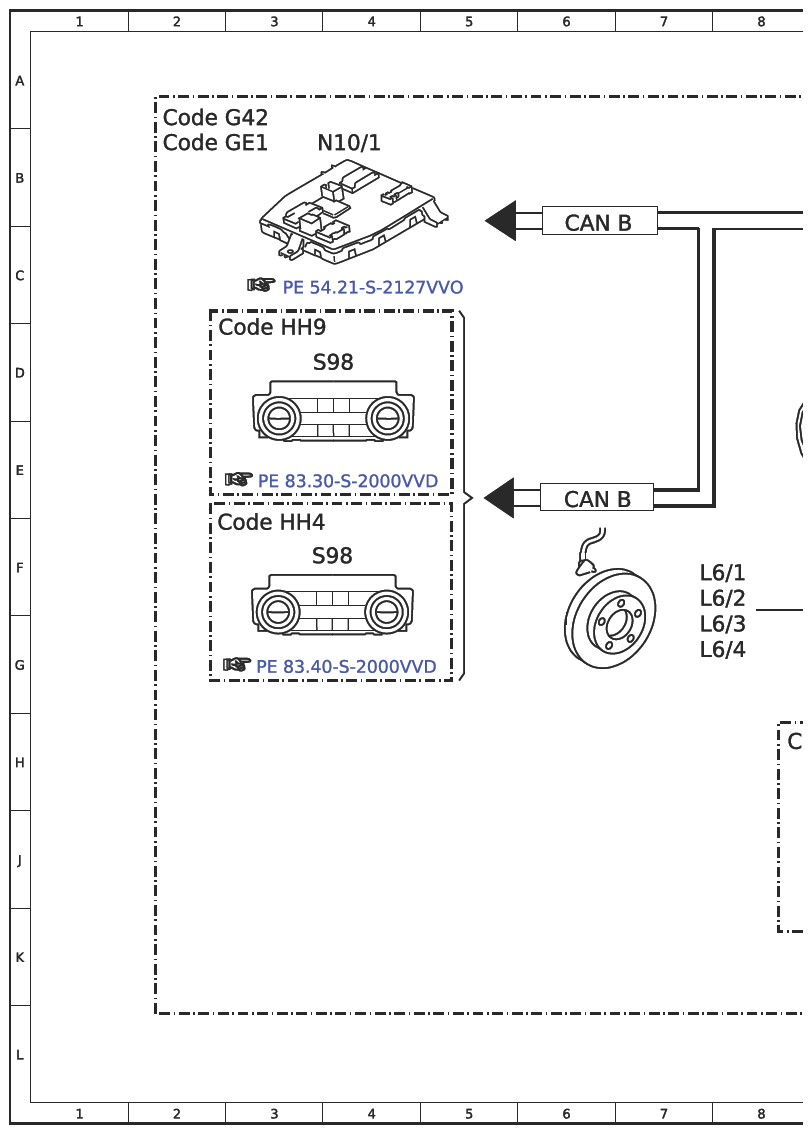

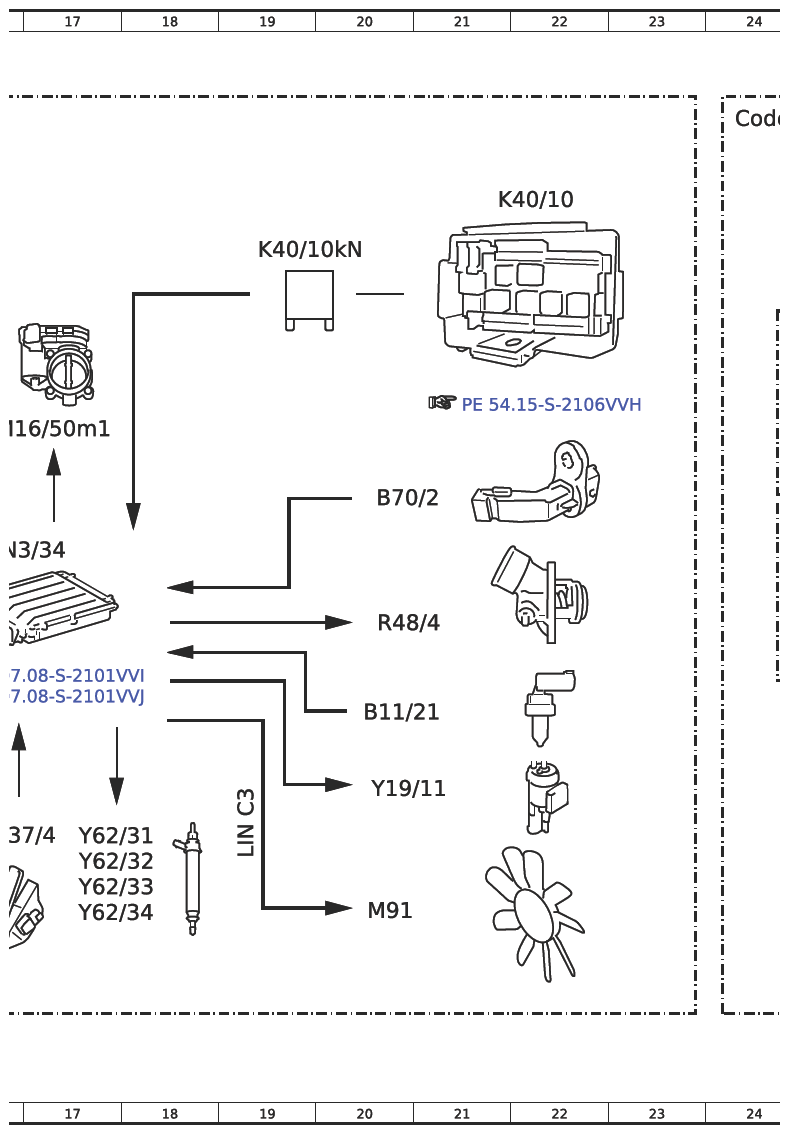

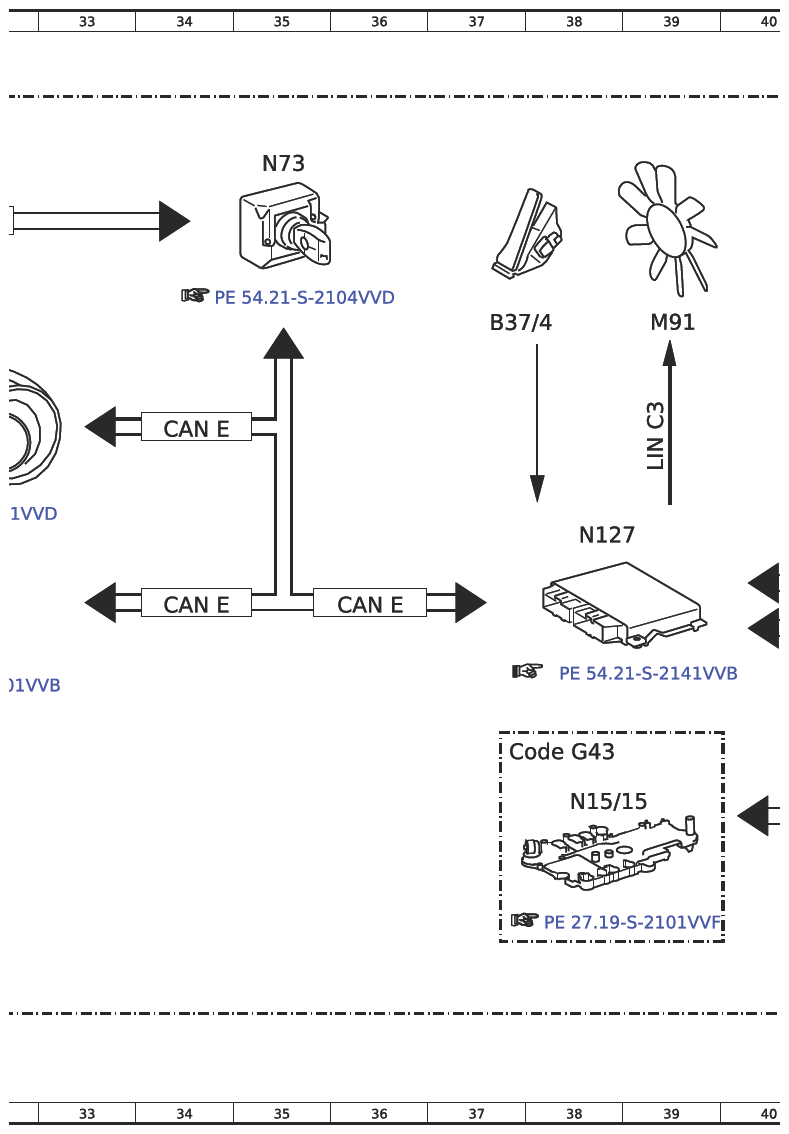

Function Schematic For Heat Management - PE20.00-S-2502-97TRM
Engine 274 in model 447.6/7 with code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| A1/1 | Instrument cluster (KI) control unit | 9D |
| A1/1 | Instrument cluster (KI) control unit | 31D |
| B11/21 | Coolant temperature sensor | 20H |
| B11/21 | Coolant temperature sensor | 49H |
| B17 | Charge air temperature sensor upstream of throttle valve | 15J |
| B17 | Charge air temperature sensor upstream of throttle valve | 45J |
| B17/16 | Charge air temperature sensor downstream of throttle valve | 15J |
| B17/16 | Charge air temperature sensor downstream of throttle valve | 45J |
| B28/24 | Intake manifold pressure sensor | 15E |
| B28/24 | Intake manifold pressure sensor | 44E |
| B37/4 | Accelerator pedal module | 16J |
| B37/4 | Accelerator pedal module | 37D |
| B70/2 | Crankshaft Hall sensor | 20E |
| B70/2 | Crankshaft Hall sensor | 49E |
| CAN B | Interior CAN | 6C |
| CAN B | Interior CAN | 10C |
| CAN B | Interior CAN | 6E |
| CAN B | Interior CAN | 28C |
| CAN B | Interior CAN | 32C |
| CAN B | Interior CAN | 28E |
| CAN C | Drive train CAN | 12J |
| CAN C | Drive train CAN | 14G |
| CAN C | Drive train CAN | 43G |
| CAN C | Drive train CAN | 41J |
| CAN C | Drive train CAN | 41G |
| CAN C1 | Engine CAN | 42F |
| CAN E | Chassis CAN | 14F |
| CAN E | Chassis CAN | 12F |
| CAN E | Chassis CAN | 12E |
| CAN E | Chassis CAN | 36F |
| CAN E | Chassis CAN | 34F |
| CAN E | Chassis CAN | 34E |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 2A |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 8H |
| Code G43 | 9G-TRONIC | 24A |
| Code G43 | 9G-TRONIC | 37H |
| Code GE1 | 6-speed manual transmission TSG 380 | 2B |
| Code HH4 | THERMOTRONIC automatic air conditioning | 2F |
| Code HH4 | THERMOTRONIC automatic air conditioning | 24F |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 2D |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 24D |
| K40/10 | Engine compartment fuse and relay module | 22B |
| K40/10 | Engine compartment fuse and relay module | 50B |
| K40/10kN | Circuit 87M relay | 19C |
| K40/10kN | Circuit 87M relay | 48C |
| L6/1 | Left front axle rpm sensor | 8F |
| L6/1 | Left front axle rpm sensor | 30F |
| L6/2 | Right front axle rpm sensor | 8F |
| L6/2 | Right front axle rpm sensor | 30F |
| L6/3 | Left rear axle rpm sensor | 8G |
| L6/3 | Left rear axle rpm sensor | 30G |
| L6/4 | Right rear axle rpm sensor | 8G |
| L6/4 | Right rear axle rpm sensor | 30G |
| LIN C3 | Drivetrain LIN | 19J |
| LIN C3 | Drivetrain LIN | 39E |
| M16/50m1 | Throttle valve actuator motor | 17E |
| M16/50m1 | Throttle valve actuator motor | 45E |
| M91 | Electric fan | 20K |
| M91 | Electric fan | 39D |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4B |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 26B |
| N127 | Drivetrain control unit | 38F |
| N15/11 | Fully integrated transmission control (VGS) electric controller unit | 9H |
| N15/15 | Fully integrated transmission control (VGS) electric controller unit | 38H |
| N3/34 | ME-SFI [ME] control unit | 16F |
| N3/34 | ME-SFI [ME] control unit | 45F |
| N30/4 | Electronic Stability Program (ESP) control unit | 10F |
| N30/4 | Electronic Stability Program (ESP) control unit | 31F |
| N73 | Electronic ignition lock (EZS) control unit | 13B |
| N73 | Electronic ignition lock (EZS) control unit | 35B |
| R48/4 | Thermostat heating element | 20G |
| R48/4 | Thermostat heating element | 49G |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 4D |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 4F |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 25D |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 25F |
| Y19/11 | Coolant pump switchover valve | 20H |
| Y19/11 | Coolant pump switchover valve | 49H |
| Y62/31 | Cylinder 1 fuel injector | 17J |
| Y62/31 | Cylinder 1 fuel injector | 46J |
| Y62/32 | Cylinder 2 fuel injector | 17J |
| Y62/32 | Cylinder 2 fuel injector | 46J |
| Y62/33 | Cylinder 3 fuel injector | 17J |
| Y62/33 | Cylinder 3 fuel injector | 46J |
| Y62/34 | Cylinder 4 fuel injector | 17K |
| Y62/34 | Cylinder 4 fuel injector | 46K |
