Blind Spot Assist Wiring Diagram - PE54.71-S-2100-97VVB
Model 447.6 with code JA7 (Blind Spot Monitoring) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) B161/3, B161/4
Model 447.7 with code JA7 (Blind Spot Monitoring) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) B161/3, B161/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |

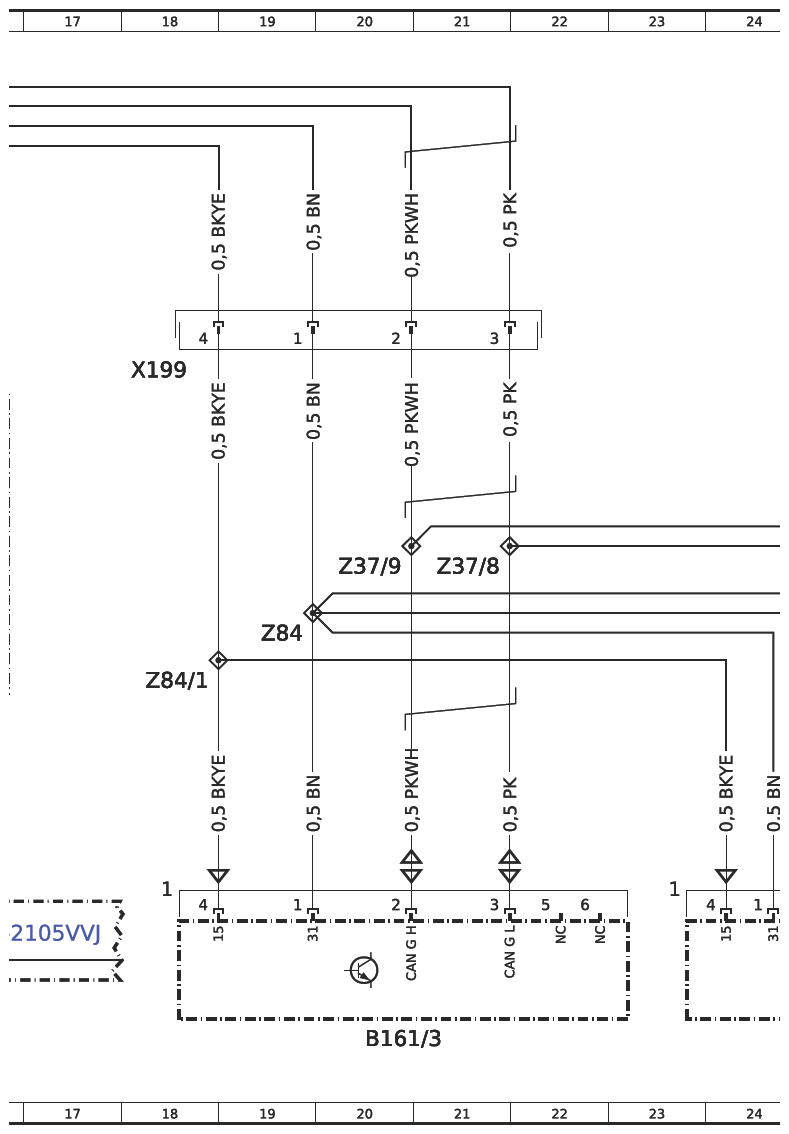

| B161/3 | Left rear Blind Spot Assist radar sensor | 20L |

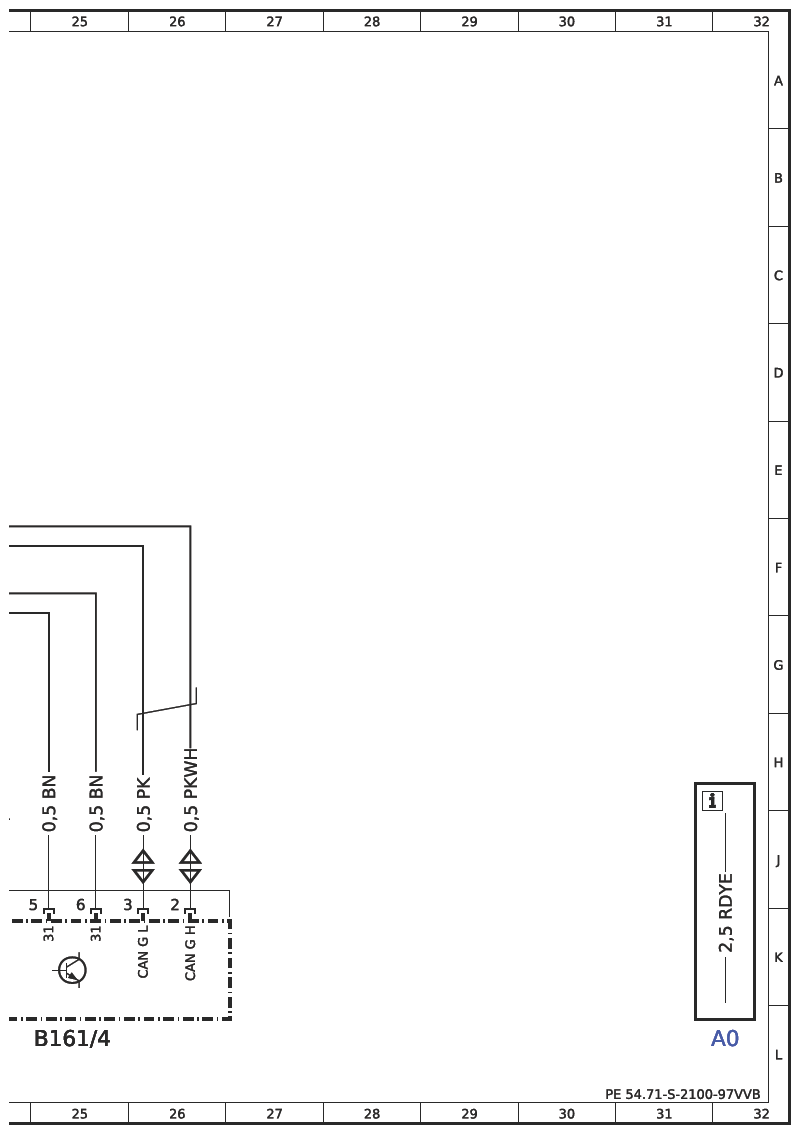

| B161/4 | Right rear Blind Spot Assist radar sensor | 25L |
| CAN G | Front end CAN | 5K |

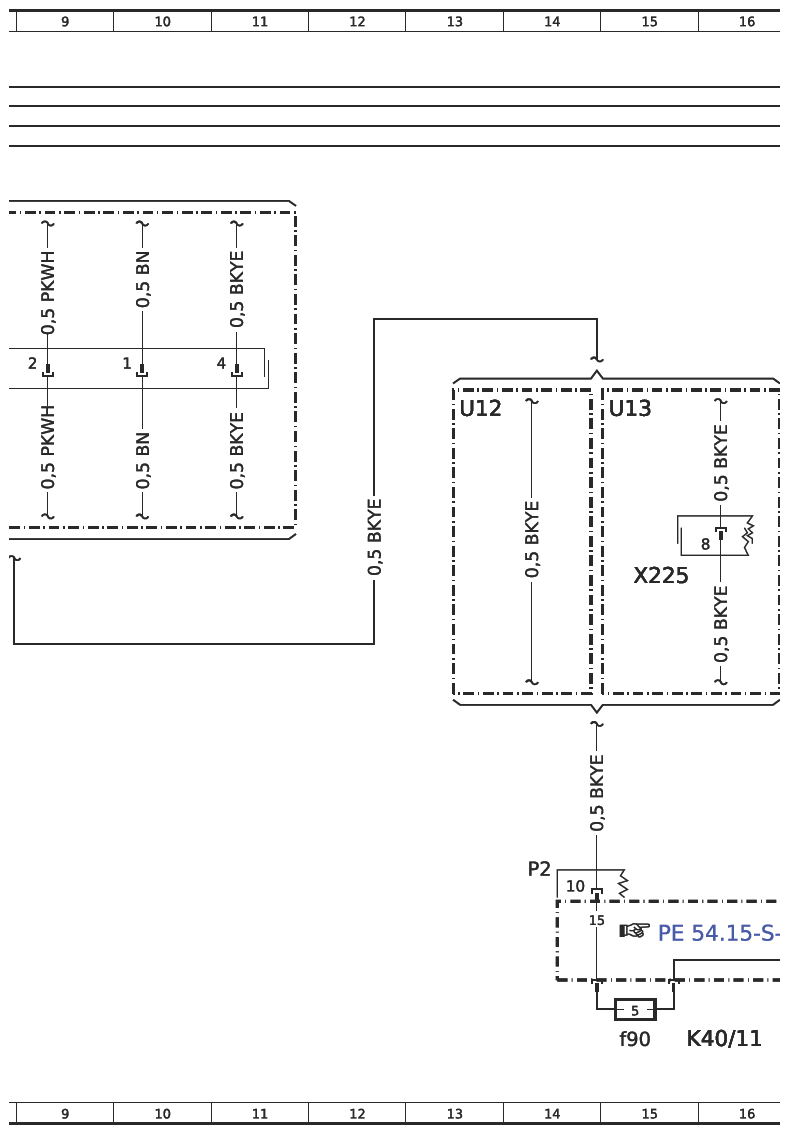

| K40/11 | Firewall fuse and relay module | 16L |
| K40/11f90 | Fuse 90 | 15L |
| U12 | Valid for left-hand drive vehicles | 13D |
| U13 | Valid for right-hand drive vehicles | 15D |
| W29/10 | Right D-pillar ground point | 7G |
| X199 | Rear bumper Blind Spot Monitoring electrical connector | 18D |
| X199/1 | Main wiring harness/rear bumper Blind Spot Monitoring electrical connector | 7D |
| X225 | Main wiring harness/firewall main wiring harness 1 electrical connector | 15F |

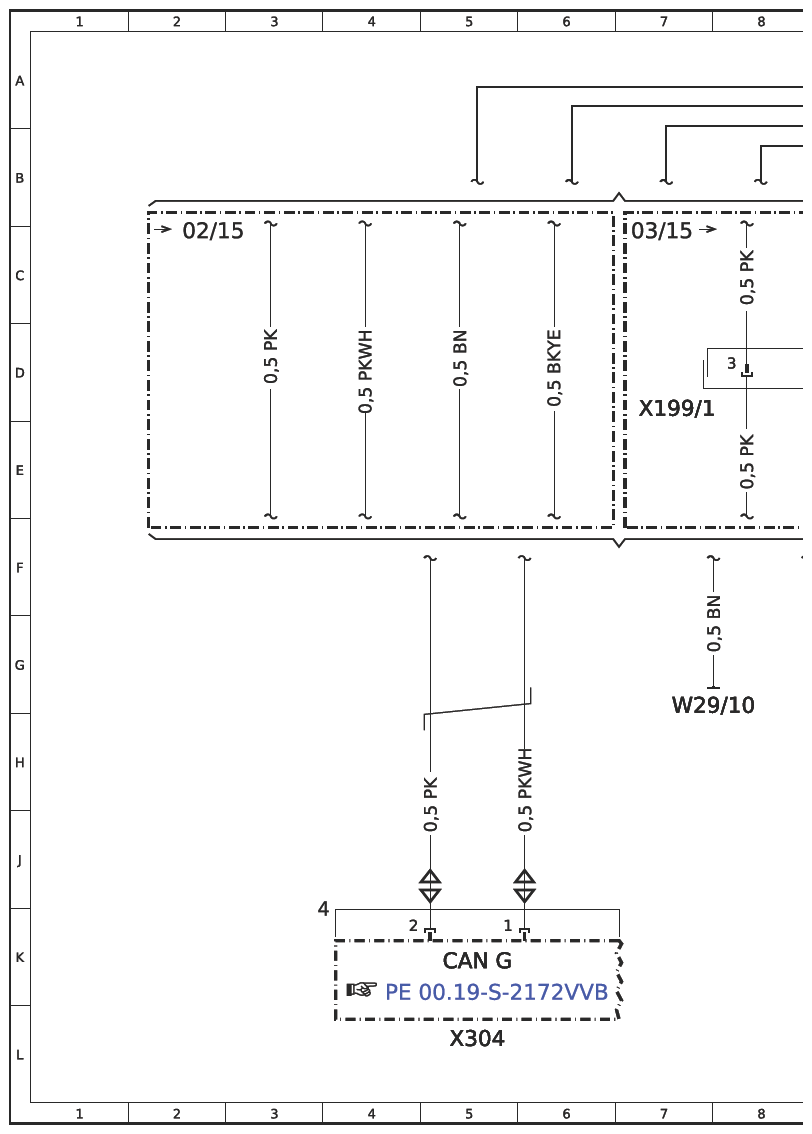

| X304 | Front end CAN (CAN G) potential distributor electrical connector | 5L |
| Z37/8 | Sensor CAN LOW connector sleeve | 21F |
| Z37/9 | Sensor CAN HIGH connector sleeve | 20F |
| Z84 | Blind Spot Assist tml. 31 connector sleeve | 19G |
| Z84/1 | Blind Spot Assist tml. 15 connector sleeve | 18G |
