Seam Sealing Following Repair, Side Damage - Ar97.10-S-4000-03E
Model 447, 448
MODIFICATION NOTES
| 27.02.2020 |
Image display added |
|
|
REPAIR MATERIALS
| Number |
Designation |
Order number |
| BR00.45-Z-1003-01A |
Seam seal 300 ml in black or white |
A 005 989 63 20 |
| BR00.45-Z-1041-01A |
Seam sealant, sprayable 310 ml |
A 002 989 84 20 |
- Seal body flanges of repaired area with sealant and spot welds and rivets of repaired area with seam sealant material.
Seal repaired body flanges and reset spot welds and rivets.
Leaks and corrosion can otherwise occur.
Use appropriate processing variant for seam seals.
Insert plastic stoppers and feed-through grommets with sealant.
Observe standard sealing. Seal only primed body parts.
Keep sealant out of threads on weld nuts and threaded pins by masking off or covering with cardboard sleeves. Also keep drain openings and contact surfaces of axle attachments, glass panes, and detachable parts free of sealant. Seal accessible spot weld flanges on both sides. Where only accessible from one side, only seal accessible area.

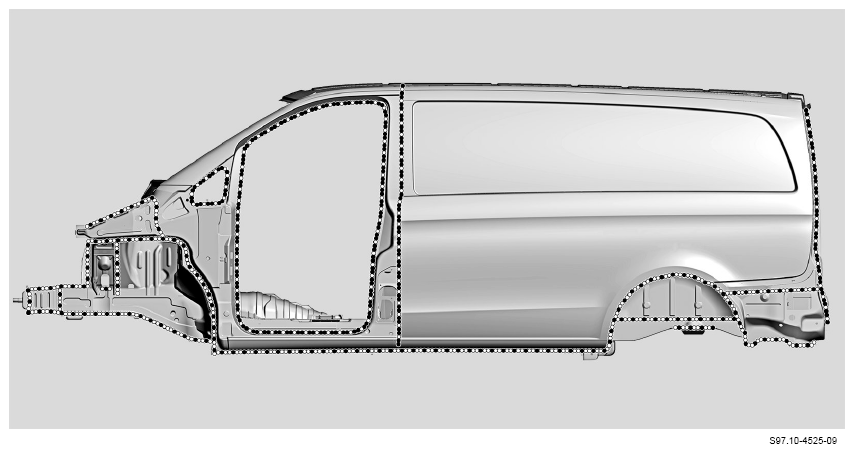

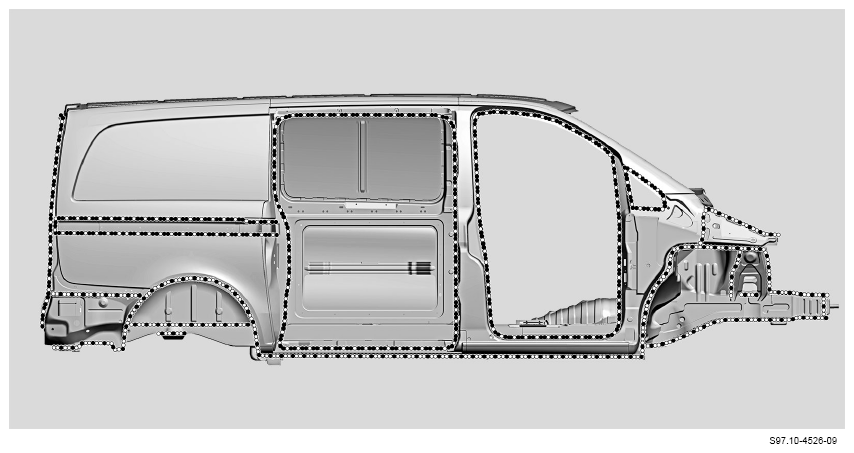

Processing variants for seam seals
 Courtesy of MERCEDES-BENZ USA
|
Shown in area of left front end
 Courtesy of MERCEDES-BENZ USA
|
Shown in area of right front end
 Courtesy of MERCEDES-BENZ USA
|
Shown in area of A-pillar
 Courtesy of MERCEDES-BENZ USA
|
 Courtesy of MERCEDES-BENZ USA
|
Shown in area of B-pillar, rear fender and left longitudinal member
 Courtesy of MERCEDES-BENZ USA
|
Shown in area of B-pillar, rear fender and right longitudinal member
 Courtesy of MERCEDES-BENZ USA
|
Shown on model 447.81, underbody and wheel well area
 Courtesy of MERCEDES-BENZ USA
|
Shown on model 447.80, underbody and wheel well area
