Seam Sealing Following Repair, Detachable Body Components - Ar97.10-S-4000-04E

Model 447, 448

Number	Designation	Order number
BR00.45-Z-1003-01A	Seam seal 300 ml in black or white	A 005 989 63 20
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20

Install plastic stoppers and grommets with sealant.

Observe standard sealing. Seal only primed body parts.

Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant. It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface.

When sealing seams we differentiate between  :

Courtesy of MERCEDES-BENZ USA

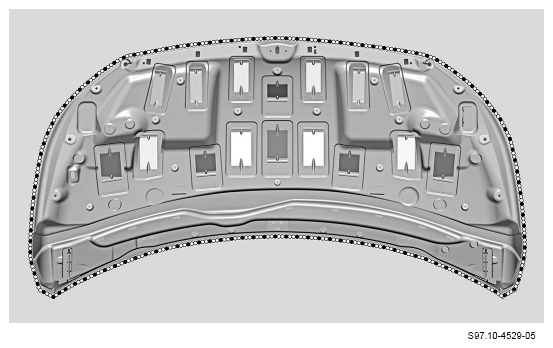

Engine hood area

Courtesy of MERCEDES-BENZ USA

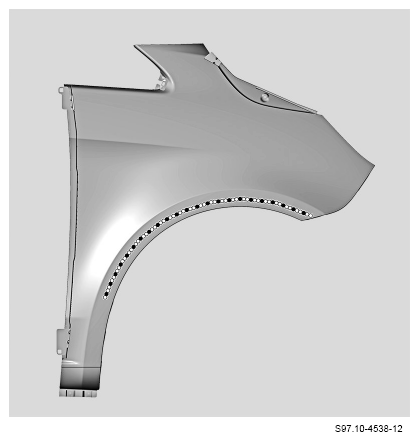

Area of right and left fender

Courtesy of MERCEDES-BENZ USA

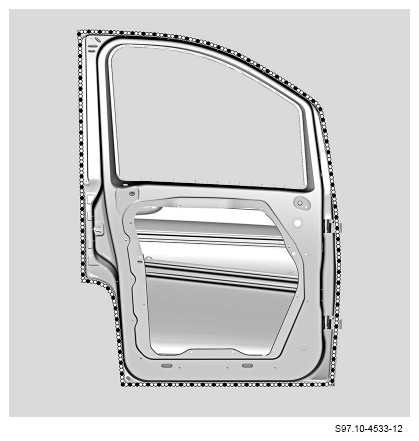

Area of left and right front door

Courtesy of MERCEDES-BENZ USA

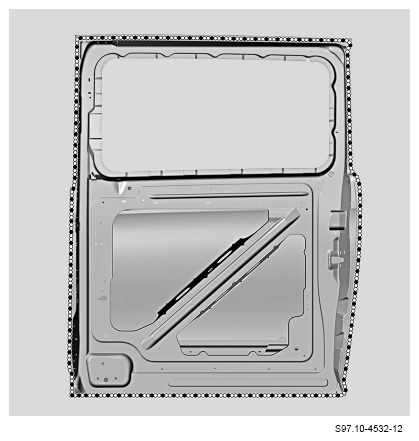

Area of left and right sliding door

Courtesy of MERCEDES-BENZ USA

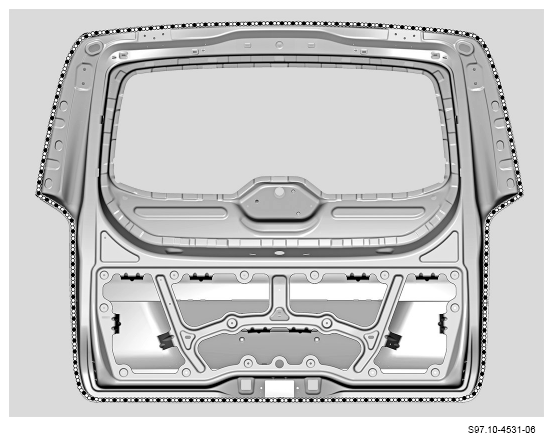

Area of single-piece liftgate

Courtesy of MERCEDES-BENZ USA

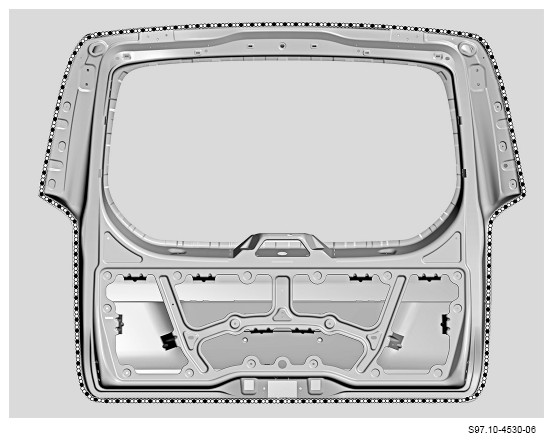

Area of lift with folding window

Courtesy of MERCEDES-BENZ USA

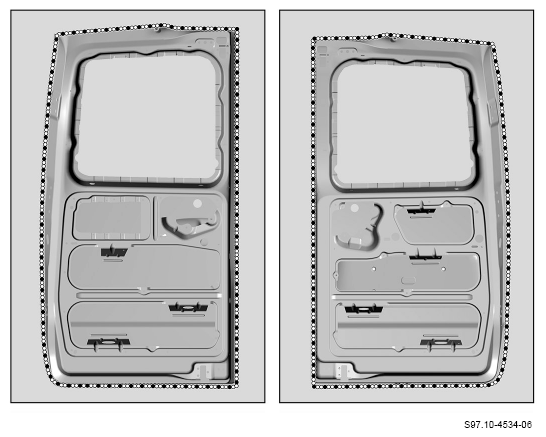

Area of left and right rear door

Courtesy of MERCEDES-BENZ USA
