Part Of Front Vehicle Floor In Cab Prepare For Installation - Ar61.10-S-5721-02E

Model 447

except code ZU7 (National version for Canada)

except code ZU8 (National version for USA)

Model 448

Courtesy of MERCEDES-BENZ USA

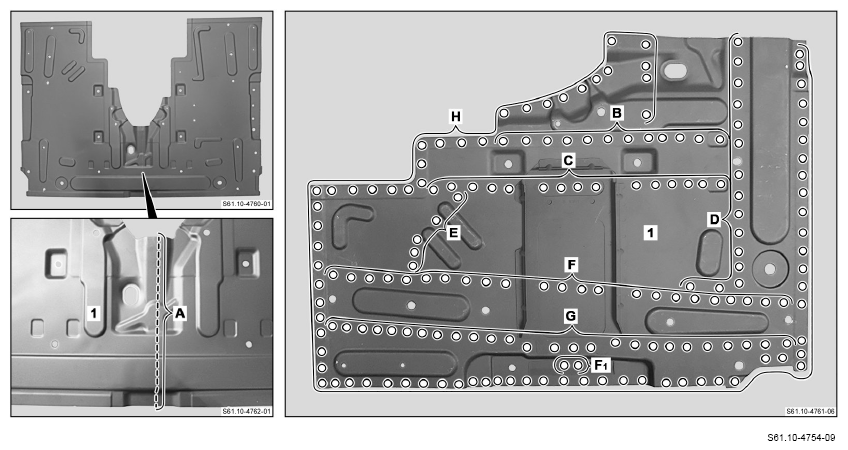

1. Mark separation point and cut (area A).

   Transfer separation point from vehicle.

2. Drill holes for MAG welding (areas B to G).

   In areas which were bonded during removal and now fastened by MAG welding, maintain a spot weld interval of 5 cm.

   Otherwise the strength and stability of the components can be impaired.

3. Punch holes for MAG welding (area H).

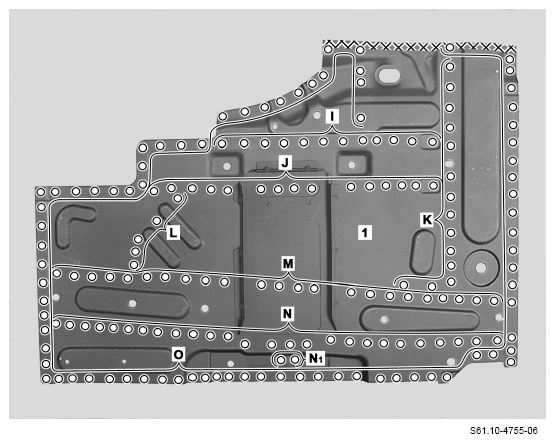

4. Grind mating surfaces down to bare metal in crosshatched area and around holes (areas I to O).
5. Remove shavings and drill chips.

   Courtesy of MERCEDES-BENZ USA
