Part Of Front Vehicle Floor In Cab Install And Weld In - Ar61.10-S-5721-03EG

Model 447

with code ZU7 (National version for Canada)

Model 447

with code ZU8 (National version for USA)

Courtesy of MERCEDES-BENZ USA

1. Install front vehicle floor (1), fit and fix in place.

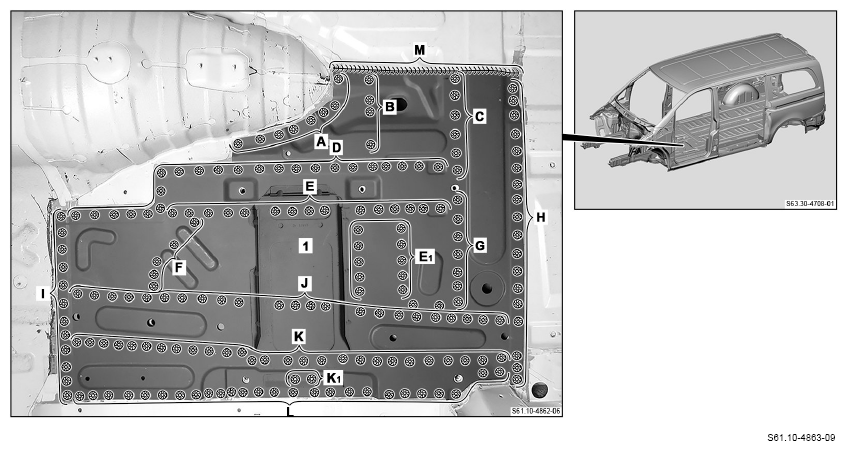

2. Front vehicle floor (1) (areas A to L).
3. Front vehicle floor (1) (area M).

   Inert gas weld in intervals and allow to cool down in between. Reduces heat distortion.

4. Grind inert gas weld and insert gas spot welds down flat.
5. Clean weld joints.
6. Remove shavings and drill chips.
