Part Of Front Vehicle Floor In Cab Install And Weld In - Ar61.10-S-5721-03E

Model 447

except code ZU7 (National version for Canada)

except code ZU8 (National version for USA)

Model 448

Courtesy of MERCEDES-BENZ USA

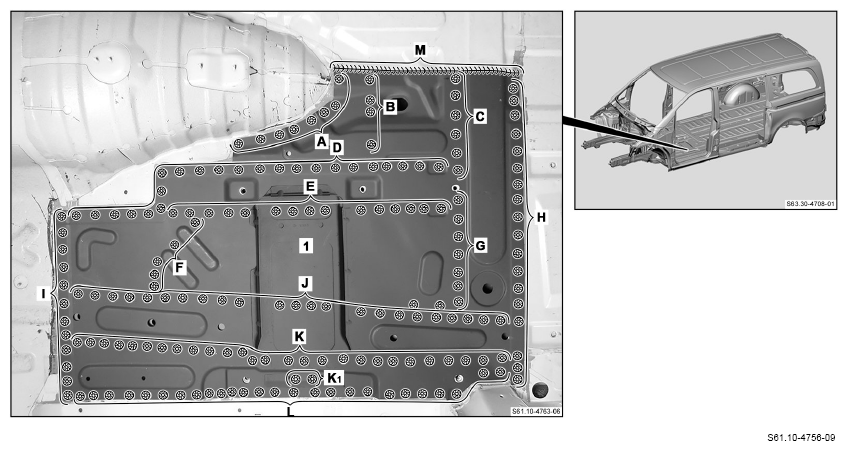

1. Install front vehicle floor (1), fit and fix in place.
2. Front vehicle floor (1) (areas A to L).
3. Front vehicle floor (1) (area M).

   Inert gas weld in intervals and allow to cool down in between. Reduces heat distortion.

4. Grind inert gas weld and insert gas spot welds down flat.
5. Clean weld joints.
6. Remove shavings and drill chips.
