Outer B-Pillar Section Installation - Ar63.20-S-1121-03E

Model 447, 448

Fig 1: Identifying Side Portal Frame (210 589 17 23 00)

Courtesy of MERCEDES-BENZ USA

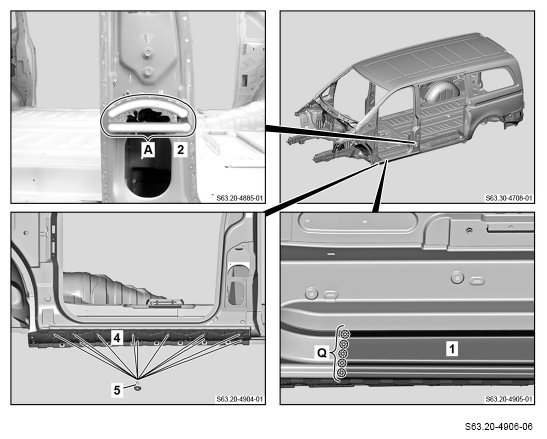

1. Apply sealant to inner B-pillar (2) (area A).

   Only when replacing right side of vehicle.

2. Install B-pillar outer section (1) and fit.
3. Model 447, 448.8 with code CN1 (Exterior rocker panel)

   Install mounting rail (4) on longitudinal member panel, for this purpose fasten mounting rail (4) with screws (5).

4. Fix B-pillar outer section (1) in place with side portal frame and straightening tool.

   Courtesy of MERCEDES-BENZ USA

5. Model 447, 448.8 with code CN1 (Exterior rocker panel)

   Tack weld B-pillar outer section (1) (area Q).

6. Model 447, 448.8 with code CN1 (Exterior rocker panel)

   Remove mounting rail (4) on longitudinal member panel.

   Courtesy of MERCEDES-BENZ USA

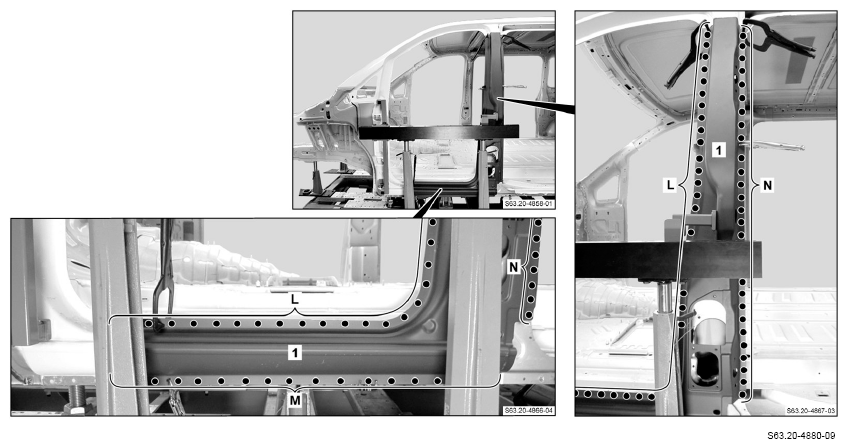

7. B-pillar outer section (1) (areas L to N).

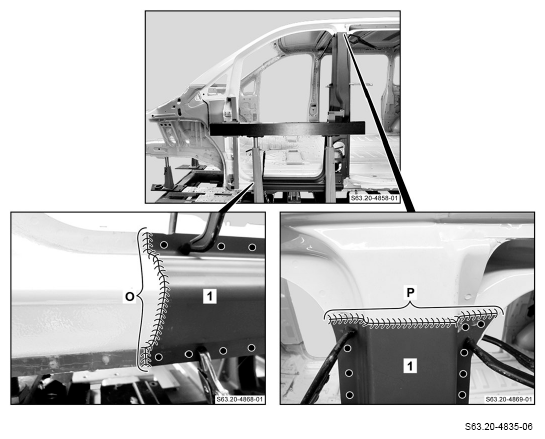

8. B-pillar outer section (1) (areas O and P).

   Inert gas weld in intervals and allow to cool down in between. Reduces heat distortion.

9. Grind shielding gas welds down flat (areas O and P).
10. Clean weld joints.
11. Restore surfaces on B-pillar outer section (1) and smooth.
12. Remove shavings and drill chips.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Shown on MODEL 447.811

13. Model 447, 448.8 with code CN1 (Exterior rocker panel)

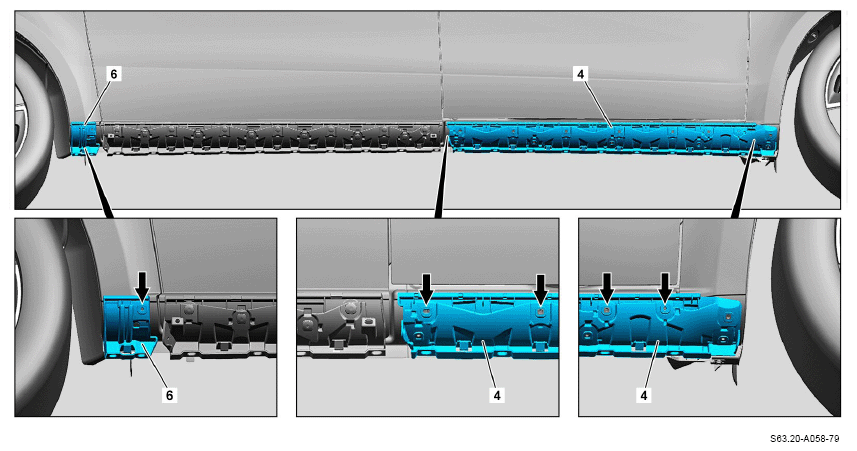

    Position mounting rail (4) and align.

14. Model 447, 448.8 with code CN1 (Exterior rocker panel)

    Transfer holes of mounting rail (4) to body.

    Then remove mounting rail (4).

15. Model 447, 448.8 with code CN1 (Exterior rocker panel)

    Drill and center punch holes (arrows).

16. Model 447, 448.8 with code CN1 (Exterior rocker panel)

Deburr holes and remove drill chips.
