Prepare Body Flange On Vehicle For Painting - Ar65.10-S-1000-09E
| Topical note | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX |
Model 447.7/8, 448.8
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1134-02A | Tesa 7140 adhesive tape (12 mm) | A 009 989 10 85 |
Do not touch bonding surfaces with bare fingers and bonding surfaces must be free of dust, oil, grease, wax, dirt residues and other adhesive components.
Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.
Bonding surfaces must be masked off before painting.
Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.

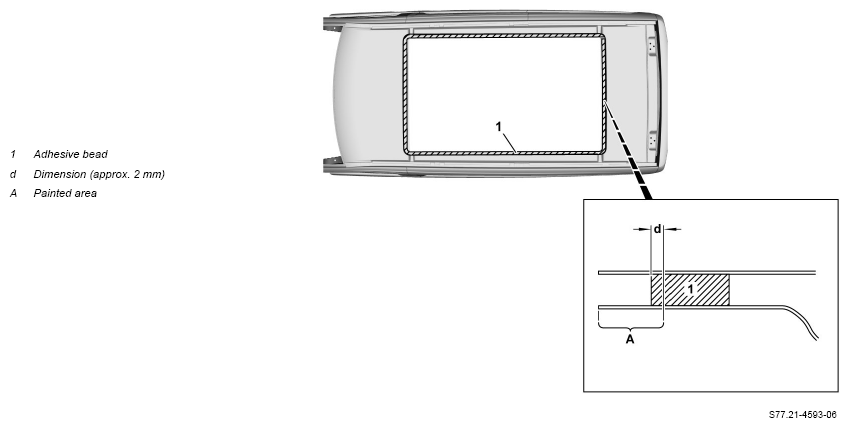

In the installed condition, adhesive bead (1) must overlap on entire body flange by dimension (d), as shown, in painted area (A) of body flange The instructions for preparing the body flange must thus be complied with.
Otherwise, the strength of the adhesively bonded connection will be impaired, the required adhesion of the adhesive material will not be ensured and the anti-corrosion protection will be insufficient.
Shown in panoramic roof installed condition
- Clean body flange.
Observe pretreatment of bonding surfaces.

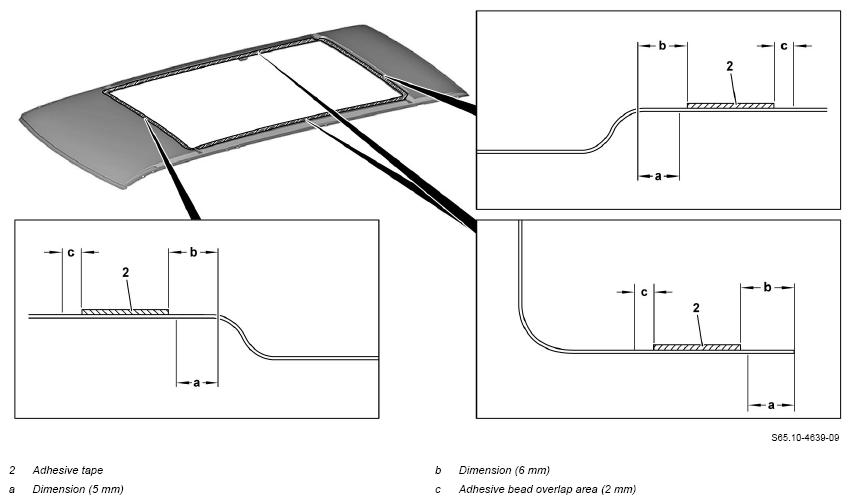

- Mask off bonding surfaces on the body flange with tape (2) as shown.
Dimension (b) must be uniformly present on entire body flange in order to comply with adhesive bead overlap area (c).
If dimension (b) is incorrect
↓
Position tape (2) correctly.
