Wheel Well With Front Longitudinal Member Prepare For Installation - Ar62.20-S-1856-02E
Model 447 with engine 254, 274, 622, 651, 654, 780.701
except code ZU7 (National version for Canada)
except code ZU8 (National version for USA)
Model 448

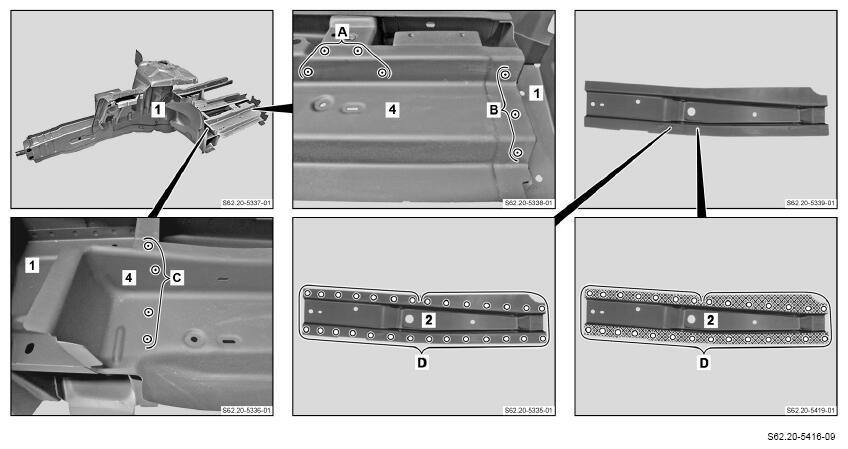

- Expose spot welds on new wheel well with longitudinal member (1) and cut out (areas A to C).
- Remove front kick panel front section (4) from new wheel well with longitudinal member (1).
- Drill holes for MAG welding on longitudinal member reinforcement (2) (area D).
- Grind mating surfaces down to bare metal in crosshatched areas and around the holes (area D).

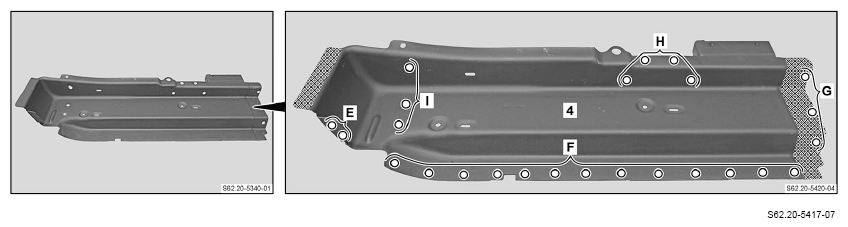

- Drill holes for MAG welding on front kick panel front section (4) (areas E and F).
- Grind mating surfaces down to bare metal in crosshatched areas and around holes (areas E to I).
Grind mating surfaces around holes (area E) down to bare metal from inside.

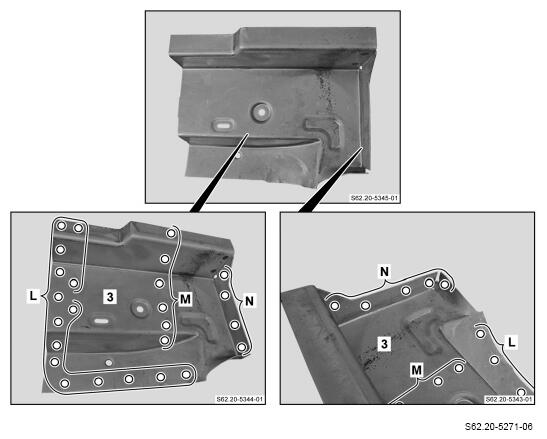

- Drill holes for MAG welding on front kick panel rear section (3) (areas L to N).
- Grind mating surfaces around holes (areas L to N) down to bare metal.

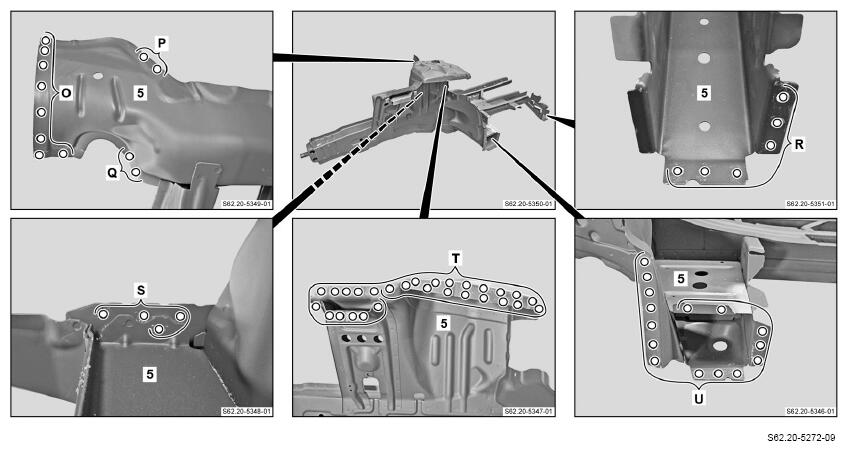

- Drill holes for MAG welding on wheel well section with longitudinal member (5) (areas O to U).
- Grind mating surfaces on wheel well section with longitudinal member (5) around holes (areas O to U) down to bare metal.
- Drill holes for MAG welding on wheel well section with longitudinal member (5) (areas O to U).

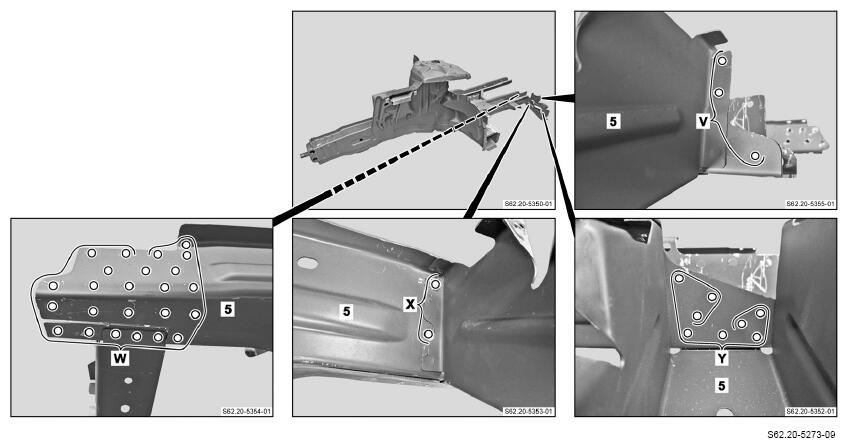

- Grind mating surfaces on wheel well section with longitudinal member (5) around holes (areas V to Y) down to bare metal.

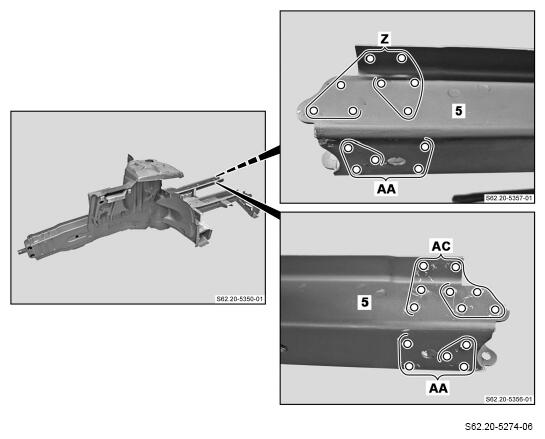

- Drill holes for MAG welding on wheel well section with longitudinal member (5) (areas Z, AA and AC).
- Grind mating surfaces on wheel well section with longitudinal member (5) around holes (areas Z, AA and AC) down to bare metal.

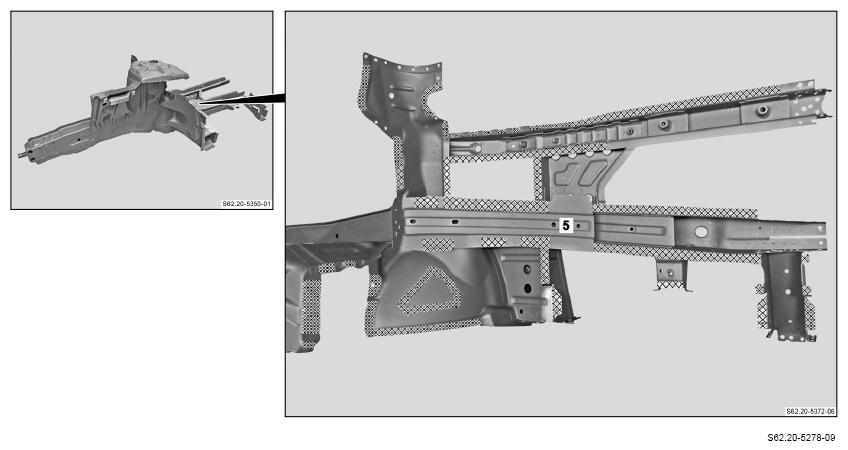

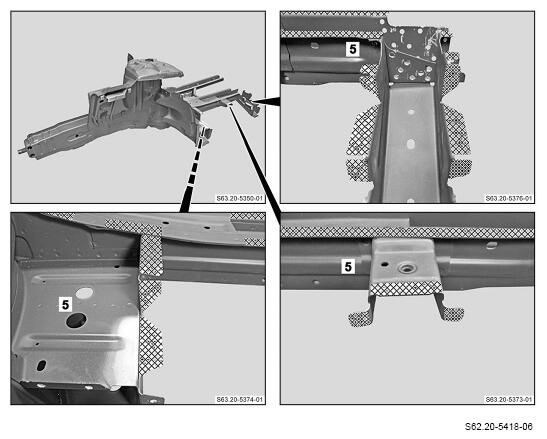

- Grind mating surfaces on wheel well section with longitudinal member (5) down to bare metal in crosshatched area.
- Remove shavings and drill chips.
- Grind mating surfaces on wheel well section with longitudinal member (5) down to bare metal in crosshatched area.
- Remove shavings.
