Wheel Well Install And Weld In - Ar62.20-S-1200-17E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

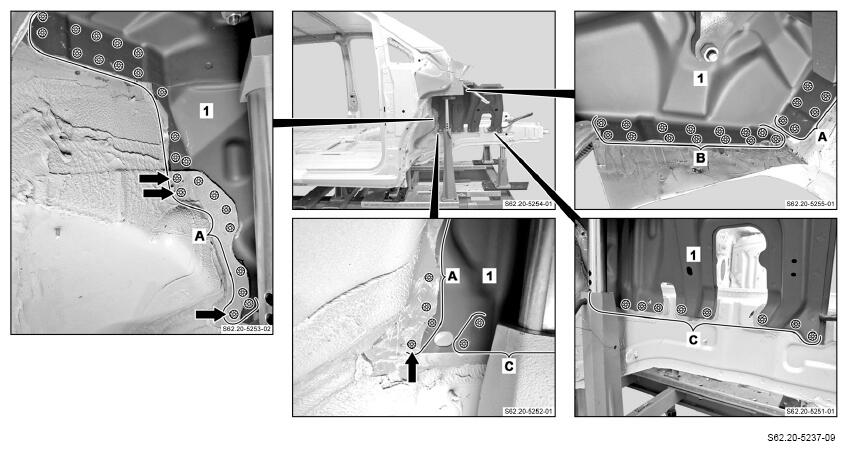

1. Install wheel well (1) with straightening tool, fit and fix in place.
2. Drill pilot hole in wheel well (1) before inert gas welding (arrows)
3. Wheel well (1) (areas A to C).
4. Clean weld joints.
5. Remove shavings and drill chips.
