Front Wheel Well Panel Section Preparation - Ar62.20-S-1280-04E
Model 447, 448
MODIFICATION NOTES
| 19.02.2020 | Repair materials reference BR00.45-Z-1001-07A zinc dust paint suitable for spot welding, added. | Operation step 7 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
Refer to the superordinate service document for further information. Safety information in superordinate service document must be observed.

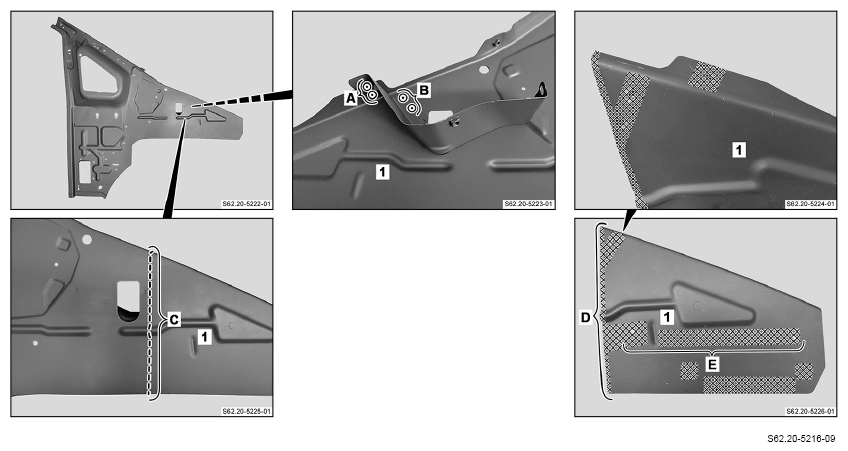

- Cut out spot welds on wheel well paneling front section (1) (areas A and B).
- Mark separating point on the wheel well paneling front part (1) (area C).
- Cut separating point on the wheel well paneling-front part (1) (area C).
Transfer separating from vehicle.
- Grind down mating surfaces to bare metal in cross-hatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Grind flange for MAG welding down to bare metal on both sides (area D).
- Remove shavings and drill chips.
- Apply zinc dust paint to the insides of the spot weld flanges.
Do not coat bonding surface (area E) with zinc dust paint.
Otherwise there may be adhesion problems.
