Front Longitudinal Member Section SEPARATATION - Ar62.20-S-1260-01E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

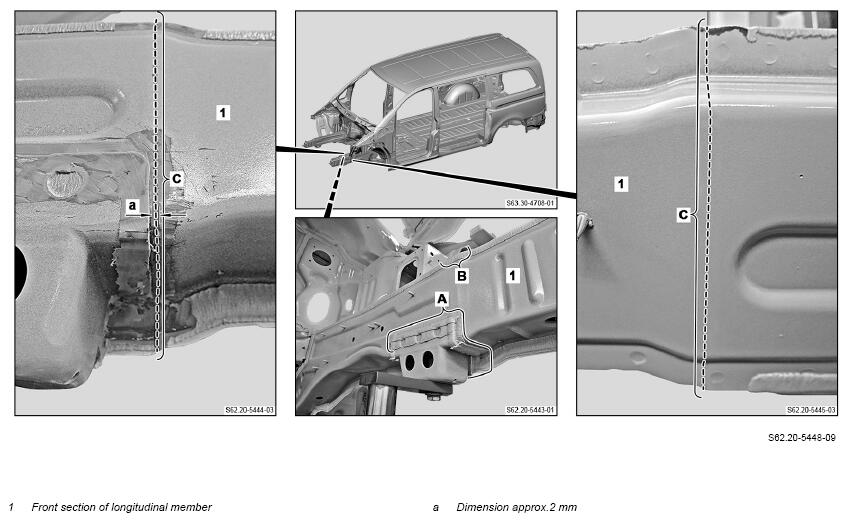

1. Remove seam seal (areas A and B).
2. Mark separating point on longitudinal member (area C).
3. Remove damaged longitudinal member front section (1).

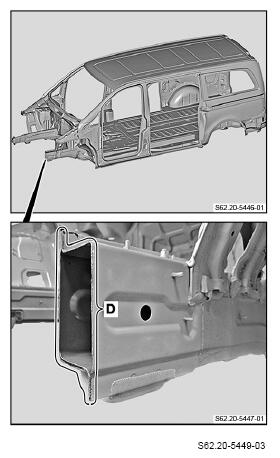

4. Deburr cut (area D).

   Courtesy of MERCEDES-BENZ USA
