Front Longitudinal Member Section Installation - Ar62.20-S-1260-20E

	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A

Model 447, 448

Fig 1: Identifying Locating Tool (447 589 00 23 00)

Courtesy of MERCEDES-BENZ USA

For correct installation of the locating tool (4), order bolts (5) and nuts (6) once and separately.

The nuts (6) and bolts (5) can then be positioned on the locating devices (4).

• Bolt N 910105 012004 (2 each)
• Nut N 000000 008300 (2 each)

Courtesy of MERCEDES-BENZ USA

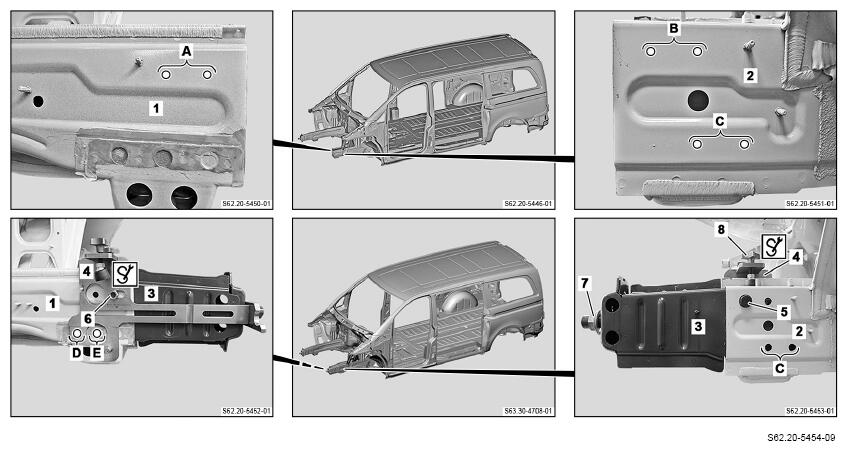

1. Drill holes with ø 4 mm bit on inner longitudinal member (1) at grain sizes (area A).
2. Drill holes with ø 12.5 mm bit on outer longitudinal member (2) at grain sizes (areas B and C).

   Drill holes in area B on outer longitudinal member (2) completely through holes in area A on inner longitudinal member (1).

3. Deburr holes (areas A to C).
4. Fit longitudinal member front section (3), install and fasten with locating tool (4).
5. Fasten locating tool (4) with bolts (5, 8) and nuts (6, 7) as shown.
6. Drill holes with ø 12.5 mm bit on inner longitudinal member (1) (areas D and E).

   Do not drill hole completely in area D.

   Otherwise the locating tool (4) can be damaged.

   Drill holes in areas D and E on inner longitudinal member (1) through holes in area C on outer longitudinal member (2). Completely drill hole in area E.

   Guides are present on the longitudinal member front section (3) to facilitate drilling.

7. Remove locating tool (4).
8. Completely drill hole with ø 12.5 mm on inner longitudinal member (1) (area D).

   Drill hole in area D on inner longitudinal member (1) through hole in area C on outer longitudinal member (2).

9. Remove longitudinal member front section (3).
10. Deburr holes (areas D and E).
11. Remove shavings and drill chips.

    Courtesy of MERCEDES-BENZ USA

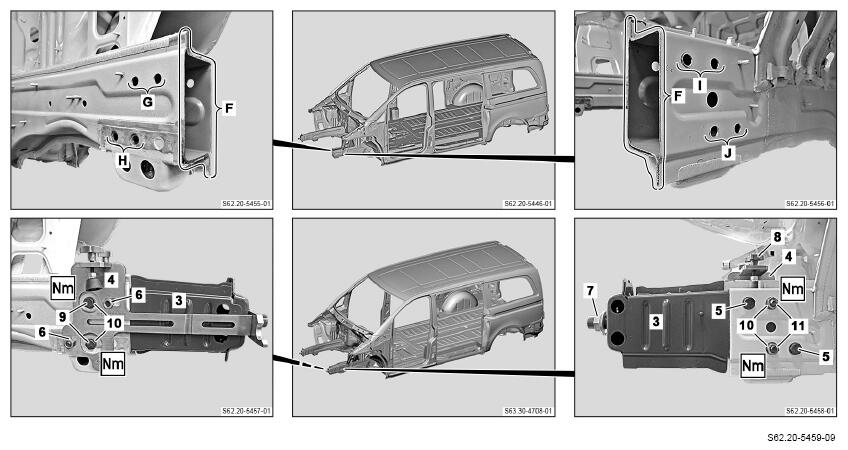

12. Apply primer at cut (area F) and around holes (areas G to J).
13. Fit longitudinal member front section (3), install and fasten with locating tool (4).
14. Fasten locating tool (4) with bolts (5, 8) and nuts (6, 7) as shown.
15. Install bolts (9) with washers (10).
16. Screw on nuts (11) .
17. Remove locating tool (4).

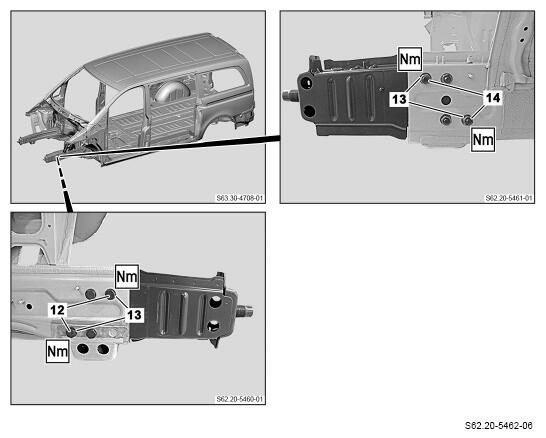

18. Install bolts (12) with washers (13).
19. Screw on nuts (14) .

    Courtesy of MERCEDES-BENZ USA
