Wiring Diagram For Electronic Stability Program (ESP(R)) - PE42.45-S-2201-97VVB
Model 447.6 with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) N30/4
Model 447.7 with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) N30/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |

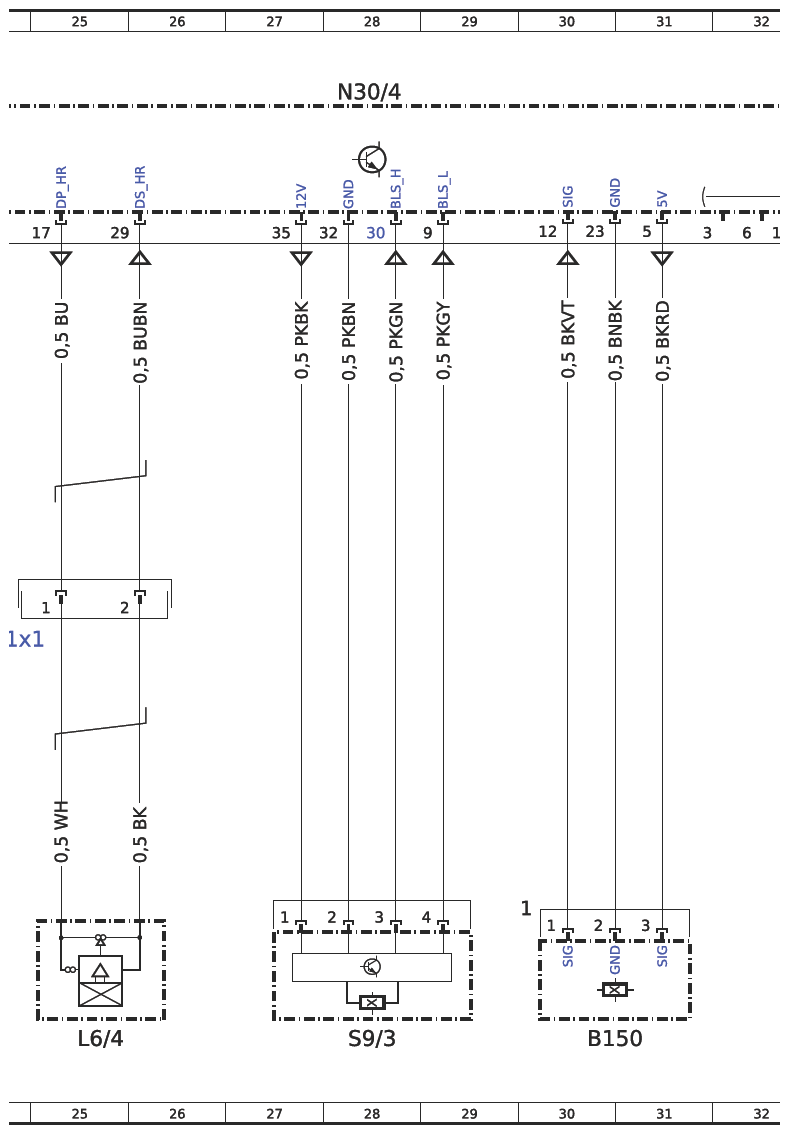

| B150 | ESP® brake vacuum sensor | 30L |

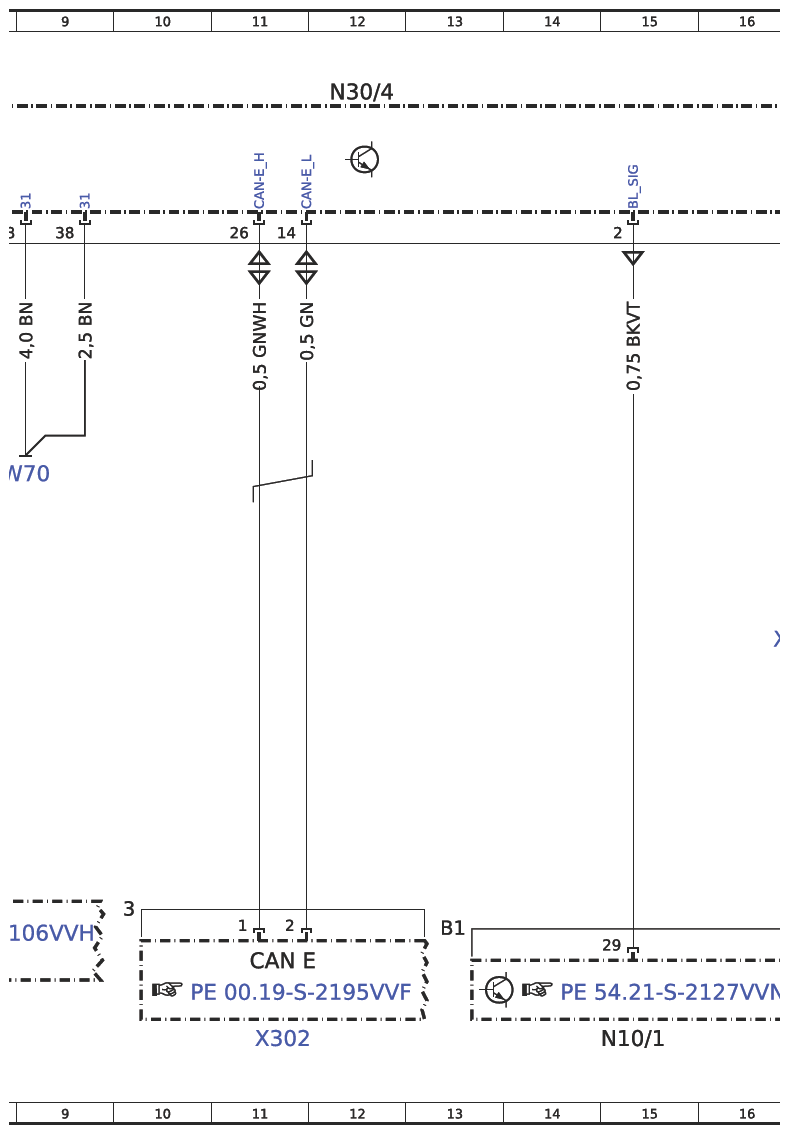

| CAN E | Chassis CAN | 11K |

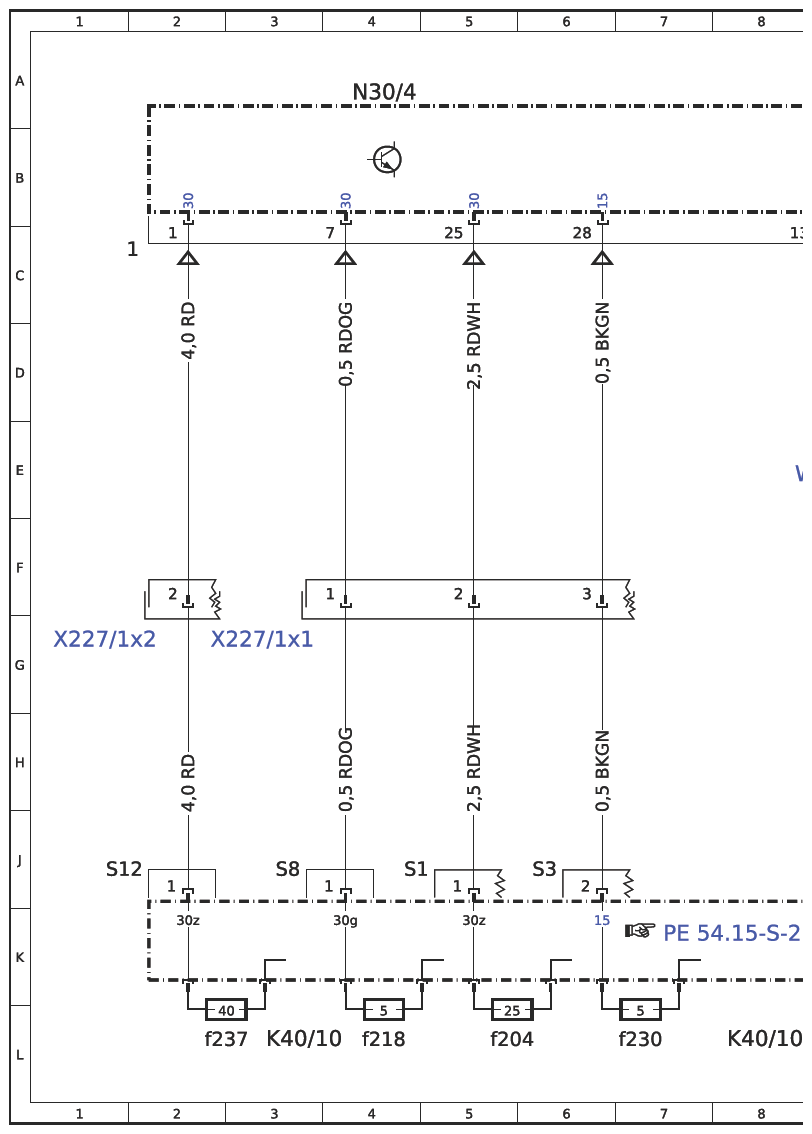

| K40/10 | Engine compartment fuse and relay module | 3L |
| K40/10 | Engine compartment fuse and relay module | 8L |
| K40/10f204 | Fuse 204 | 5L |
| K40/10f218 | Fuse 218 | 4L |
| K40/10f230 | Fuse 230 | 7L |
| K40/10f237 | Fuse 237 | 2L |

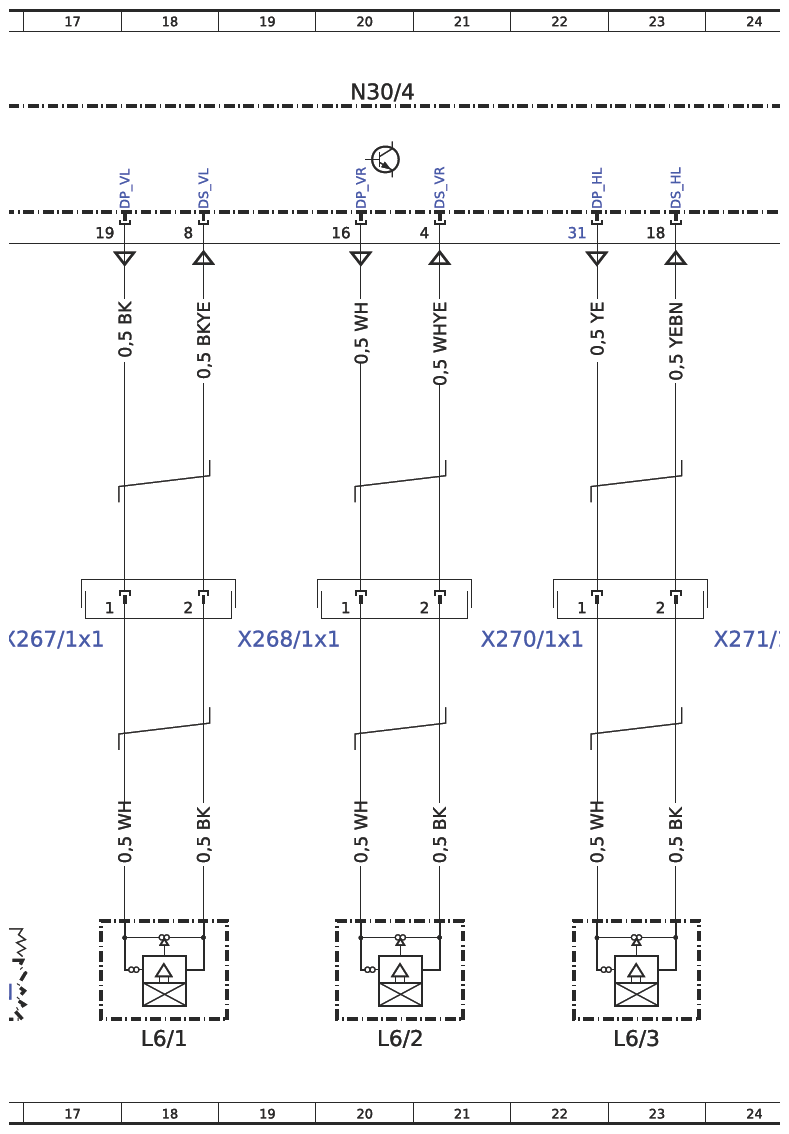

| L6/1 | Left front axle rpm sensor | 18L |
| L6/2 | Right front axle rpm sensor | 20L |
| L6/3 | Left rear axle rpm sensor | 23L |
| L6/4 | Right rear axle rpm sensor | 25L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 15L |
| N30/4 | Electronic Stability Program (ESP) control unit | 4A |
| N30/4 | Electronic Stability Program (ESP) control unit | 12A |
| N30/4 | Electronic Stability Program (ESP) control unit | 20A |
| N30/4 | Electronic Stability Program (ESP) control unit | 28A |
| N30/4 | Electronic Stability Program (ESP) control unit | 36A |
| S9/3 | Stop lamp switch | 28L |
| W70 | Electronic Stability Program ground point | 9E |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 3G |
| X227/1x2 | Main wiring harness/fuse and relay module electrical connector 2 | 1G |
| X267/1x1 | Left front axle rpm sensor electrical connector | 17G |
| X268/1x1 | Right front axle rpm sensor electrical connector | 19G |
| X270/1x1 | Left rear axle rpm sensor electrical connector | 22G |
| X271/1x1 | Right rear axle rpm sensor electrical connector | 24G |
| X302 | Chassis CAN (CAN E) potential distributor electrical connector | 11L |
